Titan TC360B Thermal Shrink Machine

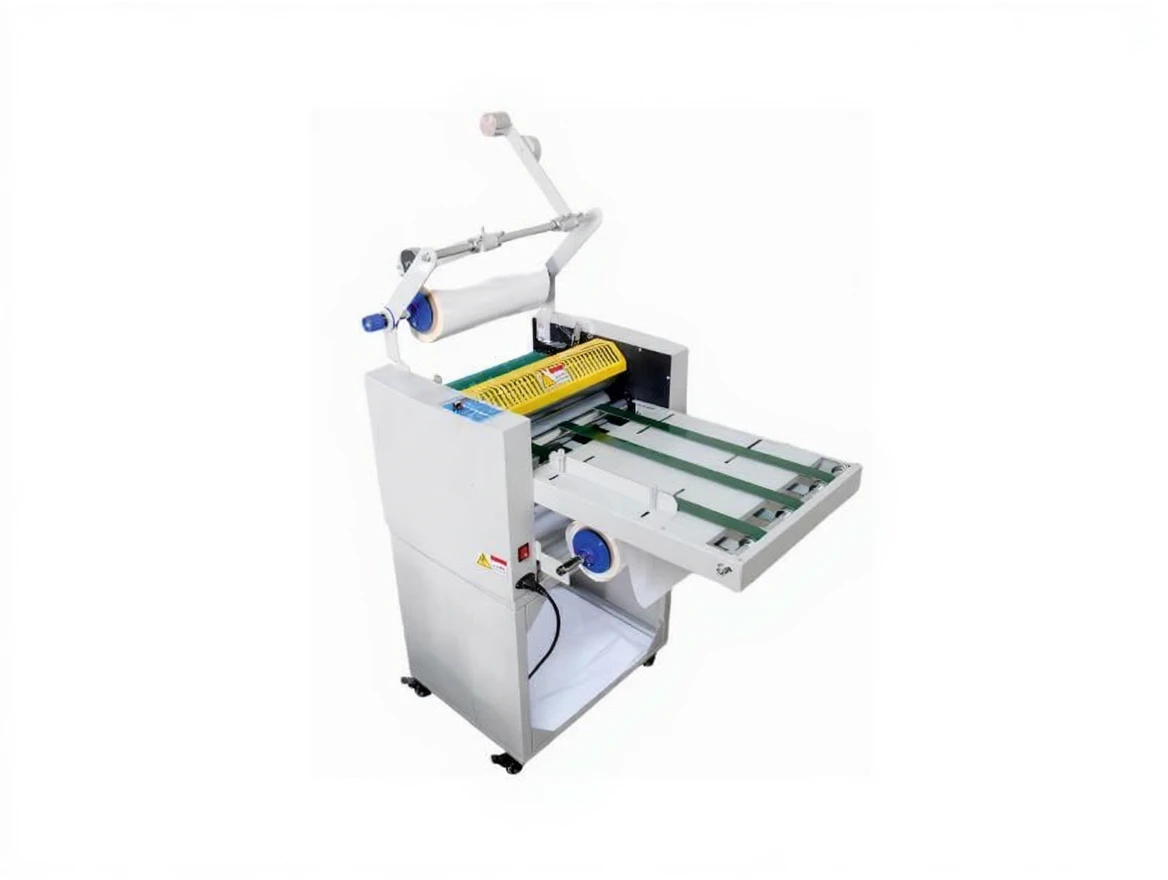

TITAN TC360B Thermal Laminating Machine

Introducing the new Titan TC360B Manual Thermal Laminating Machine with various innovations…

The hot oil heating system provides a more stable and homogeneous heat distribution, preventing quick cooling of the cylinder.

The belt feed system provides great convenience for manual operation.

With the dual shaft coil holder, you can have matte and glossy laminates in the machine at the same time without the need for removal and replacement.

The machine comes with a wheeled stand that allows you to place the machine anywhere in your workplace.

The Titan AC360B comes in 2 models. There is also a model with a gold foiling attachment for digital foiling.

• Max paper size: 360 x 1000 mm
• Min paper size: 150 x 150mm
• Feed system: Manual, conveyor table
• Operating speed: 0~13 m/min
• Heating System: Oil heating
• Lamination temperature: 80~160 degrees
• Lamination pressure: Mechanical
• Separation system: Manual, perforated tearing
• Paper thickness: 100-350 gsm
• Cutting blade: available
• Anti-curling system (ironing): available
• Bottom tray: available
• Power: 2 kW, 220V, 50Hz
• Dimensions: 0.77×0.53×1.14m
