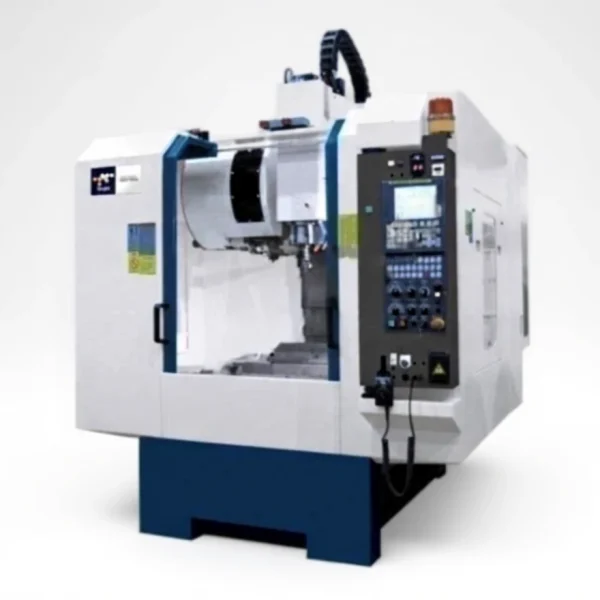

TMV-1050A CNC Vertical Machining Center

TABLE

Table Size mm 1100×500 Maximum Workpiece Weight kg 700 Table Height mm 900 T Slots mm 18×5 Spindle Nose to Table Distance mm 100-630

SPINDLE

Spindle Taper   7/24 No.40 Spindle Speed rpm [ PHONE HIDDEN ],000 ops.)

AXES

X Axis Travel mm 1050 Y Axis Travel mm 500 Z Axis Travel mm 530 Rapid Traverse m/min 30-30-24 Cutting Feedrate mm/min 10000

TOOL MAGAZINE

Tool Shank   BT40 Tool Pull Stud   Mas-P40T-1 (45°) Tool Capacity pcs 24 Neighbor Tool Dia. (with adjacent tools) mm 89 Neighbor Tool Dia. (without adjacent tools) mm 125 Max. Tool Length mm 250 Max. Tool Weight kg 7

MOTOR

Spindle Motor Power (%50 ED) kw 15 Cooling Motor kw 0.37 Axis Motors Power (X,Y,Z) kw [ PHONE HIDDEN ]

MACHINE DIMENSIONS

Width x Length mm 2400×2870  Height mm 2810 Net Weight kg 6800

Equipped with Fanuc OiMD and Standard Accessories.
