Top-Bottom Belt Semi-Automatic Box Strapping Machine

Top-Bottom Belt Semi-Automatic Box Strapping Machine

·         The machine is Semi-Automatic (Manual lid closing) | ​Manual Height and Width Adjustment

·         It performs the strapping process from the bottom and top of the filled boxes without manual contact.

·         There are 40 cm additional idle rollers at the front and back of the machine.

·         180 W Reducer | 2 Motor, 4 belt bottom and top conveyor system.

OPTIONS:  _ The machine can be produced completely from stainless chrome nickel.

                           _ Special design and production can be made for very large or very small box sizes.

                           _ Occupational safety, protective cage.

Suitable Box Dimensions        : Length : 150 mm – ∞ mm | Width : 150 mm – 500 mm | Height : 120  mm – 500 mm

Capacity                          : max. 30 Boxes / Minute

Electricity                            : 220 V. 50-60 Hz. 1 Ph.

Strap Width                 : 4-5 cm

Machine Dimensions               : Length : 1580 mm | Width : 750 mm | Height : 1400 mm

Weight                               : 150 kg

—  After your personnel fill the box, the machine automatically straps the bottom and top simultaneously without manual contact.  —

Delivery and Other Details

·         Machines are covered by a 2 YEAR warranty against manufacturing defects.

·         10 years of spare parts supply, maintenance, and service guarantee

·         Spare parts lists for the machine and equipment, maintenance and user manual, training video are provided together.

·          Prices do not include VAT.

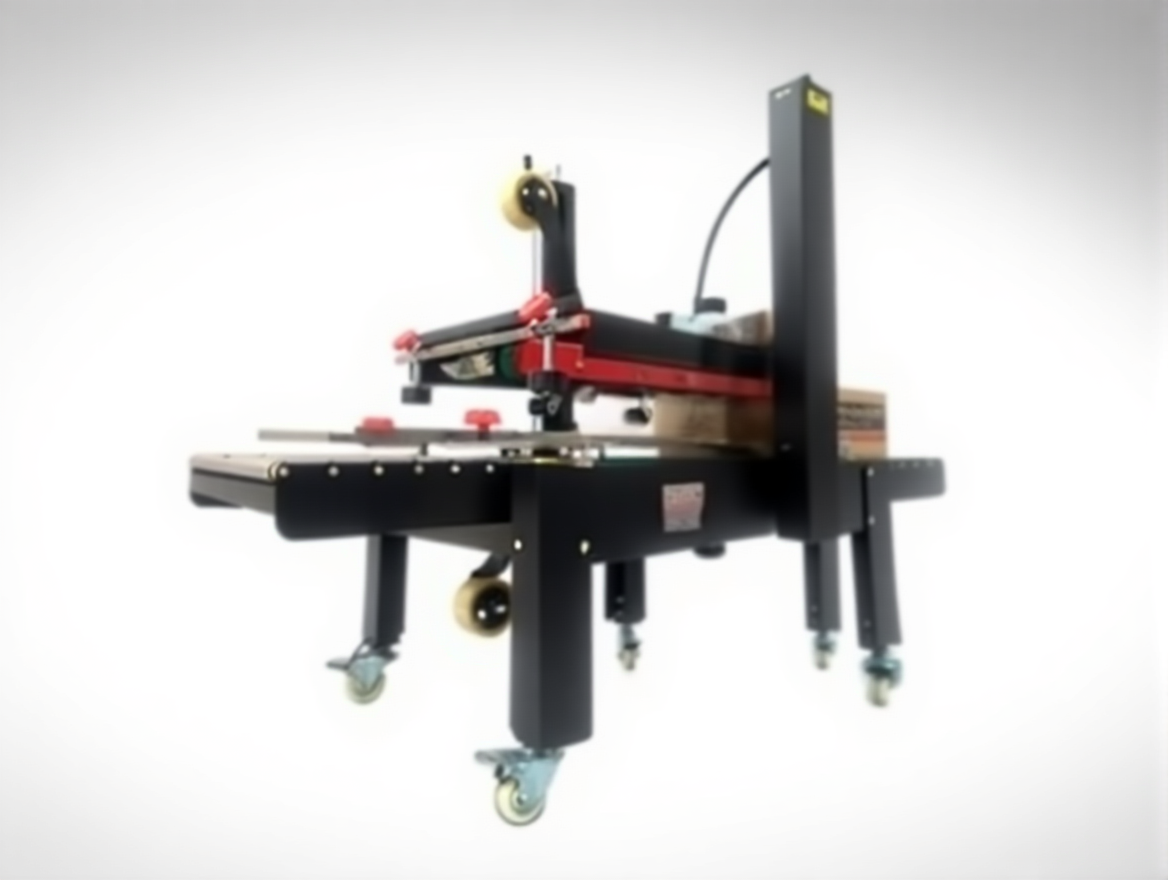

TUVA Koli Bantlama Makinesi / Box Taping – Caarton Sealer (Yarı Otomatik / Semi Automatic)
