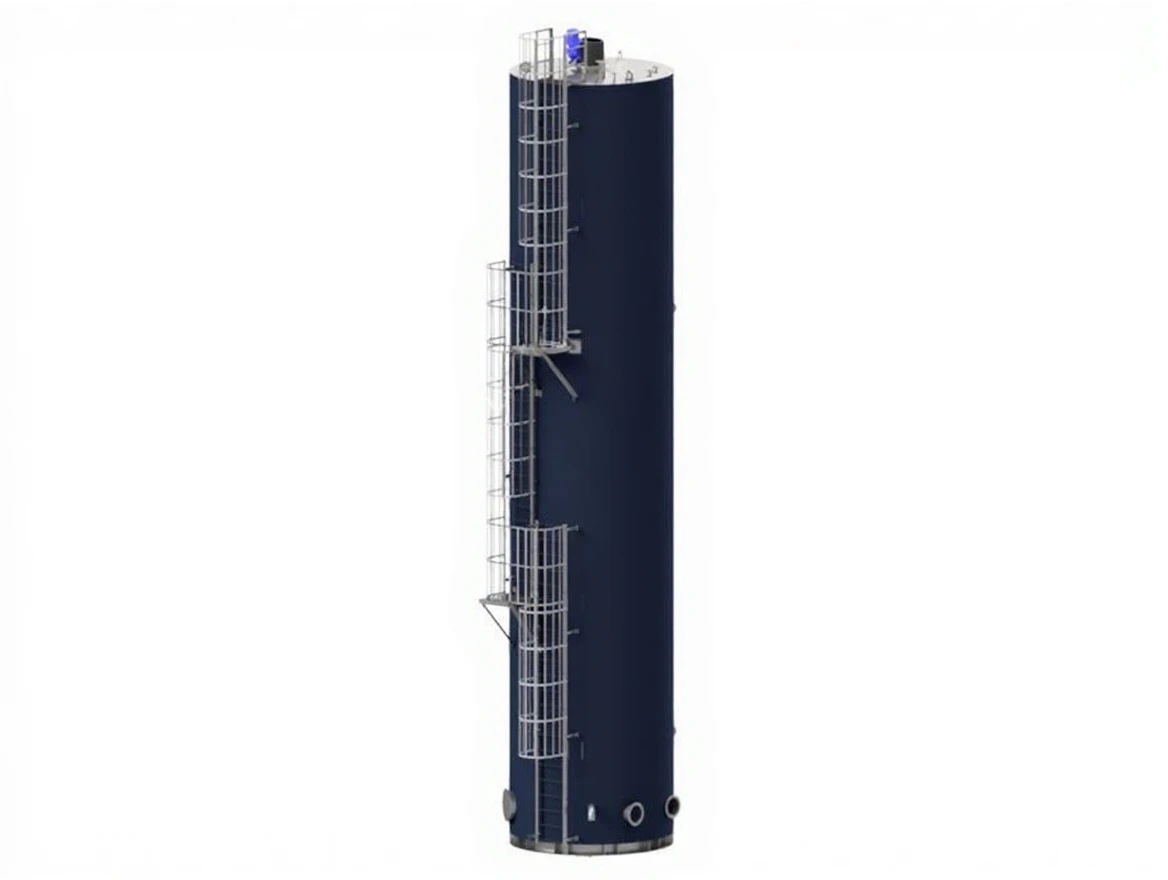

ErichHahn MT-100M Top Loading Mobile Tank

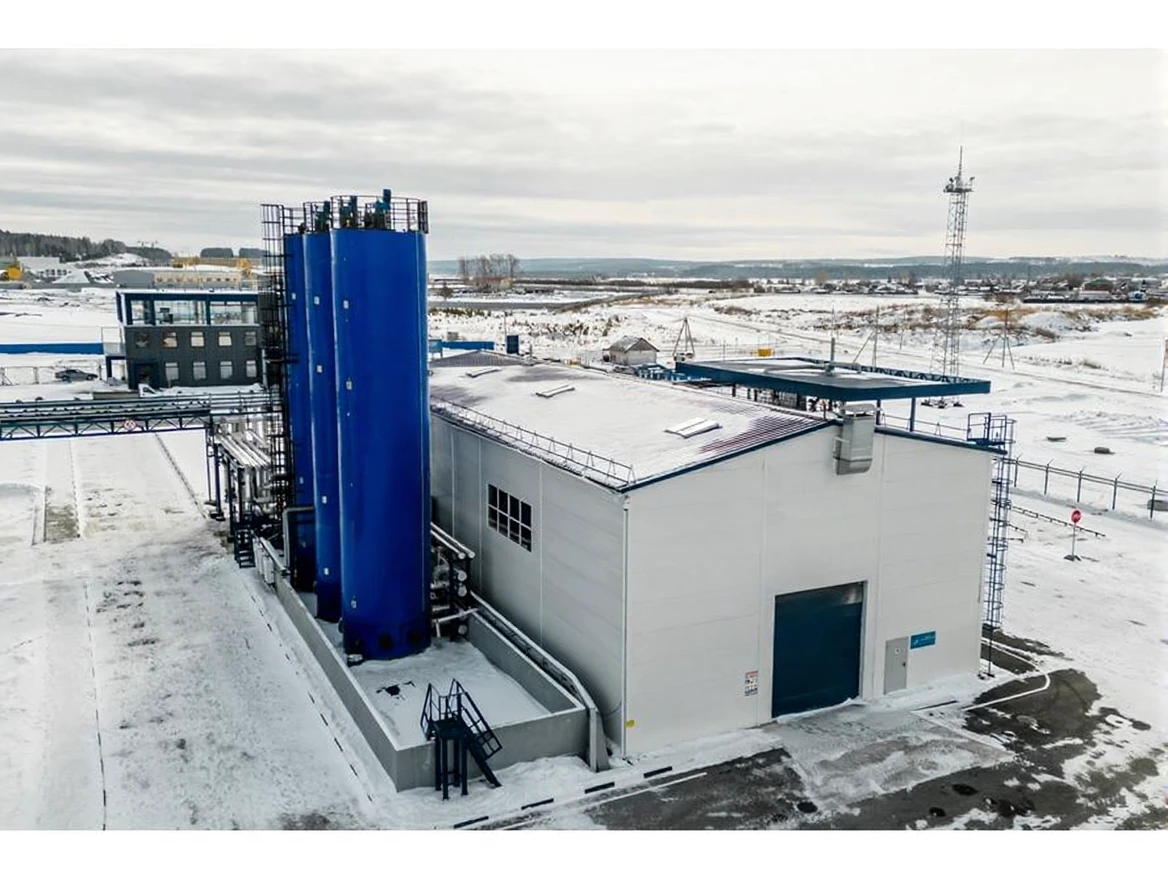

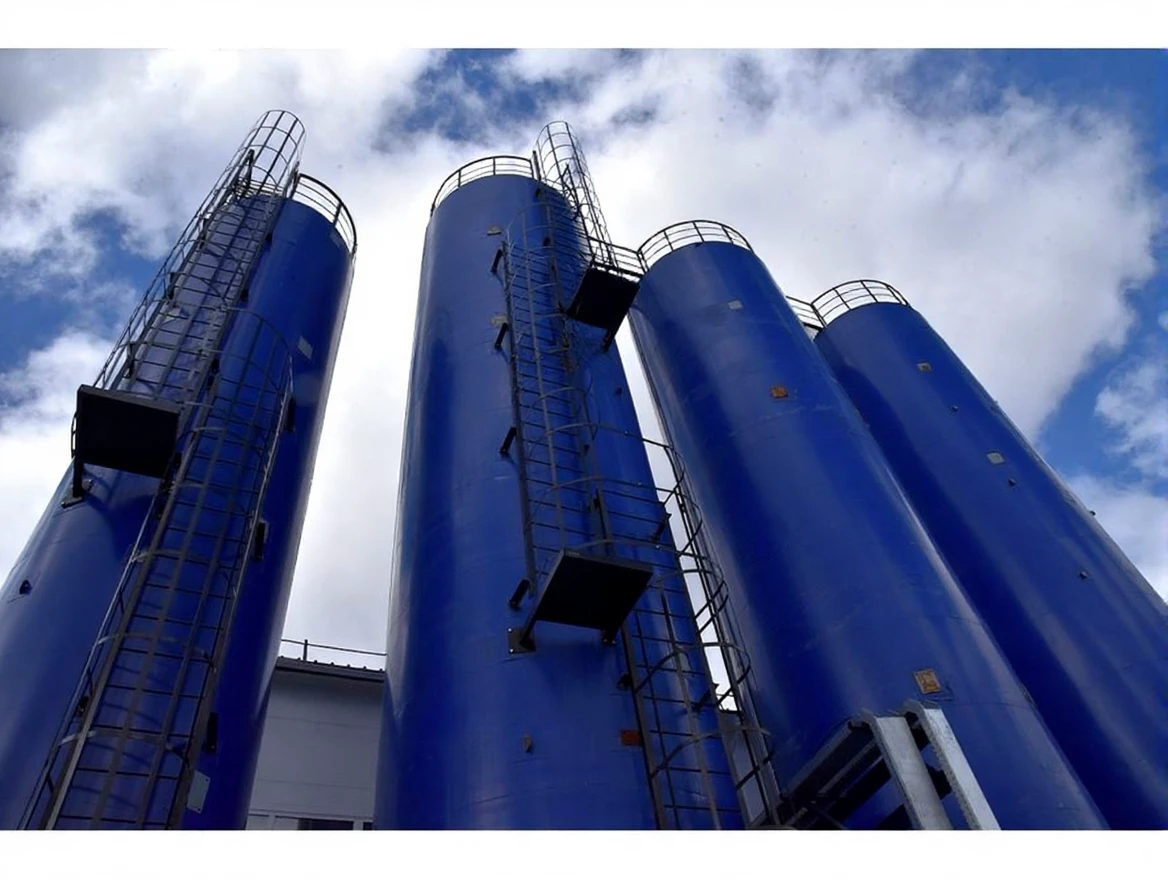

ErichHahn MT mobile tanks are designed to actively heat and store heavy oil, ensuring transportation while preserving its quality. Mobile tanks can also be used as process tanks in oil, gas, chemical, food and other industries. They have a small area and can be easily transported by road.

ErichHahn MT Advantages

MT-M series tanks are additionally equipped with a mixer, instrumentation, control panel, heating system, insulation and service platforms.

Product Range

MT-50
MT-50М
MT-100
MT-100М

Control Cabinet

The tank is provided with a local control cabinet. This cabinet allows monitoring and controlling instrumentation in the field or remote control can be achieved by integrating the cabinet into APCS.

Mobile Tank Options

• Electric heaters to increase product temperature
• Covers with electric actuators for remote process control

ErichHahn MT-100M Technical Specifications

instrumentation
working environment	Viscous and solidifying liquids
Working environment max. temperature, °C	200
Tank capacity, m³	100
Inner diameter, mm	3000
Height, mm	16410
Weight, kg	13000
Tank loading type	Overhead
Tank discharge type	from below
Overflow protection device	It is foreseen
Mixer
Vertical	It is foreseen
Steel structure parameters
Number of tank courses	9
1-2. course thickness, mm	8
3-4. course thickness, mm	6
5-11. course thickness, mm	5
Roofing thickness, mm	5
Base thickness, mm	10
Insulation
Wall insulation thickness, mm	150
Roof insulation thickness, mm	200
coating material	Polymer coated steel plate
Heating system
main heating
oil heater	It is foreseen
heat transfer fluid	hot oil
Oil pipe connection, mm	50
Maximum oil temperature at 0.6 MPa, °C	200
extra heating
heating elements	–
level meter	It is foreseen
Maximum level alarm	It is foreseen
sampling device	It is foreseen
Temperature meter (for heavy oil)	It is foreseen
Gate valve with electric actuator, DN, mm	150 (optional)
bimetallic thermometer	It is foreseen
ventilation pipe	It is foreseen
Control Panel	It is foreseen
Country of origin	Türkiye

Brand	ErichHahn
Model Type	MT-100M
