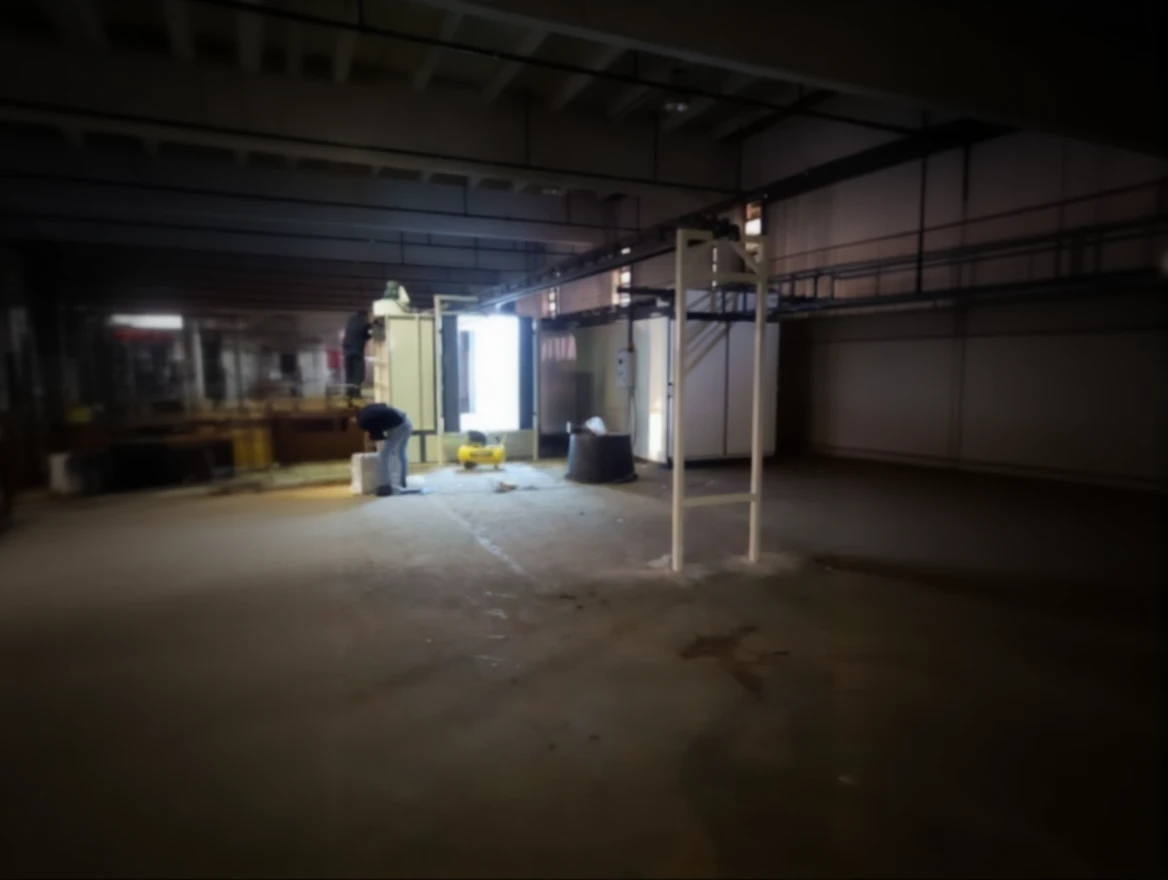

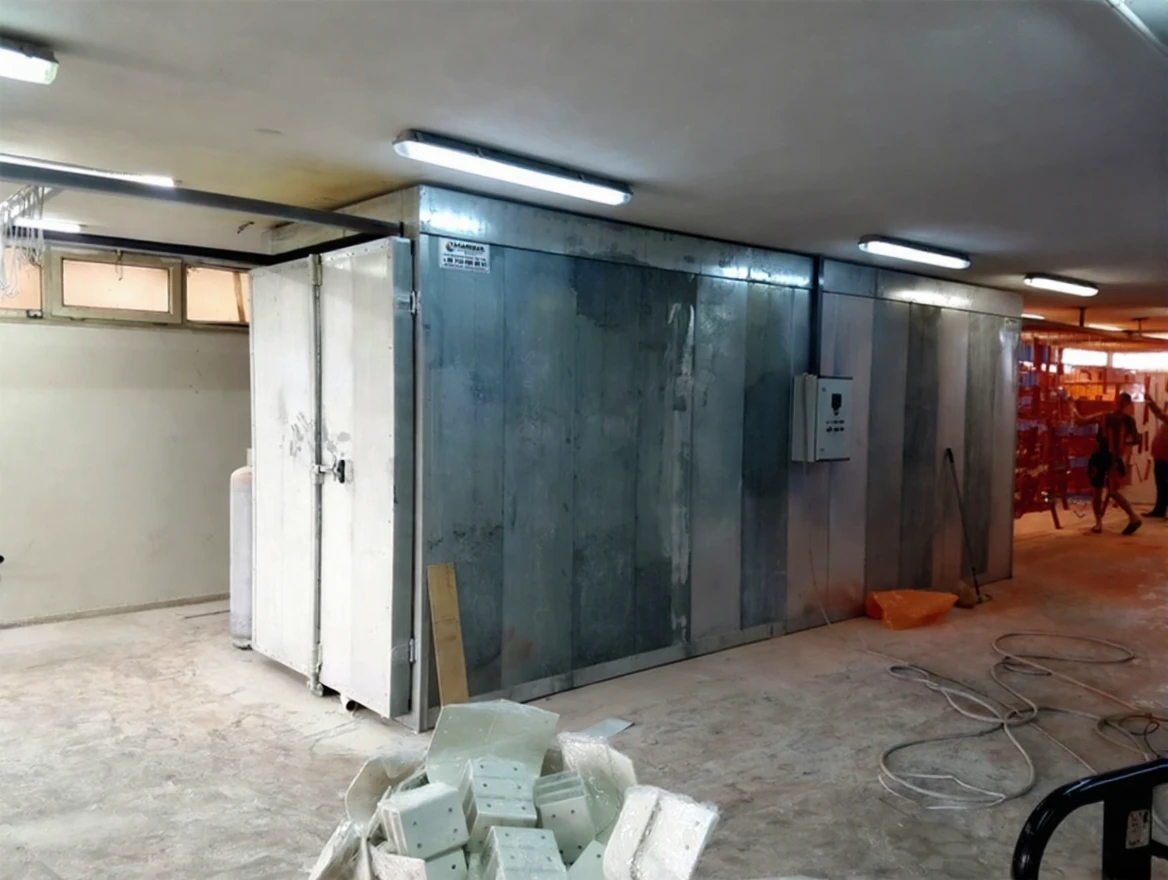

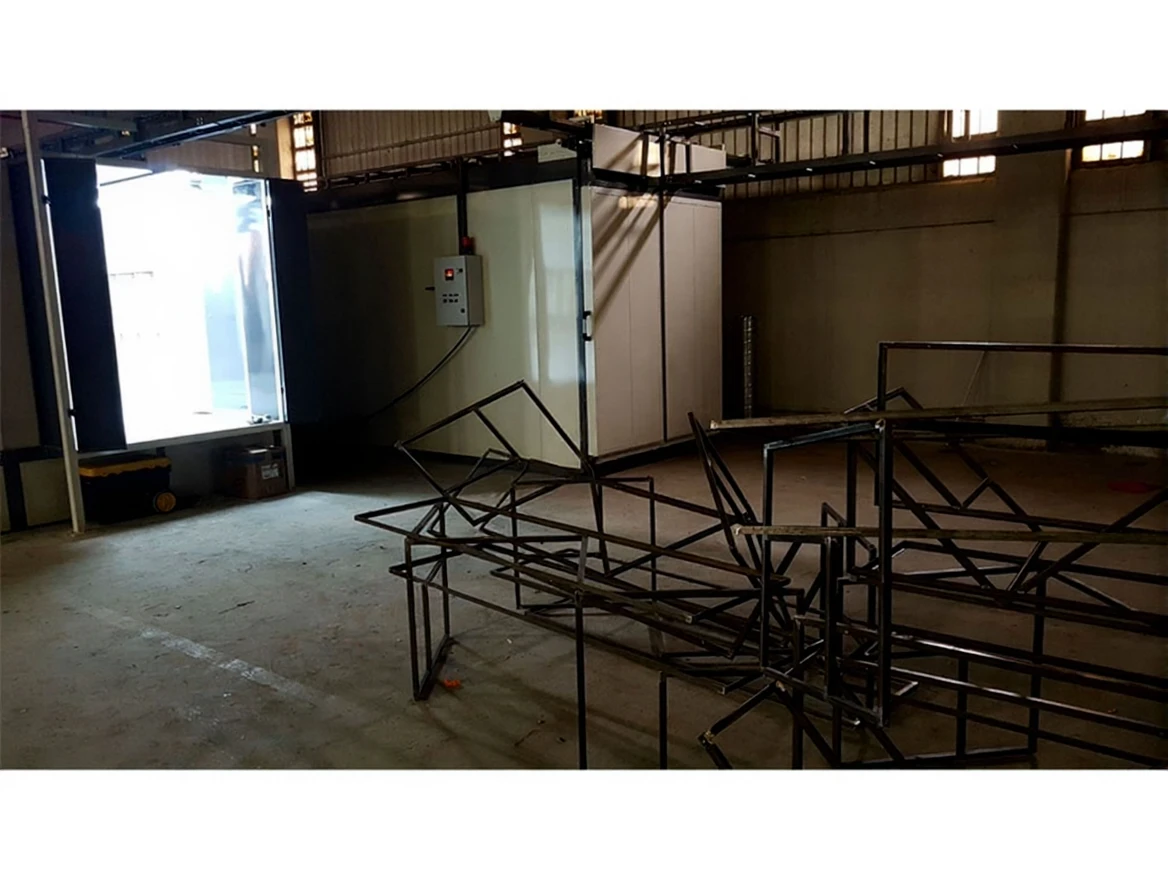

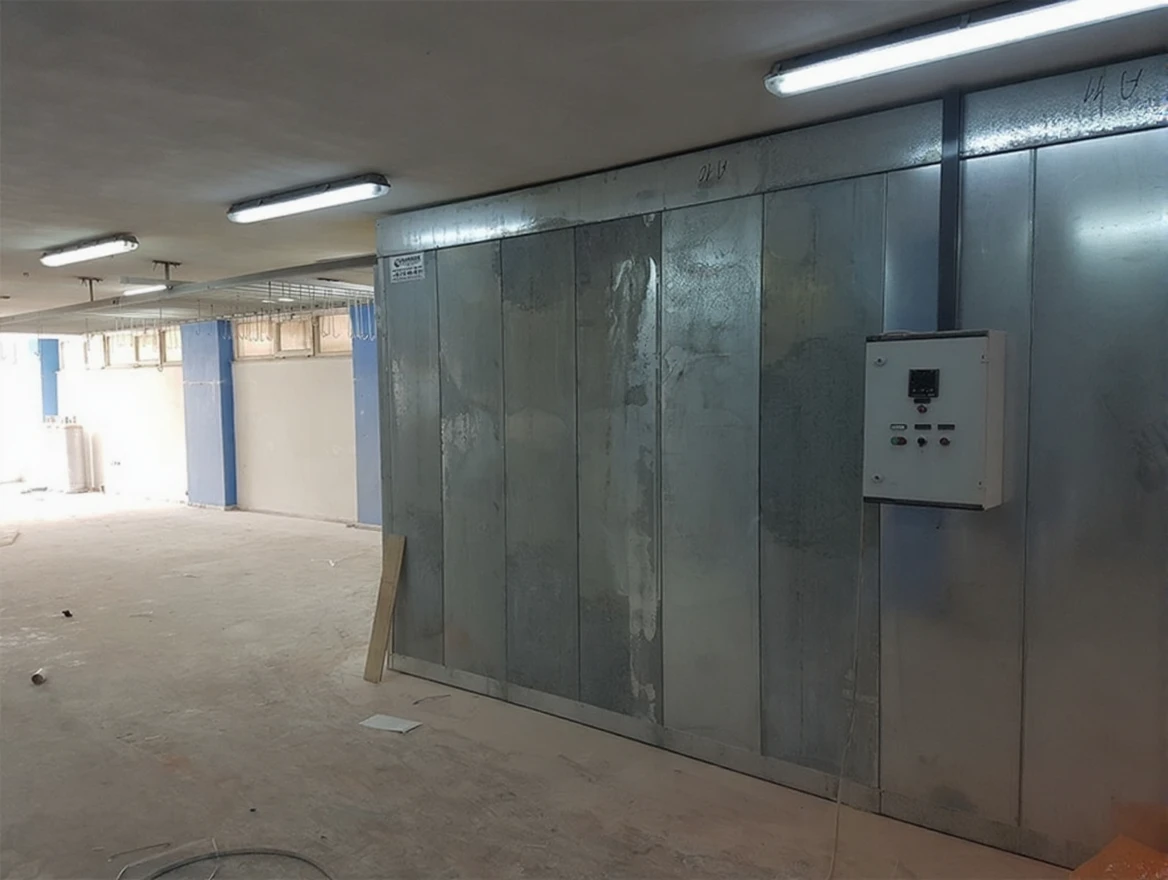

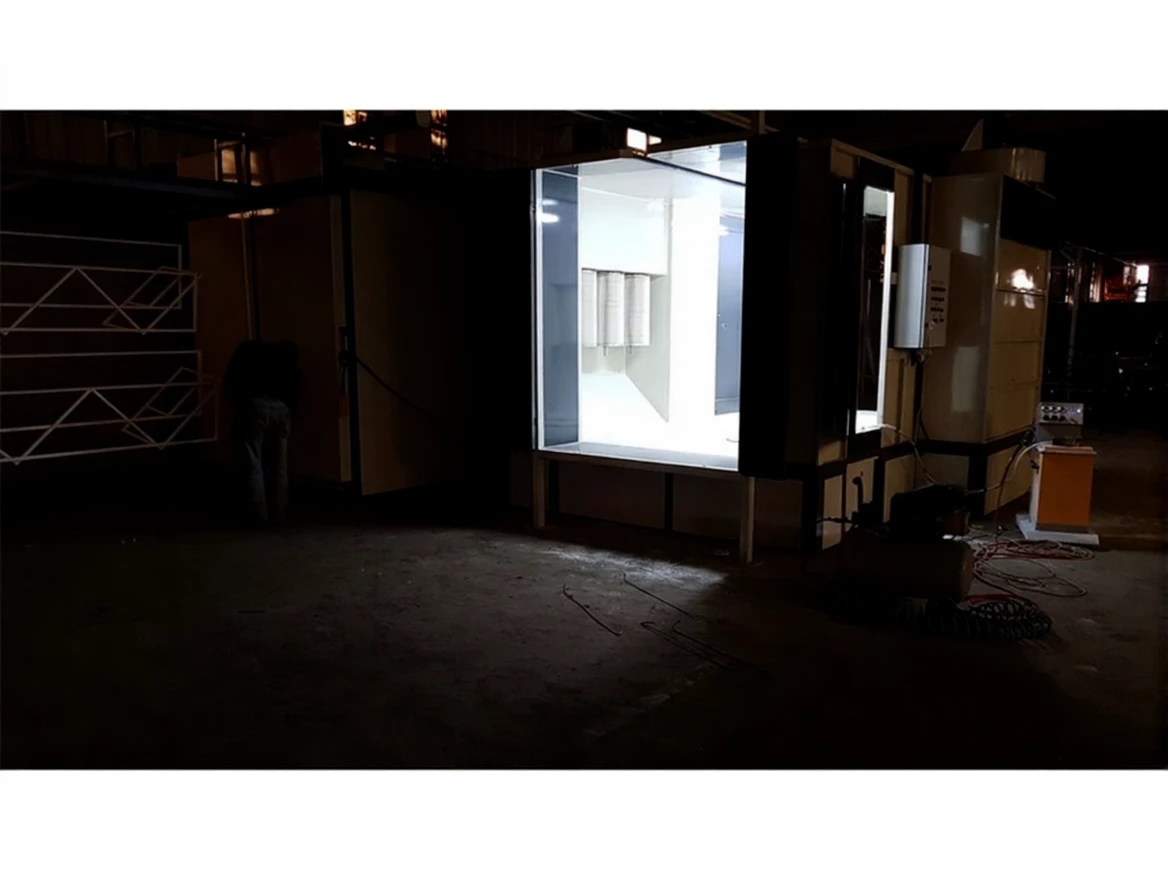

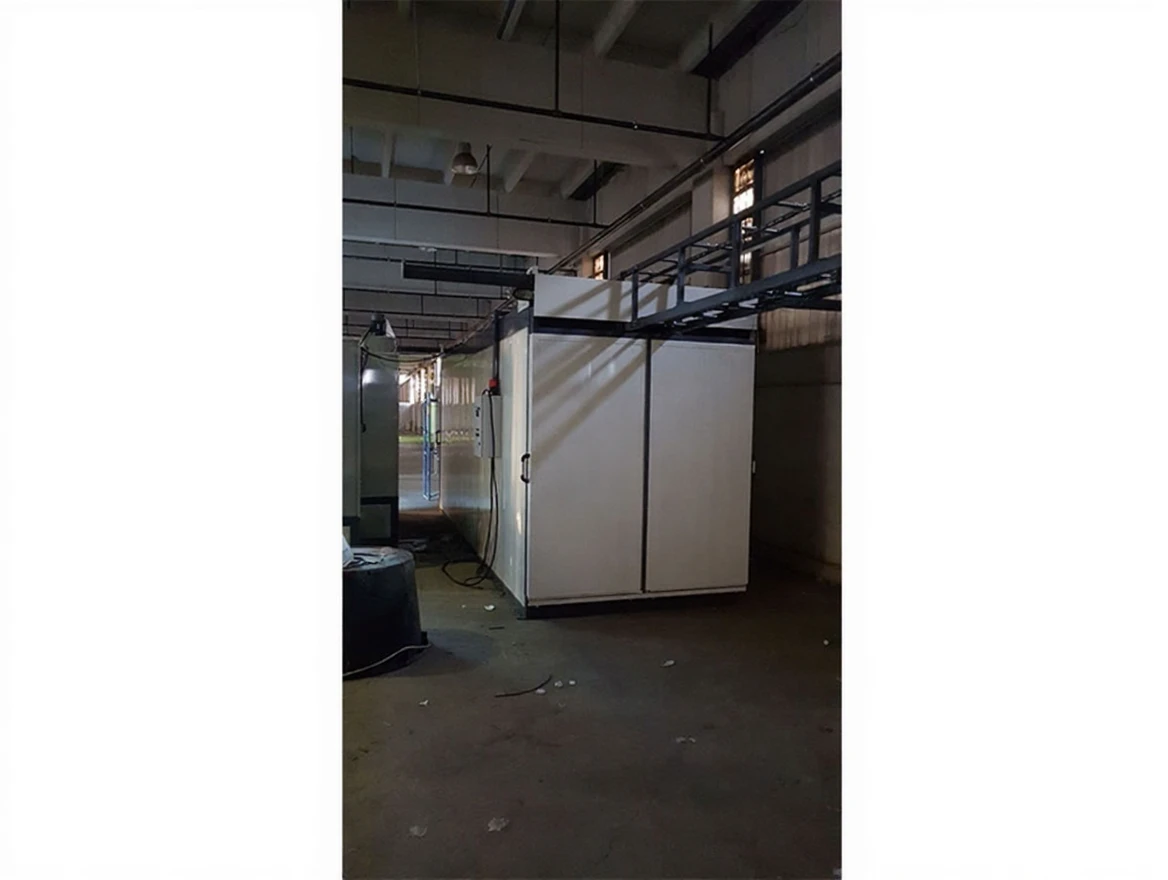

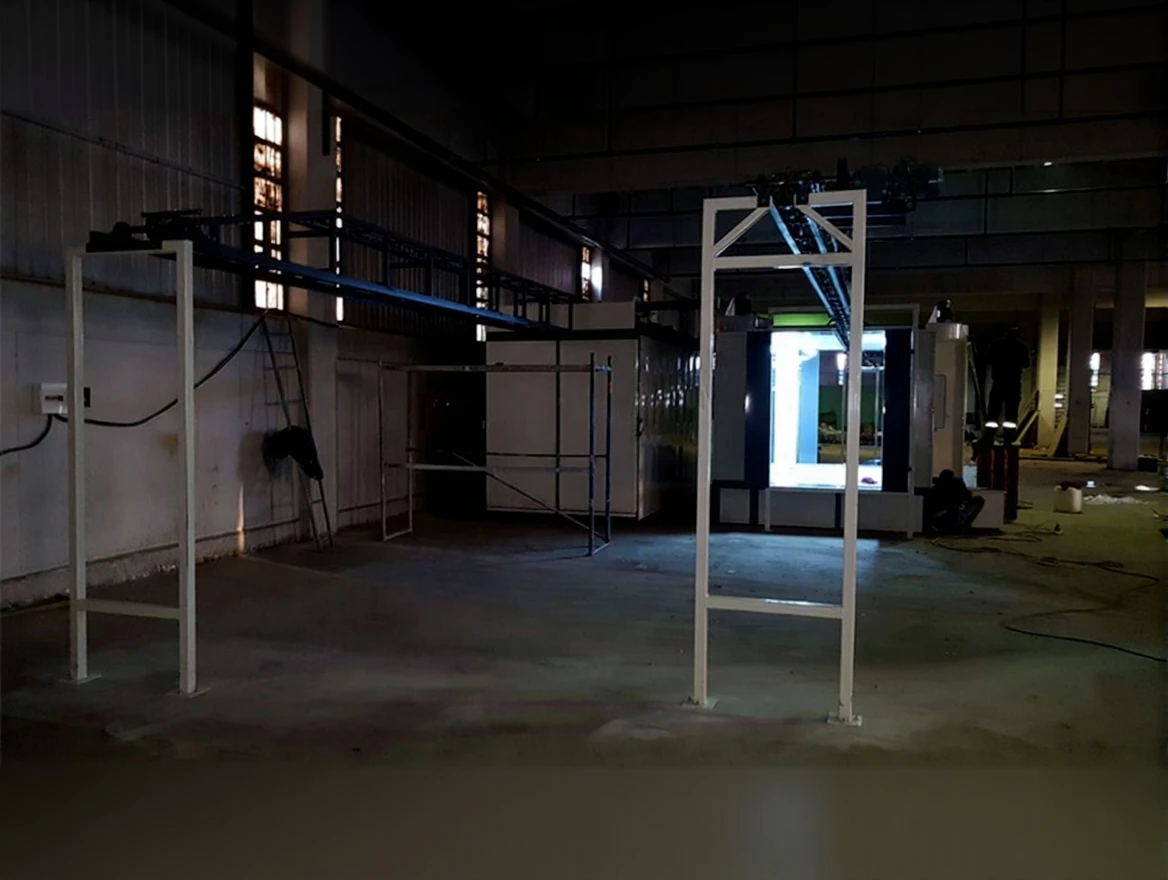

Top Palette Paint Curing Oven
| Brand | Tasarımak |
|---|---|
| Model Type |
T-UPPF01 |
2 Meter / Minute Top Palette Paint Curing Oven
Design
- Top Palette Curing Ovens; are semi-automatic structures. They are preferred in systems where the materials to be painted are much heavier and the number of parts to be painted is high. The advantage of this system is to ensure that the product advances with the conveyor on the oven, without touching it, from the moment the painted product is hung on the conveyor until the product is completely cooled using the control system on the oven.
- These structures operate in 3 stations.
- In the first station, the product exiting the oven cools down, while in the second station, the painted product is cured inside the oven. In the third station, the product painted in the cabin is hung on the conveyor. In this structure, the painting and drying process reduces time loss significantly compared to car ovens.
|
Manufacturing Method |
Manufactured as modular in disassembled form |
|
Construction |
65' U 40*40 Corner Iron |
|
Hanger Spacing |
500 mm |
|
Hanger Material |
16' Hexagonal Shaft |
|
Hanger Carrying Capacity |
100kg. |
|
Chain |
SS 40-ST 37 heat-treated |
|
Gear |
160'ı |
|
Reducer |
40 rpm |
|
Carrying Load |
1000kg. |
|
Bearing Model |
6202 C3 22 |
|
Drive Center |
1.5kw |
|
Lubrication |
Manual |
|
Tension Station |
With 20' Bolt manually |
|
Speed |
2mt/min |
|
Tensile Strength |
5000kg/m |
|
Conveyor Legs |
60*60 *2mm Box Profile |
|
Manufacturing Method |
Manufactured as modular in disassembled form. |
|
Panels |
150mm sandwich panel |
|
Inner Panel Sheet |
1.2mm st 37 13-18 microns Galvanized Sheet |
|
Outer Panel Sheet |
1.2mm st 37 Sheet DDQ |
|
Chassis |
2mm st 37 Sheet DDQ |
|
Top Corner |
2mm st 37 Sheet DDQ |
|
Construction |
65' and 100' U Iron |
|
Inner Insulation |
50mm 50 kg/m3 Rock Wool inside the oven |
|
Outer Insulation |
120mm 18 kg/m3 Glass Wool outside the oven |
|
Air Duct |
2mm special design galvanized st 37 Sheet |
|
Transport Car |
Made of 50*50 box profile as a chassis |
|
Oven Door |
4 pcs Slide |
|
Temperature |
180-230 °C |
|
Temperature Control |
Digital Thermocouple PT 100 and Fe Constant |
|
Electrical Units |
SCHNEİDER |
|
Used Cables |
TSE & CE |
|
Color |
Top corners : RAL 7016 / Panels : RAL 9002 |
|
Construction Type |
Modular System |
|
Panel |
150mm Sandwich Panel |
|
Insulation |
150mm 50 kg/m3 Rock Wool |
|
Heating Type |
LPG / ELK / LNG / Diesel (optional) |
|
Heating Method |
Convection |
|
Heating Load |
Kcal LPG |
|
Thermoblock Capacity |
Serpentine resistor |
|
Thermoblock Structure Material |
310 Chrome |
|
Thermoblock Pipes |
60' Steel drawn smoke pipe |
|
Thermoblock Heat Control |
Digital |
|
Thermoblock Repair Form |
Special design Intervention Cover located in the side compartment |
