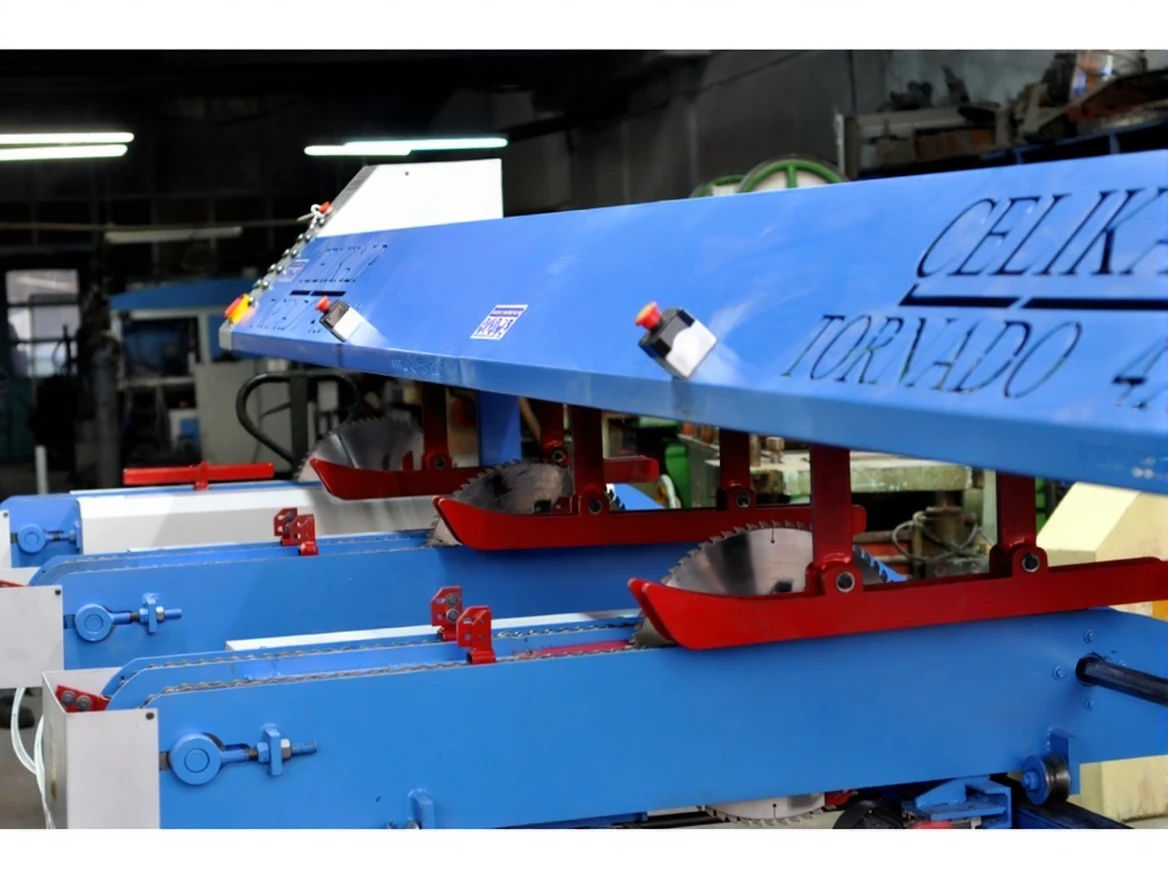

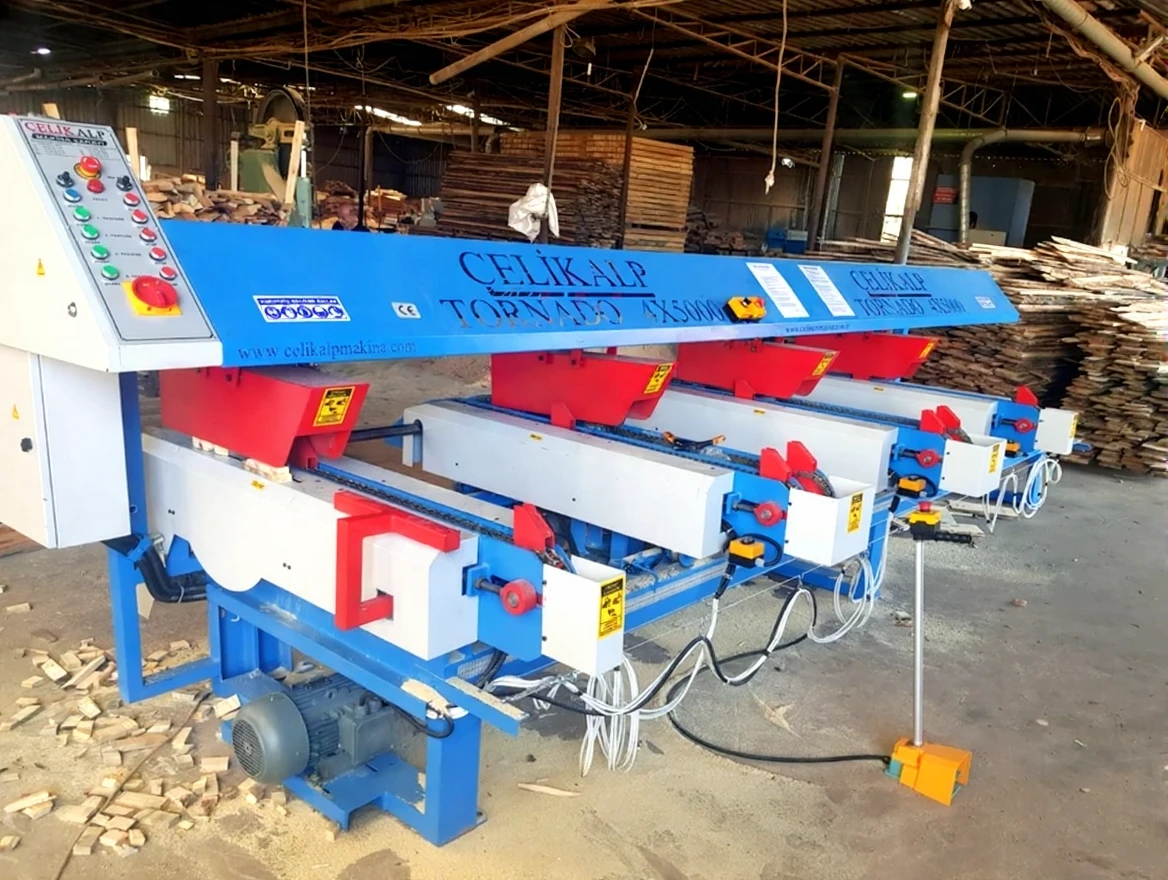

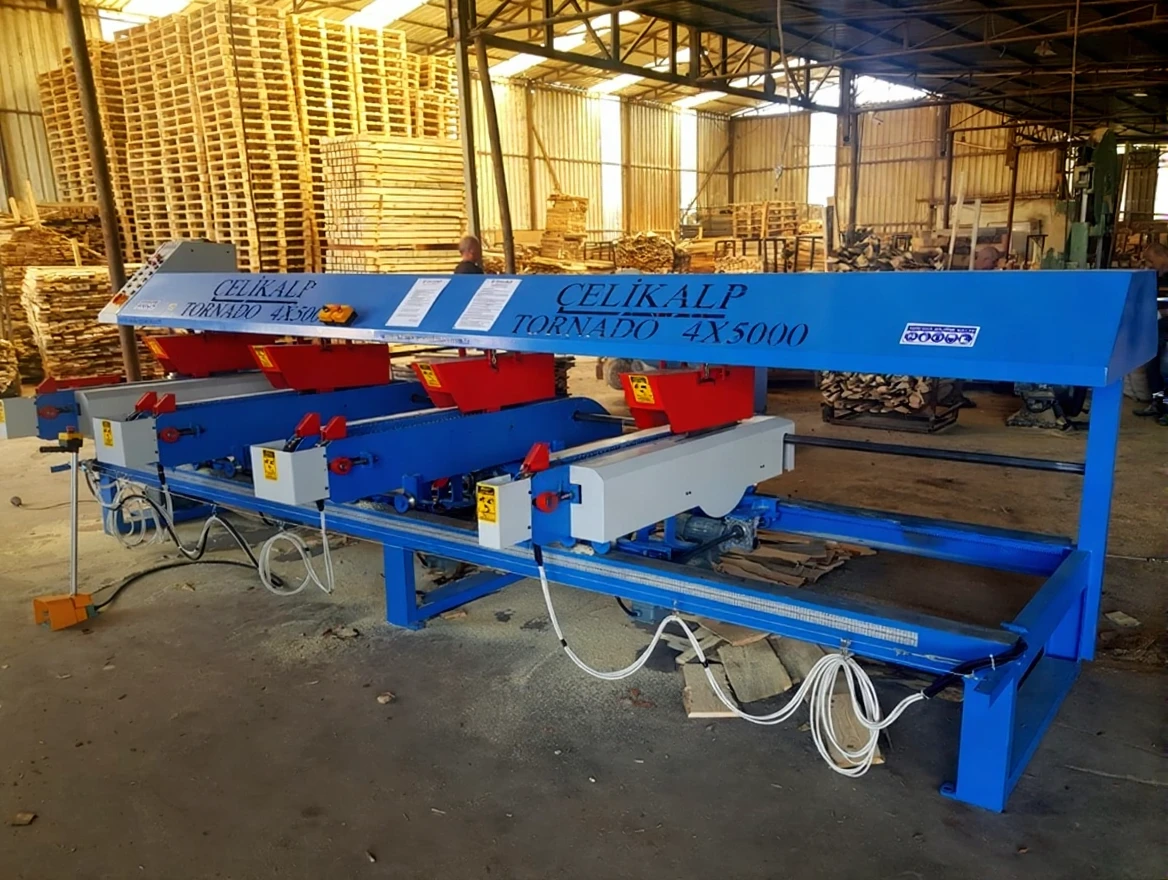

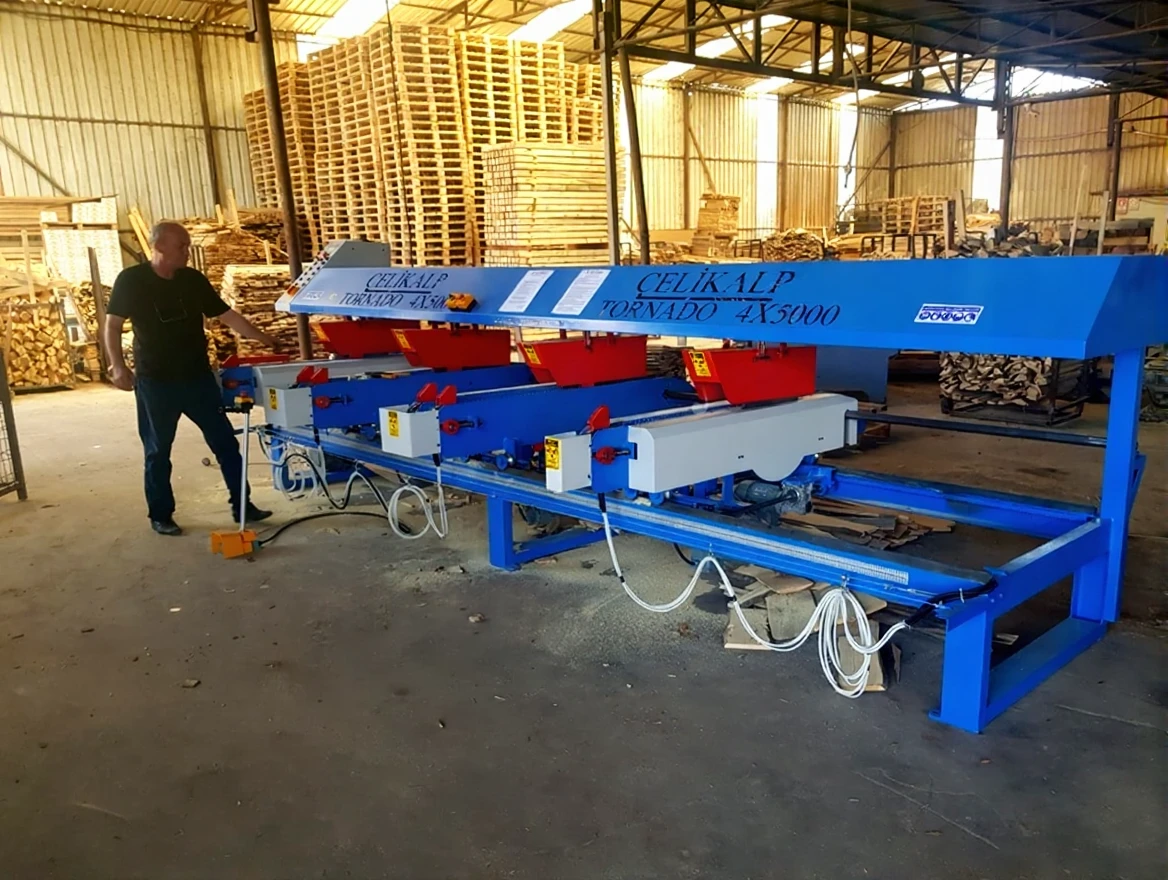

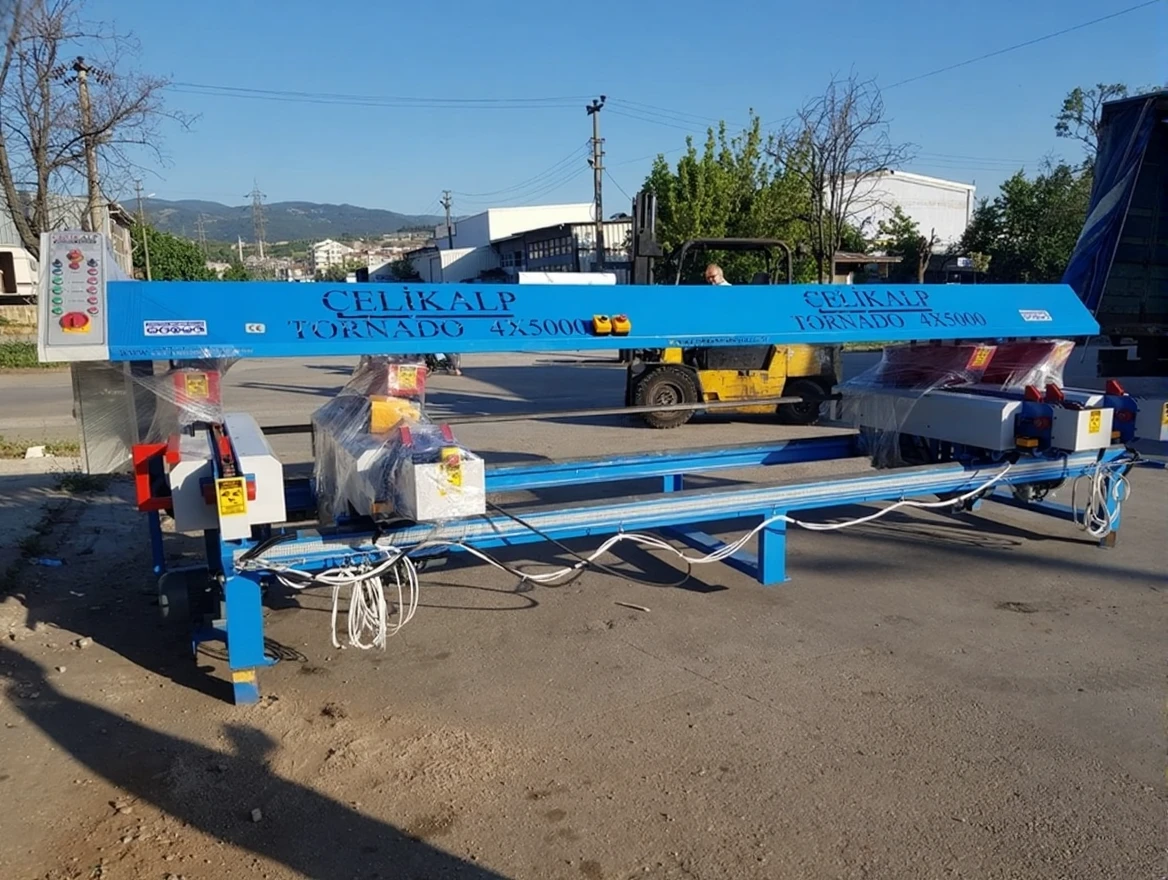

TORNADO 4X5000 (4 Head) Log Trimming Machine

Çelikalp TORNADO 4X5000 / Log Trimming Machine

Technical Specifications

MAX CUT LENGTH: OPTIONAL

MIN CUT LENGTH: 650mm

MAX CUT HEIGHT: 170mm

MAX CUT WIDTH: 400mm

MOTOR POWER: 3000rpm 4KW-7.5KW AS OPTIONAL

MEASUREMENT ADJUSTMENT: WITH REDUCER – SPEED ADJUSTABLE

MOTION TRANSMISSION: WITH CRANKSHAFT

PALLET REDUCER MOTOR POWER: 1.5KW YILMAZ REDUCER

PALLET MOVEMENT: SPEED ADJUSTABLE – DRIVEN

Tornado 4X5000 Protection Systems

CE CERTIFIED FULLY PROTECTED UPPER PRESSURE SYSTEM

SAW GUARD.

HAS UPPER GUARD.

DIMENSION (WIDTH x LENGTH x HEIGHT): 2150mm X OPTIONAL X 1500mm

WEIGHT: >1100KG
