Trifon Bolt Counting and Lubrication Machine
| Brand | NMT |
|---|---|
| Model Type |
N-TC001 |
NMT
Trifon Bolt Counting and Lubrication Machine
General Information
What is the Trifon Bolt Counting and Lubrication Machine?
This machine automatically fills the specified amount of bolts produced into the Jumbo bag and provides automatic lubrication at specified intervals.

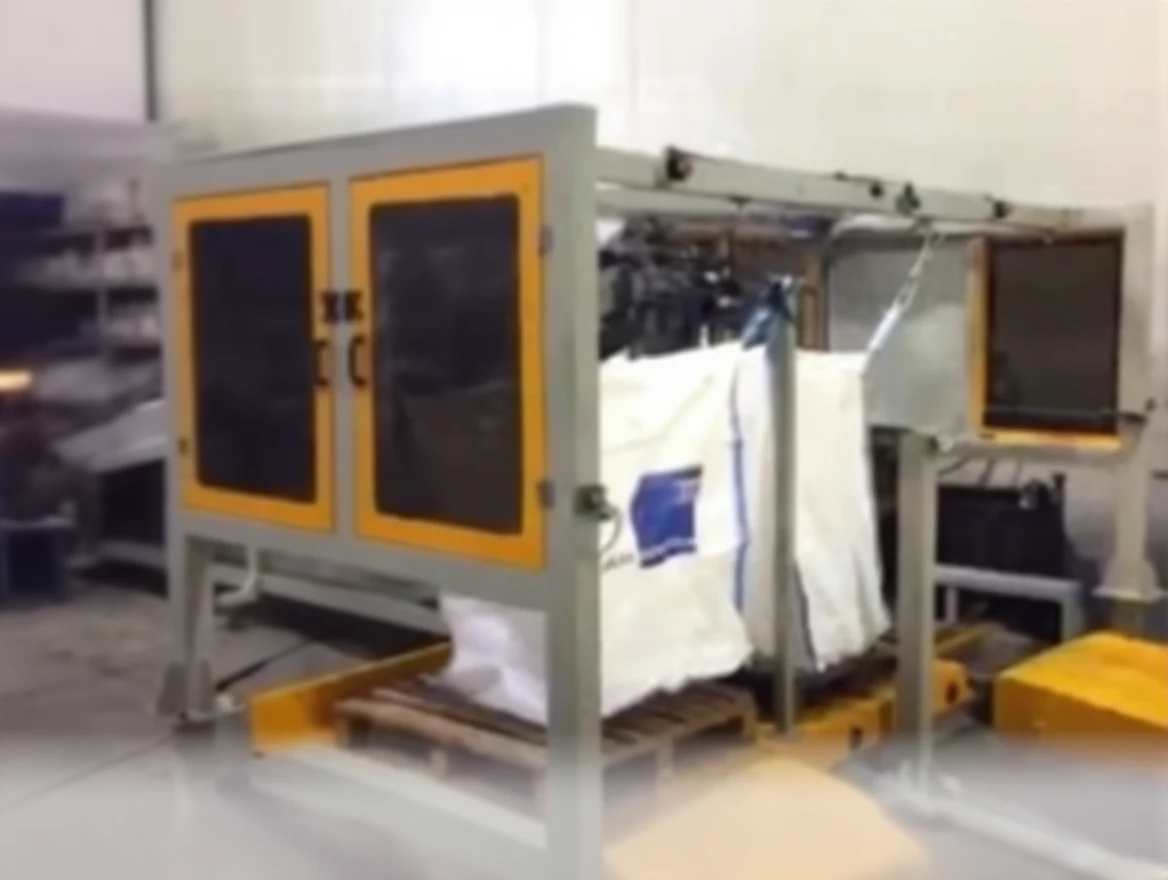

The rusting of bolts lubricated at regular intervals is prevented. When the specified quantity (for example, 2000 pieces) is reached, the mechanism under the bag automatically shifts left or right to bring the other empty bag under the conveyor. This way, the system automatically performs the bag change and starts filling the new bag.
Technical Information
Control System
-

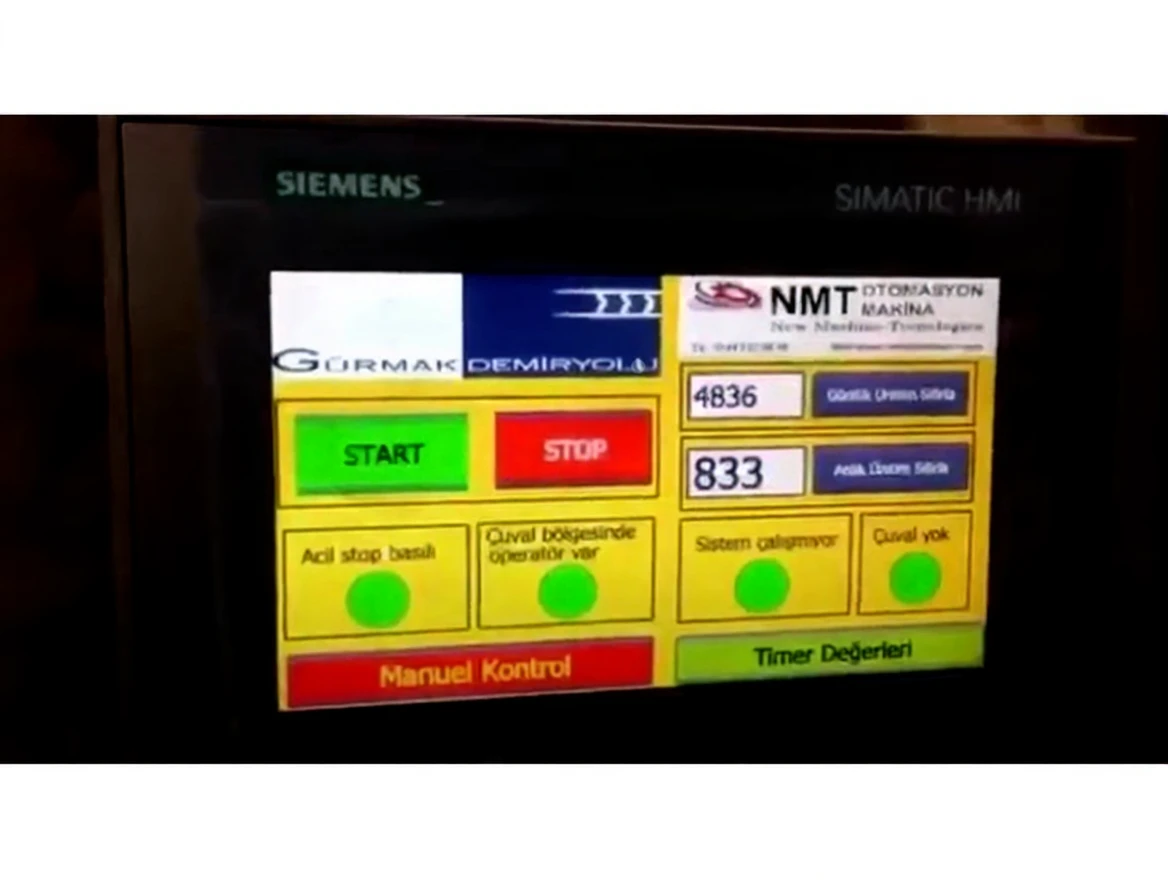

PLC HMI
User Interface
-
Touch Panel
Production Capacity
-
7000 Pieces / Day
Safety System
-
Emergency Stop Required
Installed Power
-
6 KW
Drive System
-
Driver Controlled Asynchronous Motor
Motor Drive Transmission
-
Chain Gear
Operating Voltage
-
380 V 3L-N-PE 50 HZ
Air Pressure
-
6 Bar
Weight of the Machine
-
450 kg
Dimensions of the Machine
-
3*7*2 mt
Advantages of the Trifon Bolt Counting and Lubrication Machine
Thanks to this machine, Jumbo bags that were previously filled by counting manually are now counted automatically by the machine. The biggest advantage of this is that all the problems the company faced with the companies it sold its products to due to missing or incorrect quantities have been resolved. As much as you produce quality products, delivering the desired product completely and accurately is a very essential nuance for your company’s prestige.
Another benefit is reducing your workforce in the warehouse by 60%, minimizing your labor costs. Additionally, it allows you to perform a standard filling hourly, ensuring that the production planning department meets delivery times.
Automatically lubricating itself, for example, once every 200 products and automatically changing the bag are other benefits that significantly increase your production speed.
Prices of the Trifon Bolt Counting and Lubrication Machine
Today, the prices of Bolt Counting and Lubrication Machines are not as high as one might think. Especially when considering its functionality and features, this situation becomes clearer. Our machine operates with German-made Siemens brand PLC. Siemens brand is also used for the Touch Screen. The mechanics are processed with CNC precision tolerances. When the significant reduction in labor costs and the speed it brings to production are calculated, it becomes an investment that pays for itself in 5-6 months and allows you to make significant profits every month thereafter. Considering these nuances, it is a machine with a very good price-performance ratio.
