Triple PVC Collar Drilling and Water Drainage Machine

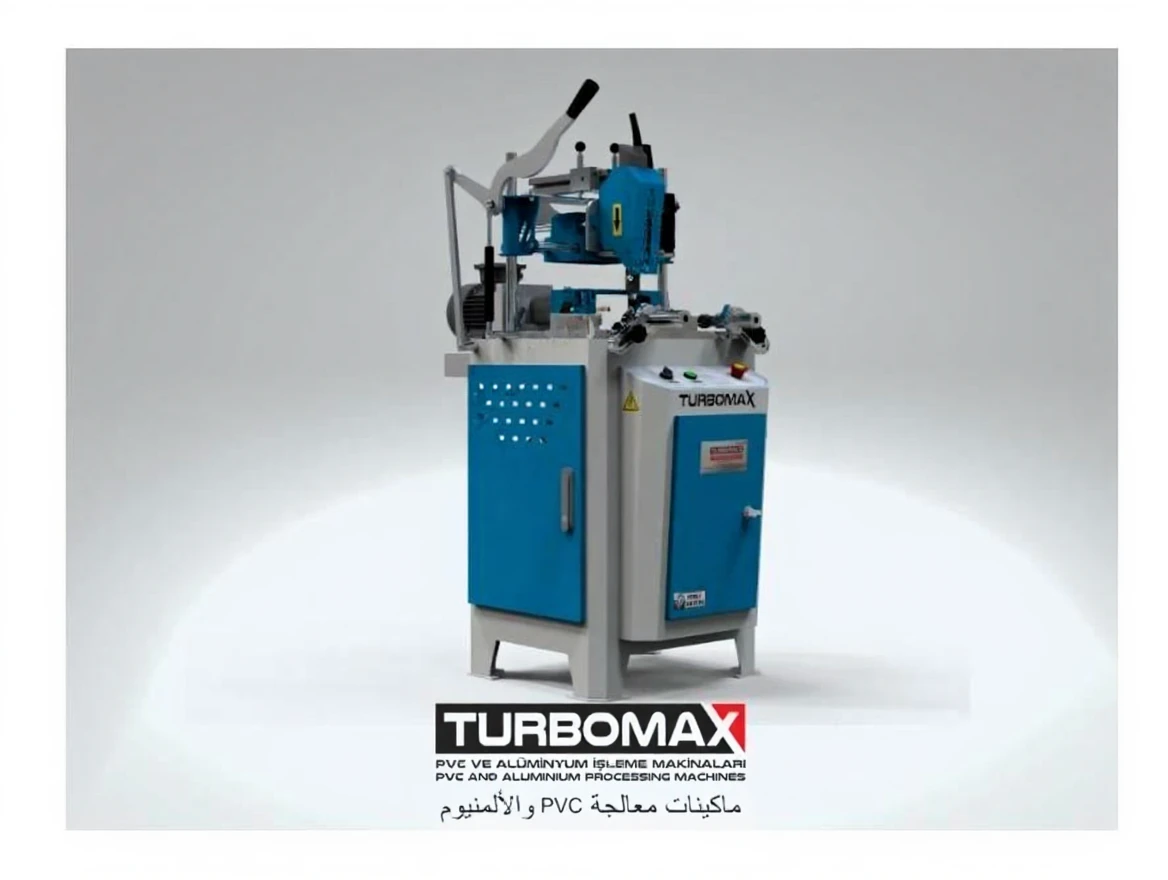

Turbomax EMR 0043 Triple PVC Collar Drilling and Water Drainage Machine

Turbomax EMR 0043 is a machine designed for drilling collar holes, lock places, and opening water drainage channels in PVC profiles. This machine, which offers high efficiency and precision, has a wide range of applications in the construction and building materials industry.

Main Features:

• Multi-Functional Operation: With the vertical axis operation of the copy motor, the triple drilling process is carried out on the horizontal axis. This feature facilitates workflow by combining different functions in a single machine.

• Fully Automatic Water Drainage Channel Opening: The water drainage channel opening process is fully automatic and can be operated with a user-friendly single button. This saves time and labor.

• Flexible Operating Options: Triple drilling, copy milling, and channel opening systems can operate separately. This allows for easy transitions between various processes.

• Pneumatic Profile Clamping System: Since profile clamping operations are carried out with a pneumatic system, workpieces are securely fixed, ensuring maximum precision during cutting operations.

• Universal Template: The machine is equipped with a universal template to work compatibly with different profiles.

Technical Specifications:

• Motor (Engine): 380 V, 50-60 Hz, 0.75 kW

• Processing Capacity:

  • Minimum Height: 40 mm

  • Maximum Height: 185 mm

• Weight: 120 kg

• Size:

  • Length: 560 mm

  • Width: 930 mm

  • Height: 1350 mm

• Air Pressure: 6.5 – 8 Bar

• Tool Type: Three-phase

• Minimum Piece Length: 350 mm

Conclusion

Turbomax EMR 0043 is a machine that offers high performance and precision in your PVC processing operations. With its versatile features and automatic functions, it makes your work processes more efficient while saving time and costs. This machine is one of the most essential tools needed in modern construction projects. For detailed information and orders, you can contact us.
