Truck Chassis Welding System
| Brand | YKS |
|---|---|
| Model Type |
BSRSK |
Description
Truck Chassis Welding Machine
YKS BSRSK

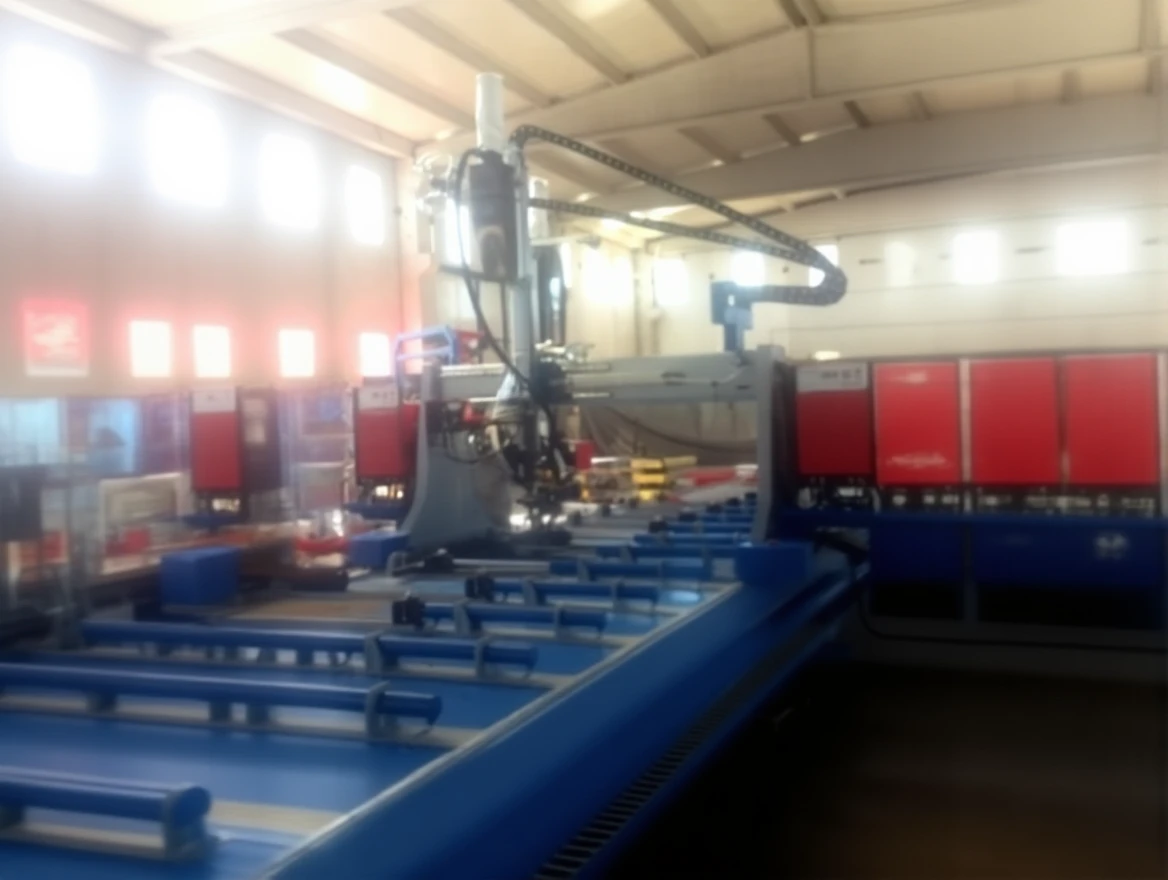

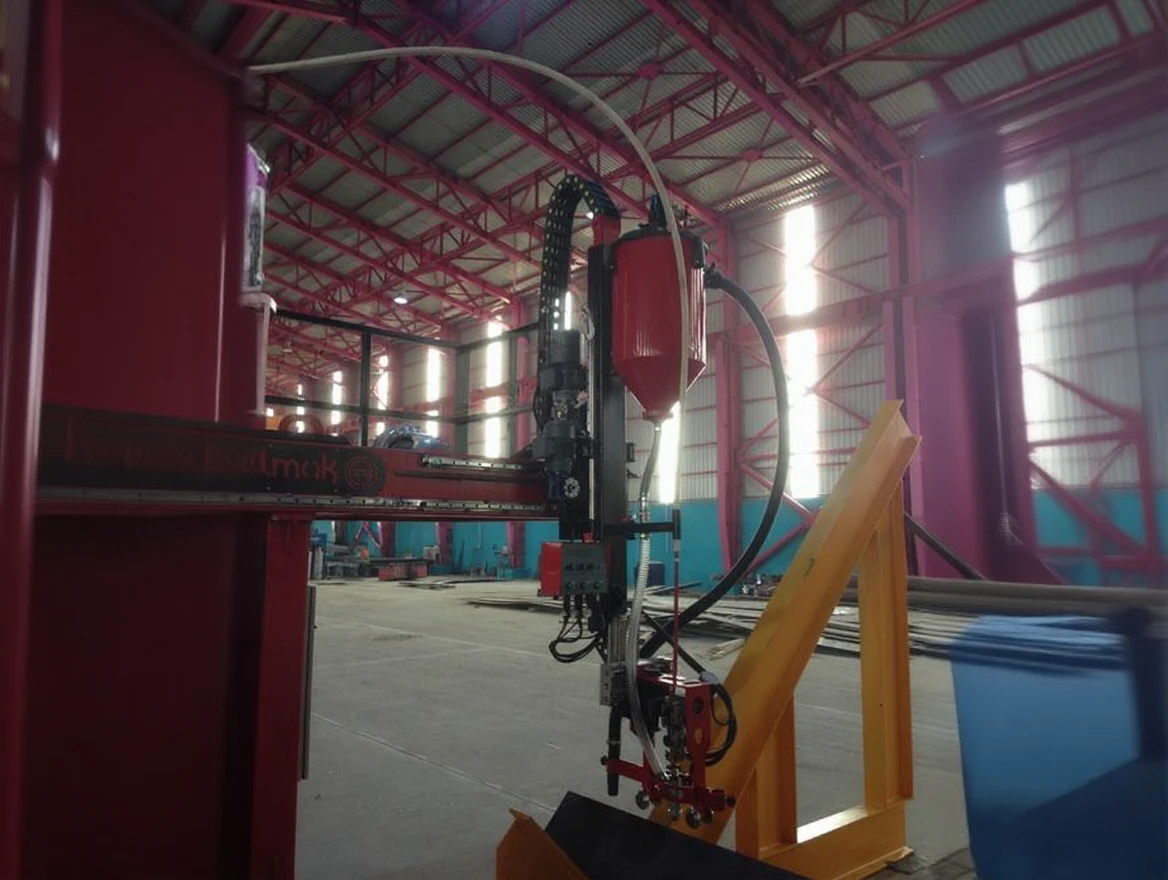

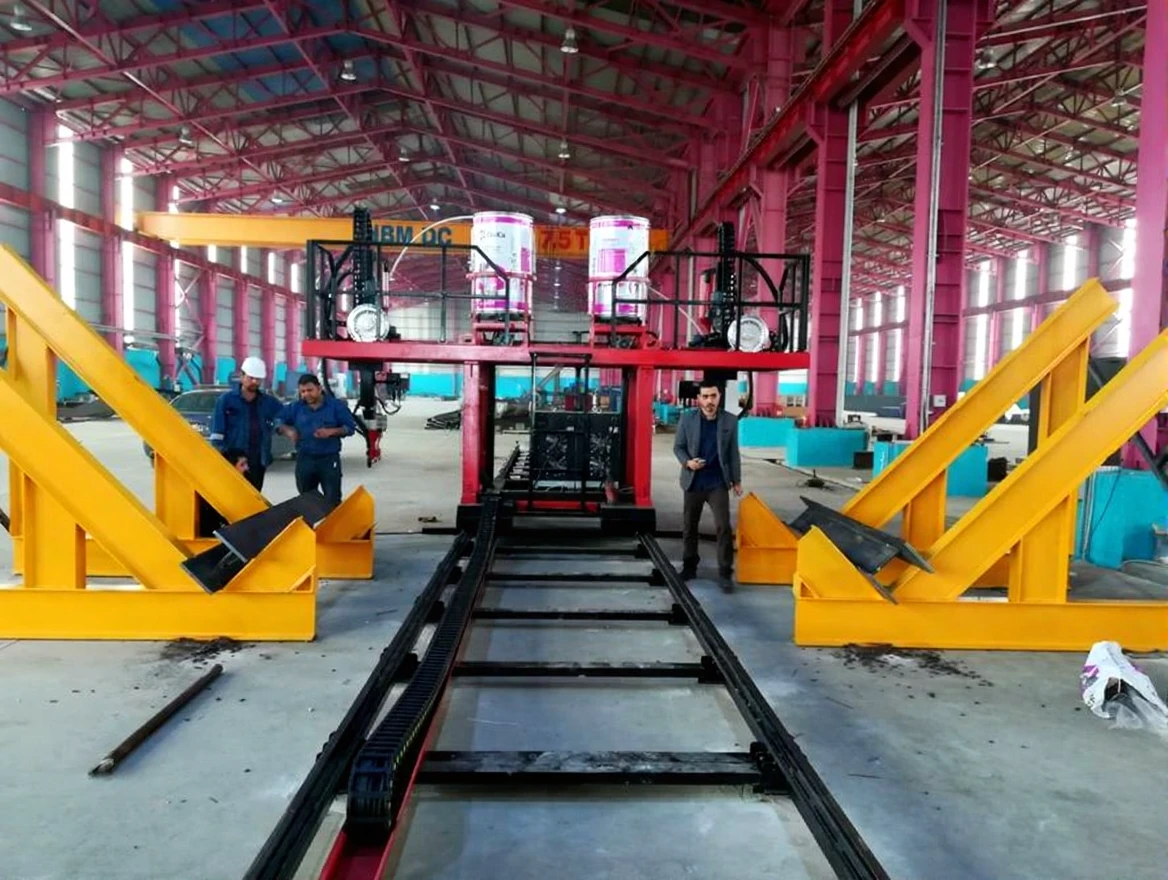

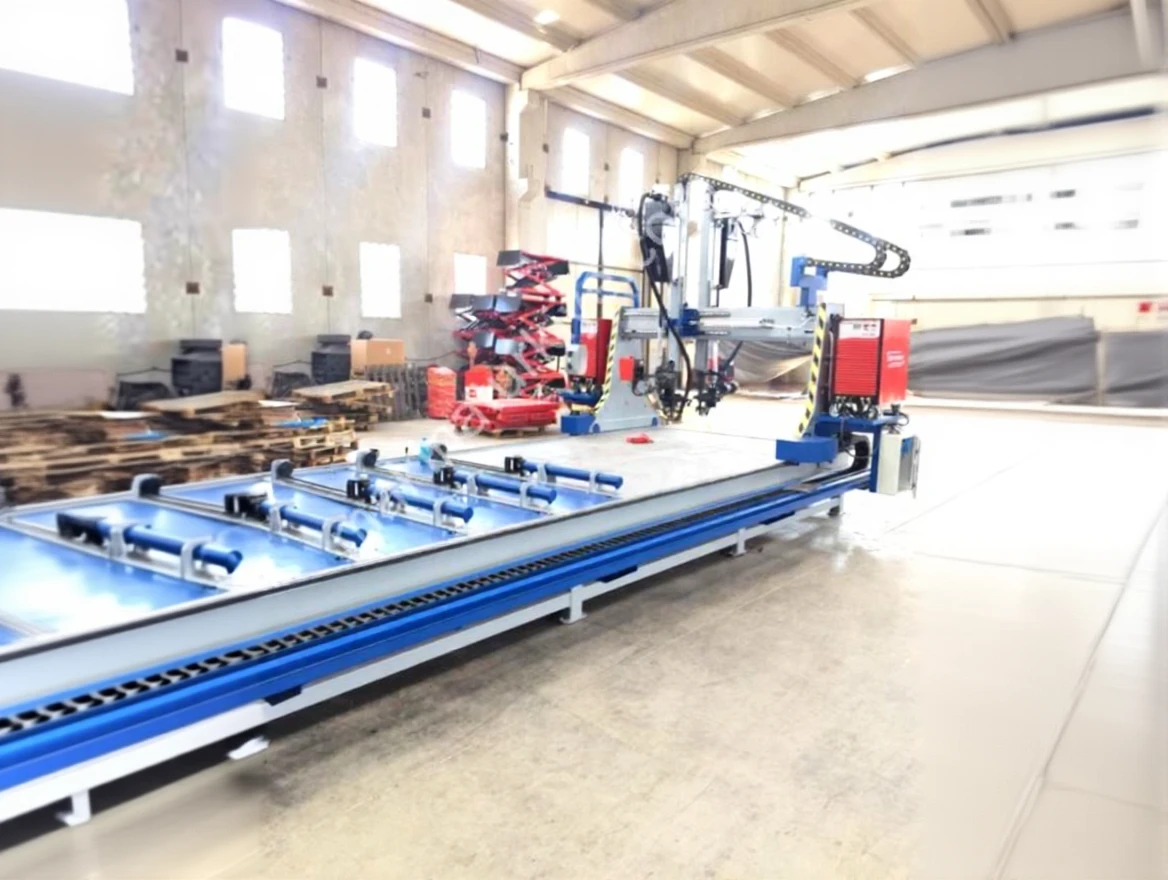

The chassis welding machine is designed for welding different types and sizes of truck chassis. This machine consists of the main frame, bridge system where welding heads are mounted, rail system that enables the movement of the bridge system along the workpiece, welding head welding location tracking system mechanically (optional laser and optical welding location tracking system), dust collection system, electrical control system, sub-dust welding power units and hydraulic clamping system. The truck chassis welding system will significantly increase your manufacturing efficiency in a very flexible and fast way.
Features:
- 7" Touch Screen
- Foot control pedal for spot control system
- PLC System
- Automatic speed-revolution control
- Recipe creation on PLC screen
- Trigger system
Optional Features:
- Lower support system (scissor system)
- Motorized torch travel
| TECHNICAL SPECIFICATIONS | BSRSK |
| Base Flange Width (mm) | 120-350 |
| Upper Flange A4:B29 (mm) | 120-350 |
| Profile Body Suitable Height | 200-1000 |
| Profile Body Suitable Thickness (mm) | 5-20 |
| Upper Flange Thickness (mm) | 5-30 |
| Upper Flange Thickness (mm) | 5-30 |
| Profile Body Depth (mm) | 175 |
| H Beam Suitable Length (mm) | 18000 |
