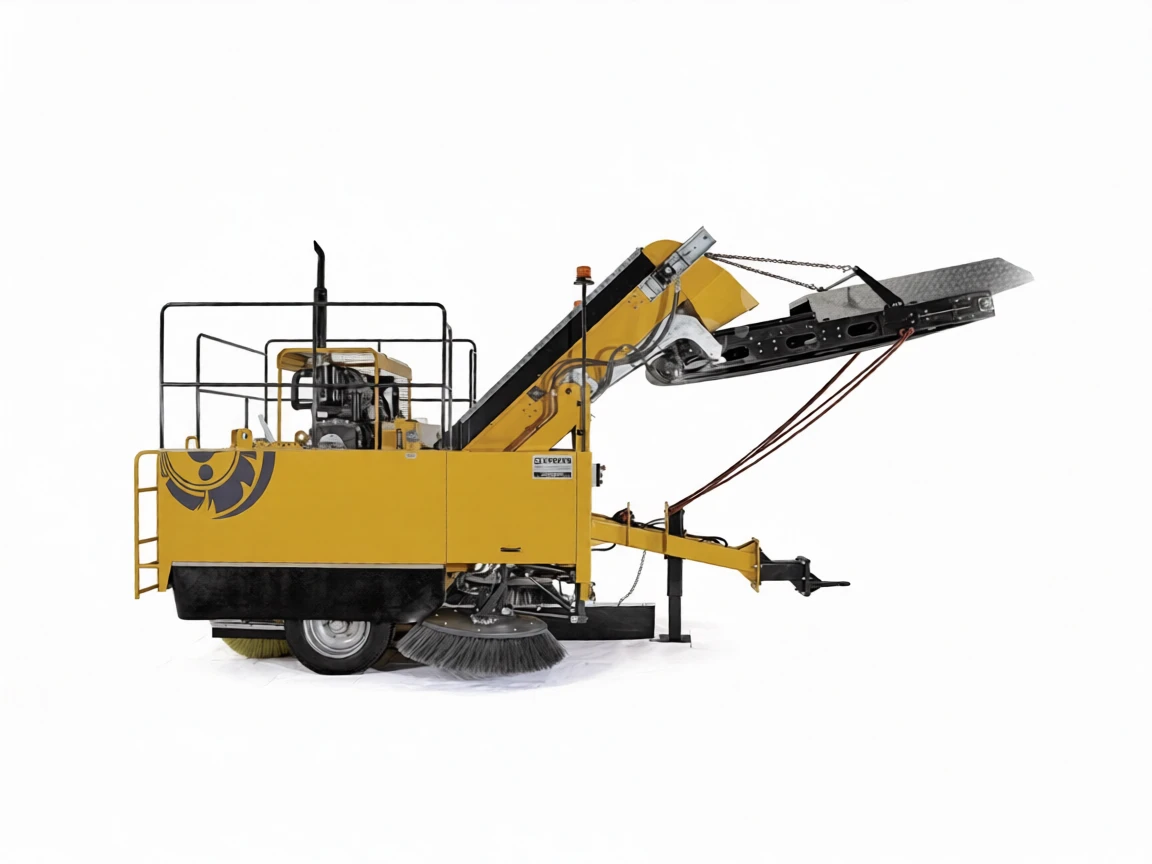

Truck Towed Type Elevator Road Sweeper Machine
| Brand | Çeksan |
|---|---|
| Model Type |
Camello |
Çeksan Truck Towed Type Elevator Road Sweeper Machine
Camello
ABOUT THE PRODUCT
-
It aims to achieve high performance at low RPMs with the right auxiliary engine choice used in its upper structure. Fuel savings and a quieter working environment are provided.
-

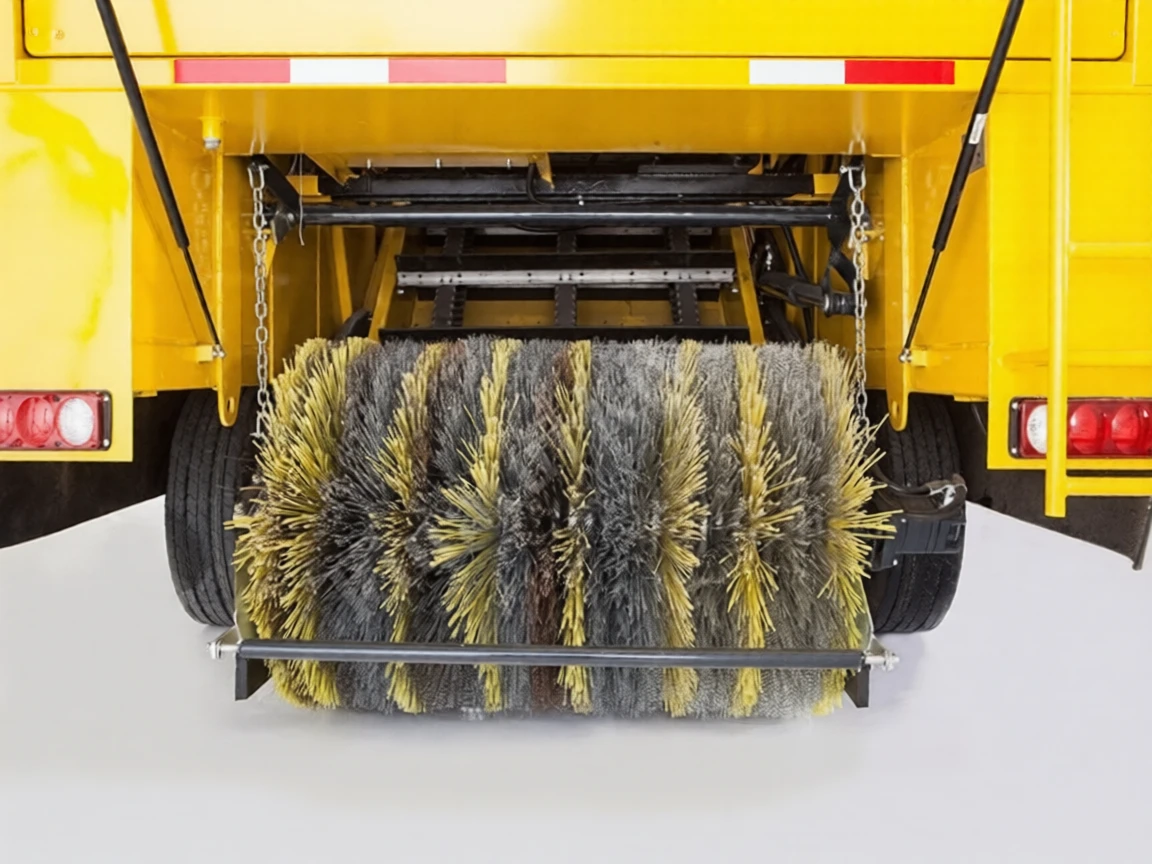

The pressure on the ground can be adjusted to maximize the lifespan of the brush. Optionally, this pressure adjustment can be made from inside the cabin. It offers optional systems that reduce the brush rotation speed and prevent unnecessary wear.
-
Thanks to its flexible design, the upper structure can be easily mounted on chassis vehicles of different sizes.
-

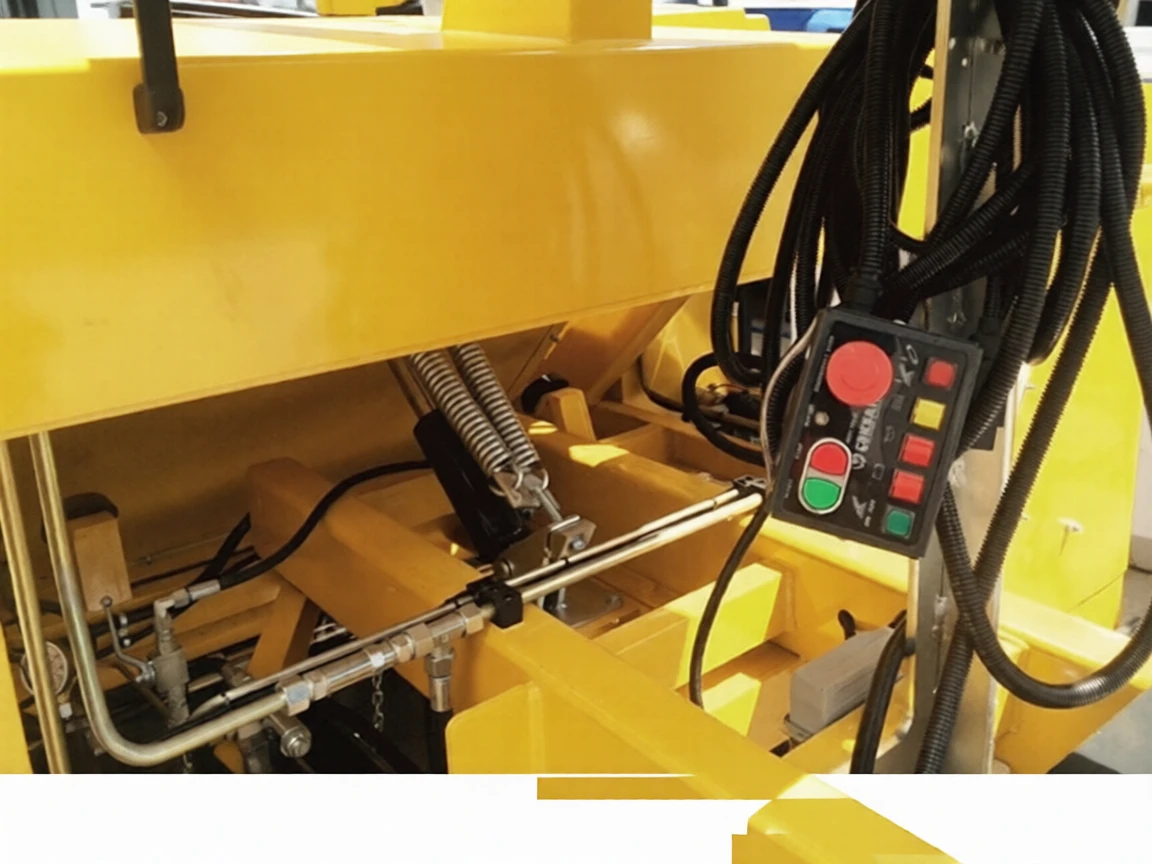

Thanks to the user-friendly control panel, the operator can use the machine in a very short time.
|
Specifications |
|
|
Sweeping Speed (km/h) |
0-15 |
|
Sweeping Width (mm) |
3162 |
|
Sweeping Capacity (m²/h) |
47432 |
|
Load Collection Capacity (ton/min) |
1.2 |
|
Water Tank Capacity (lt) |
1200 |
|
Hydraulic Oil Tank Capacity (lt) |
200 |
|
Fuel Tank Capacity (lt) |
200 |
|
Machine Length (mm) |
6500 |
|
Machine Width (mm) |
2217 |
|
Machine Height (mm) |
3602 |
|
Empty Total Weight (kg) |
4700 |
|
Water Pump (bar) |
100 |
|

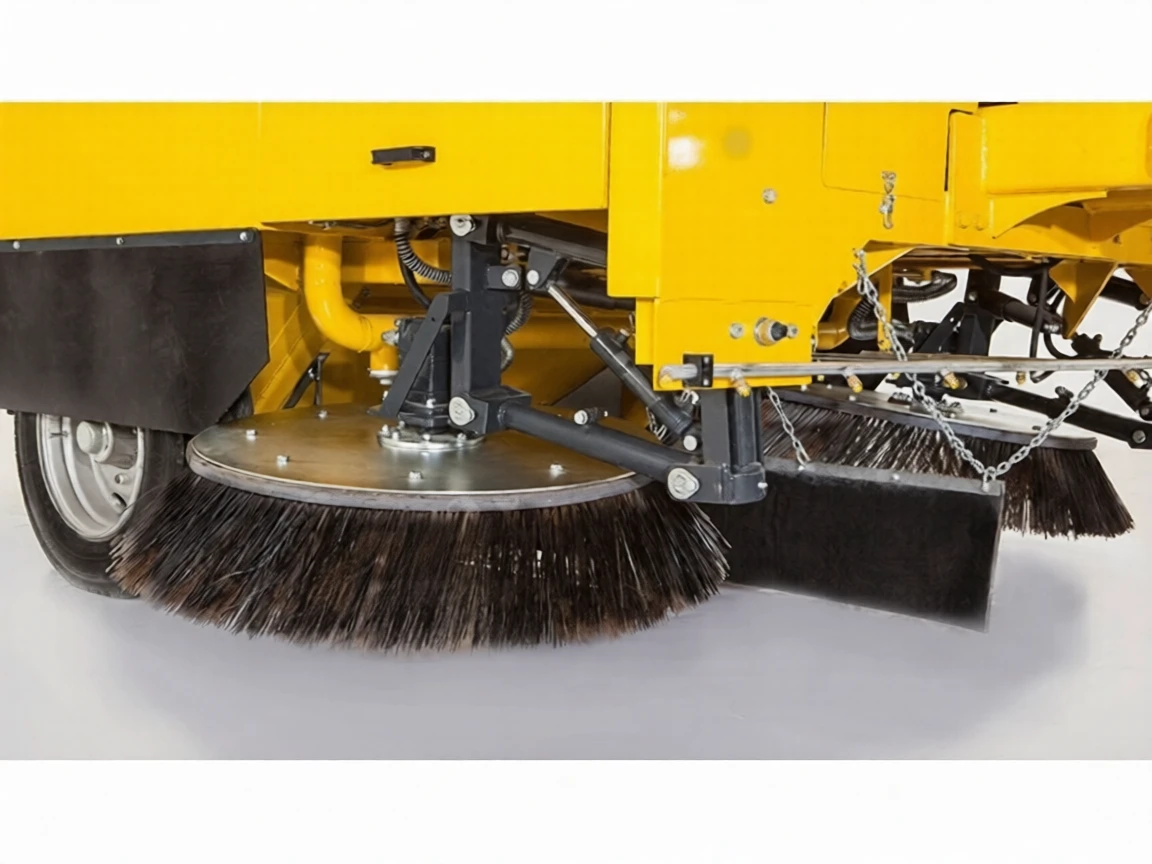

Side Brush Diameter (mm) |
900 |
|
Middle Brush Diameter (mm) |
900 |
|
Middle Brush Length (mm) |
1150 |
|
Wheels |
215/75 R17.5 |
|
Auxiliary Engine Type |
Diesel |
|
Auxiliary Engine Power (kw/hp) |
75 |
DESIGN
