Two Optical Zoom Optical Scanning and Measurement System

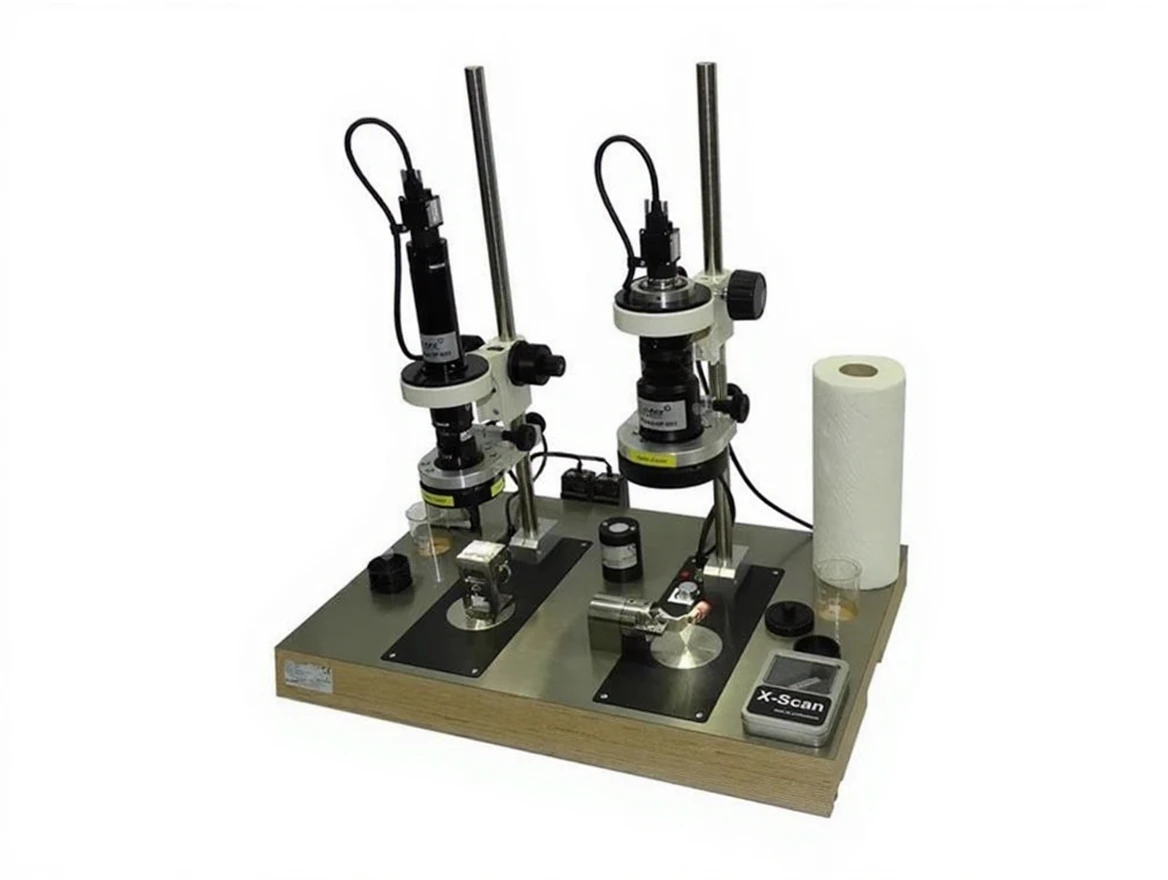

The dual optics station OP 4003-pc offers great flexibility in terms of cable cross-sections that can be examined with its two different zoom optics. Thanks to the different measurement ranges of the microscopes, very small bends as well as large objects up to 70 mm can be examined.

The optical station is mounted on a stainless steel coated MDF board and is supplied with innovative and user-friendly evaluation software X-Scan, which allows the micrograph to be analyzed, measured, evaluated, and documented according to relevant standards or specified customer requirements.

Optionally, the dual optical station can be equipped as OP 4003-pc with an integrated mini PC that includes a monitor, keyboard, and mouse.

Performance Features

ZOOM OPTIC 12X ZOOM:

– 12:1 magnification premium zoom optics

– Suitable for object sizes from 1.1 x 1.6 mm to 14 x 19 mm

– Lowest magnification factor 0.58x: object size 7.3 x 9.7 mm

– Highest magnification factor 7x: object size 0.59×0.8mm

– 130-11x object size on a 7″ monitor

– Comfortable clamping function

– Coaxial fine and coarse drive microscope mount for focus adjustment

– AA100 mm LED ring light with Fresnel lens to illuminate the field of view

– 1/2 “CMOS chip color digital camera USB 3.0

Optional: auxiliary lens 0.25x or 0.5x for extended applications

MAGNIFYING OPTIC 6X MAGNIFICATION:

– Excellent zoom optics for measuring contact parts as well as large objects

– Usable for object sizes with a diameter of 18 – 108 mm

– Lowest magnification factor (Index 18): 52 x 70mm

– Highest magnification factor (Index 108): 11 x 16 mm

– 2-button microscope mount for focus adjustment (coaxial, coarse drive)

– White LED ring light to illuminate the field of view

– 1/2 “CMOS chip color digital camera USB 3.0

– High depth of field.
