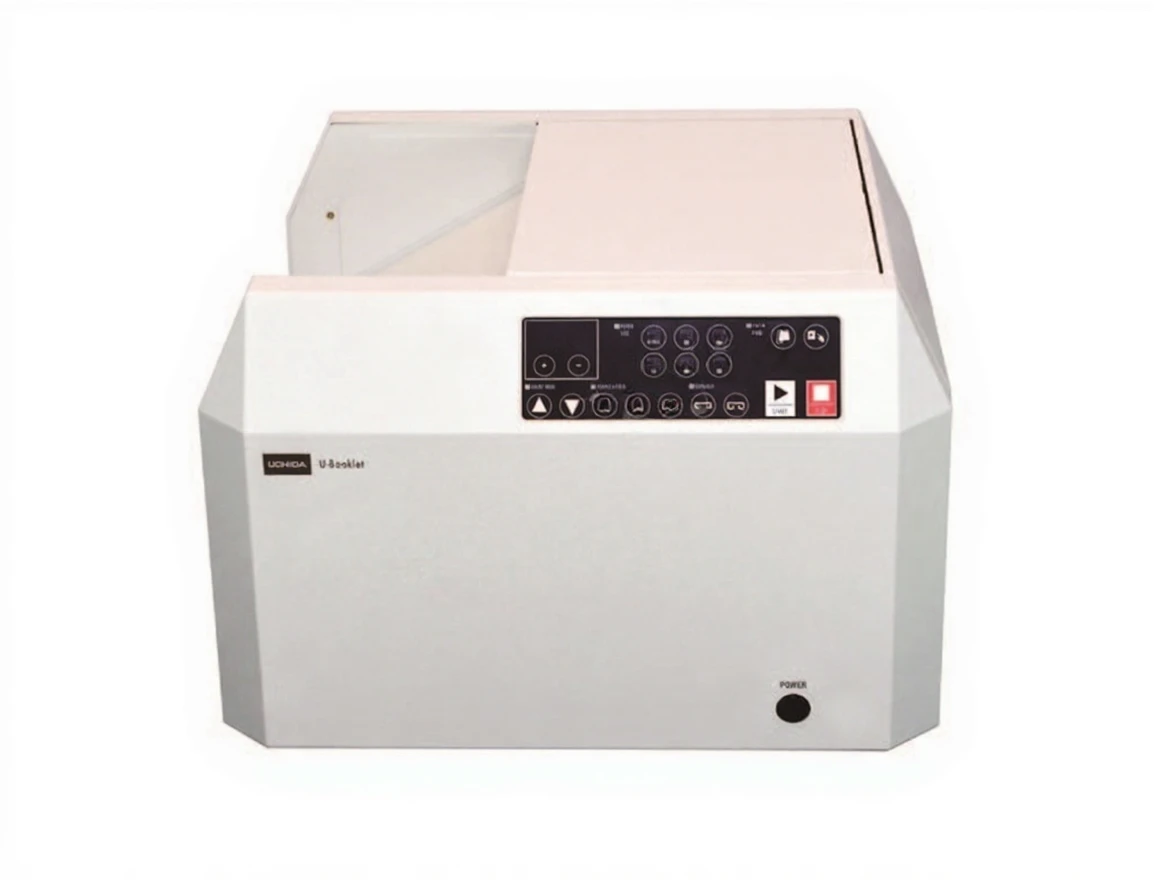

Uchida U-Booklet Booklet or Brochure Making Machine

U-BOOKLET WIRE STITCHING AND FOLDING MACHINE

UCHIDA U-BOOKLET Wire stitching and folding machine (brochure/booklet making machine) is an economical machine that automatically adjusts for short-run brochure jobs, folds, and binds with wire stitching.

Max.Paper size:  330 x 456 mm

Min.Paper size :  210 x 120 mm

Max. thickness       :  16 sheets 80 gr/m2

Machine speed         :  800 brochures / hour

Staple Wire          :  26/6 and 26/4

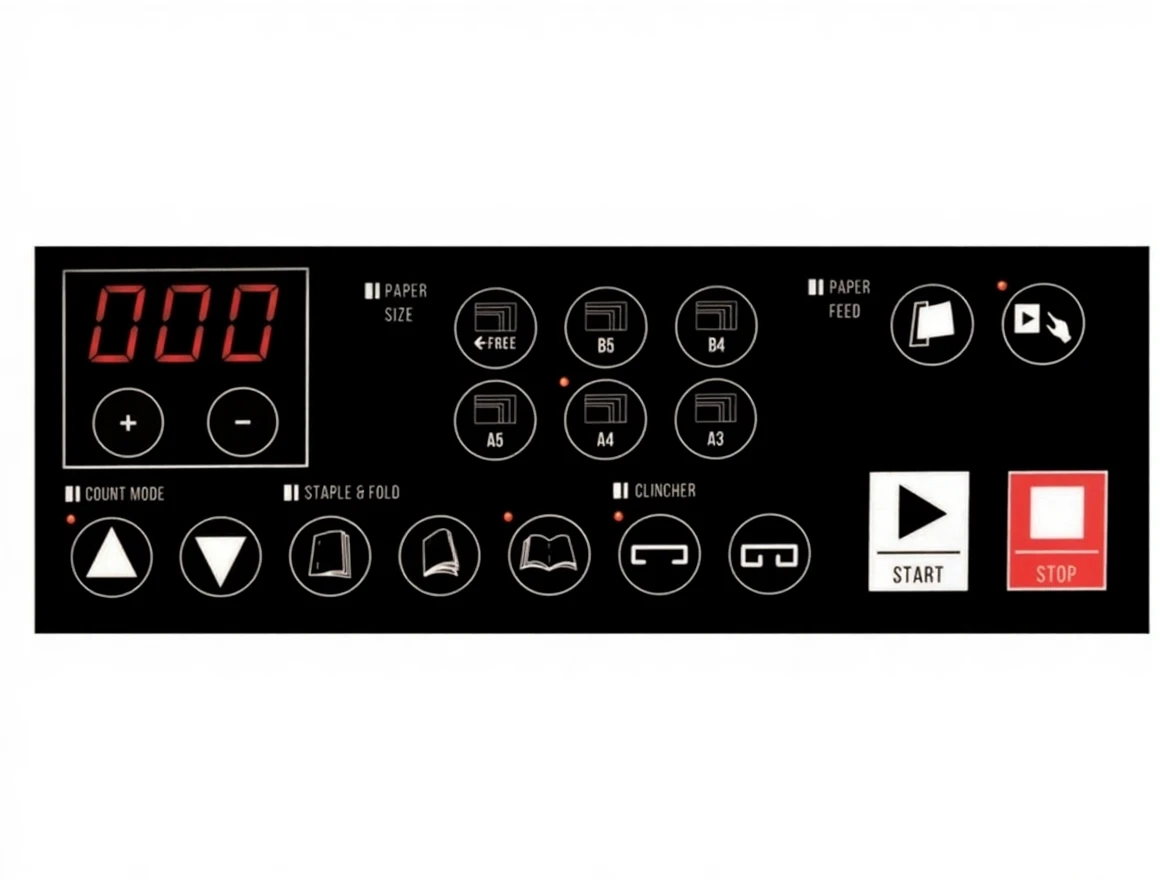

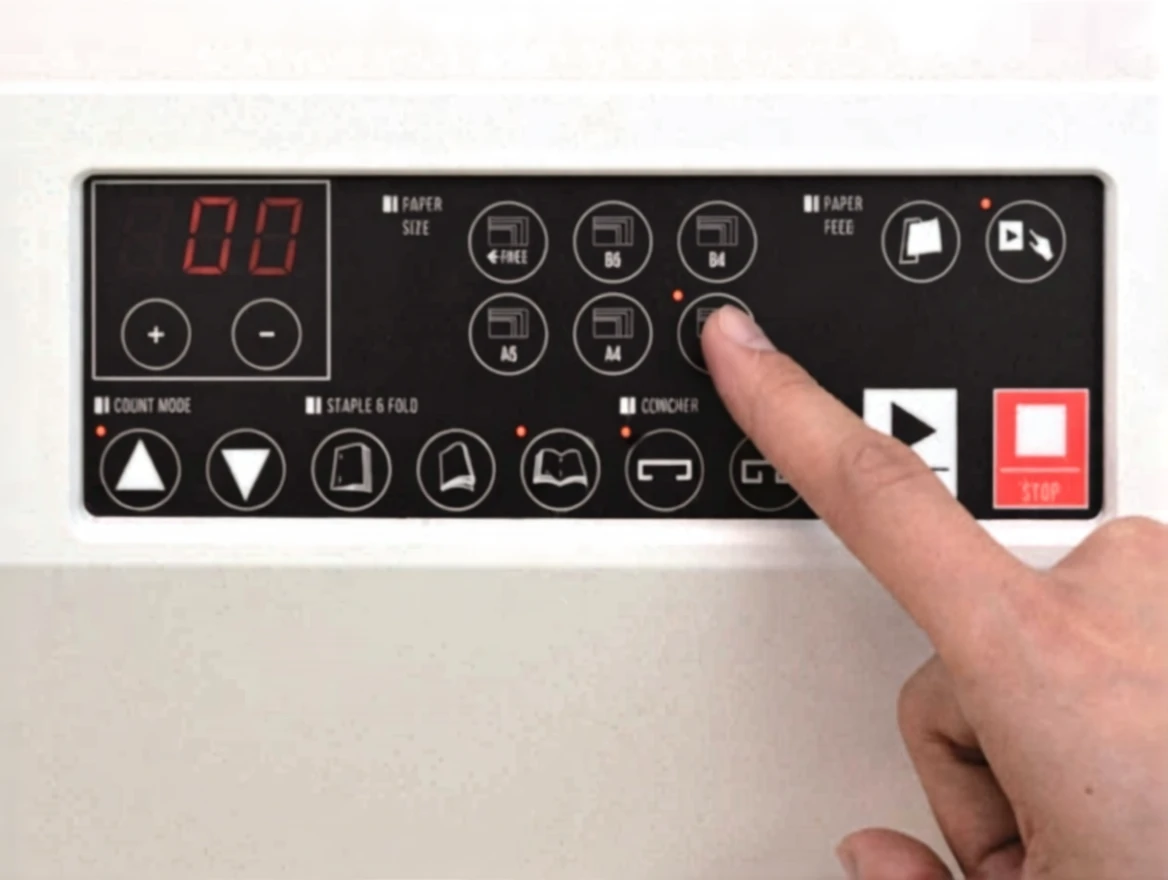

Adjustment method    :  Fully automatic. Standard sizes can be selected with one button, non-standard sizes can be entered by typing the paper length on the screen.

Stitching method           :  After stapling, the wire can be bent inwards flat or curved in a semicircle. This feature can be selected from the control panel.

Other features    :  Booklets are made by stitching and folding in half. Stitching can be canceled, and only folding in half can be done. Folding can be canceled, and only stitching from the edge can be done.

Place of manufacture         : Japan
