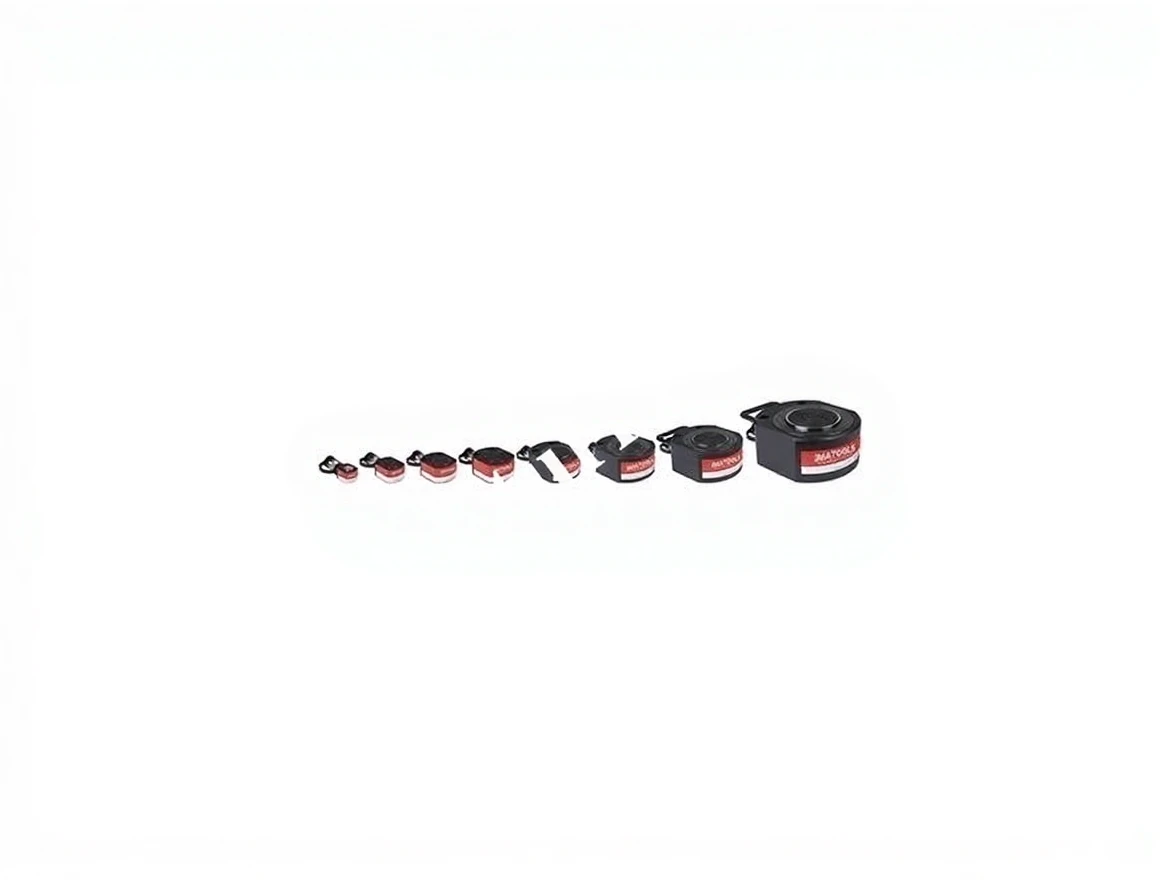

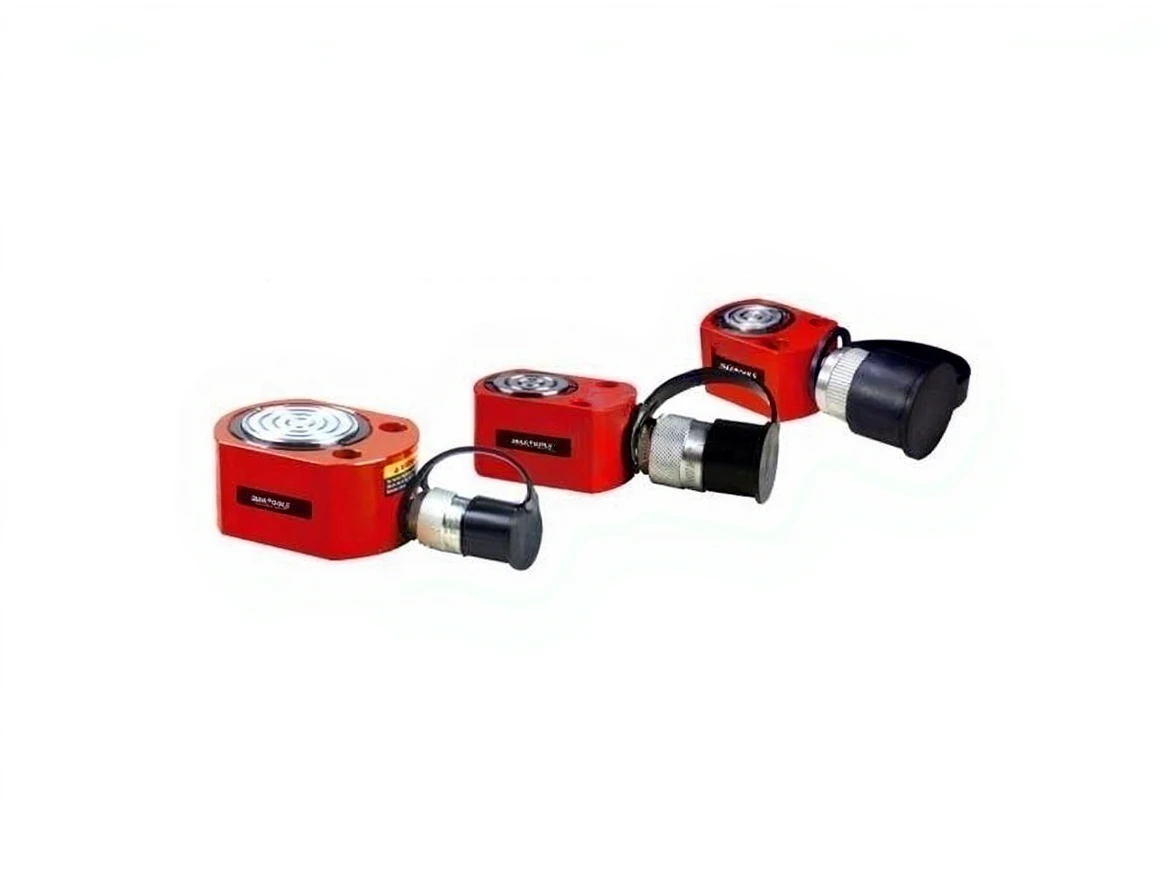

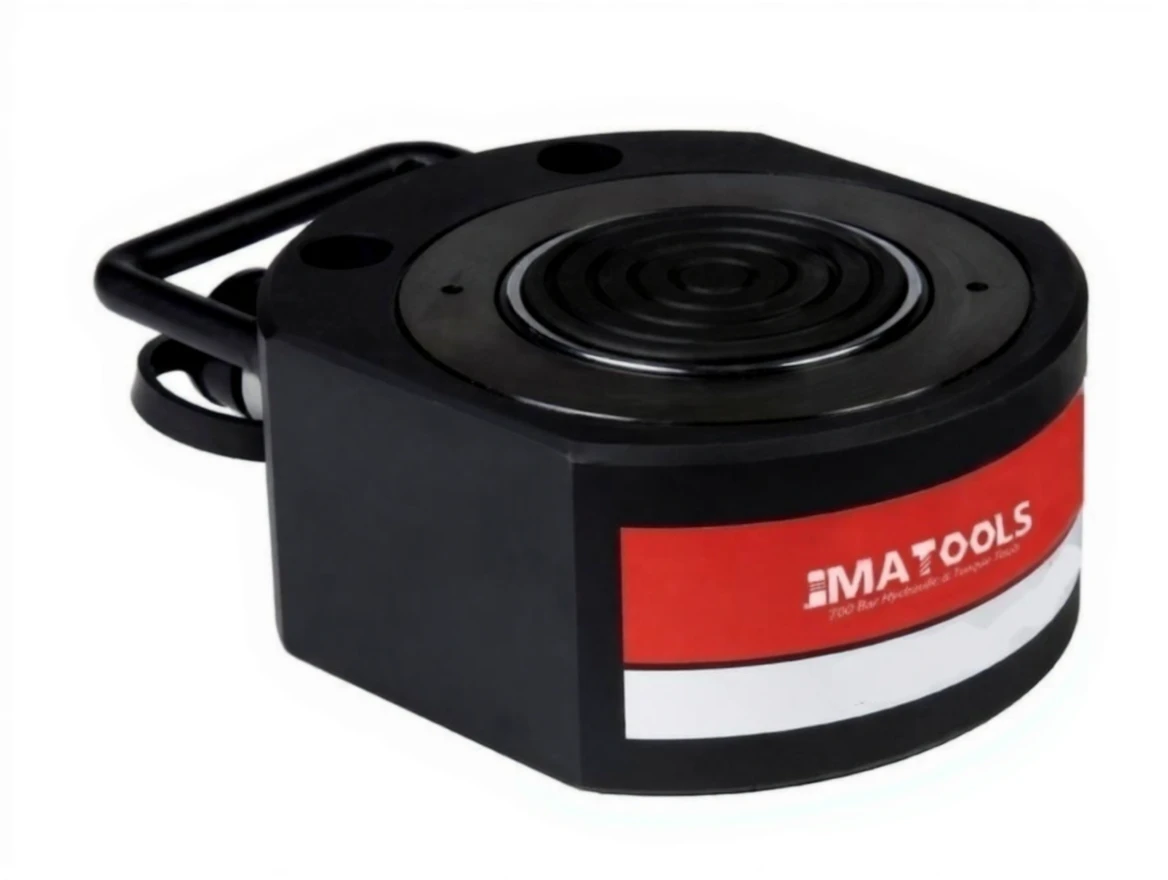

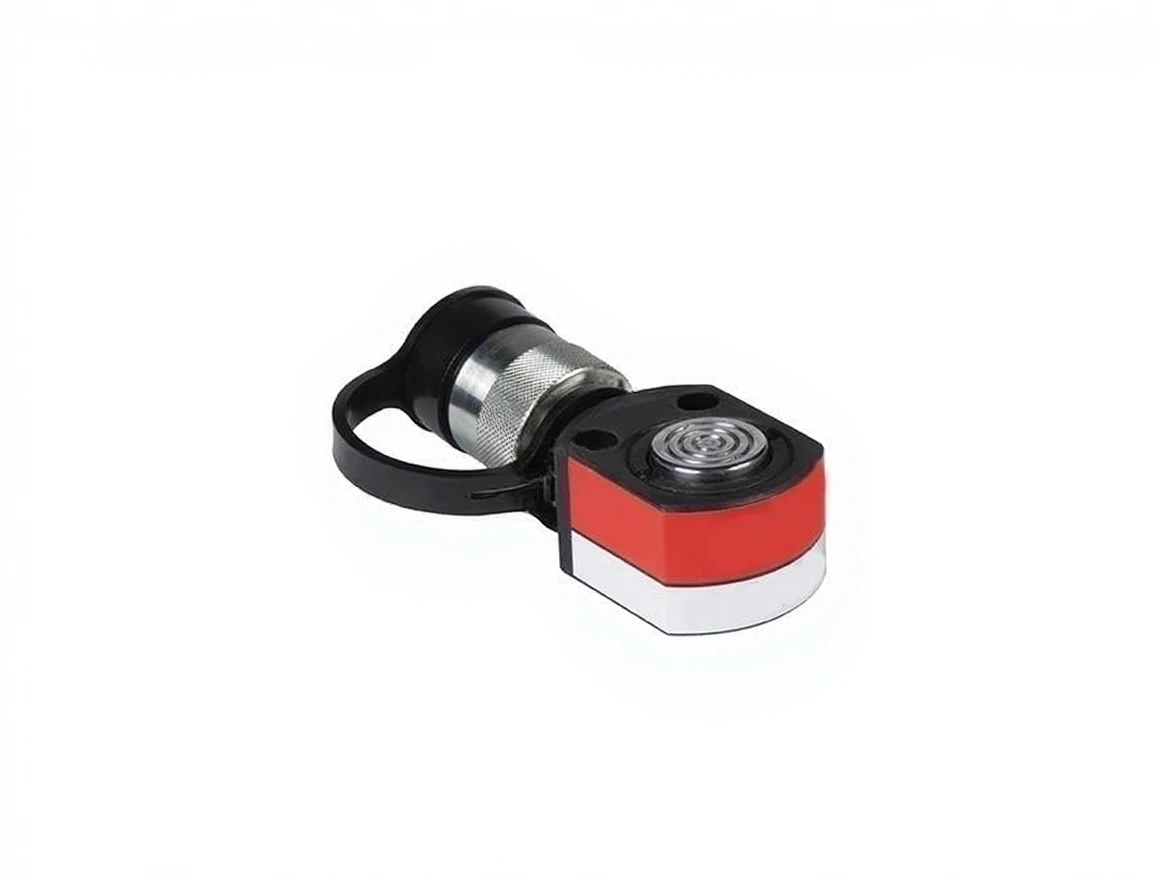

Ultra Flat Type Cylinder Jack
| Brand | Fey-X |
|---|---|
| Model Type |
ICX |
Description
Imatools Icx Series Ultra Flat Type Cylinder Jack
Technical Specifications
- Maximum working pressure 700 Bar
- Stroke options between 5-150 tons and 6-16 mm
- Single acting, powerful spring return hydraulic system
- Ability to work in all directions, vertical and horizontal
- Long-lasting structure suitable for heavy industry conditions
- Use in narrow places with its extra short and flat structure
- Chrome plated against rust, body and piston
- Made from high quality tempered steel
- Minimum closed length maximum capacity in high tonnage
- 2 year warranty CE and International Certificate of Conformity
- Spare parts and service in Turkey
İmatools Icx Series Technical Specifications
| Capacity | stroke | Model | Domain | Oil Volume | Closed Size | Outside Diameter | Weight |
|---|---|---|---|---|---|---|---|
| ton | mm | PNo | cm² | cm³ | mm | mm | kg |
| 5 | 6 | ICX-005006 | 7.1 | 8 | 40 | 65 | 1 |
| 11 | ICX-005011 | 7.1 | 12 | 45 | 65 | 1 | |
| 10 | 6 | ICX-010006 | 15.9 | 19 | 43 | 78 | 1.5 |
| 11 | ICX-010011 | 15.98 | 27 | 48 | 78 | 1.6 | |
| 20 | 11 | ICX-020011 | 31.2 | 55 | 53 | 106 | 3 |
| 30 | 14 | ICX-030014 | 44.2 | 96 | 70 | 118 | 6 |
| 50 | 16 | ICX-050016 | 78.5 | 178 | 80 | 148 | 10 |
| 80 | 16 | ICX-080016 | 113 | 277 | 87 | 178 | 17 |
| 100 | 16 | ICX-100016 | 154 | 392 | 92 | 195 | 21 |
| 150 | 16 | ICX-150016 | 227 | 626 | 102 | 255 | 31 |
