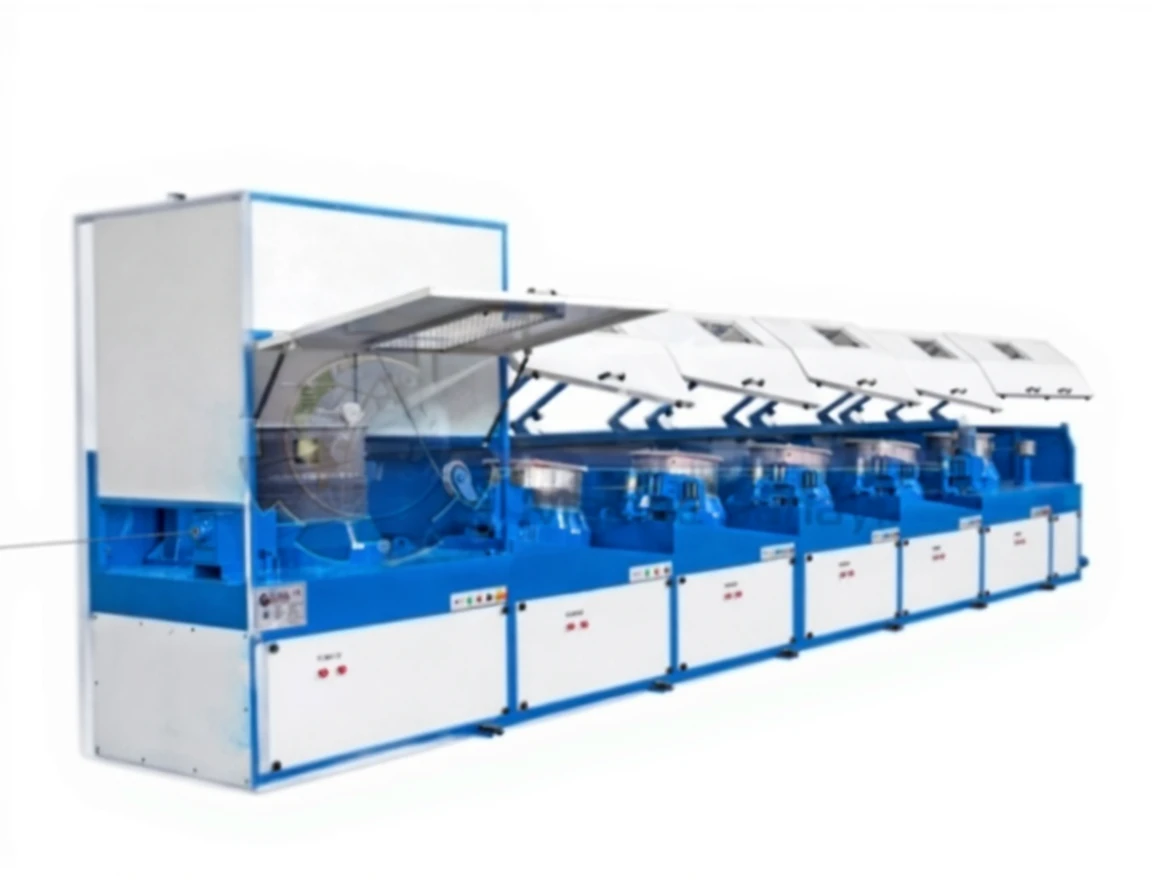

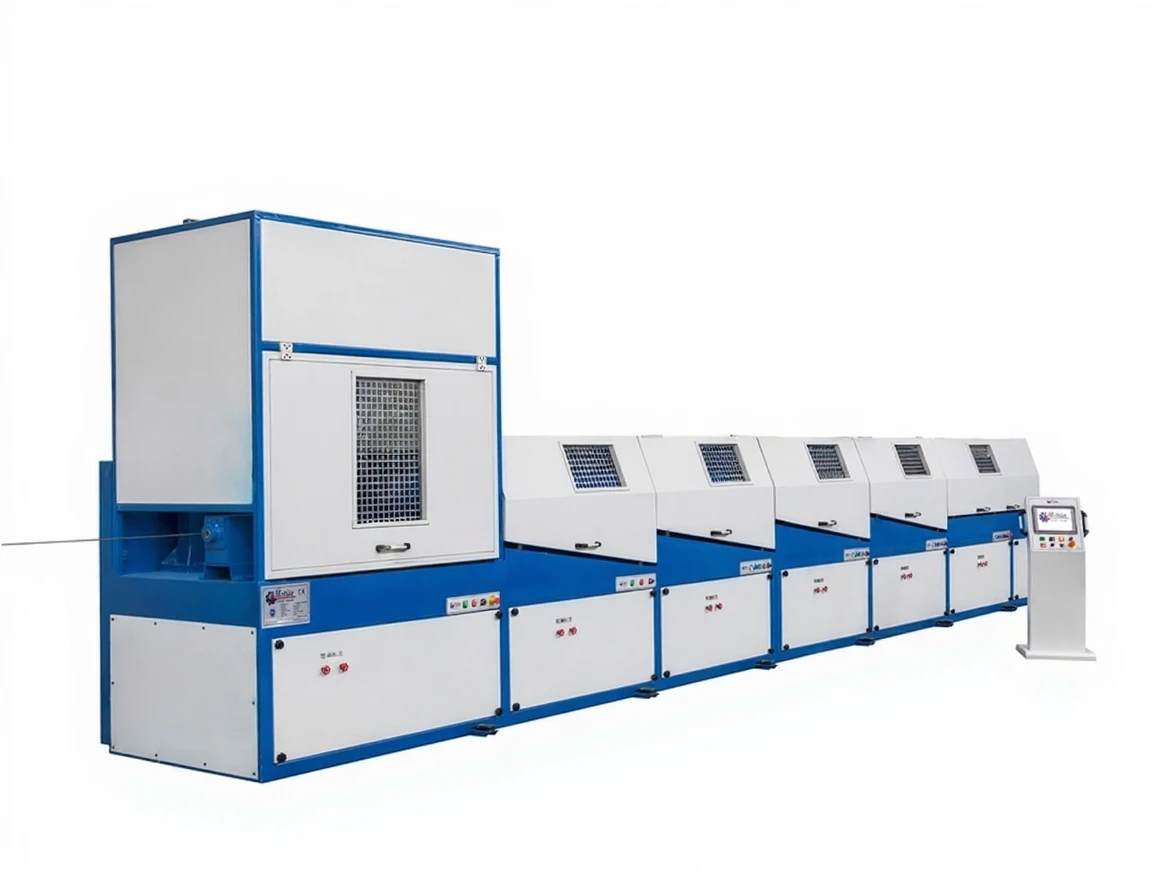

UMS 600 Series Wire Drawing Machines

GENERAL FEATURES OF UMS 600 SERIES WIRE DRAWING MACHINE

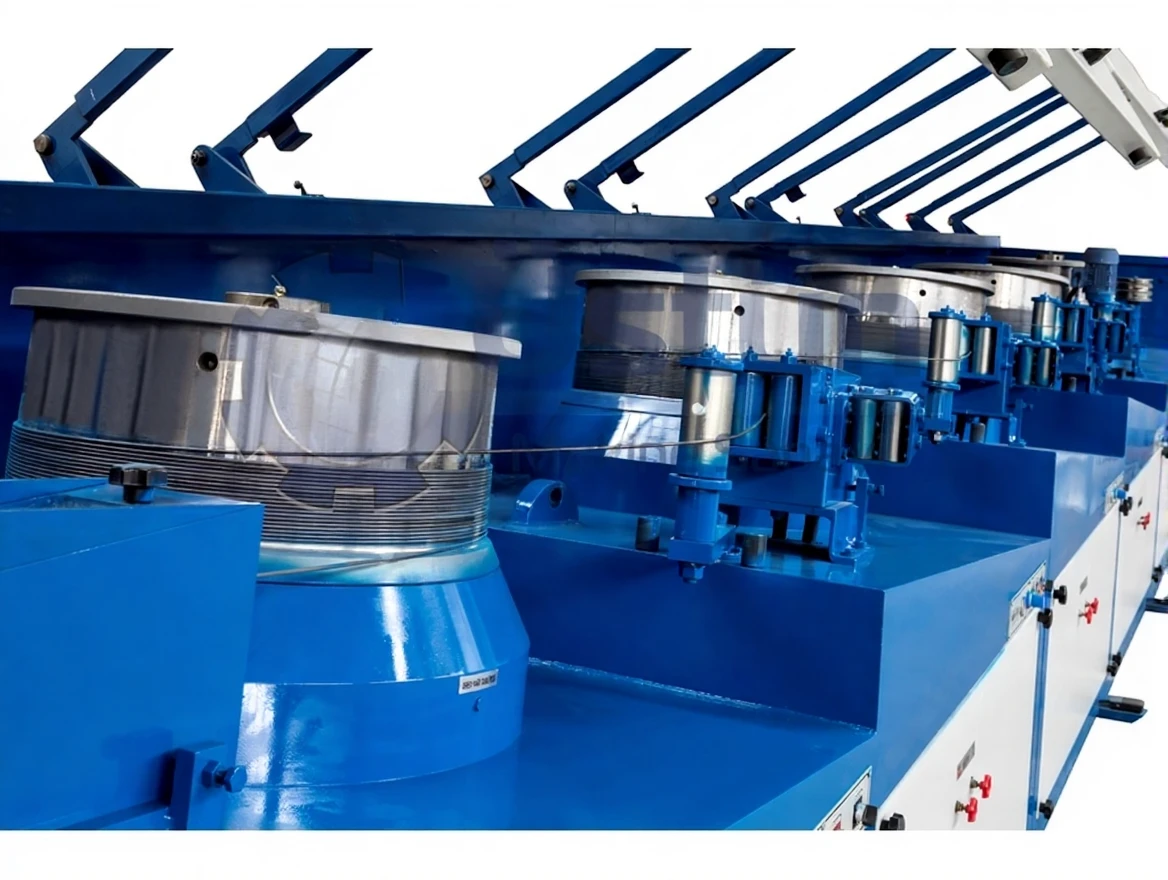

BLOCK DIAMETER

Ø 600 mm.

BLOCK COATING

Tungsten Carbide

WIRE QUALITY THAT CAN BE DRAWN

SAE 1

(Low Carbon Wire)

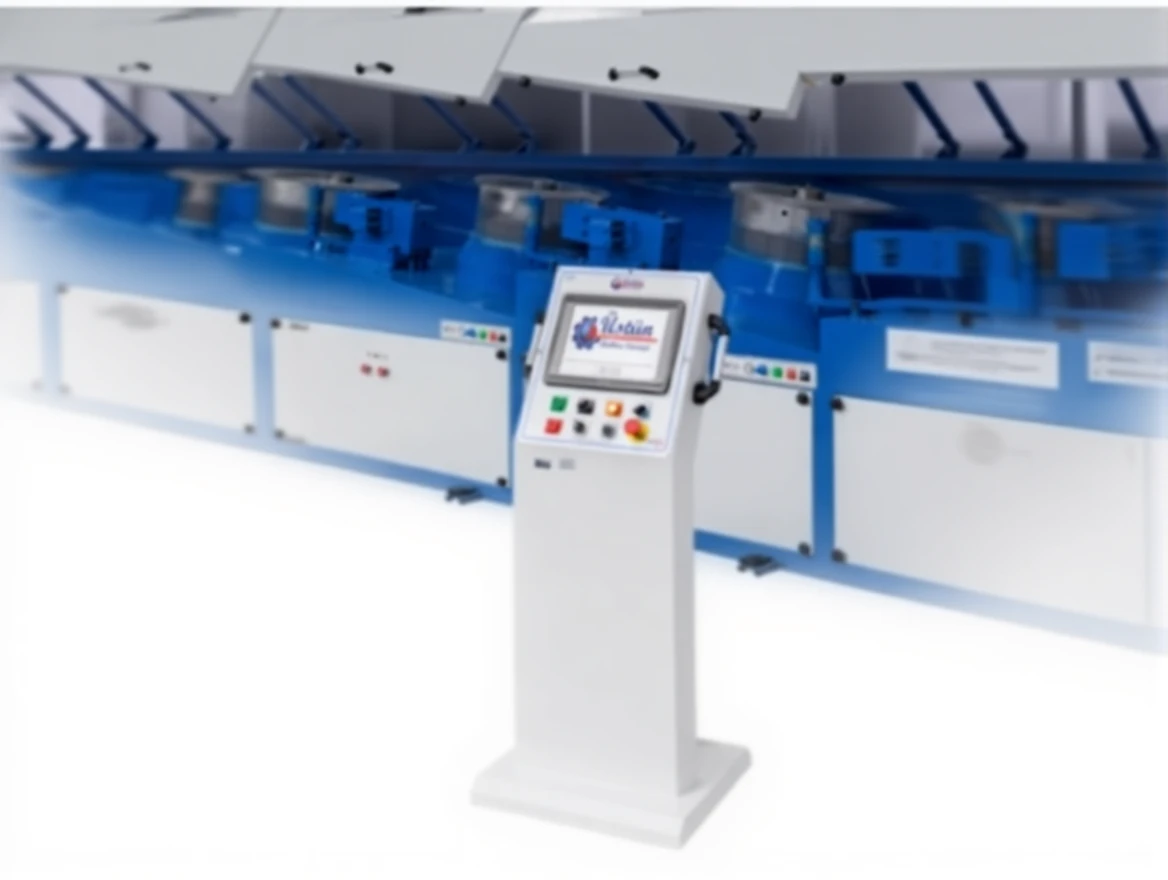

CONTROL PANEL

Automation control is provided with PLC.

SPEED CONTROL

Speed is controlled from the PLC unit with AC drives.

COOLING SYSTEM

Blocks and rolls are cooled with water cooling to prevent excessive heat and maintain wire carbon ratio.

LUBRICATION SYSTEM

The machine automatically lubricates while operating. Each block has an oil filling cap and oil indicator for oil change.

BRAKE SYSTEM

Each block has a brake disk with bellows brakes on the flange connected to the motor pulleys.

MOTOR POWER

Each block has a 30 kW 400 Volt 50 HZ AC motor.

REDUCERS

Each block has a double-stage, monoblock reducer.

TECHNICAL SPECIFICATIONS OF UMS 600 SERIES WIRE DRAWING MACHINES

MODEL

NUMBER OF BLOCKS

WIRE ENTRY DIAMETER

WIRE EXIT DIAMETER

MACHINE SPEED

TOTAL MOTOR POWER

UMS 600/4

4

6.00 mm.

3.40 mm.

8 m/s

155 kW

UMS 600/5

5

6.00 mm.

3.00 mm.

10 m/s

185 kW

UMS 600/6

6

6.00 mm.

2.70 mm.

12 m/s

215 kW

UMS 600/7

7

6.00 mm.

2.30 mm.

14 m/s

245 kW

UMS 600/8

8

6.00 mm.

2.00 mm.

16 m/s

275 kW

UMS 600/9

9

6.00 mm.

1.80 mm.

18 m/s

305 kW
