Universal 35 Liter/Minute Plaster Insulation Plaster Machine

Plaster Insulation Plaster Machine 35 Liters/Minute

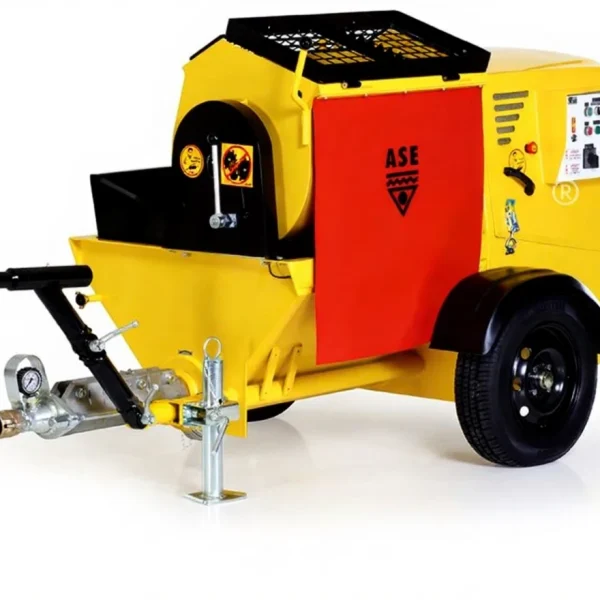

ASE Universal

ASE Universal is a high-performance machine designed especially for mixing, transferring and spraying cement-based insulation materials.

In addition, it is a multi-purpose machine that you can use for mortar injection between doors and transfer of grout mortars.

It is extremely easy and simple to use and is produced in accordance with CE standards for safety.

Thanks to the mixing bowl and the newly developed helical mixer on the machine, homogeneous mixtures are obtained and transferred to the application area and sprayed.

Application Areas

• Conventional mortars
• Grouting applications
• injection mortars
• Filling cracks and holes
• Filling and connection mortars
• In geotechnical studies
• Filling rock bolts
• Filling the anchors
• … and many other applications can be made.

Standard Equipment

• 25mm 15 m mortar hose (with coupling)
• 10mm 16 m air hose (with coupling)
• 5*4 mm2 TTR cable, 25 m
• VR35/-X25 Reduction
• 25mm angle spray gun
• grease pump
• Stator disassembly flange
• Rotor removal tool
• Screwdriver
• froglet
• war
• switchboard switch
• Manometer diaphragm
• MDR 35
• MDRX 25
• tool bag
• 30 mm cleaning ball
• Gkor-n
• air ball throwing device

Technical Data

• Pumping capacity:35 l/min
• Operating:400 V, 50 Hz
• Pump motor:5.5 Kw
• Mixer motor:3.0 Kw
• Compressor capacity:2.2 kW, 350 l/min.
• No Vibrator
• Vibrator sieve:No
• Remote control:Pneumatic
• Material outlet:1 1/2″
• Pumping hose:Q25
• Loading height:1250 mm
• Mixer capacity: 105
• Length:1830mm
• Width:750mm
• Height:1280mm

• Total weight:350 kg
