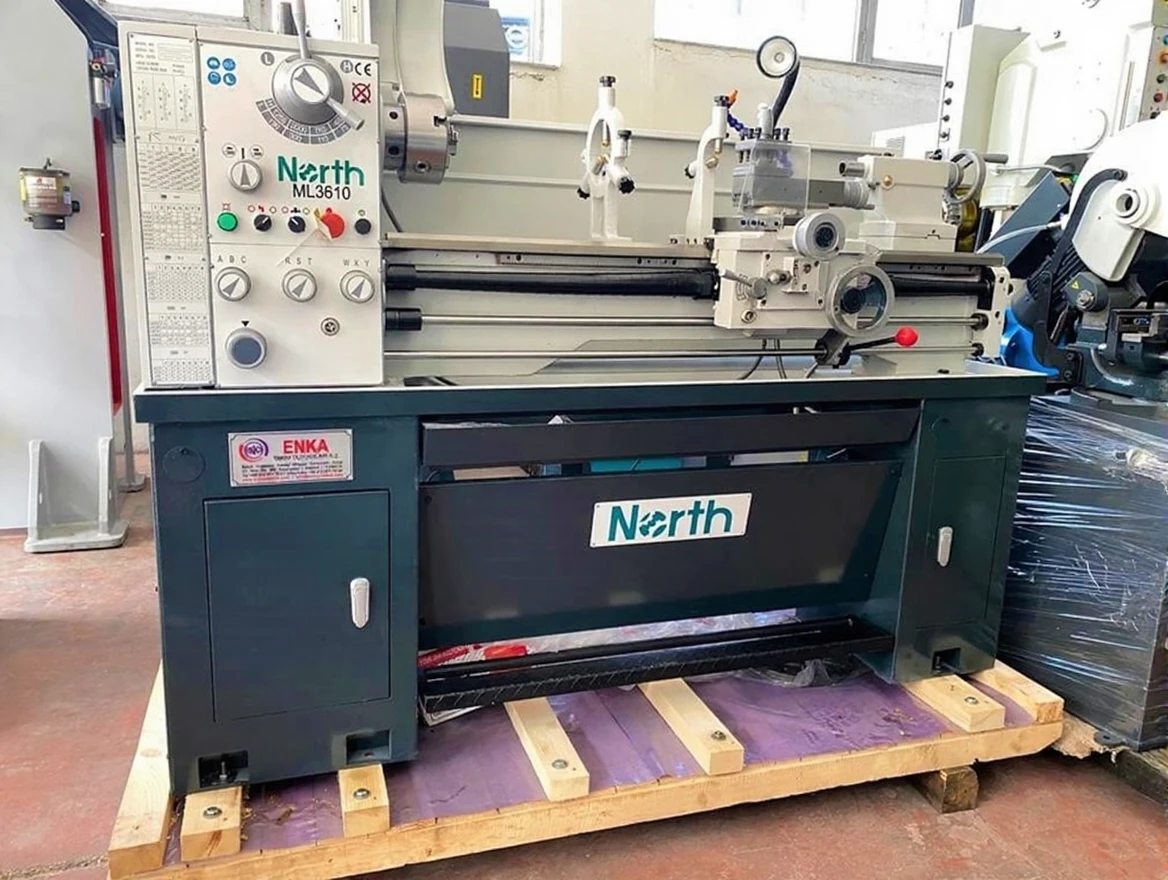

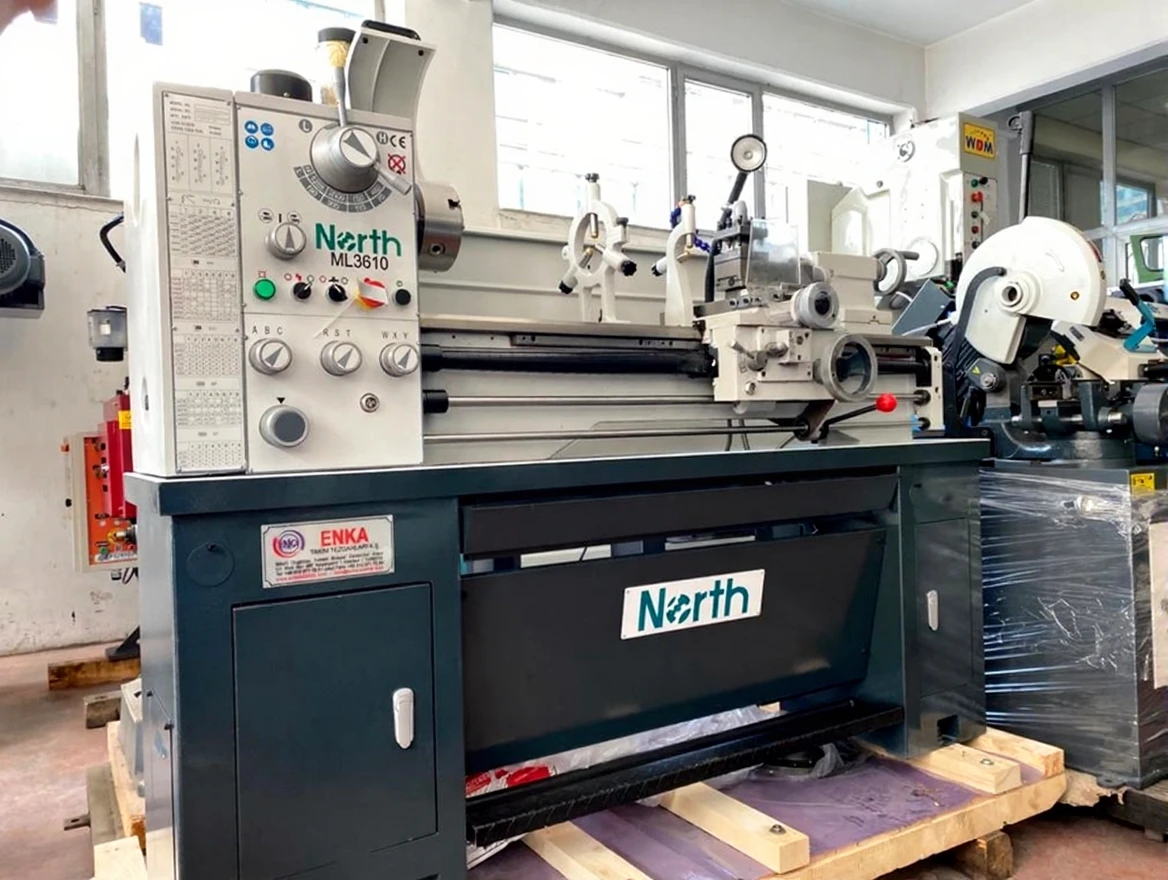

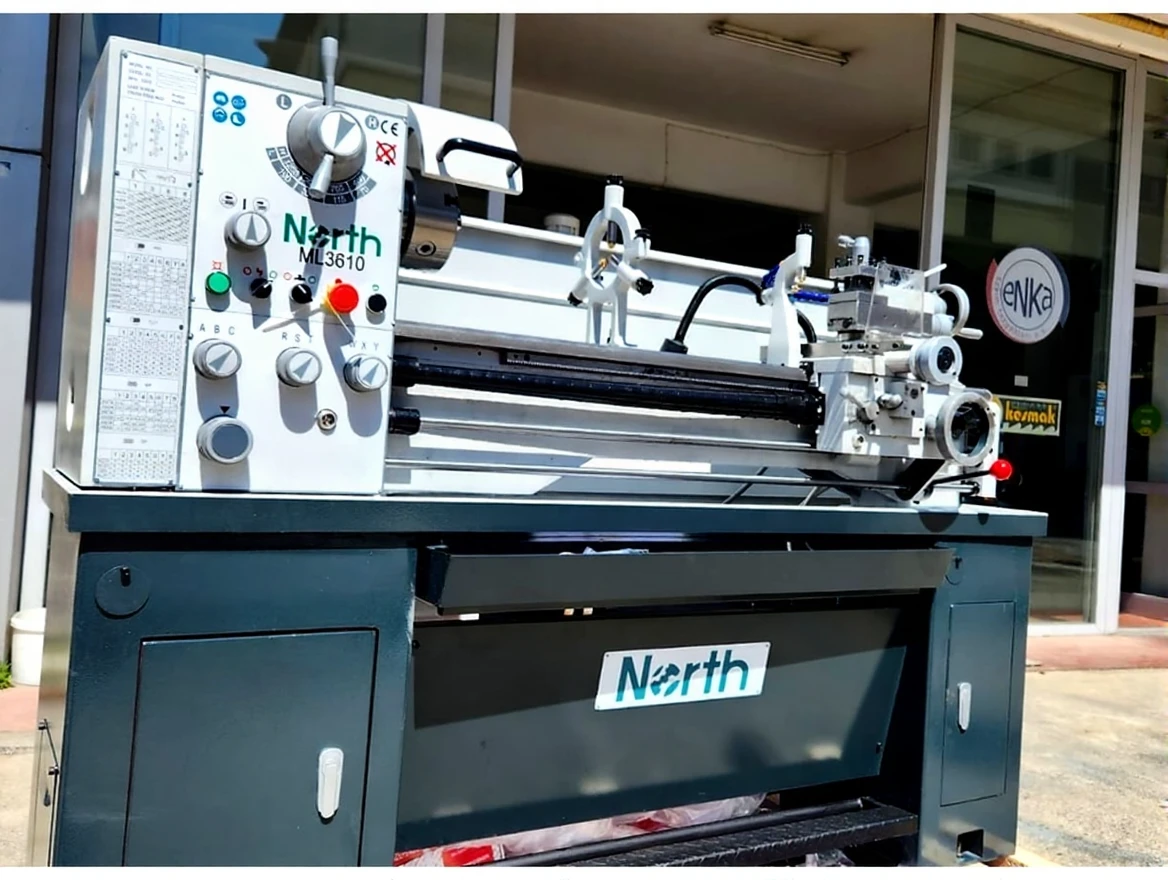

Universal Lathe North Ml3610 Ø 360X1000
| Brand | North |
|---|---|
| Model Type |
ML3610 Ø 360X1000 |
Description
| Top Slide Diameter | : 360 mm | |
| Carriage Diameter | : 224 mm | |
| Swing Over Bed | : 502 mm | |
| Bed Width | : 187 mm | |
| Distance Between Centers | : 1000 mm | |
| Spindle Nose | : D1-4 | |
| Spindle Bore | : 38 mm | |
| Spindle Taper | : MT5 | |
| Spindle Speeds | : 8 | |
| Spindle Speed Range | : 70-2000 RPM | |
| Longitudinal and Cross Feed Number | : 24 | |
| Longitudinal Feed Rate | : [ PHONE HIDDEN ] mm/rev | |
| Cross Feed Rate | : [ PHONE HIDDEN ] mm/rev | |
| Max Cross Slide Travel | : 170 mm | |
| Max Compound Slide Travel | : 95 mm | |
| Tool Shank Size | : 16×16 mm | |
| Metric Thread | : 44 | |
| Metric Thread Range | : 0.1 – 7 mm | |
| Imperial Thread | : 42 | |
| Imperial Thread Range | : 4 – 112 TPI | |
| Module Thread | : 34 | |
| Module Thread Range | : [ PHONE HIDDEN ] MP | |
| Diametral Thread | : 25 | |
| Diametral Thread Range | : 16-112 DP | |
| Quill Travel | : 100 mm | |
| Quill Taper | : MT3 | |
| Main Motor Power | : 1.5 KW | |
| Dimensions | : 1930 x 760 x 1.530 mm | |
| Net Weight | : 540 kg | |
| ACCESSORIES | : 3-Jaw Chuck 125mm | |
| : 4-Jaw Chuck 200mm | ||
| : Independent Chuck 200mm | ||
| : Fixed and Travelling Steady Rest | ||
| : Fixed and Revolving Centers |
