Vacuum Lifting System Compatible with 500 Kg Electric Hoist Systems

SL-PVL-500VT/EW – Vacuum Vertical Lifting and Tilting System Compatible with Hoists

The SL-PVL-500VT/EW from SingleLift's Bat Series is specially designed for the vertical transport and 90-degree tilting of delicate surface materials such as glass, marble, ceramic, and panels. The key feature of this model is its special lifting ring that can be integrated with electric hoist systems.

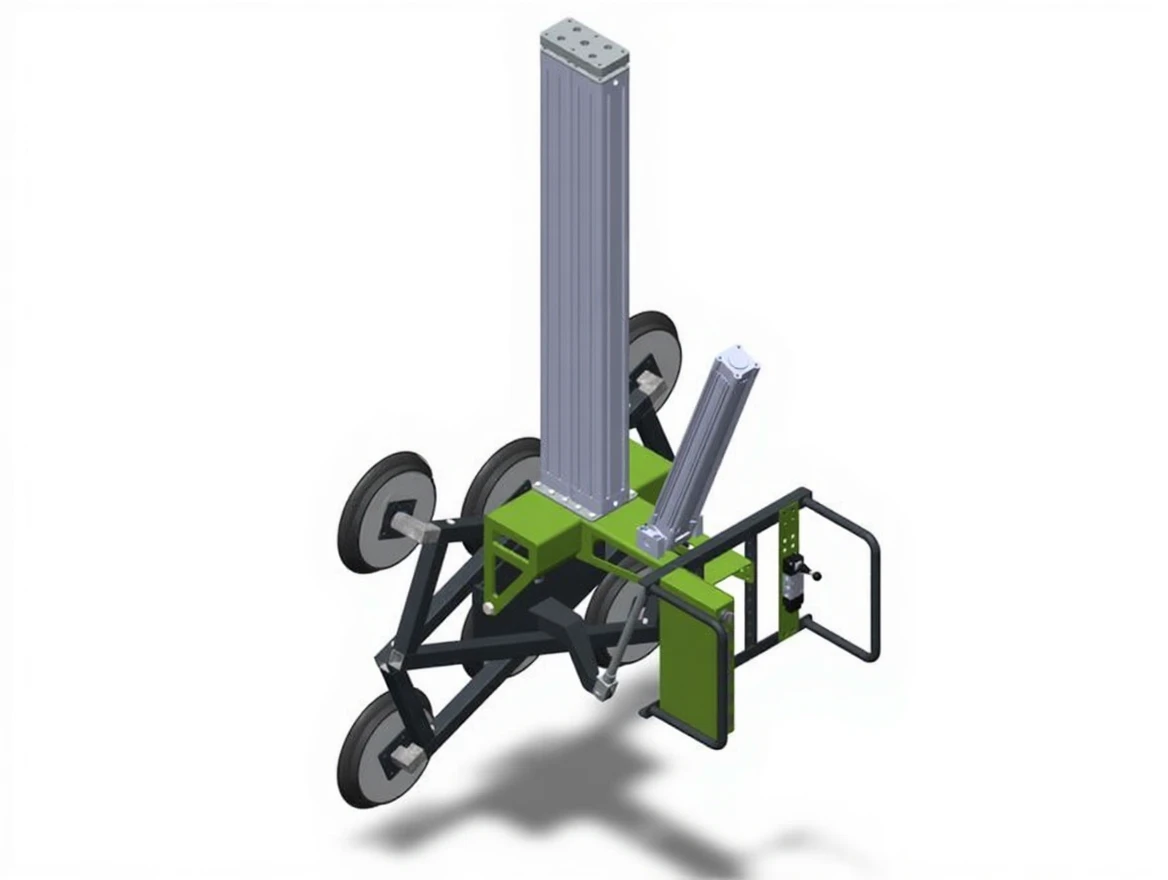

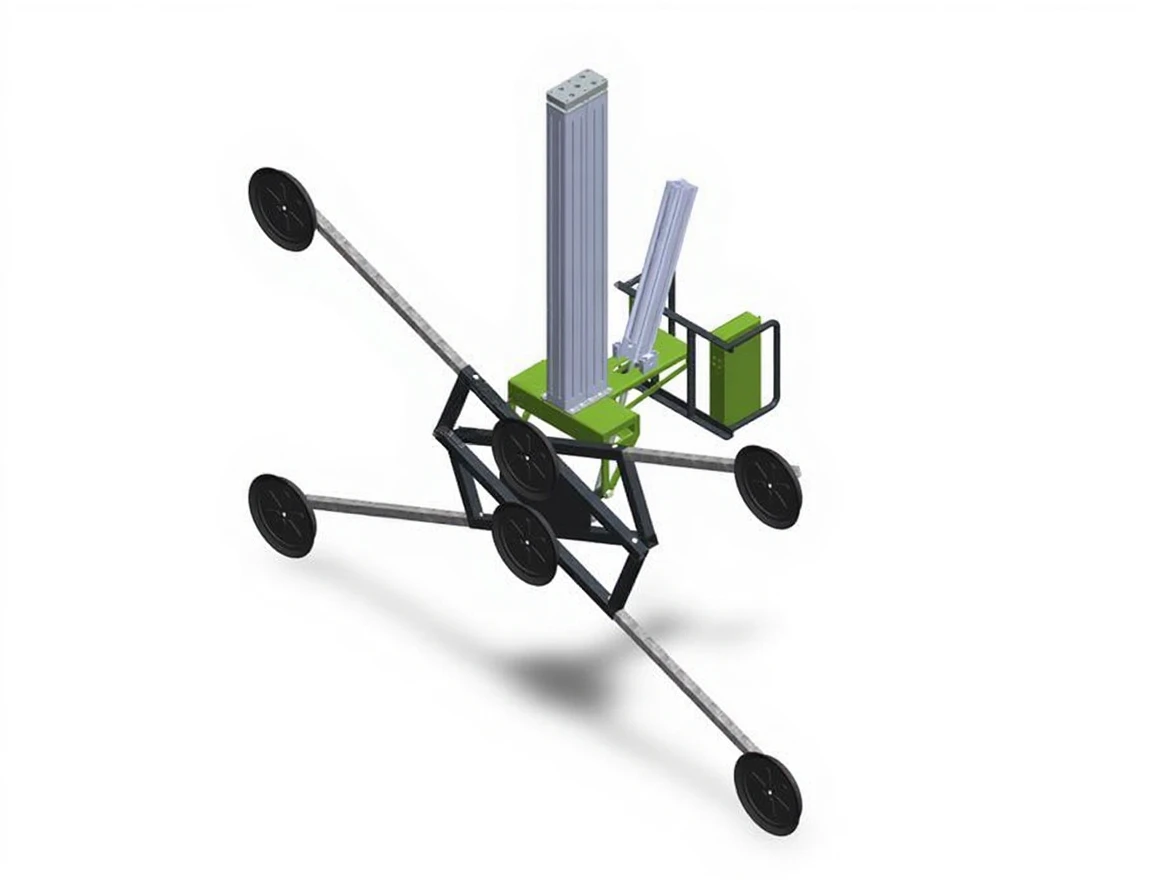

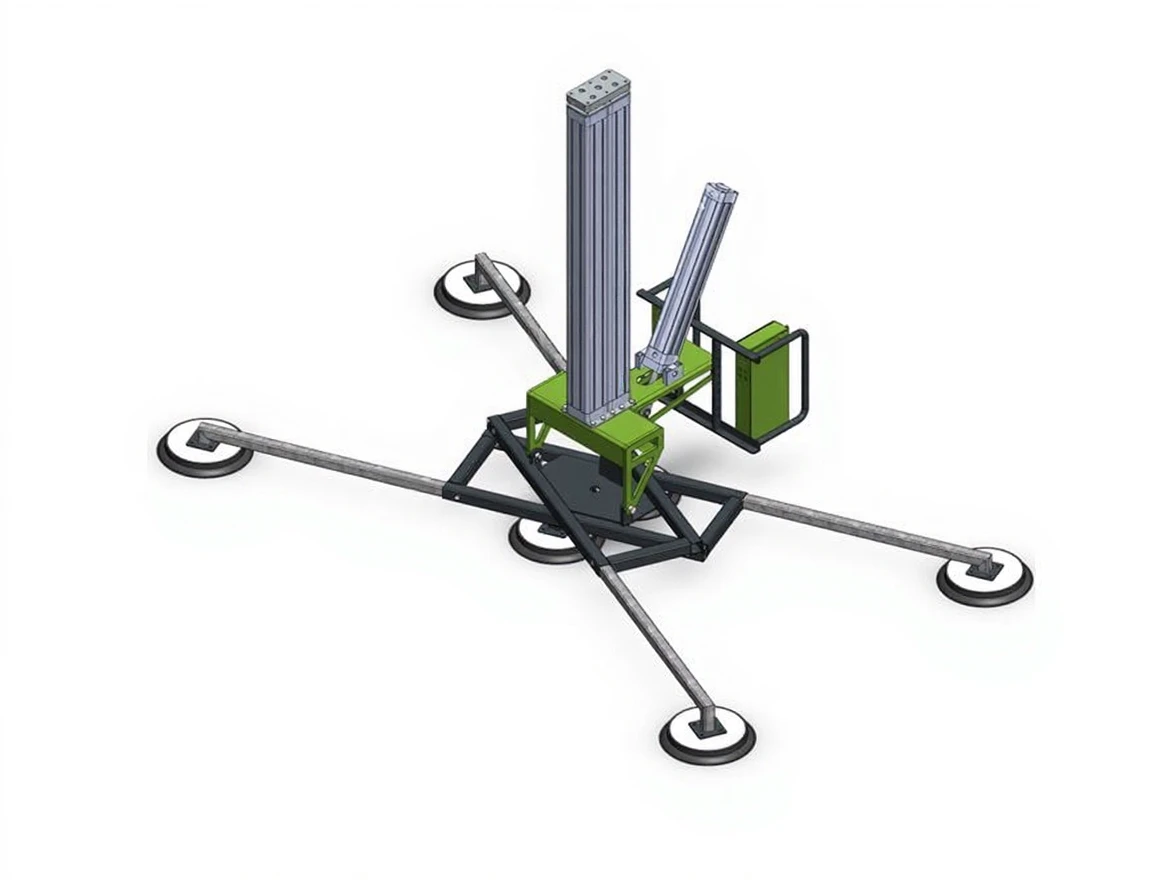

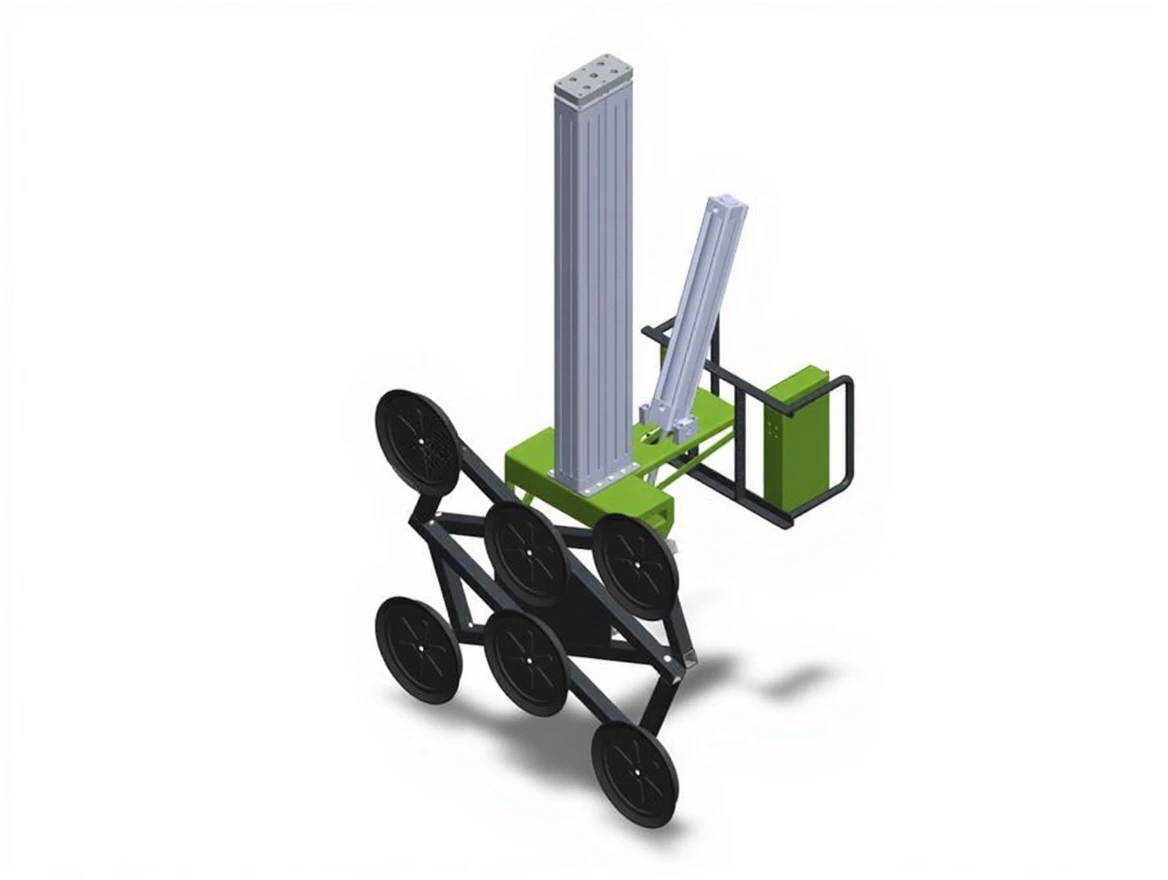

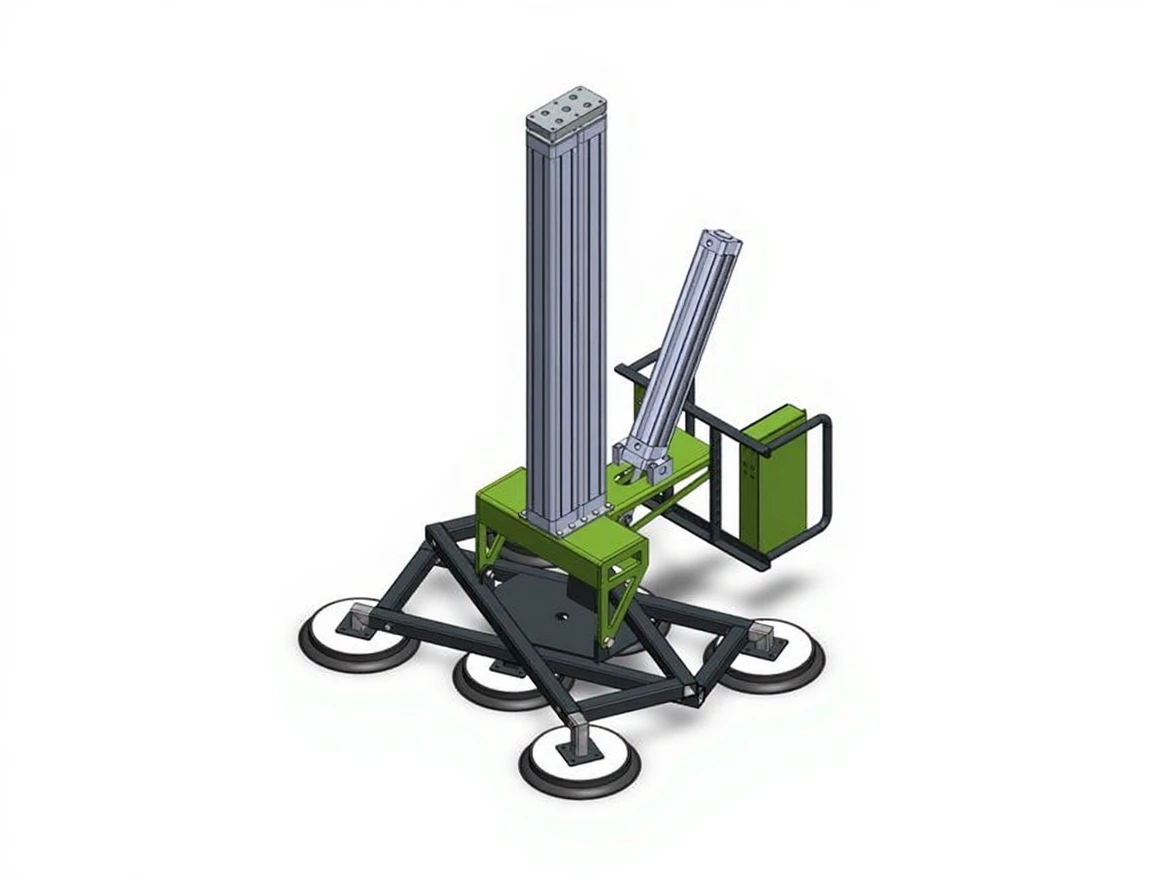

With a 500 kg lifting capacity, the SL-PVL-500VT/EW is equipped with a total of 6 suction cups, 2 in the center and 4 around with a diameter of 290 mm each. Extendable suction arms enable easy transportation of large-sized materials.

The dual-circuit vacuum system ensures secure fixation of the transported material, and its optimized lightweight body makes the product easy to use and ergonomic for operators.

Technical Specifications

• Lifting Capacity: 500 kg

• Number of Suction Cups: 6 (2 center + 4 around)

• Suction Cup Diameter: 290 mm

• Tilting Angle: 90° (from vertical to horizontal)

• Hoist Compatibility: Special lifting ring for electric hoist systems

• Body Structure: Lightweight and durable, operator-friendly

• Vacuum System: Dual-circuit, secure fixation

Areas of Application

• Glass and panel assembly lines working with hoists

• Ceramic and marble slab transport systems

• Production areas requiring vertical positioning and tilting

• Precision transport applications in construction sites and factory environments
