Vacuum Lifting System with 3-Axis Movement Capability and Pneumatic Cylinder (600 kg Capacity)

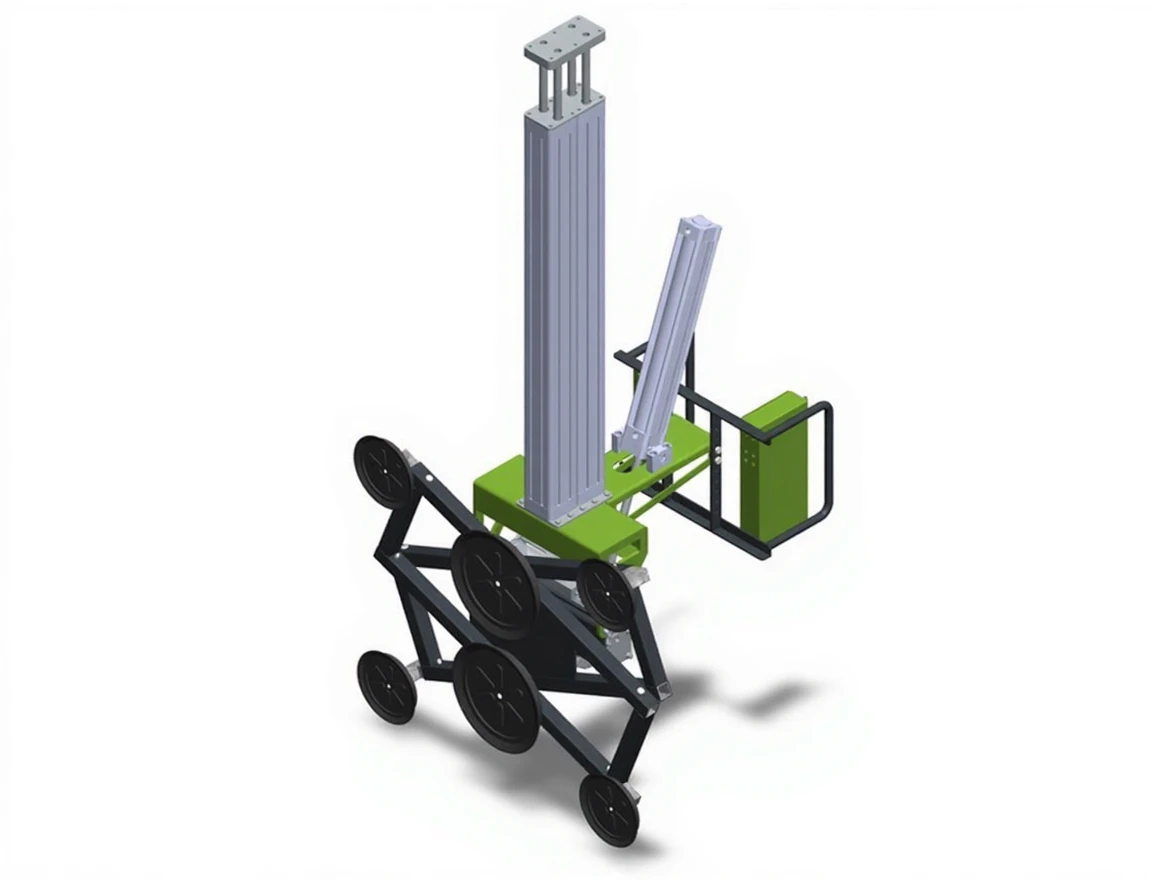

PVL-600VRT-PL – Pneumatic Cylinder, Vacuum Carrier with 3-Axis Movement Capability (600 kg Capacity)

Designed for the vertical lifting, 90° tilting, and 90° rotation of delicate and heavy materials such as glass, panels, ceramics, and marble, this is a high-performance vacuum lifting solution. In this model, the lifting movement is achieved with a specially designed pneumatic cylinder system, providing maximum balance and precision in material handling.

PVL-600VRT-PL powered by compressed air performs with high efficiency in factory and on-site environments without the need for electricity. 2+4 vacuum pads with 290 mm diameter securely attach to large surface materials, ensuring safe transportation.

The device's 0°–90° automatic tilting and rotation features allow controlled and rapid completion of handling operations. Additionally, with optional lifting distance up to 1000 mm, it offers flexibility based on height requirements.

Technical Specifications

• Glass, marble, and facade panel transportation

• Production lines requiring vertical transportation + rotation + tilting

• Usage of pneumatic system in environments without electricity

• On-site and in-factory assembly applications

• Safe and balanced lifting operations for heavy loads
