Vacuum Tarpaulin Cutting Machine

Vacuum Tarpaulin Cutting Machine

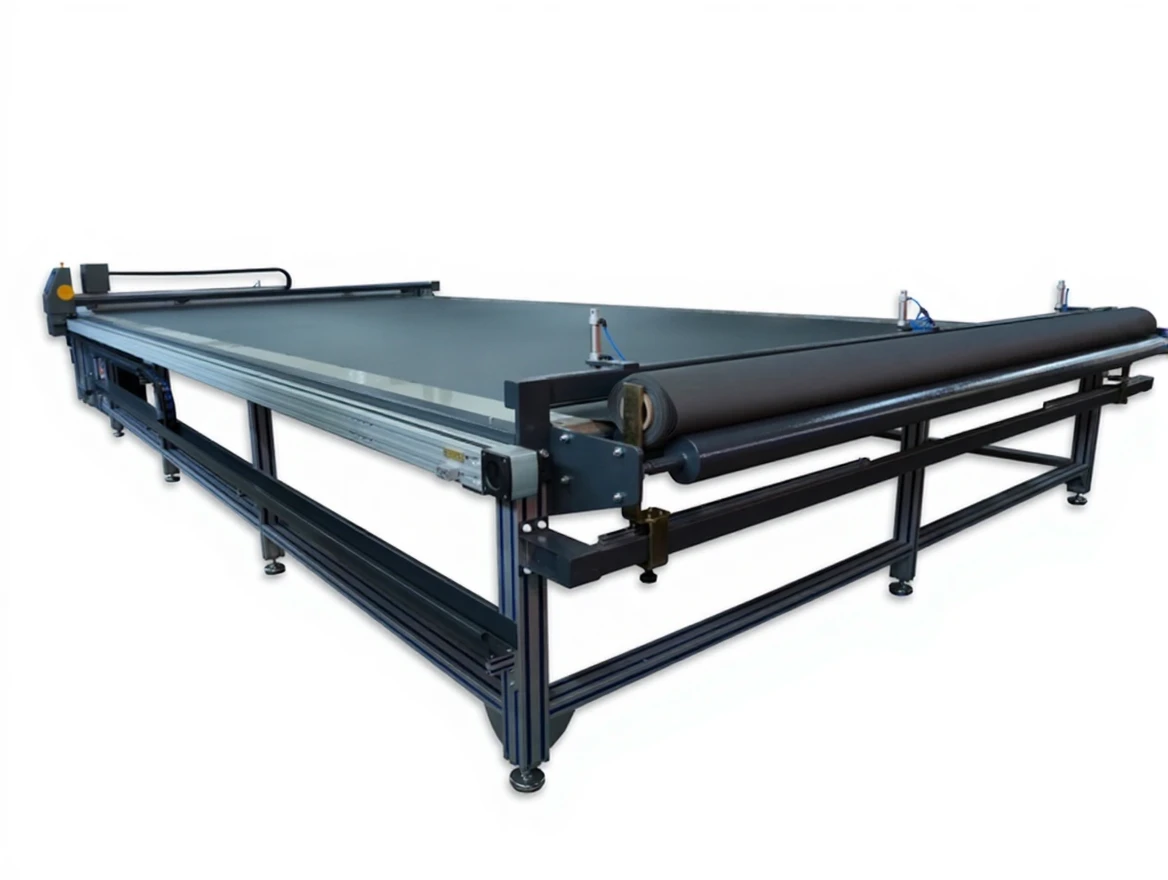

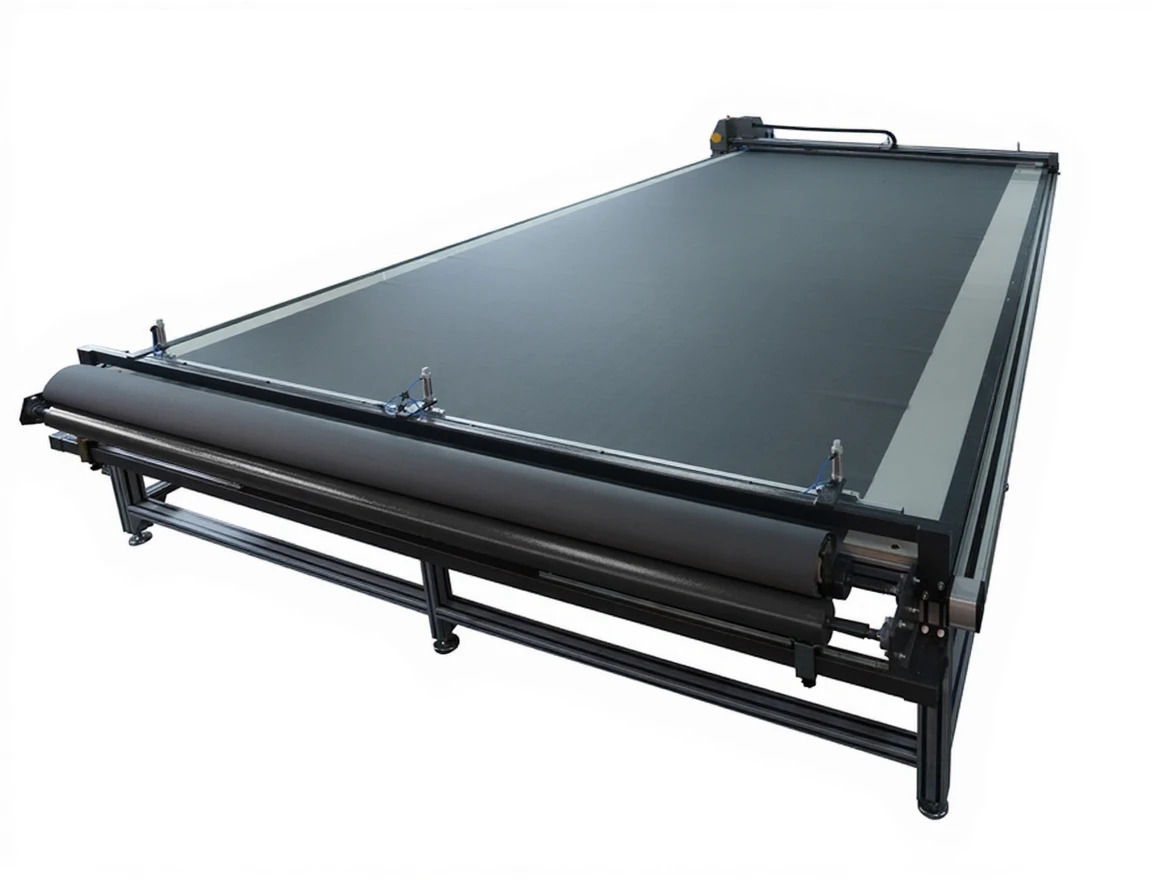

TR 3000 BKV is a high-precision vacuum-supported cutting machine equipped with digital cutting technology. It is compatible with tarpaulin, awning, PVC, PE, and PU materials, providing a reliable and efficient solution for companies operating in various sectors such as advertising materials and technical textiles.

Thanks to its ability to cut different materials with high speed and accuracy, the machine has a wide range of applications. Modular table sizes can be customized according to production needs. Equipped with advanced servo motors and a rack-pinion motion system, the TR 3000 BKV can successfully perform special operations such as angled cutting with 3-axis operation (X, Y, Z).

Key Features

• Flexible production with customizable cutting table sizes
• High-precision rack and pinion motion system
• Compatible operation with licensed drawing software

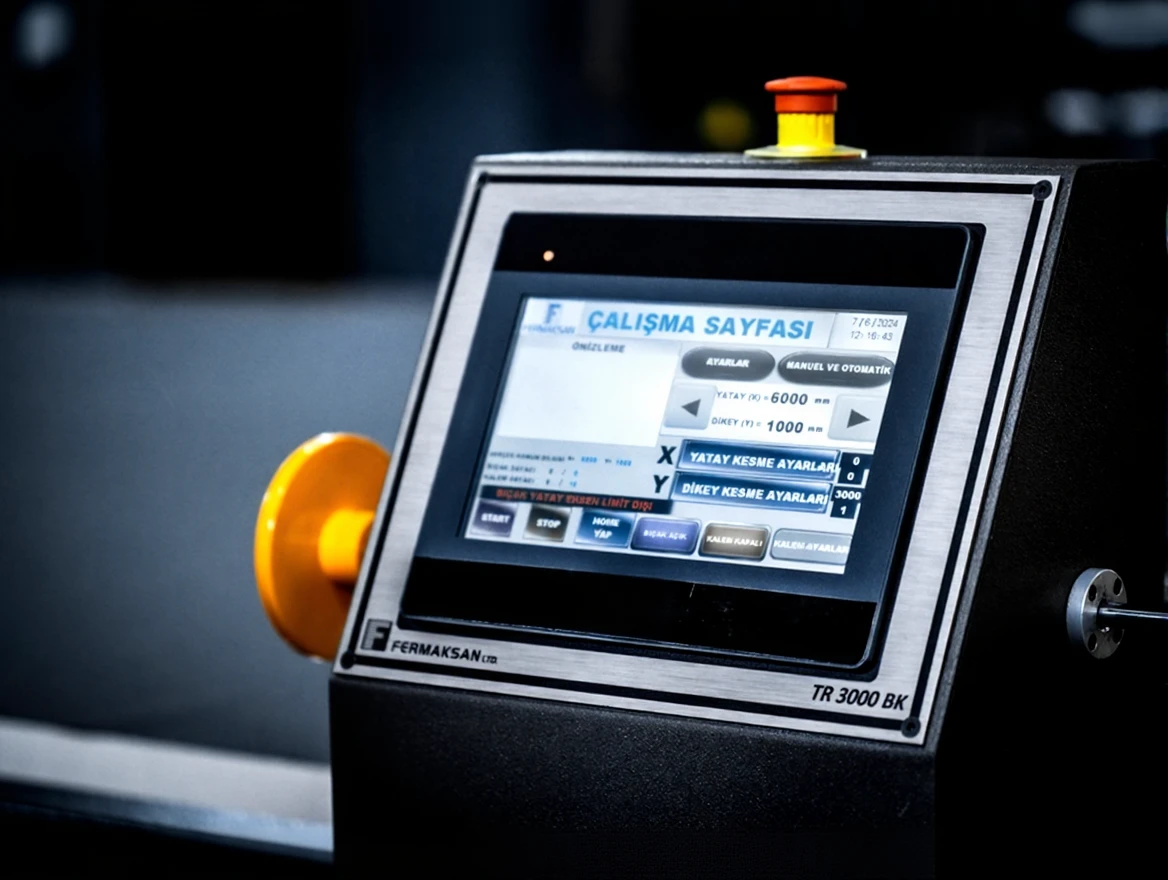

• Smart production management with PLC controlled operating system
• Control via computer and remote access capability
• Material stability with a powerful vacuum suction system
• Maximum cutting quality with knife selection according to material
• 24-hour uninterrupted working capacity
• Ability to work on X, Y, Z axes and perform angled cuts
• Input Power: 14 kW
• Operating Voltage: 3 x 380 V, 50-60 Hz

• Standard machine length: 7 meters
• Table size: 7000 mm (X) x 3500 mm (Y)
• Net working area: 6000 mm (X) x 3200 mm (Y)
• Production can be made in special sizes upon request.
