Vf2000 S System Vacuum Feed Brochure Production Line
| Brand | Morgana |
|---|---|
| Model Type |
System VF2000 S |

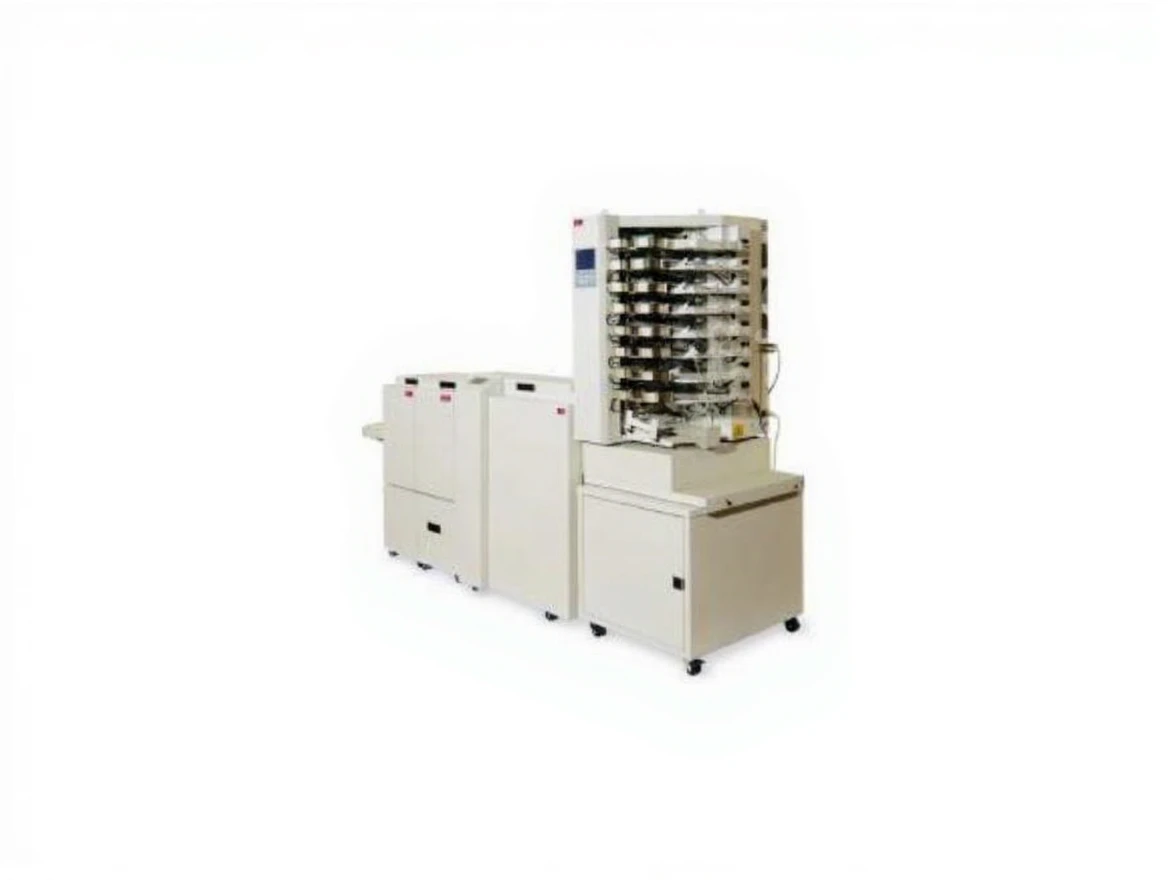

Morgana System VF2000 S
Vacuum Feed Brochure Production Line
System machine suitable for offset and digital printing
Specifically designed for the use of both offset and digital printing houses.
In offset mode, the papers at each station are mixed together and bound, in digital mode, mixed papers are pulled one by one and collected before stitching and then bound.
Specially developed feeding system to pull deformed papers in digital printing properly
Uses 2 Deluxe or Hohner Stitching Heads.
All settings are fully automatic
Morgana 510 ACF series works with vacuum feeding in line or manually fed offline
Document size max 320 x 470 mm
Document size min 120 x 210 mm
Max sheet count: 30 sheets 80 gr/m2 (120 pages)
Capacity: 3,000 brochures / hour
Morgana SQF 2000 back cornering can be connected.
Additionally, there is an optional side cutting device and crease unit option for the cover.
In digital mode, mixed documents are placed in multiple stations.
When the paper runs out at one station, it automatically starts pulling from the other pocket; when a set is completed, the cover is fed from the cover station.
