Vickers Manual Micro-Pixel Hardness Testing Device

The manual micropixel hardness testing device is designed for standard requirements and non-intensive use.

It is designed to perform single and multiple Vickers test cycles on all ferrous and non-ferrous materials such as aluminum, steel, cast iron, and alloys.

It is dedicated to those looking for a basic measuring device without compromising on precision, reliability, and ease of use.

Choosing Micropixel means securing a Vickers bench-top hardness testing device that can be used in both the production department and the laboratory thanks to its compact and space-saving features.

It performs not only Vickers (micro and macro) tests but also Knoop and Brinell tests in accordance with international reference standards including ISO 6506, ISO 6507, ISO 4545, ASTM E10, ASTM E92, ASTM E384.

The key features of your Vickers Hardness Measuring Device;
– Manual focusing and automatic hardness calculation for each Vickers, Brinell, and Knoop test
– Motorized turret with a fixed Z-axis that can be configured with selected lenses and indentations, with 3 to 6 positions

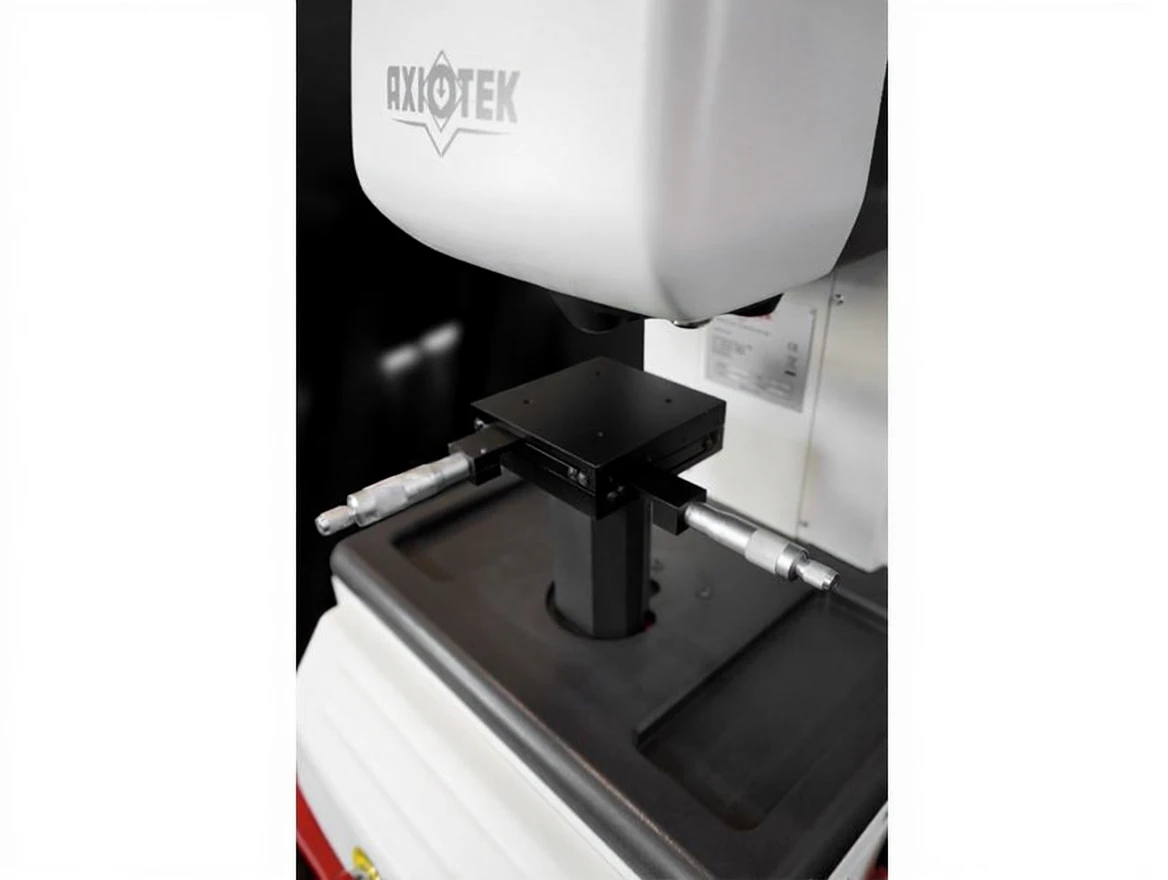

– Test sample processing via manual lifting screw, mechanical clamped XY table (10 µm resolution) or digital XY table (1 µm resolution)
– Unmatched accuracy of results even at very low loads thanks to the use of closed-loop controlled load cells at high sampling speed (20 bits at 1 kHz)
– Measurable force range: 10gf to 50kgf
– Manually configurable hardness testing device with 3 different resolutions
