Volde | Bag Filling System

Brand Volde
Model Type

Fullbag

Description

Bag Filling

Open Mouth Bag Filling Machine

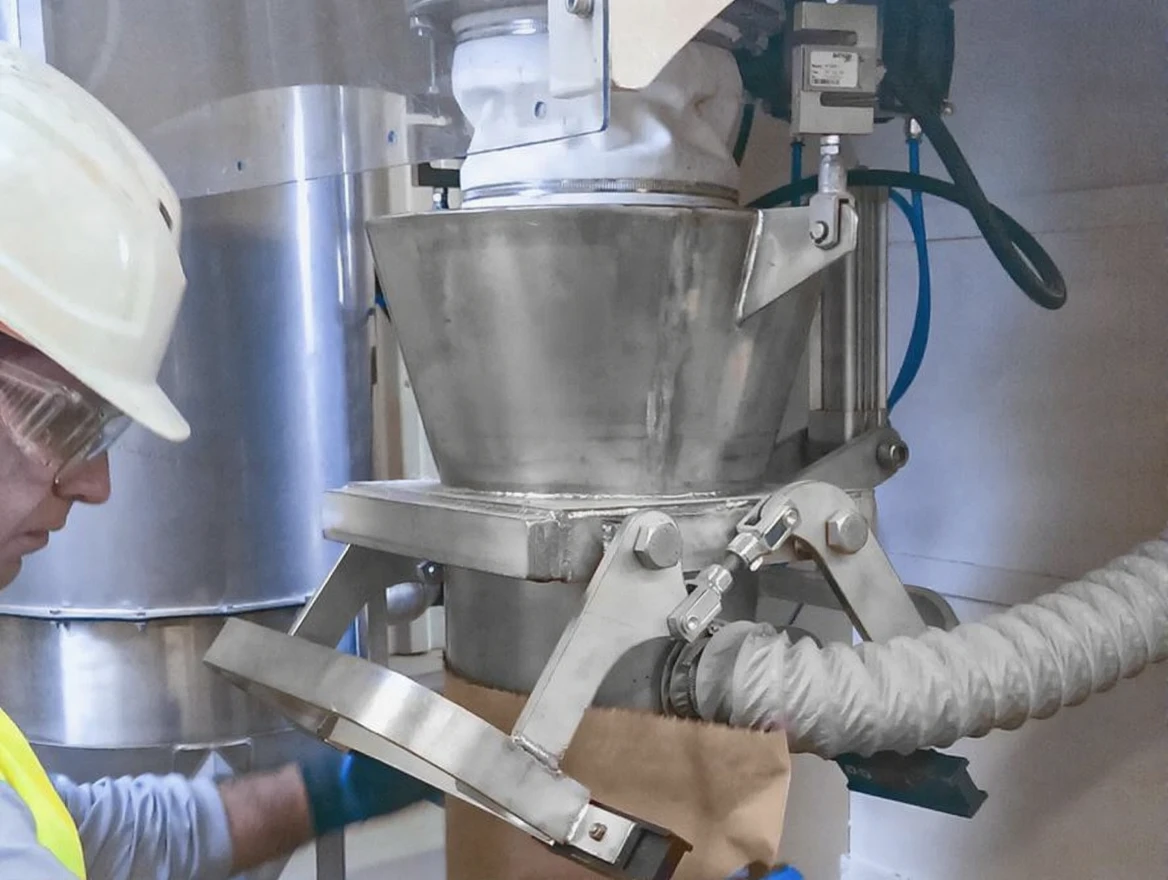

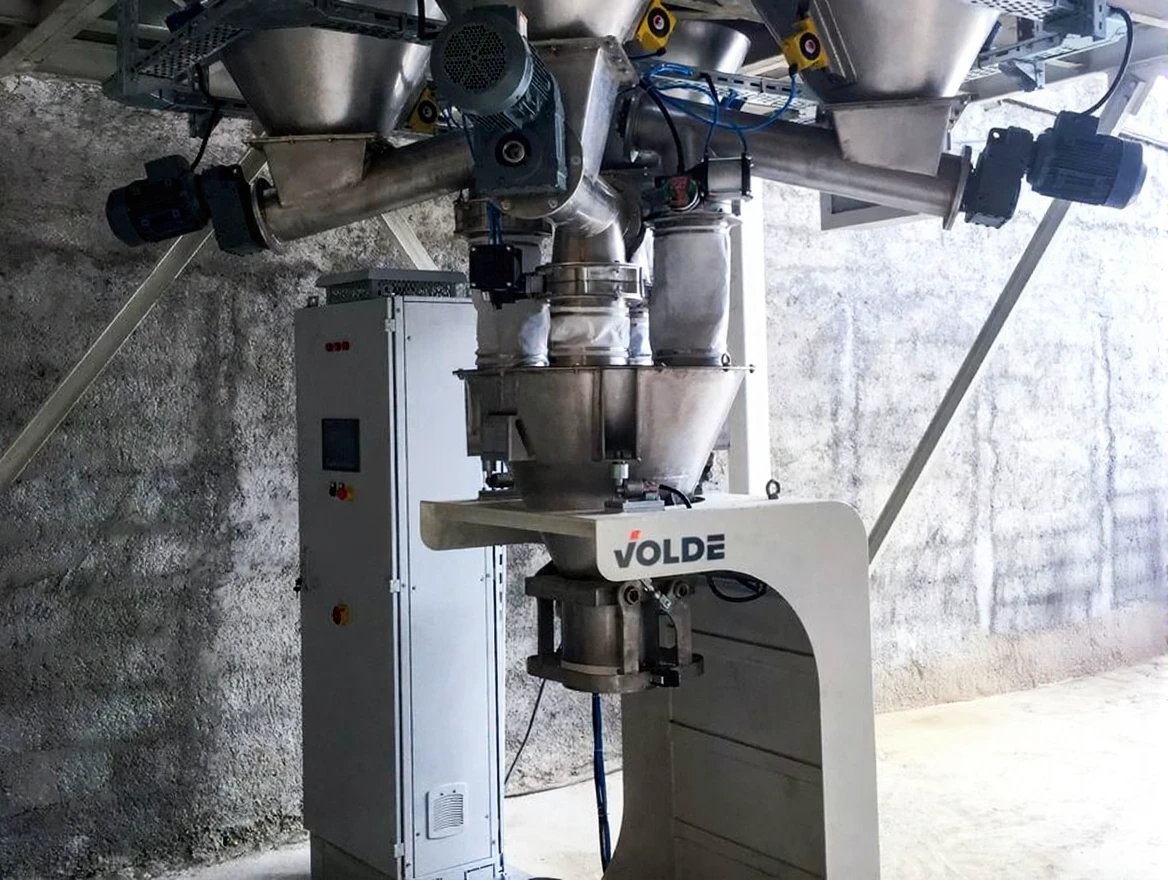

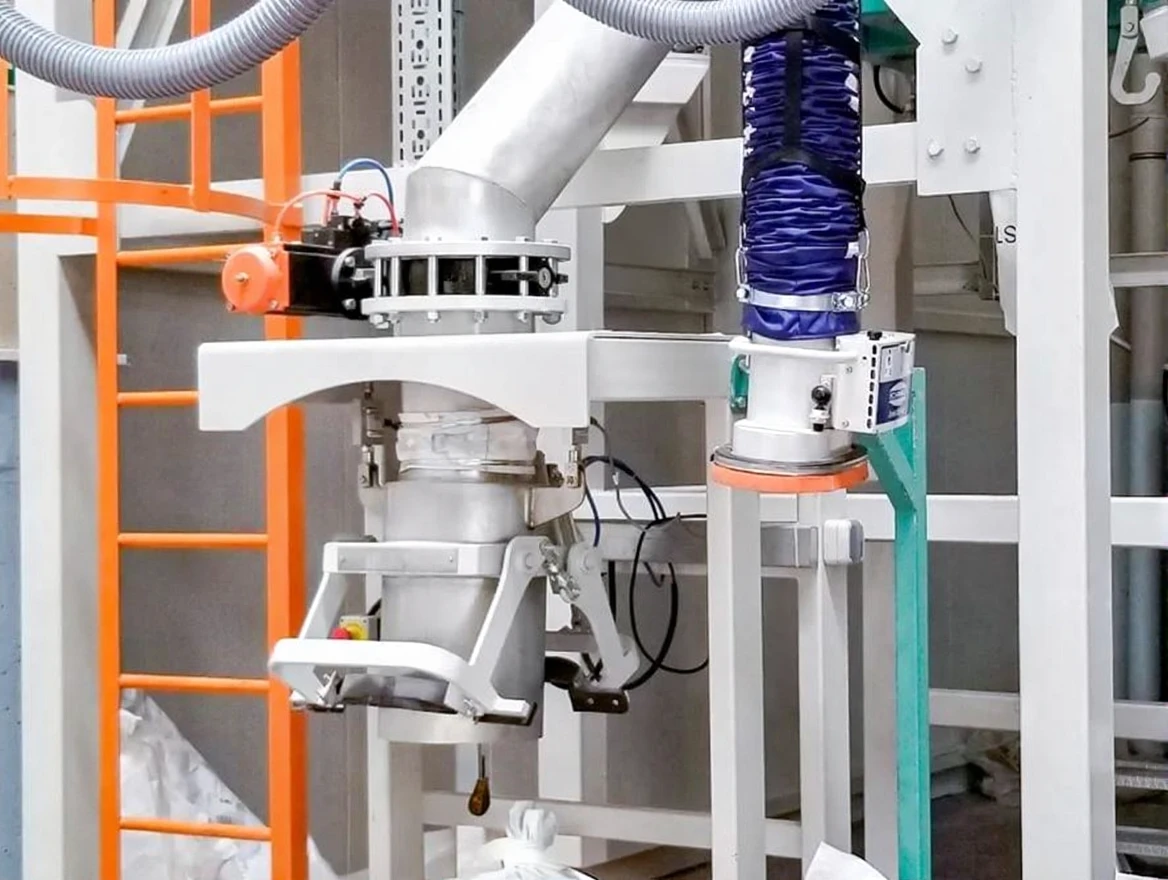

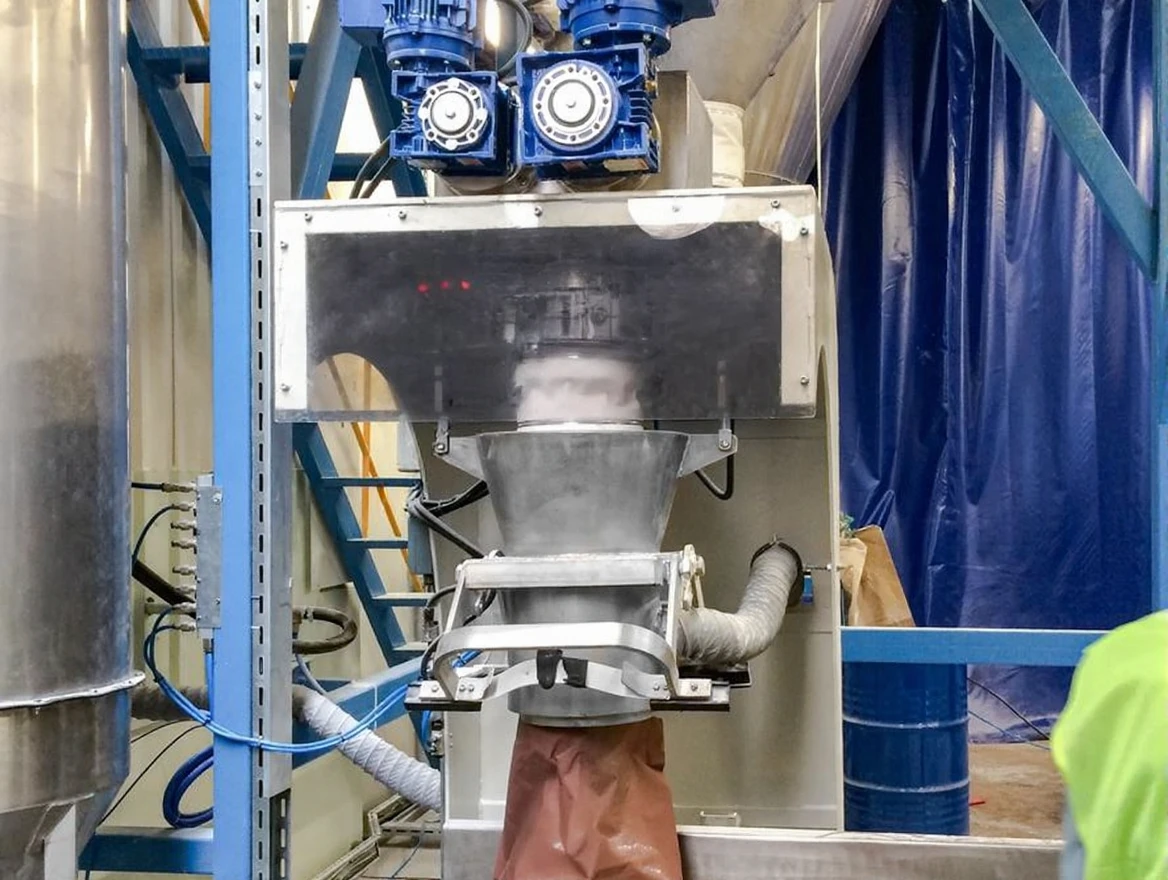

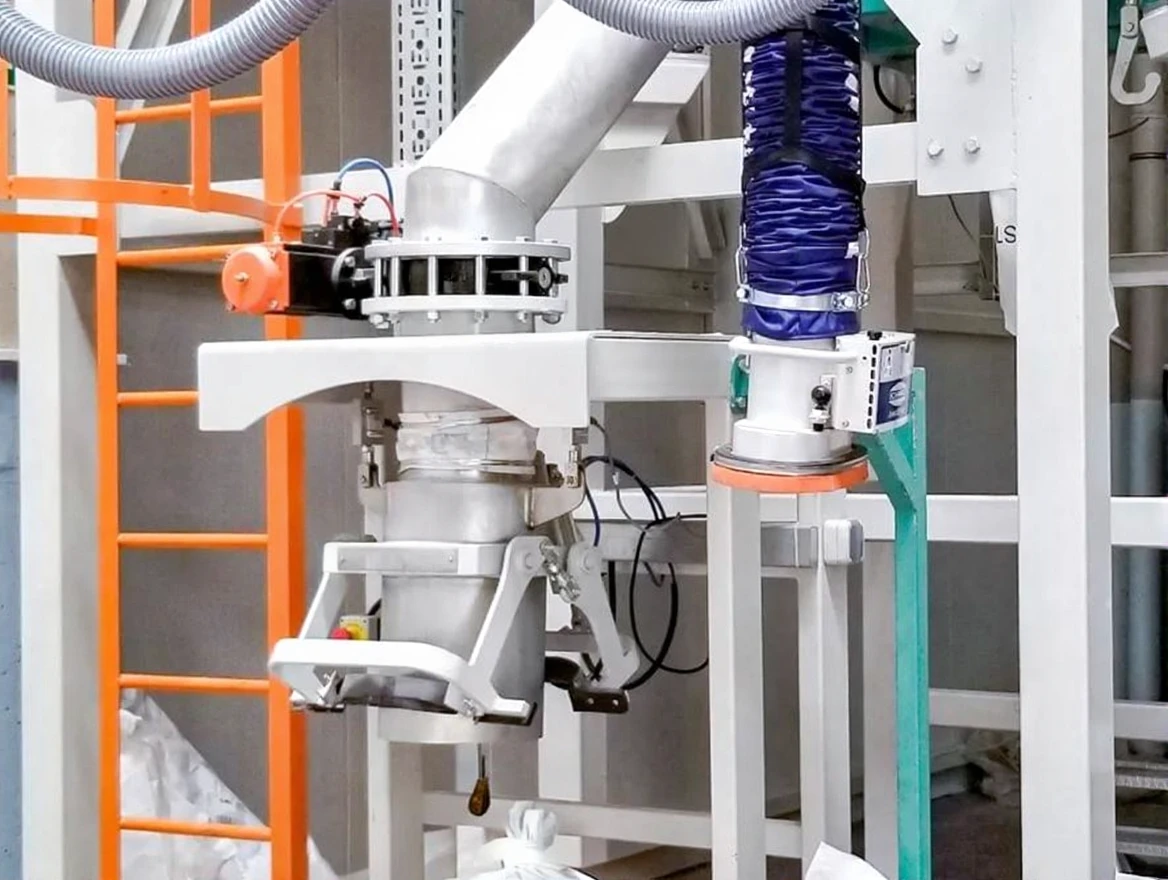

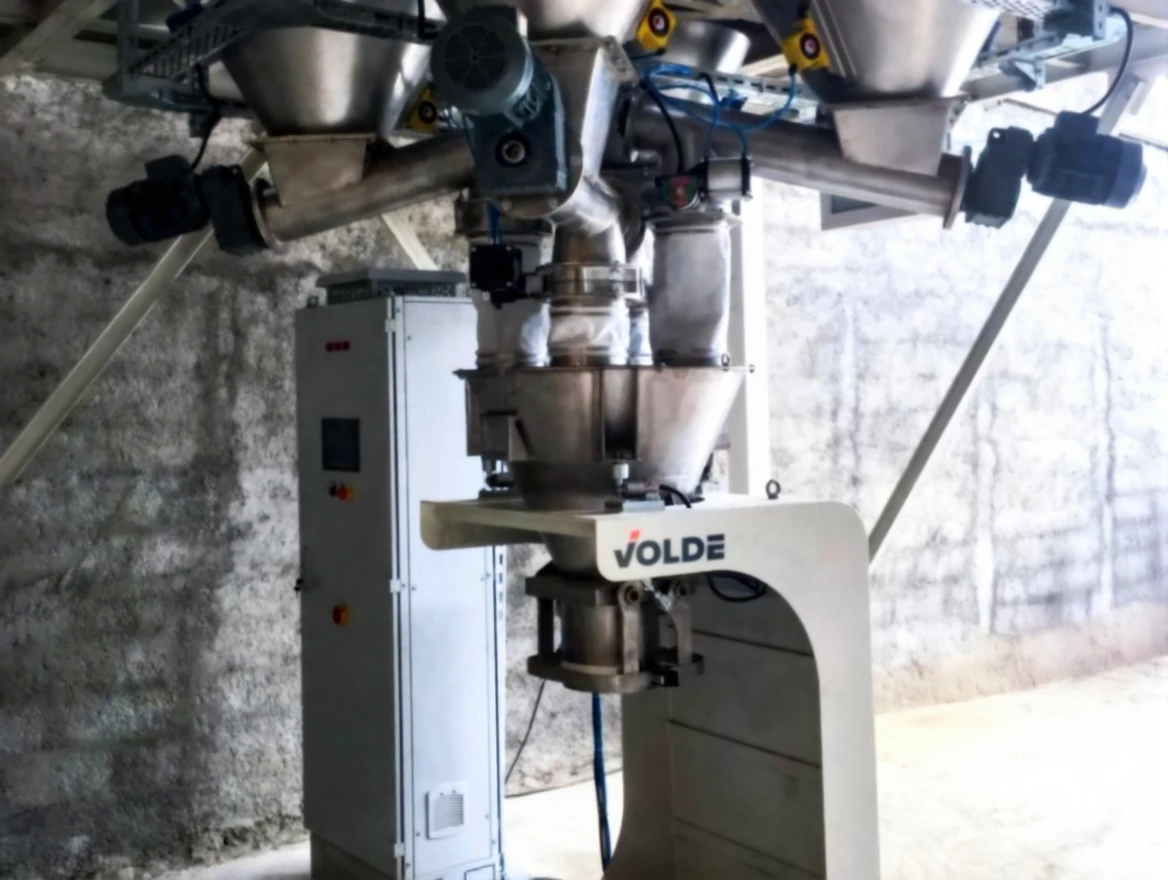

| The Open Mouth Bag Filling Machine is a semi-automatic machine designed to meet expectations such as precision, efficiency, and speed. The bag attachment process is carried out by the operator, while the filling process and subsequent sealing / stitching processes are performed automatically.
All surfaces of the machine that come into contact with the material are made of stainless steel. Depending on the characteristics of the material to be filled, the feeding unit can be a screw feeder, vibro feeder, or belt feeder.


Bag Filling Features
  • Bag Compatibility: Suitable for PP, kraft, and plastic bags.
  • Filling Capacity: Can fill up to 3 bags per hour depending on the operator's ability.
  • Closure & Stitching Solutions: For PP and kraft bags, it is provided with an integrated stitching machine. There is both a manual machine and an option for a conveyor automatic machine. For plastic bags that ensure product freshness and safety, there is an integrated sealing (thermoseal) machine provided. There is both a manual machine and an option for a conveyor automatic machine.
  • Control Systems: The user-friendly control panel is supported by the latest PLC system technology.





  • Weight Range: The machine is suitable for bags weighing between 10-50 kg and can provide filling accuracy of up to 100 g depending on the material type.
  • Feeding Units: For granular products, free-flow filling; for powder materials, screw feeder; for fragile materials, vibro and belt feeder.
