Wastewater Treatment Rotary Drum Screen
| Brand | Tidap |
|---|---|
| Model Type |
TE2000 |

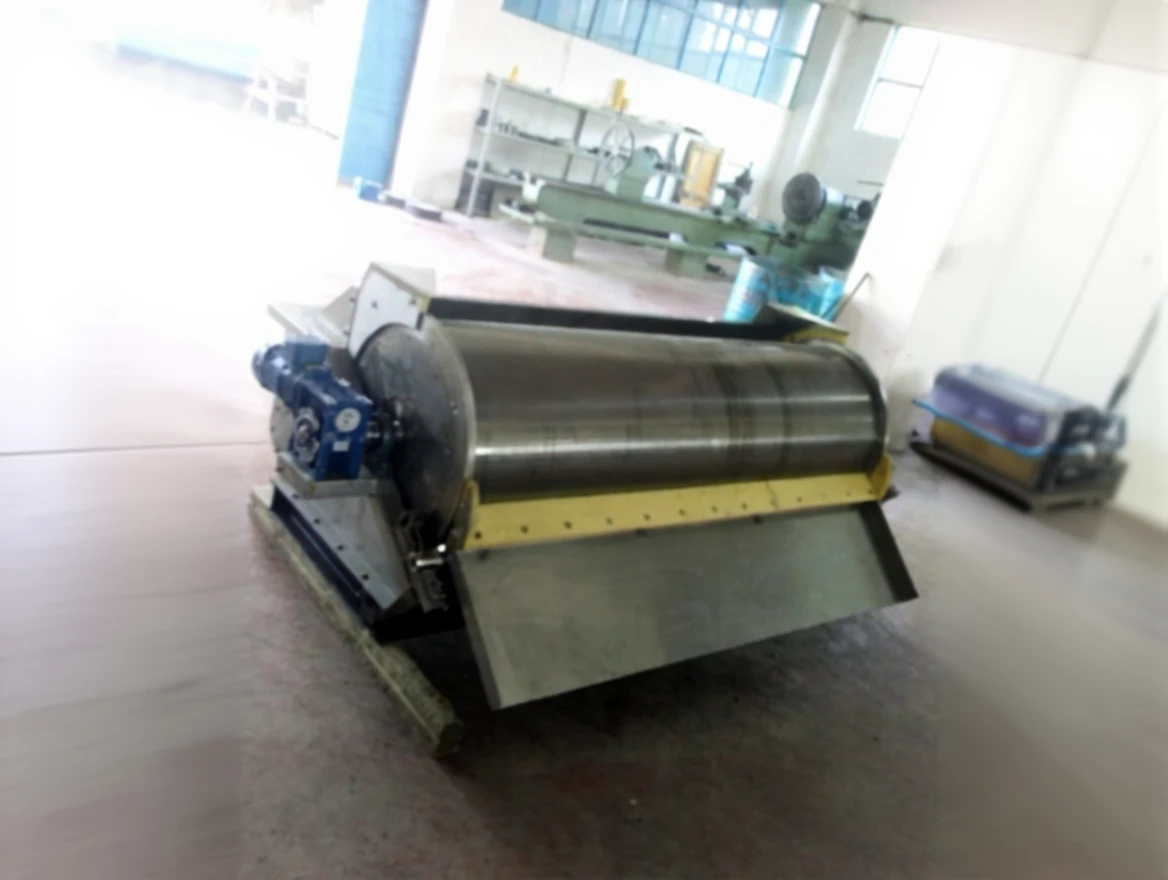

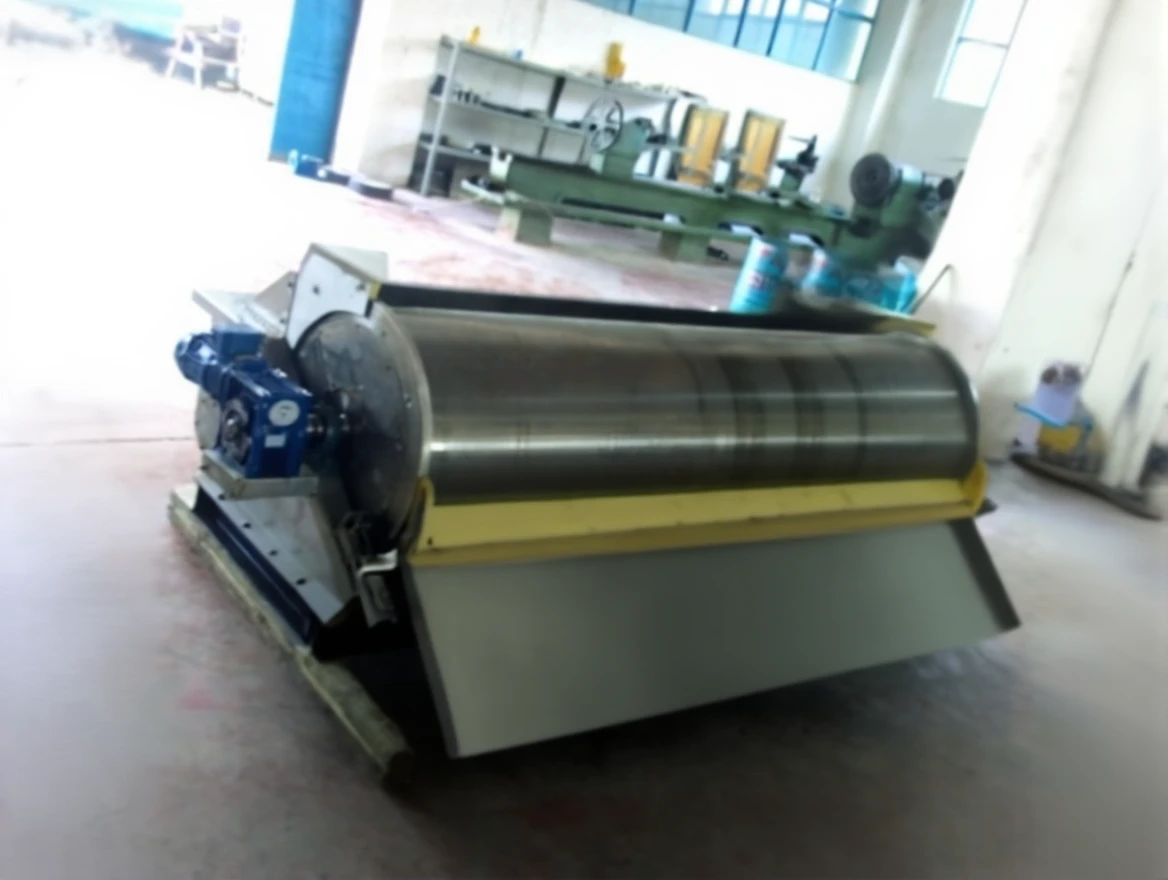

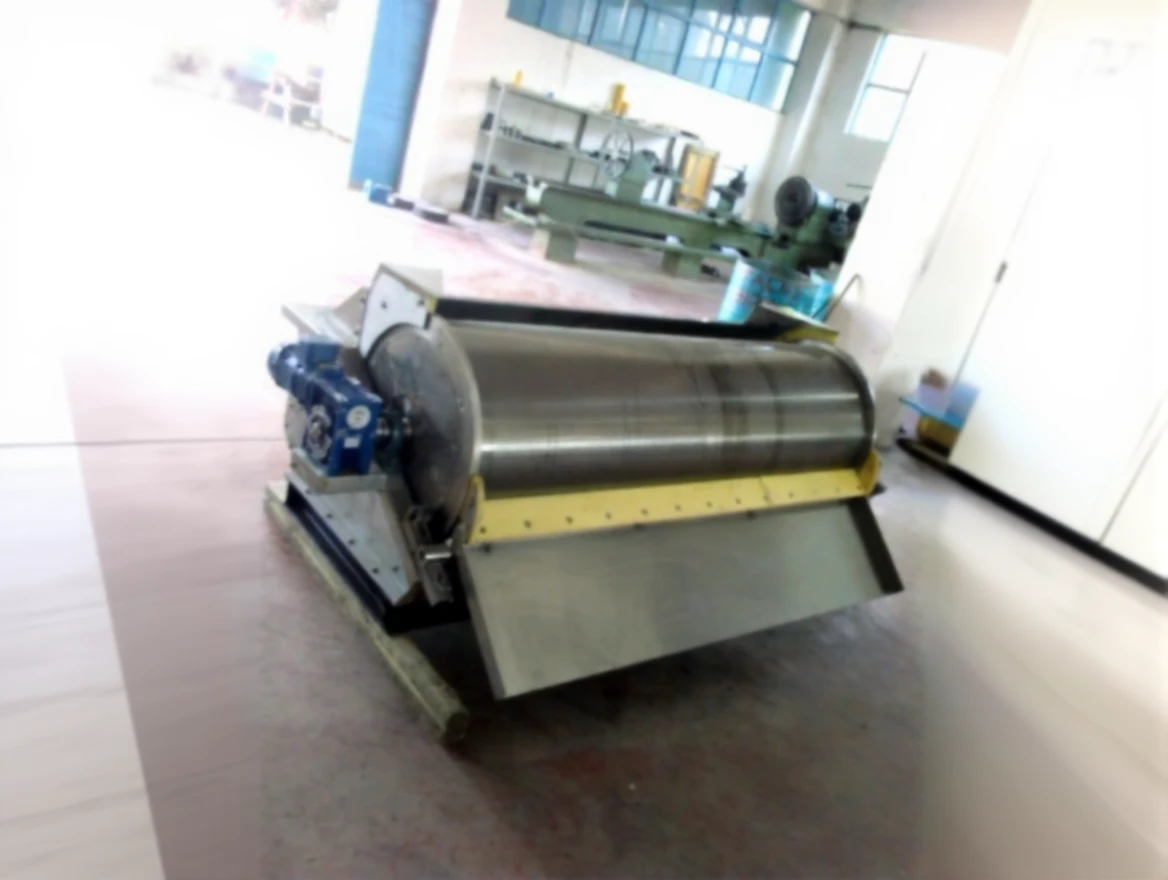

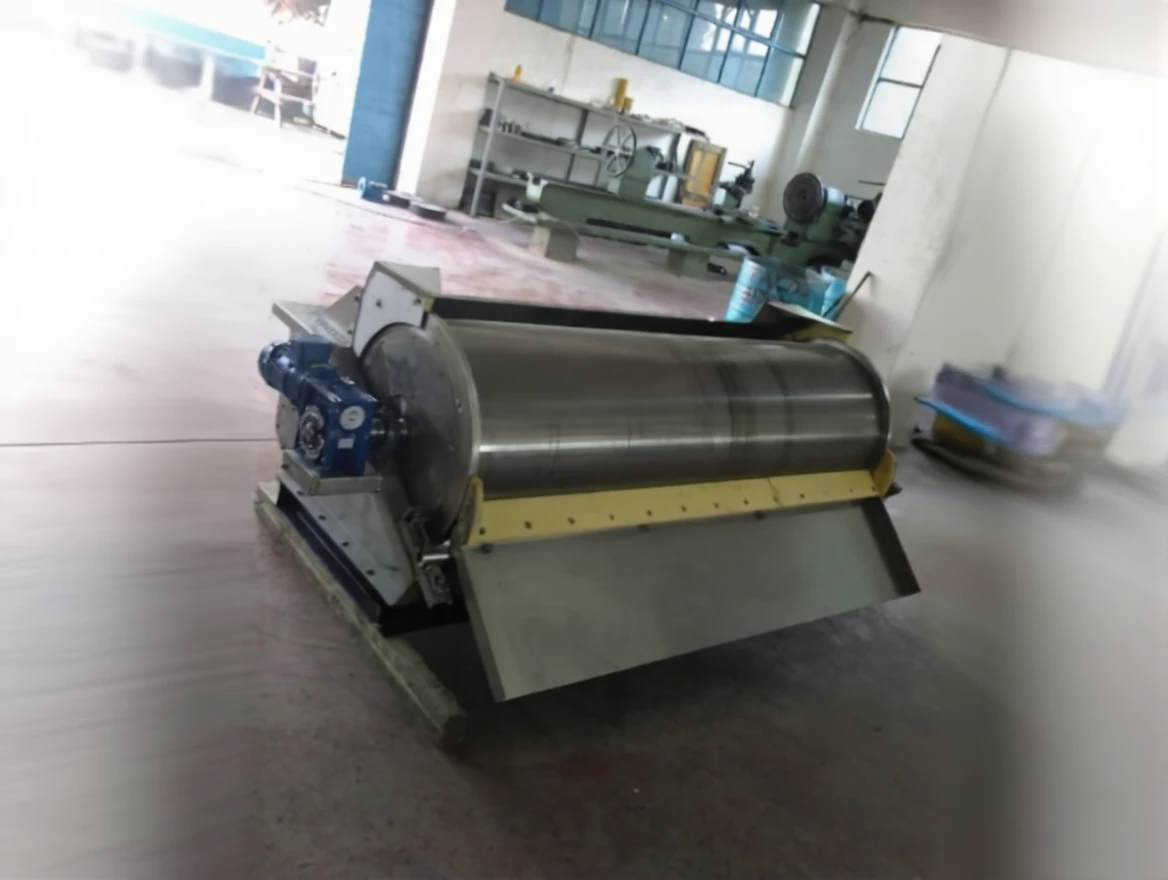

Wastewater Treatment Rotary Drum Screen
Tidap TE2000
Rotary screen type fine grids, also referred to as drum screens, are equipment used for very fine separation (250-2000 microns). The water and wastewater flowing into the cylindrical screen surface retain solid materials inside the screen and are collected and transferred to the collection chamber by the surface cleaning system.
In drum screens that can also be manufactured with external flow, the water and wastewater come from the outside to the screen surface, and after the solid materials are retained on the surface, they are collected and removed by a cleaning brush. Rotary (drum) screens can be produced from stainless steel, galvanized, or carbon steel coated with suitable quality epoxy paint upon request.
Areas of Use for Tidap Rotary Drum Screen;
-
Wastewater Treatment Plants
-
Feedlots
-
Slaughterhouses and Abattoirs
-
Dairy and Dairy Product Facilities
-
Fruit and Vegetable Washing – Processing
-
Recycling – Recovery Sector
-
Mining
-
Processes requiring solid-liquid separation
-
Used in situations where process losses need to be prevented.
-
Screen material in AISI304 / AISI316 imported/local options
-
Inlet/external flow types according to process needs
-
Motor-reducer
-
Water tank, including automatic cleaning system.
-
Maintenance-free, long-lasting process equipment.
