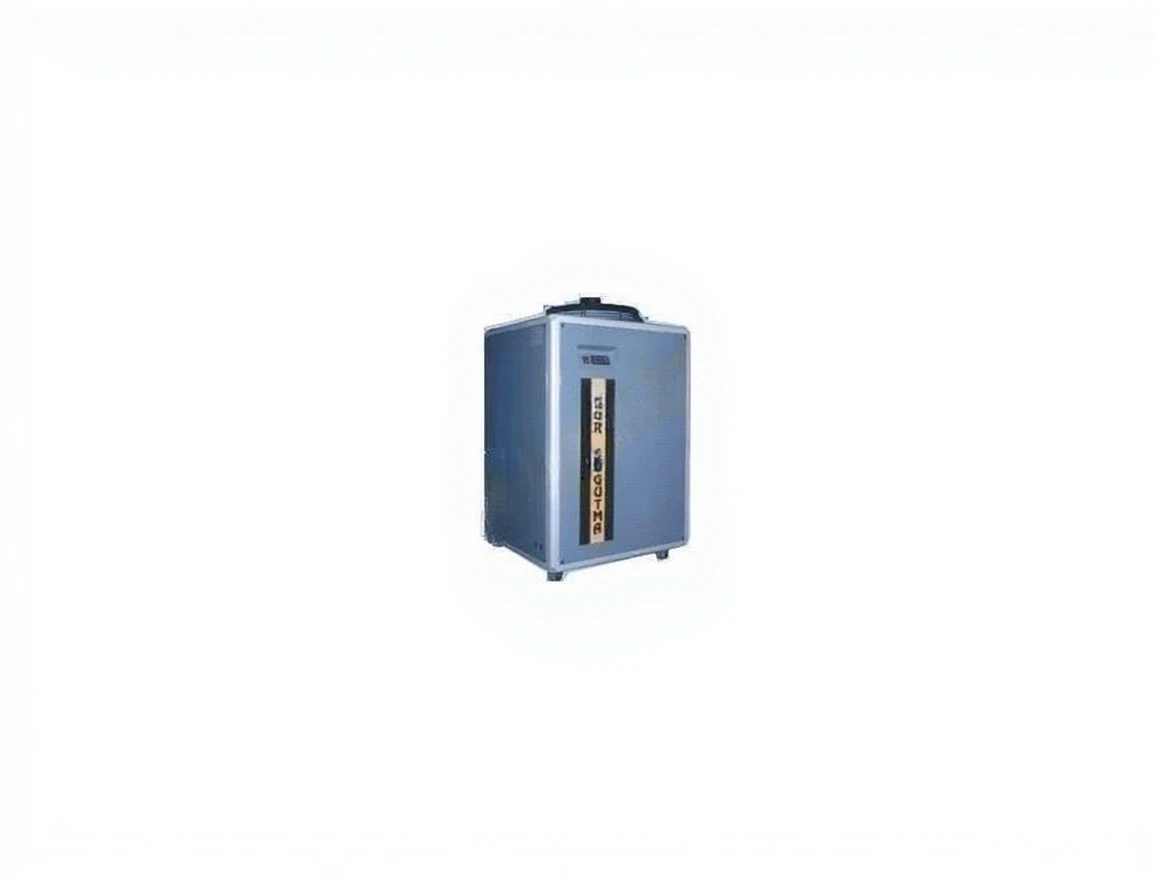

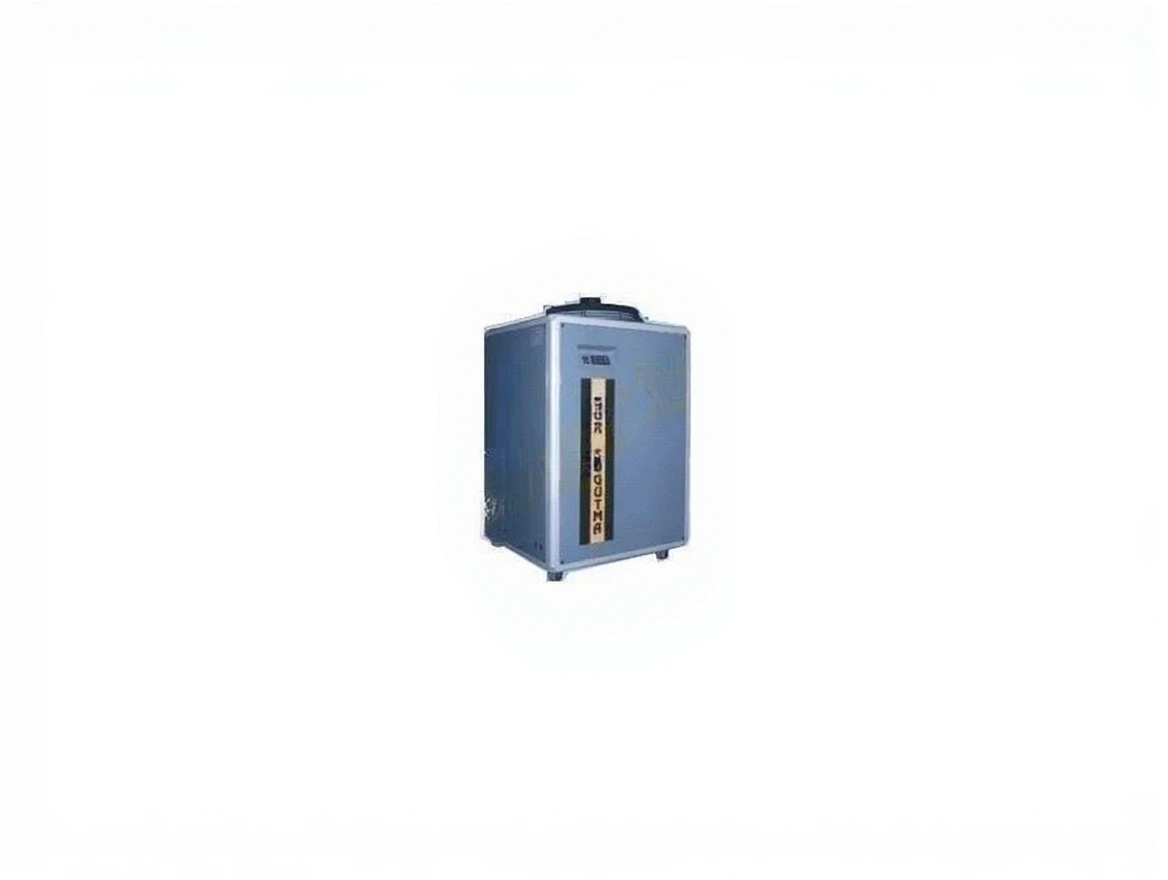

Water Cooled Chiller / Gürsu Grs 150
| Brand | Gürsu |
|---|---|
| Model Type |
GRS 150 |
Description
| Model: GRS 150 |
| Capacity: 4,000 KCal/h – 2.00 ton/h |
| Cond: 35 ºC Evap 2.5 ºC: 4.889 Watt Evap 5 ºC: 5.340 Watt Evap 7.5 ºC: 5.846 Watt |
| Cond: 40 ºC Evap 2.5 ºC: 4.733 Watt Evap 5 ºC: 5.240 Watt Evap 7.5 ºC: 5.800 Watt |
| Cond: 45 ºC Evap 2.5 ºC: 4.626 Watt Evap 5 ºC: 5.056 Watt Evap 7.5 ºC: 5.540 Watt |
| Device Dimensions Width: 660 mm. Length: 610 mm. Height: 1,100 mm. |
| Device Weight (Without Crate): 100 Kg. Weight with Crate: 145 Kg. Weight with Pallet: “.” Kg. |
| Compressor Type: Hermetic Compressor Power: 1.25 KW. Horsepower: 1.5 HP. |
| Water Pump Inlet: 1 inc. Water Pump Power: 0.75 KW. |
| Number of Condenser Fans: 1 Piece Fan Diameter: 350 mm. Fan Motor Power: 0.13 x 1 Piece. |
| Water Tank Capacity: 40 Lt. |
| Device Current Power: 4 Amper |
| Total Power Consumption of the Device: 2.13 KW. |
| Device Feeding Cable: 4×2.5 mm. |
| Dimensions of the Device with Crate: 76x65x123 width x length x height |
| Dimensions of the Device with Pallet: width x length |
