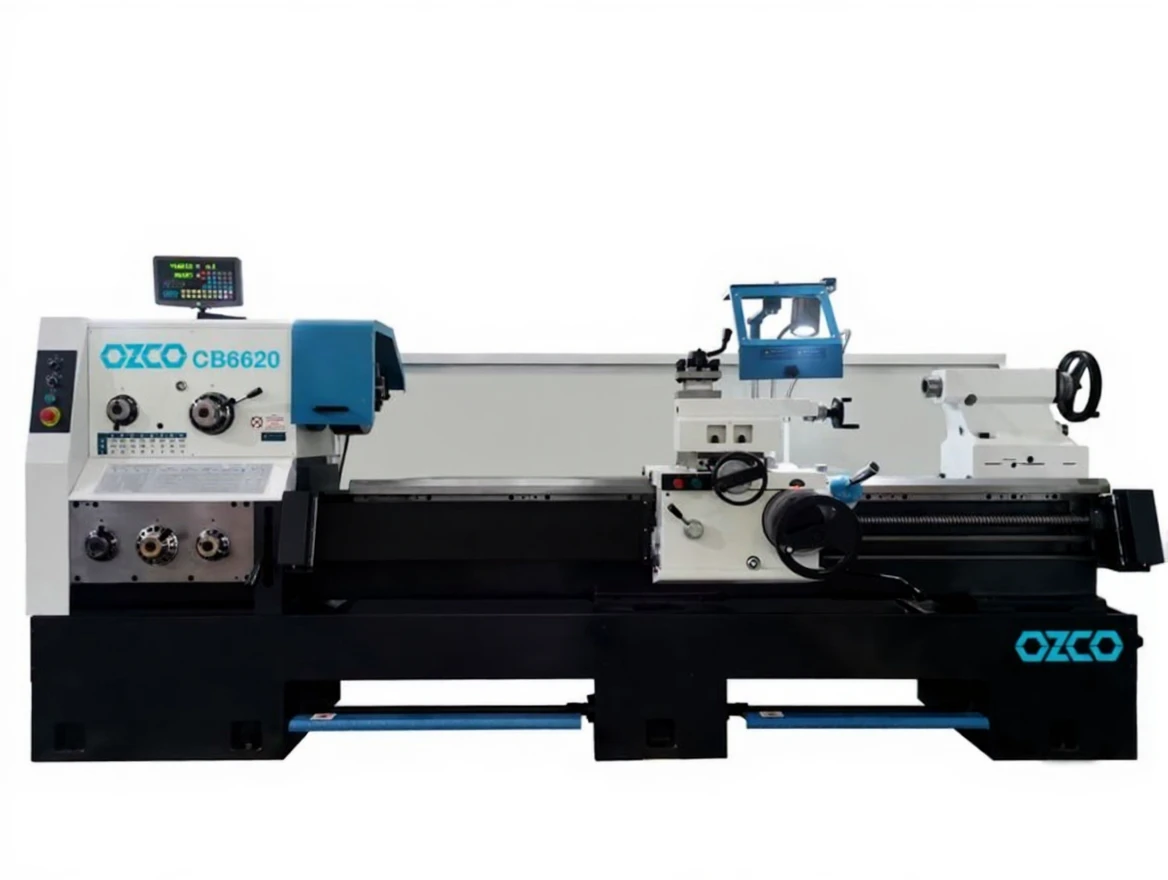

Yunnan Cb6620 Digital Lathe
| Brand | Yunnan |
|---|---|
| Model Type |
CB6620 |
Description
YUNNAN CB6620 Universal Lathe
YUNNAN CB6620 Universal Lathe Capacity
It has a processing capacity of 660 mm on the bed, 430 mm on the support, and 870 mm in the gap. The center spindle diameter is 105 mm, the distance between centers is 2000 mm.
YUNNAN CB6620 Universal Lathe Scope of Delivery
Digital readout, 3-jaw chuck Ø250 mm, 4-jaw chuck Ø400 mm, Faceplate 630 mm, Traveling steady rest 20-80 mm, Fixed steady rest 130-260 mm, MK5 live center, MK5 fixed center, Machine leveling feet, Thread cutting clock, Chip guard system for moving spindle assemblies, LED lighting, Chuck and pen holder guard, 4-way tool holder, Cooling system, Tool kit are included.
YUNNAN CB6620 Universal Lathe General Features
In compliance with CE standards, Mechanical clutch system, Schneider electrical system, Safety switch guard, Joystick for easy movement, Hardened and ground precision guideways, Special design lubrication system, Foot brake.
Technical Specifications of YUNNAN CB6620 Universal Lathe
Motor Power 11 kW, 400 V w
Bed Diameter 660 mm
Gap Bridge Diameter 870 mm
Carriage Diameter 430 mm
Bed Width 390 mm
Intermediate Length 240 mm
Distance Between Centers 2000 mm
Maximum Material Capacity with Chuck 350 kg, with Chuck+Traveling Center 450 kg
Speed 6-1120 rpm
Gears 24
Faceplate Taper 1:20
Faceplate Nose D8
Center Spindle Diameter 105 mm
Cross Support Movement 360 mm
Transversal Support Movement 200 mm
Traveling Center Taper MK5
Traveling Center Diameter 75 mm
Traveling Center Movement 150 mm
Linear Feed [ PHONE HIDDEN ] mm/rev
Transversal Feed [ PHONE HIDDEN ] mm/rev
Metric Thread and Pitch 1-224 (46 units) mm
Inch Thread and Pitch 28/1-8 TPI (42 units)
Module Thread and Pitch [ PHONE HIDDEN ] units)
Diametral Thread and Pitch 56-1/4 DP (45 units)
Tool Holder Size 25×25 mm
Machine Dimensions (WxLxH) 3500x1250x1400
Packaging Dimensions 3750x1120x1940 mm
Weight 2900 kg
Gross Weight 3400 kg
