Yunnan Cb6630 Digital Lathe

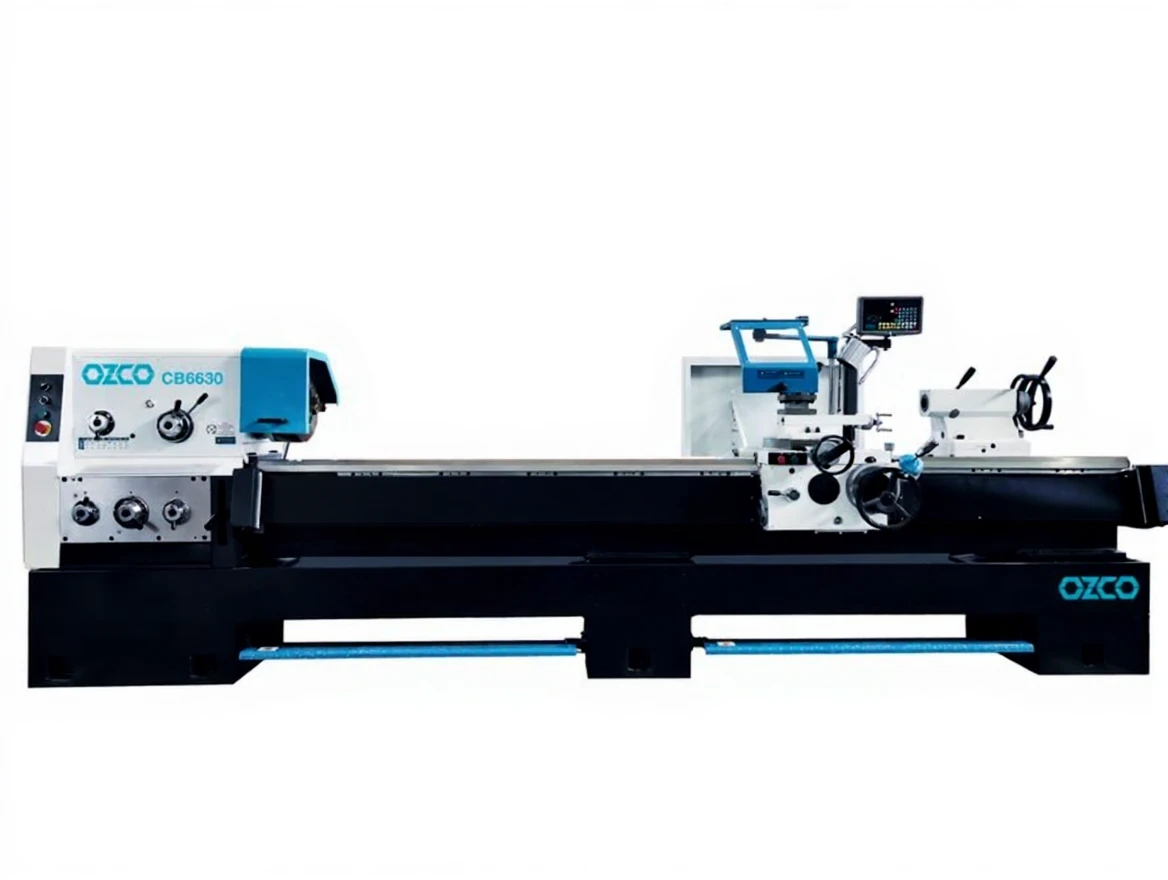

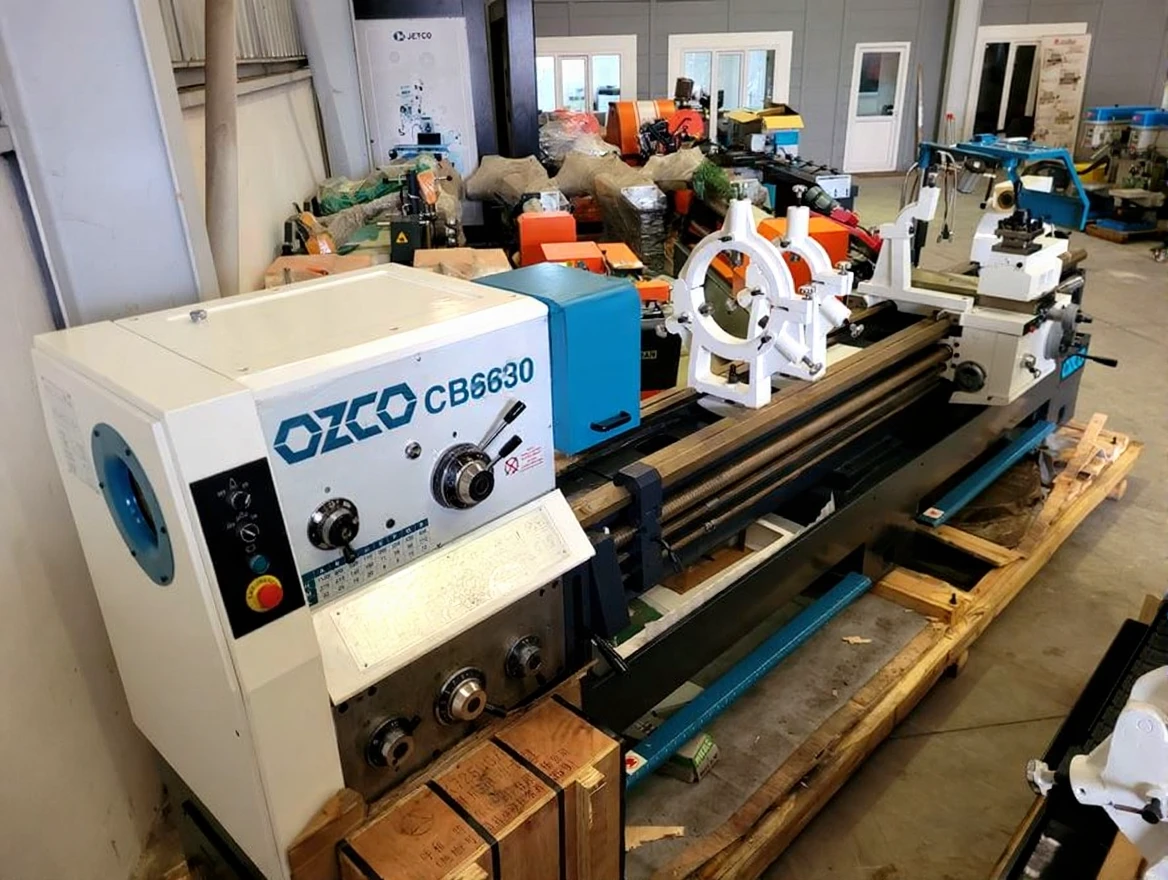

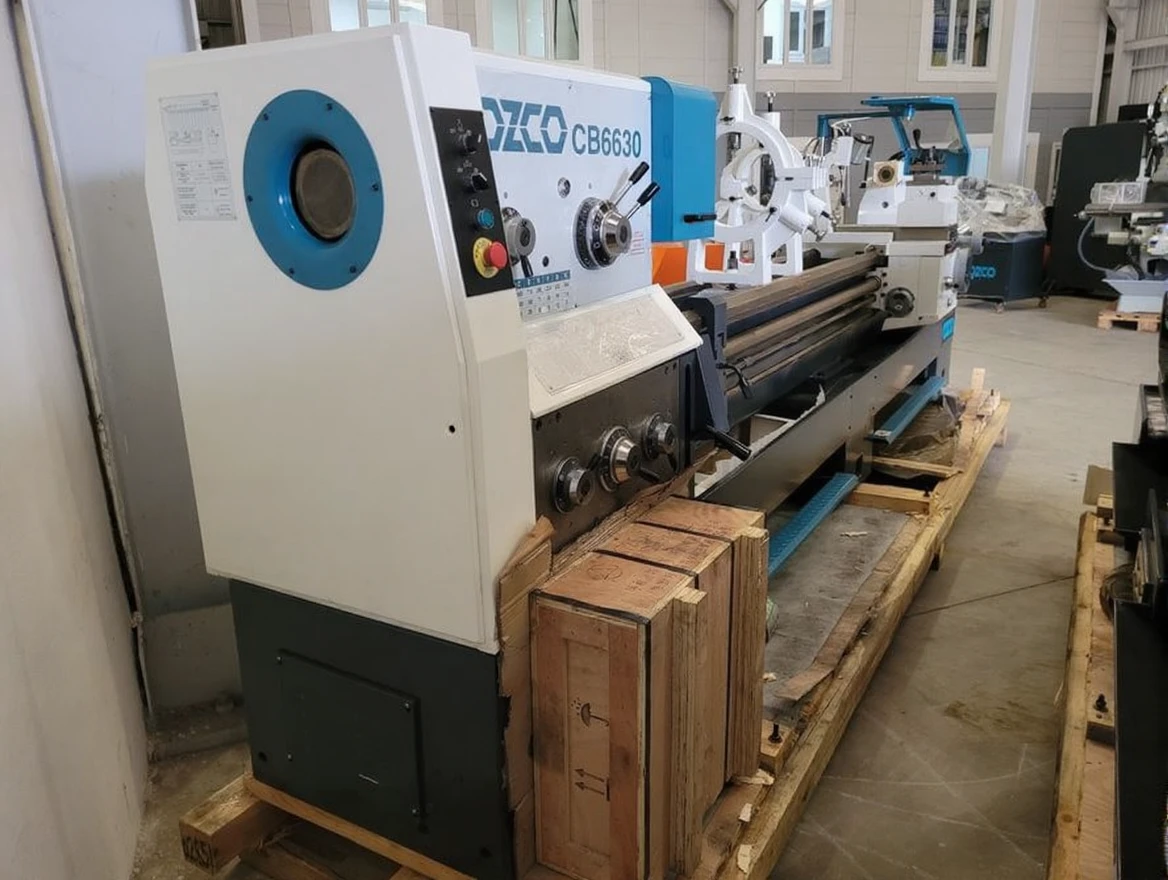

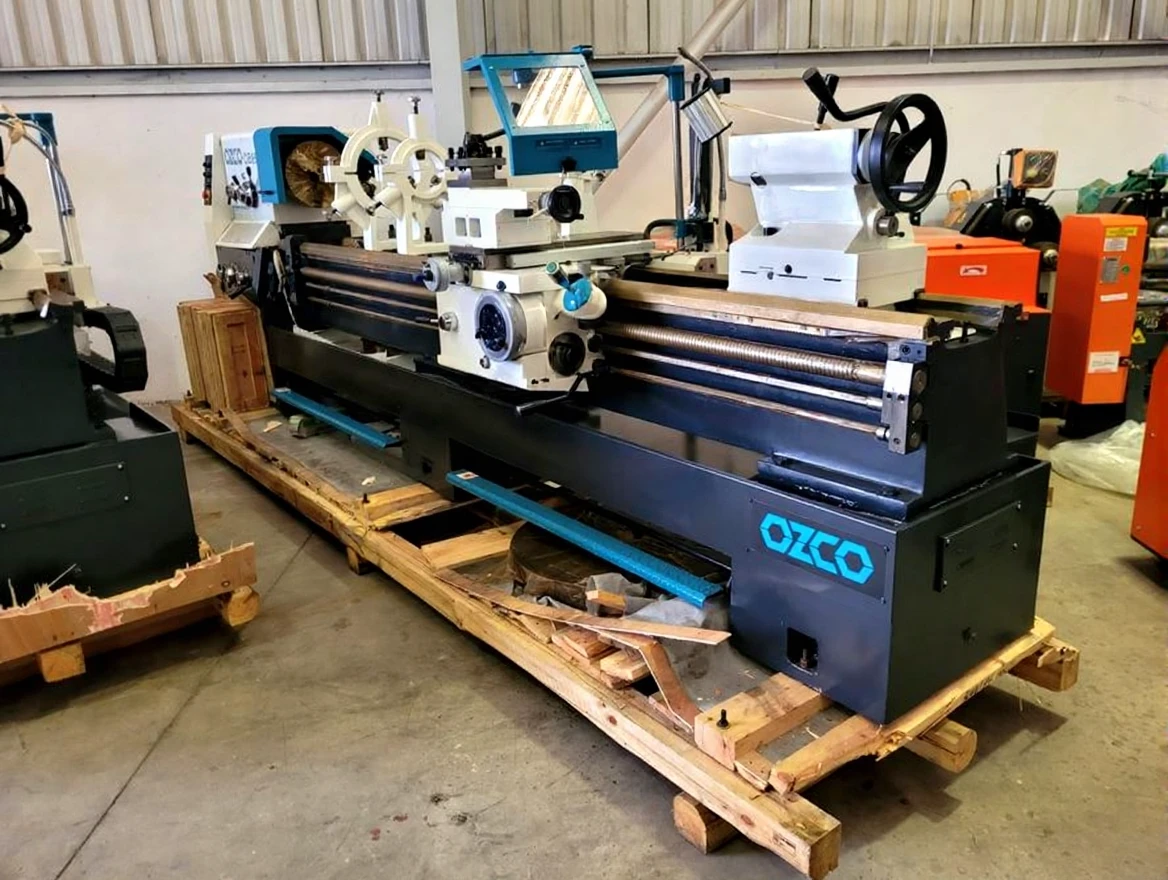

YUNNAN CB6630 Universal Lathe

YUNNAN CB6630 Universal Lathe Capacity

Bench over 660 mm, Support over 430 mm, Bridge gap has 870 mm machining capacity. Lantern spindle 105 mm, Centers distance is 3000 mm

Under YUNNAN CB6630 Universal Lathe Shipment

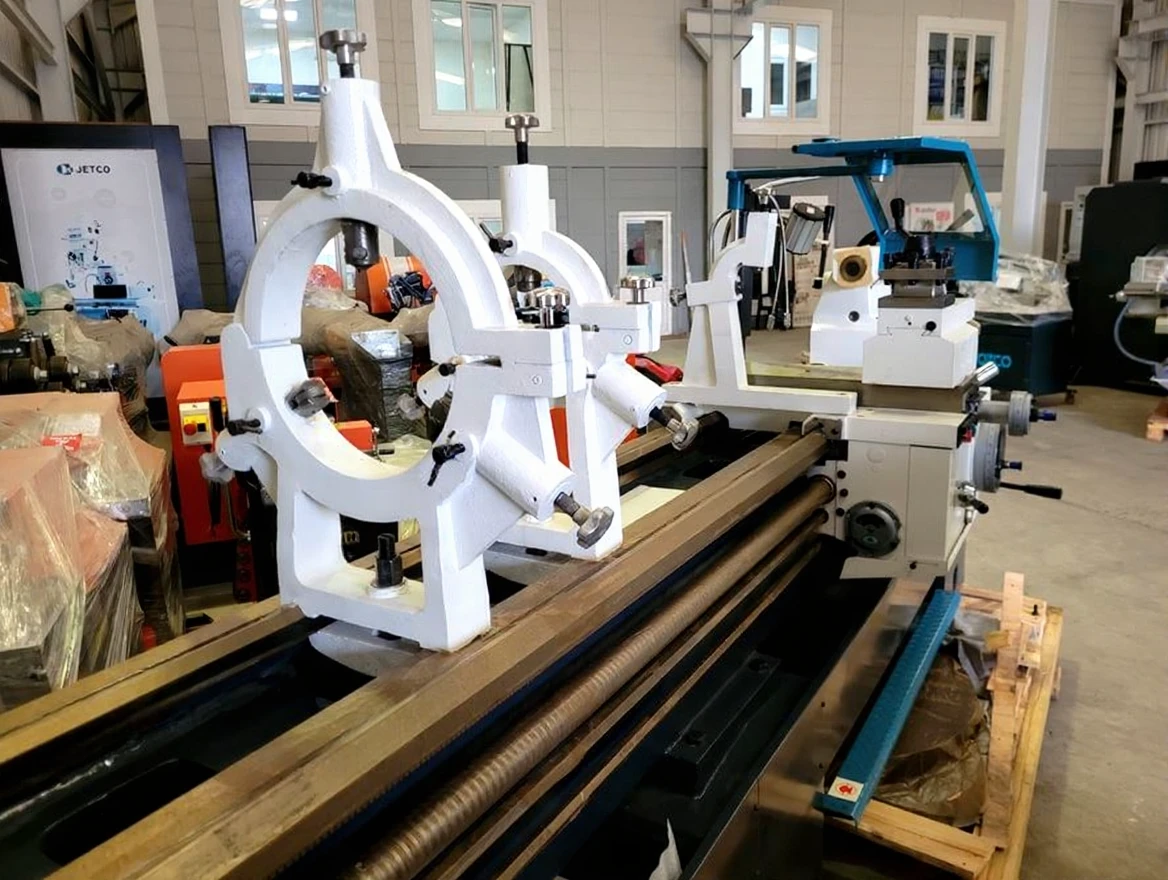

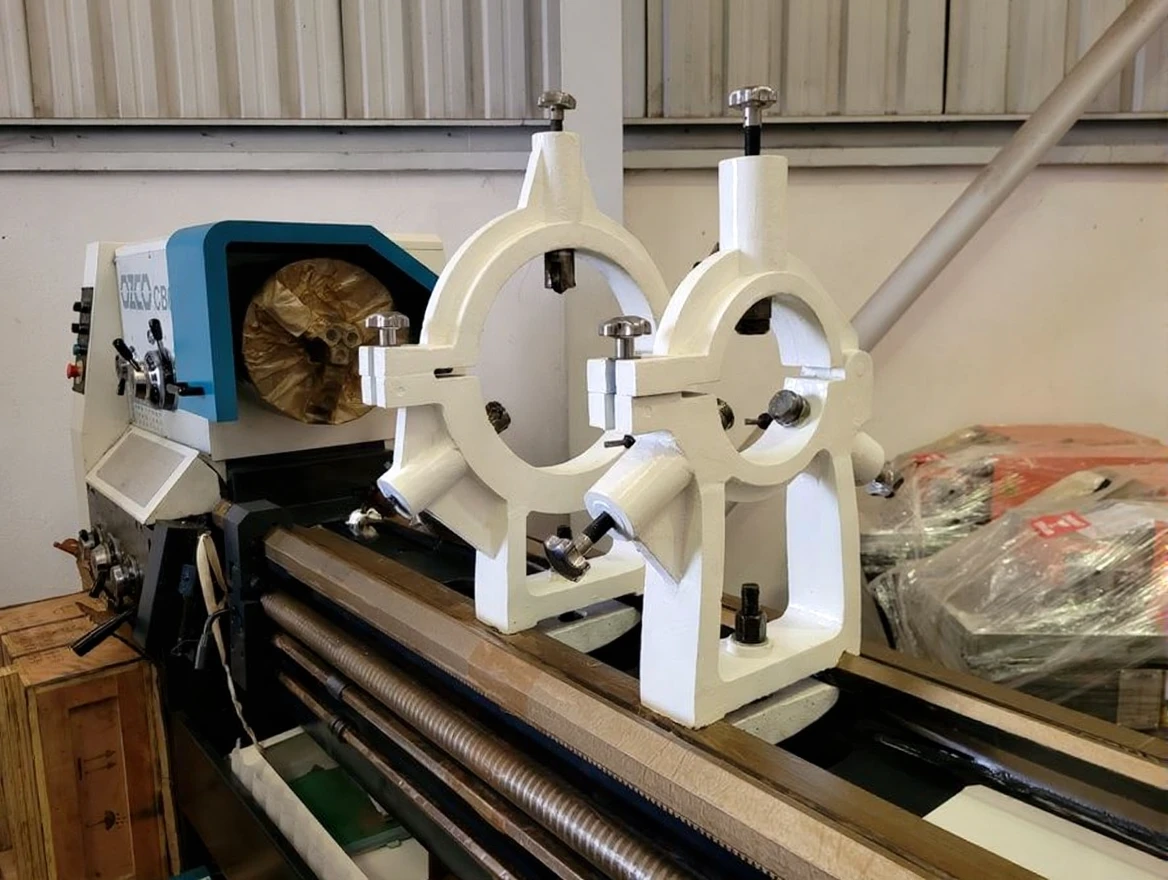

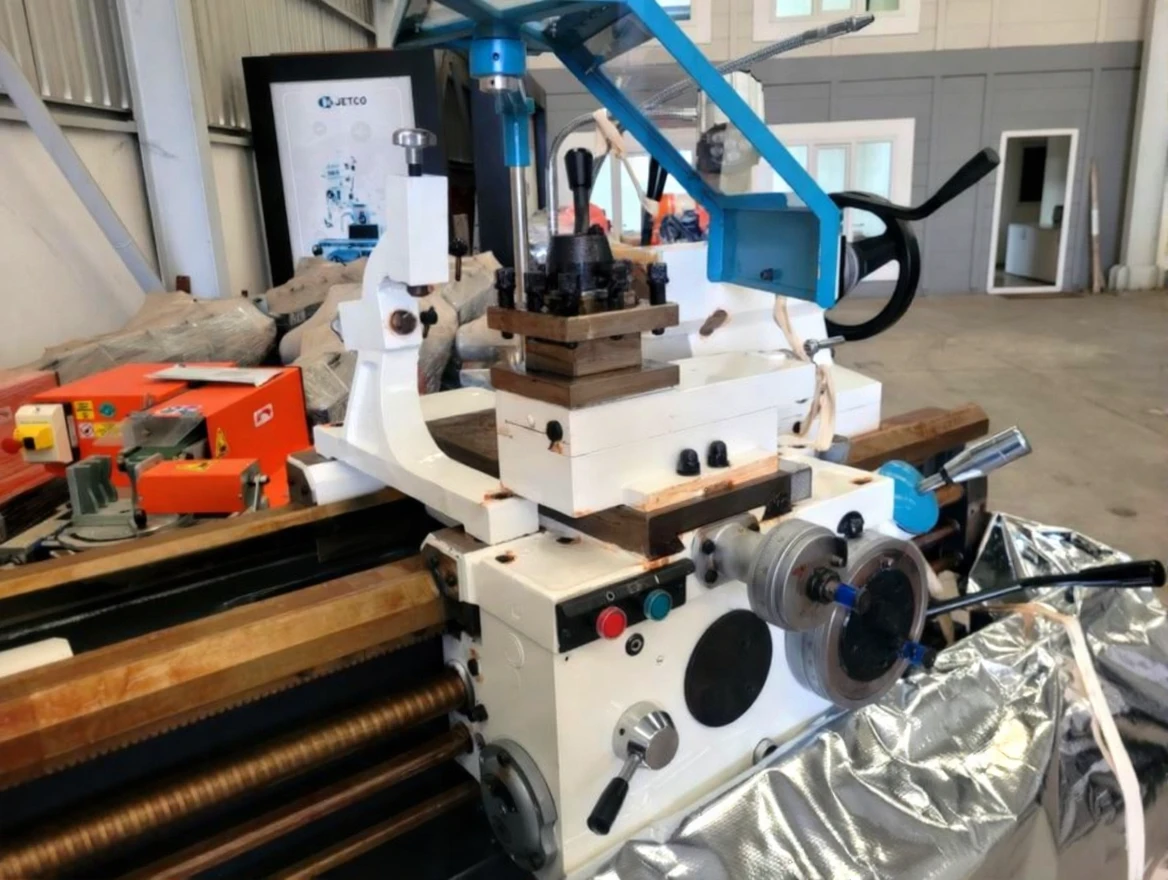

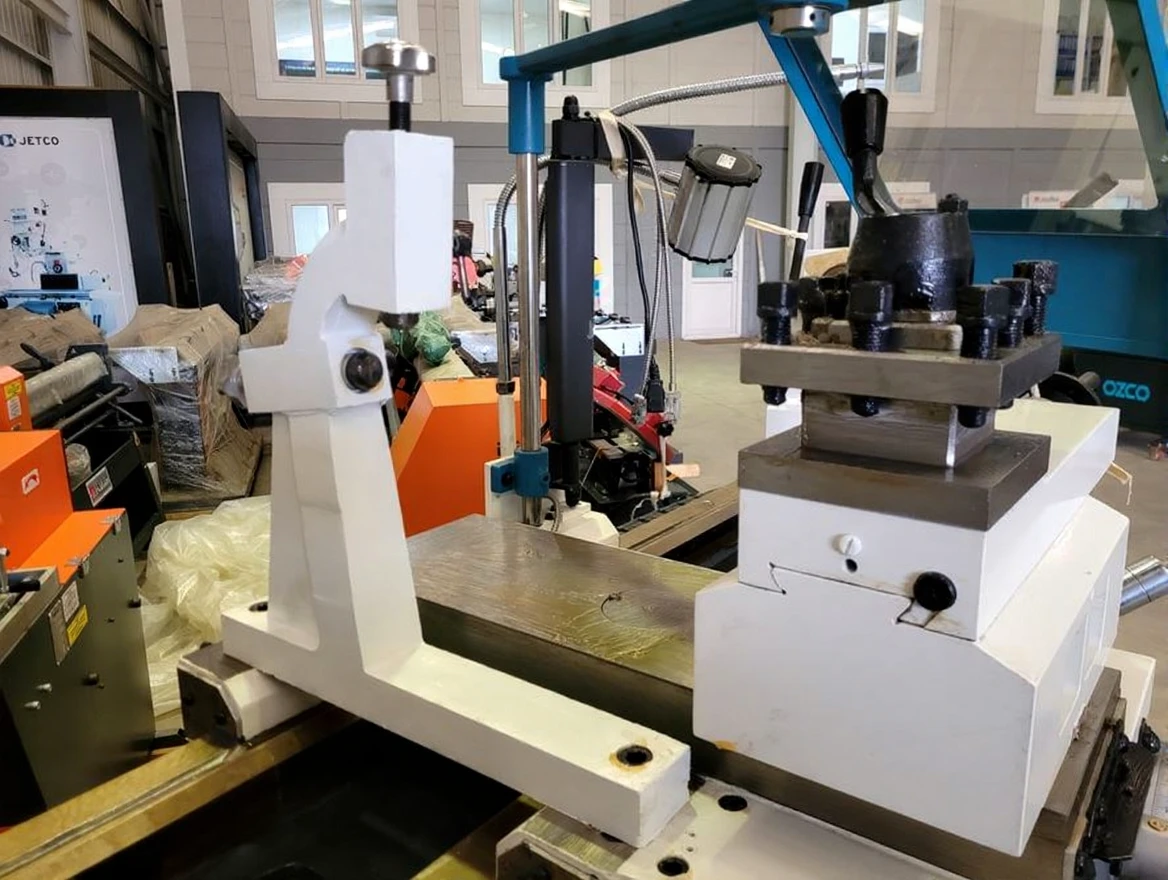

Digital coordinate reader, 3-legged chuck Ø 250 mm, 4-legged chuck Ø 400 mm, Flat chuck 630 mm, Fixed bed 130-260 mm, Moving bed 20-80 mm, MK5 rotating center, MK5 fixed center, Gear clock, 4-way pen holder, Halogen lamp, Change gears, Foot brake, Cooling system, Toolbox.

General Properties of YUNNAN CB6630 Universal Lathe

In compliance with CE standards, Mechanical clamping system / clutch, Emergency stop button, Safety chuck guard, Joystick for easy movement, Schneider electric system, Cooling system and foot brake, Chuck and pen holder guard.

Technical Specifications YUNNAN CB6630 Universal Lathe

Motor Power 11 kW, 400 V w

Bench Diameter 660 mm

Bridge Diameter 870 mm

Carriage Diameter 430 mm

Bench Width 390 mm

Interim Length 240 mm

Centers Distance 3000 mm

Maximum Material Capacity With Chuck 350 kg, With Chuck+Moving Center 450 kg

Speed 6-1120 rpm

Gear 24

Lantern Spindle Taper 1:20

Lantern Spindle Tip D8

Lantern Spindle Diameter 105 mm

Transverse Support Movement 360 mm

Cross Support Movement 200 mm

Moving Center Taper MK5

Moving Center Diameter 75 mm

Moving Center Movement 150 mm

Linear Feed [ PHONE HIDDEN ] mm/rev

Transverse Feed [ PHONE HIDDEN ] mm/rev

Metric Threads and Ratios 1-224  (46 pcs) mm

Inch Threads and Ratios 28/1-8 TPI (42 pcs)

Module Threads and Ratios [ PHONE HIDDEN ] pcs)

Diametral Pitch Threads and Ratios 56-1/4 DP (45 pcs)

Pen Size 25×25 mm

Machine Dimensions (WxDxH) 4500x1250x1400 mm

Packaging Dimensions 4770x1120x1940 mm

Weight 3400 kg

Gross Weight 4200 kg
