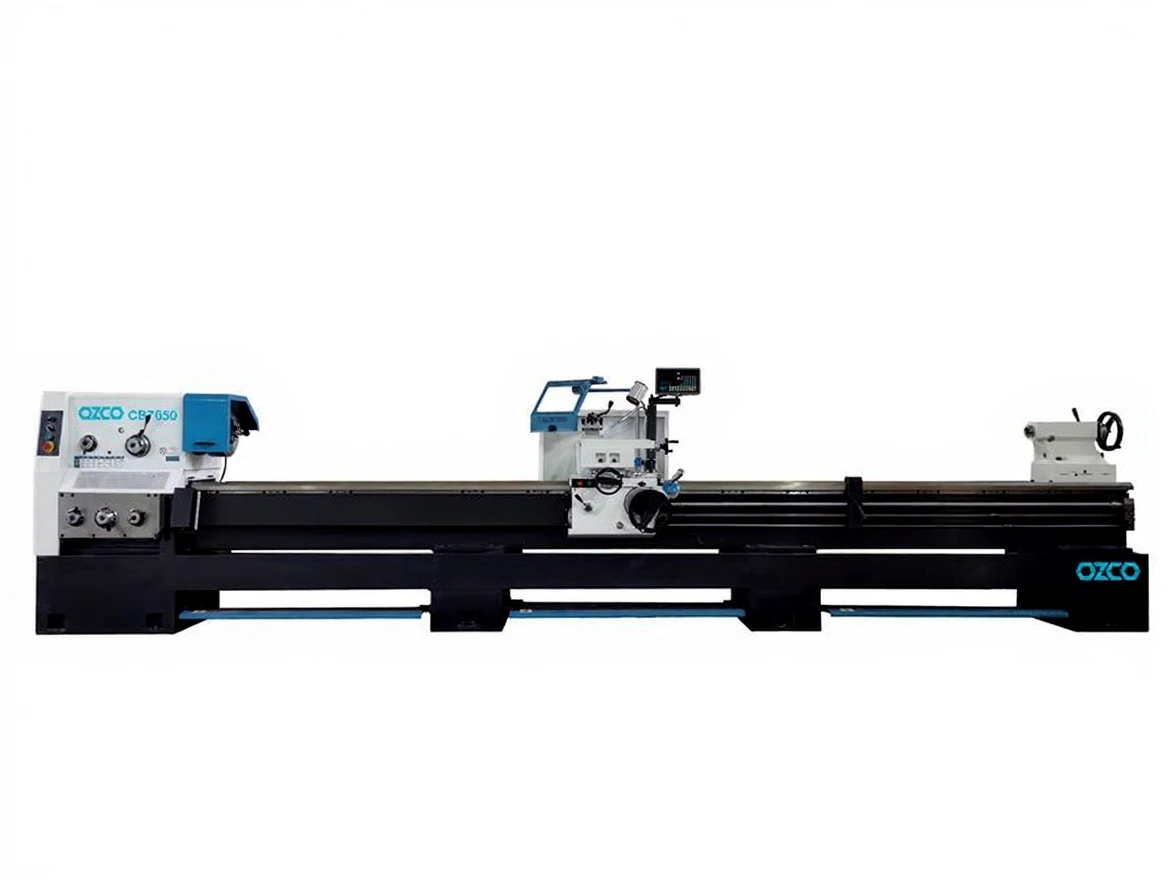

Yunnan CB7650 Digital Universal Lathe Machine

YUNNAN CB7650 Universal Lathe

YUNNAN CB7650 Universal Lathe Capacity

The bench top has a processing capacity of 760 mm, the support top has a processing capacity of 530 mm. The spindle bore is 105 mm, and the distance between centers is 5000 mm.

YUNNAN CB7650 Universal Lathe Shipment Contents

Digital coordinate reader, 3-jaw chuck Ø 250 mm, 4-jaw chuck Ø 400 mm, Plate ø 630 mm, Fixed bed 130-260 mm, Traveling bed 20-80 mm, MK5 revolving center, MK5 fixed center, Gear clock, 4-way tool post, Halogen lamp, Change gears, Foot brake, Cooling system, Tool kit included.

YUNNAN CB7650 Universal Lathe General Features

Compliant with CE norms, Mechanical clutch system, Emergency stop button, Safety chuck guard, Joystick for easy movement, Schneider electrical system, Cooling system and foot brake, Chuck and tool post guard.

Technical Specifications of YUNNAN CB7650 Universal Lathe

Motor Power 11 kW, 400 V w

Bench Top Diameter 760 mm

Carriage Diameter 530 mm

Bench Width 390 mm

Distance Between Centers 5000 mm

Maximum Material Capacity With Chuck 350 kg, With Chuck+Traveling Center 450 kg

Speed 6-1120 rpm

Gear 24

Spindle Bore Taper 1:20

Spindle Nose Thread D8

Spindle Bore Diameter 105 mm

Longitudinal Support Travel 360 mm

Cross Support Travel 200 mm

Traveling Center Taper MK5

Traveling Center Diameter 75 mm

Traveling Center Travel 150 mm

Linear Feed [ PHONE HIDDEN ] mm/rev

Longitudinal Feed [ PHONE HIDDEN ] mm/rev

Metric Thread and Pitch 1-224 (46 threads)

Inch Thread and Pitch 28/1-8 TPI (42 threads)

Module Thread and Pitch [ PHONE HIDDEN ] threads)

Diametral Thread and Pitch 56-1/4 DP (45 threads)

Tool Post Size 25×25 mm

Machine Dimensions (WxDxH) 6500x1250x1400 mm

Packaging Dimensions 6770x1120x1940 mm

Weight 4800 kg

Gross Weight 5500 kg
