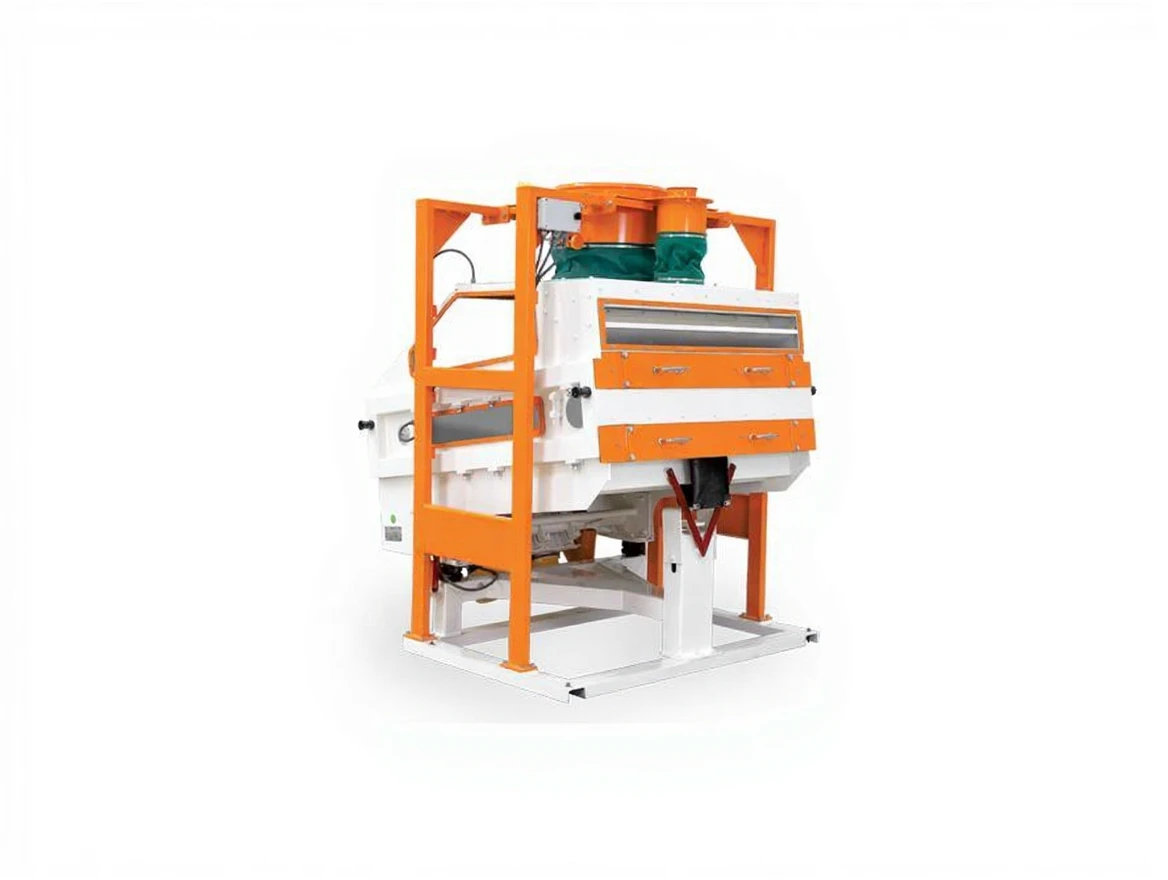

15-25 Ton / Hour Wheat Stone Separation Machine
| Brand | Milleral |
|---|---|
| Model Type |
MSS 140×140 |
Description
Milleral MSS 140×140
15-25 Ton / Hour Wheat Stone Separation Machine
Milleral MSS 140×140 Technical Specifications
| Model | Screening Area (m²) | Motor KW | Aspiration Motor (kw) | Air Requirement M³/Min – (m³/min) | Capacity (t/h) | Weight (kg) |
| MSS 60×120 | 1.4 | 1×0.45 | – | 90 | 4-8 | 525 |
| MSS 60×120 A | 2×0.45 | 1×11 | 775 | |||
| MSS 120×120 | 2.8 | 2×0.72 | – | 120-140 | 8-15 | 765 |
| MSS 120×120 A | 1×7.5 | 1015 | ||||
| MSS 140×140 | 3.9 | – | 200-220 | 15-25 | 1100 |
| Model | A | B | C | D | ØE | ØG | H | ØJ | ØK | L |
| MSS 60×120 | 960 | 696 | 1850 | 926 | 192 | 133 | 2010 | 120 | 350 | 1533 |
| MSS 60×120 A | 3145 | |||||||||
| MSS 120×120 | 1296 | 1526 | 2010 | |||||||
| MSS 120×120 A | 3145 | |||||||||
| MSS 140×140 | 1190 | 1496 | 2050 | 1726 | 2010 | 150 | 1733 |
