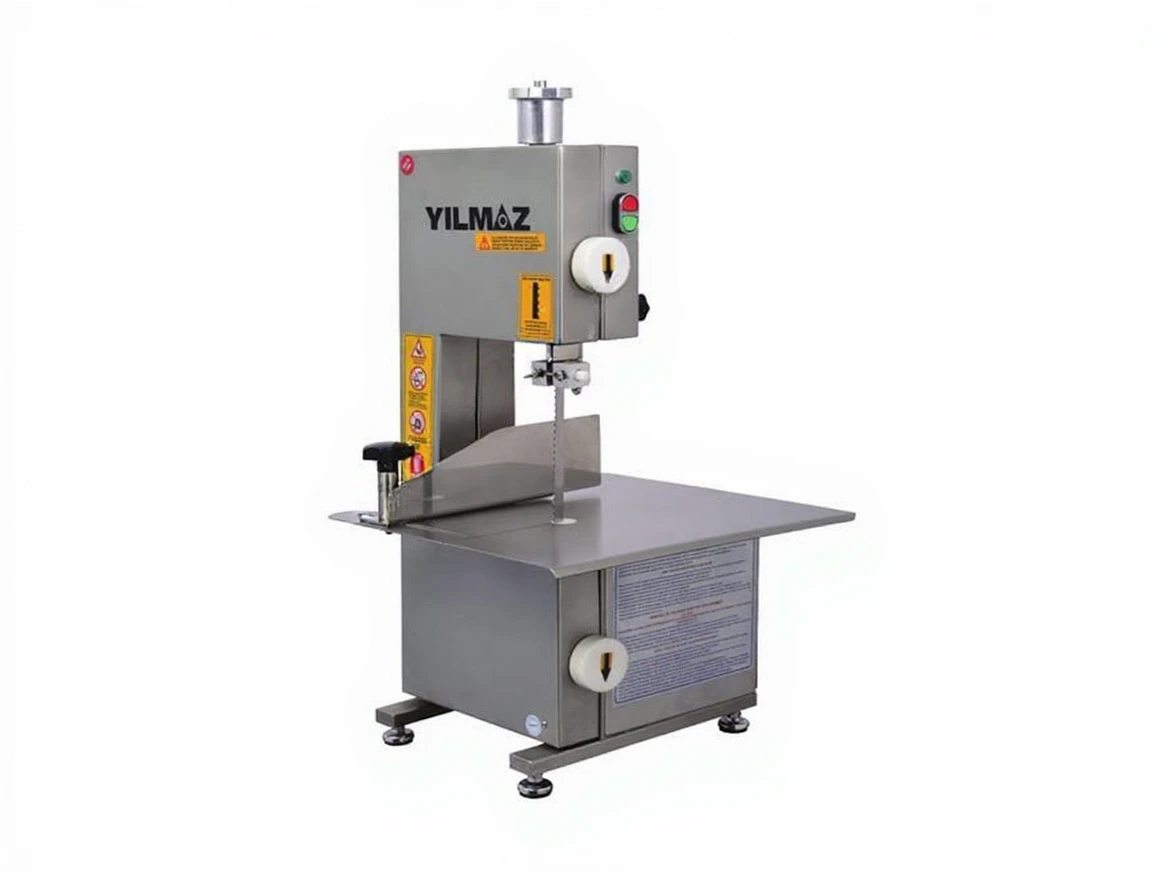

1650 mm Desktop Bone Saw without Brake

Product Advantages;

Motor Power: 1.1 Kw 1.5 Hp 400Volt 50 Hz

Width: 470mm

Length: 460 mm

Height: 880 mm

Net Weight: 56 Kg

Table Dimensions: 465×440 mm

Cutting Height: 0-180 mm

Cutting Width: 0-180 mm

Speed: 1400 rpm

• Designed for tabletop use.

• Imported steel strip saw blade is used in the machine.

• There is a cutting thickness adjustment on the saw.

• Product pusher attachment is available for safety.

• The pusher attachment is made of 304 quality stainless steel sheet.

• The outer body of the machine, front cover, meat cutting table, lower chassis table, and motor protection sheet are made of 304 quality stainless steel sheet material.

• There is a sliding chip box under the lower table.

• To prevent the meat from darkening during cutting, 2 pieces of stainless steel cast pulleys are used.

• Upper pulley bearing system: The upper pulley bearing system that can move on 2 stainless steel shafts is applied.

• Band saw tensioning system: There is a special design locking tensioning system that prevents the band from breaking during tensioning of the band saw.

• Upper pulley adjustment: There is a angle adjustment screw on the outer surface of the body for the easy adjustment of the upper pulley.

• The front upper body of the machine has 1 operation button, 1 stop button, and 1 emergency stop button.

• When the front cover of the machine is opened, there is a sensor that cuts off the electrical circuit to prevent the machine from running.

• There are 2 rotating locking systems in the front cover locking system of the machine.

• Working table: Made of 3mm thick 304 quality stainless steel sheet.

• The machine has a 0.75 KW 1 HP 50HZ 400VOLT electric motor.

• The machine has a hand protection device used during meat cutting.

• Produced as three-phase and single-phase motor.

• The machine is a tabletop model.
