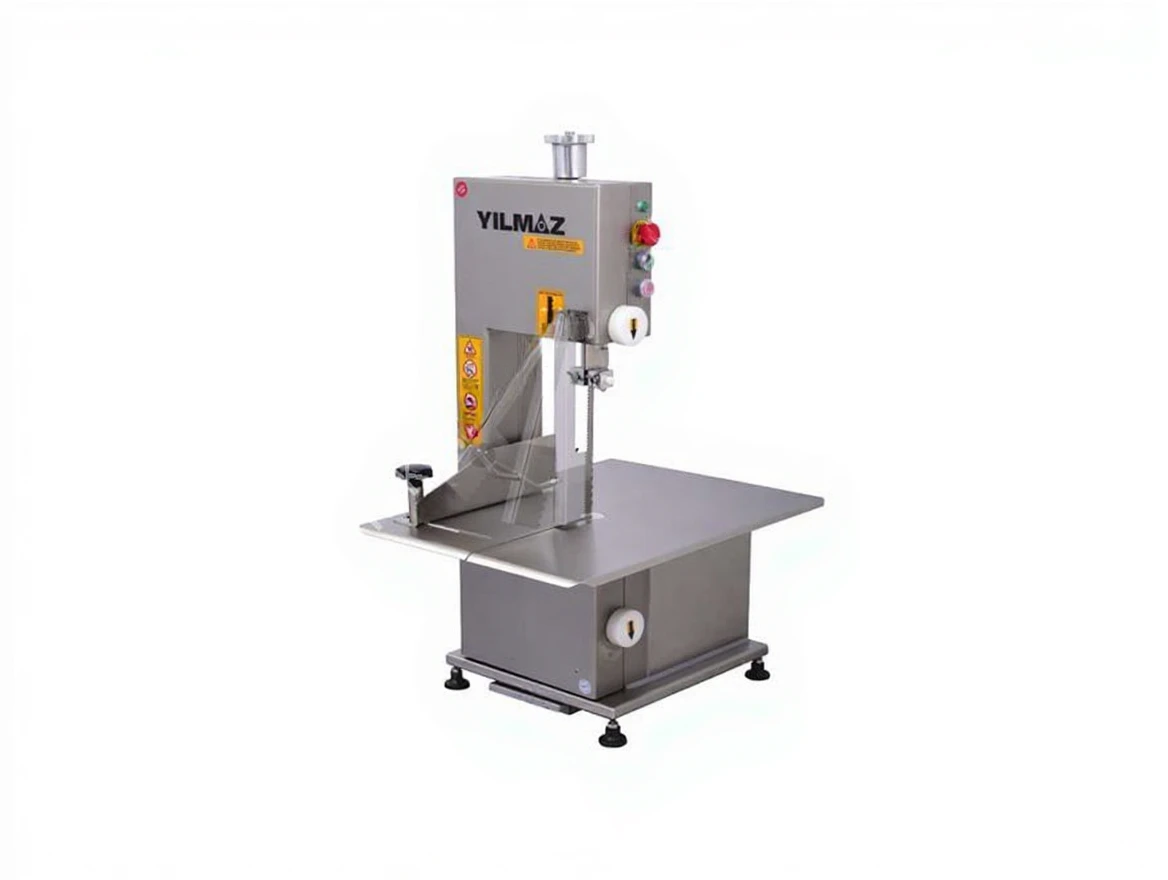

1840 mm Desktop Bone Saw with Brake

Product Advantages:

• Engine power: 1.1 Kw 1.5 Hp 400Volt 50 Hz.

• Width: 550mm

• Length: 650 mm

• Height: 1010 mm

• Net Weight: 76 Kg

• Table dimensions: 495×635 mm

• Cutting height: 0-270 mm

• Cutting width: 0-180 mm

• Speed: 1400 rpm

• Produced for tabletop usage.

• Imported steel strip saw blade is used in the machine.

• The saw blade has a cutting thickness adjustment.

• For safety, there is a product pusher attachment.

• The pusher attachment is made of 304 quality stainless steel sheet.

• The outer body of the machine, front cover, meat cutting table lower chassis table, and motor protection plate are made of 304 quality stainless steel sheet material.

• There is a sliding chip box under the lower table.

• 2 cast iron pulleys are used to prevent meat darkening during cutting.

• Upper pulley bearing system: A hanging system is applied where the upper pulley, which can move on 2 stainless steel shafts, is connected.

• Strip saw tensioning system: There is a special design locking tensioning system that prevents the strip saw from breaking during tensioning.

• Upper pulley adjustment: There is an angle adjustment screw on the body’s outer surface where the upper pulley angle adjustment can be easily done.

• On the front upper body of the machine, there is 1 movement button, 1 stop button, and 1 emergency stop button.

• When the front cover of the machine is opened, there is 1 sensor that cuts off the electrical circuit to prevent the machine from operating.

• 2 rotary locking systems are used in the front cover locking system of the machine.

• Working table: Made of 3mm thick 304 quality stainless steel sheet.

• The machine has a 1.1KW 1.5 HP 50HZ 400VOLT
  brake electric motor.

• The machine has a hand protection device used during bone cutting.

• Produced as three-phase and single-phase motor.

• The machine is tabletop model.
