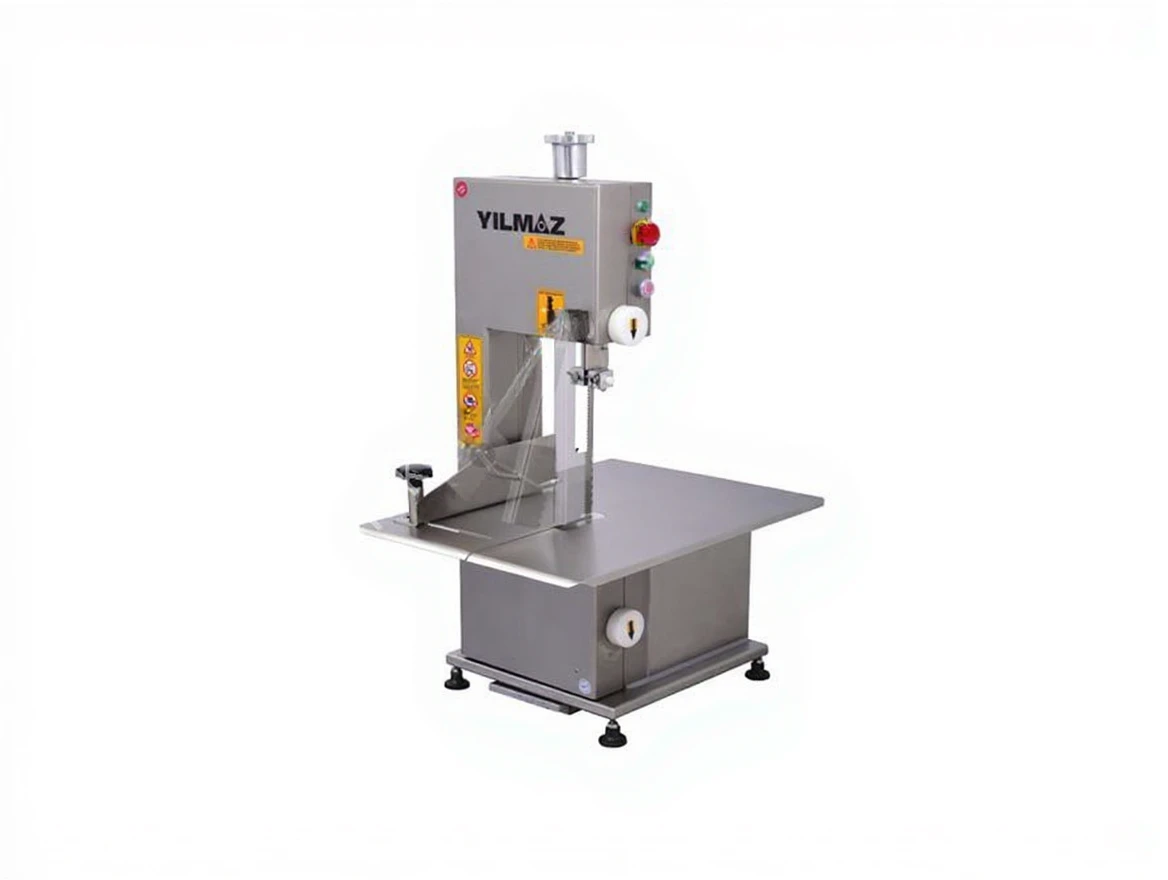

1840 Mm Tabletop Brakeless Bone Saw

Motor power            : 1.1 Kw  1.5 Hp 400Volt 50 Hz.

Width                          : 550mm

Length                      : 650 mm

Height               : 1010 mm

Net Weight           : 76 Kg

Table dimensions        : 495×635 mm

Cutting height  : 0-270 mm

Cutting width     : 0-180 mm

Speed                      :1400rpm

Designed for tabletop use.

Imported steel strip saw blade is used in the machine.

Thickness adjustment feature is available on the saw.

Product pusher device for safety.

The pusher device is made of 304 quality stainless steel sheet.

The outer body of the machine, front cover, meat cutting table base plate and motor protection sheet are made of 304 quality stainless steel material.

Sliding chip box is located under the lower table.

To prevent the meat from darkening during cutting, 2 pieces of cast iron pulleys are used.

Upper pulley bearing system: A hanger system where the upper pulley that can move on 2 stainless steel shafts is applied.

Band saw tensioning system: It has a special design locking tensioning system to prevent the band from breaking during tensioning of the band saw.

Upper pulley adjustment: There is an angle adjustment screw on the outer surface of the body where the angle adjustment of the upper pulley can be easily done.

On the front upper body of the machine, there is 1 start button, 1 stop button and 1 emergency stop button.

When the front cover of the machine is opened, there is 1 sensor that cuts off the electrical circuit to prevent the machine from working.

2 rotating locking systems are used in the front cover locking system of the machine.

Work table: Made of 3mm thick 304 quality stainless steel sheet.

The machine has a 1.1KW 1.5 HP 50HZ 400VOLT   electric motor.

The machine has a hand protection device used during meat cutting.

Produced as three-phase and single-phase motor.

The machine is tabletop model.
