Ø 200 Mm Universal Pvc Glazing Bead Cutting Machine

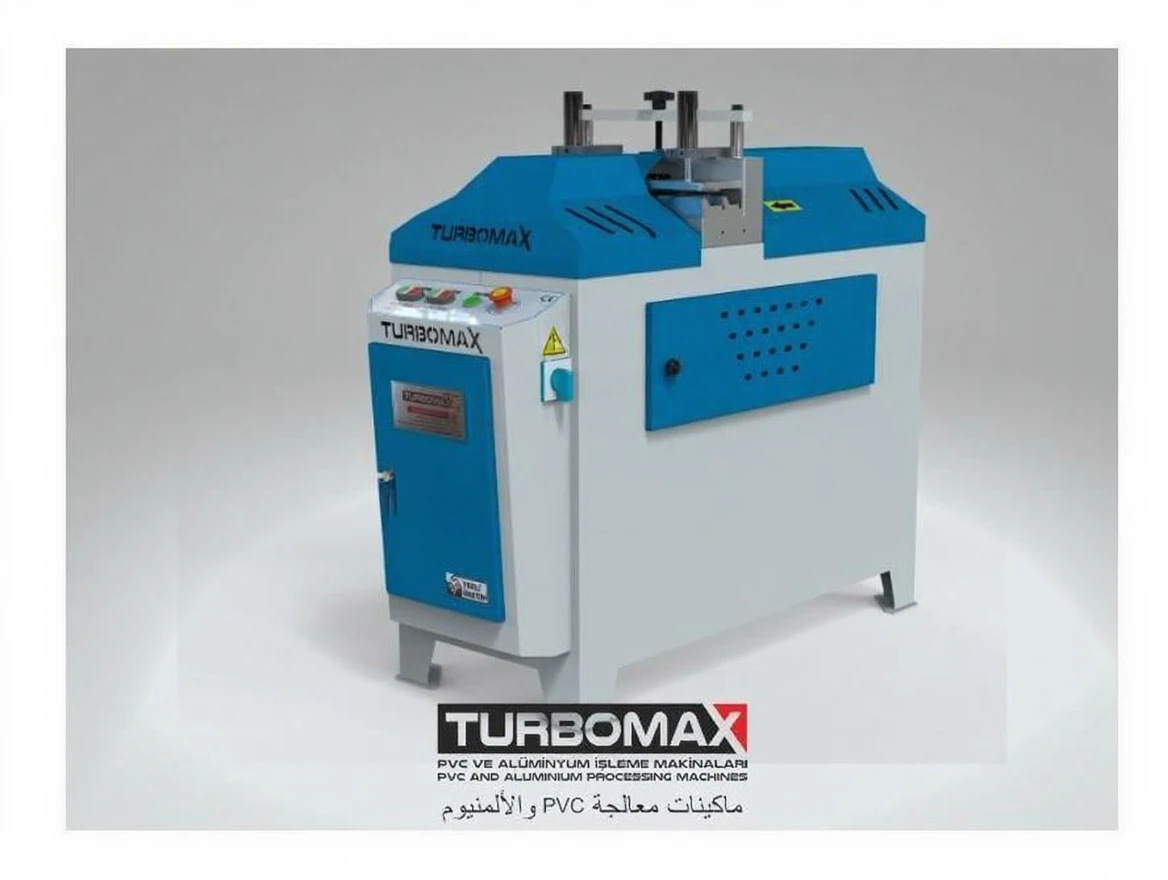

Turbomax ENR 0040 Ø 200 Mm Universal PVC Glazing Bead Cutting Machine

Turbomax ENR 0040 is a cutting machine specially designed for PVC glazing bead profiles, offering high precision and efficiency. This machine provides the flexibility needed by users in various projects with its 45°x45° cutting capability.

Main Features:

• Cutting Capabilities: Ability to cut PVC glazing bead profiles at 45°x45°, meeting the needs for cutting at different angles.

• Adjustable Mold: Universal glazing bead mold works compatibly with different profiles, offering versatile use.

• Adjustable Stop for Long Profiles: Adjustable length stops and metric conveyor system for long profiles facilitate the production process.

• Adjustable Cutting Speed: Adjustable cutting speed provides better control and flexibility to the user during cutting operations.

• Pneumatic Profile Clamping System: An effective pneumatic system is used to securely fix the profile.

• Cleaning Capabilities: The four-blade system for cleaning back glazing bead dust makes it easier to clean the machine.

Technical Specifications:

• Motor (Engine): 380 V, 50-60 Hz, 2×0.75 kW

• Cutting Capacity:

  • Minimum Length: 200 mm

  • Maximum Length: Not specified

• Weight: 110 kg

• Dimensions:

  • Length: 480 mm

  • Width: 1100 mm

  • Height: 1160 mm

• Air Pressure: 6.5 – 8 Bar

• Blade: 200×2 mm

Turbomax ENR 0040 is a flexible and versatile cutting machine that optimizes your PVC processing processes. By offering high efficiency and precision, it accelerates your workflow and reduces costs. It is one of the reliable equipment you need in modern construction projects and production processes. You can contact us for detailed information and orders.
