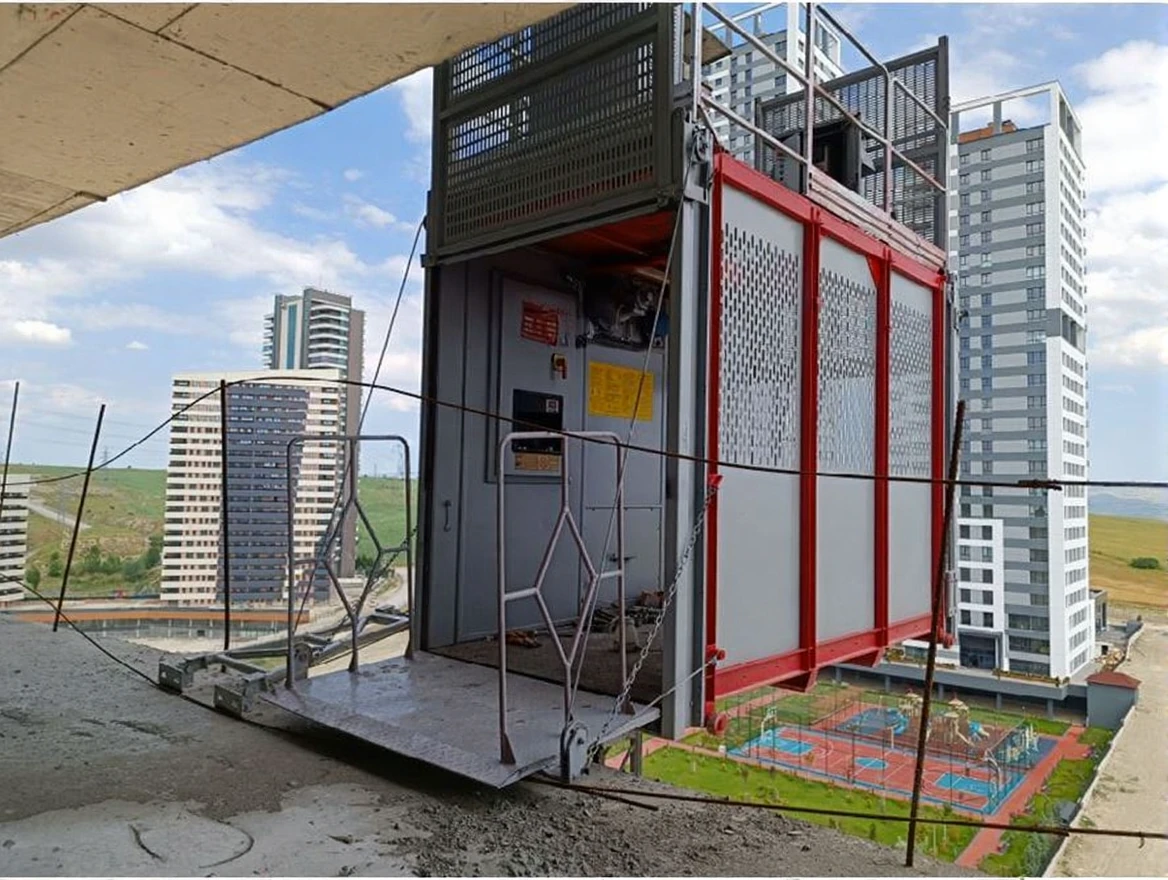

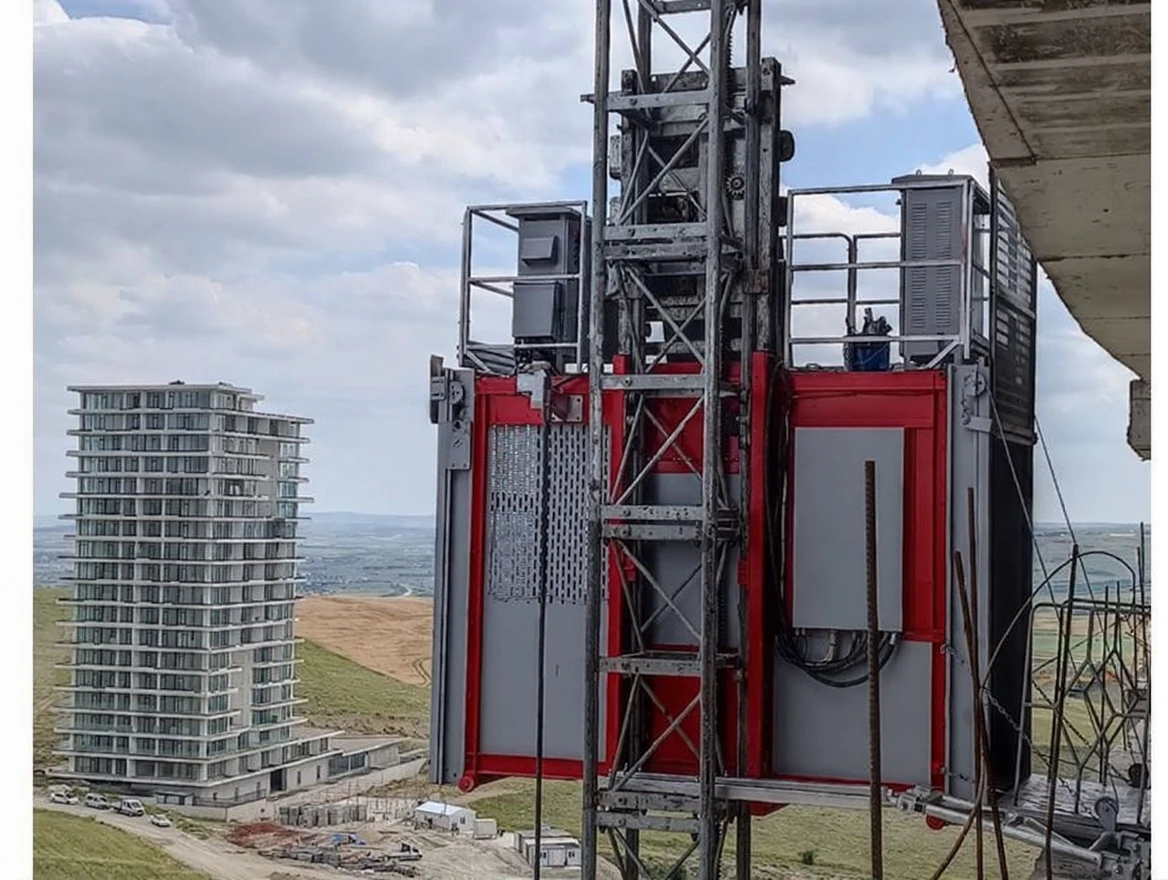

2000 Kg Exterior Freight and Passenger Elevator

TECHNICAL SPECIFICATIONS

• Carrying Capacity: 2000 kg

• Number of Transportable Persons: 19 personnel

• Column Dimensions: 725x725x1508 mm

• Weight of Each Vertical Column: 125 kg

• Maximum Distance Between Connection Points: 9 m

• Emergency Brake Activation Speed: 38 m/min

• Cabin Length: 2800 mm

• Weight of the Machine: 2500 kg

• Distance to Loading Level from the Ground (Lower Limit): 0.45 m

• Control Voltage: 24 Volt

• Current: 63 A

• Height up to the First Connection Point from the Ground: 6 m

• Elevator Speed: 30 m/min

• Cabin Width: 1450 mm

• Cabin Height: 2200 mm

• Ramp Width: 700 mm

• Power Supply Voltage: 380/50 Volt/Hz

• Motor Power: 2×11 kW

• Maximum Wind Speed During Dismantling and Assembly: 25 km/h

• Maximum Wind Speed During Load Elevator Usage: 45 km/h

•

• Maximum Height: 200 m

• Cremayer Dimensions: 60x40x1508 (8 modules)
