Special Design Mobile Facade Platform Elevator

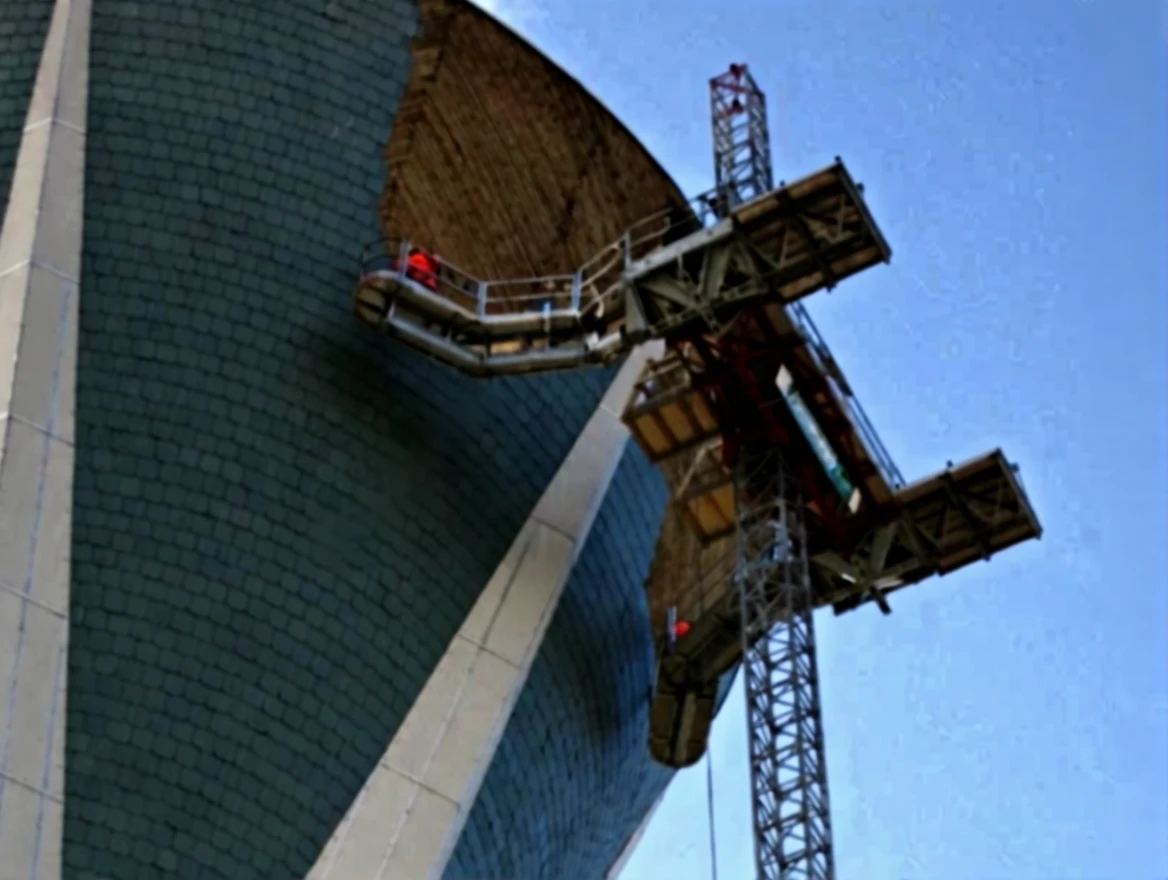

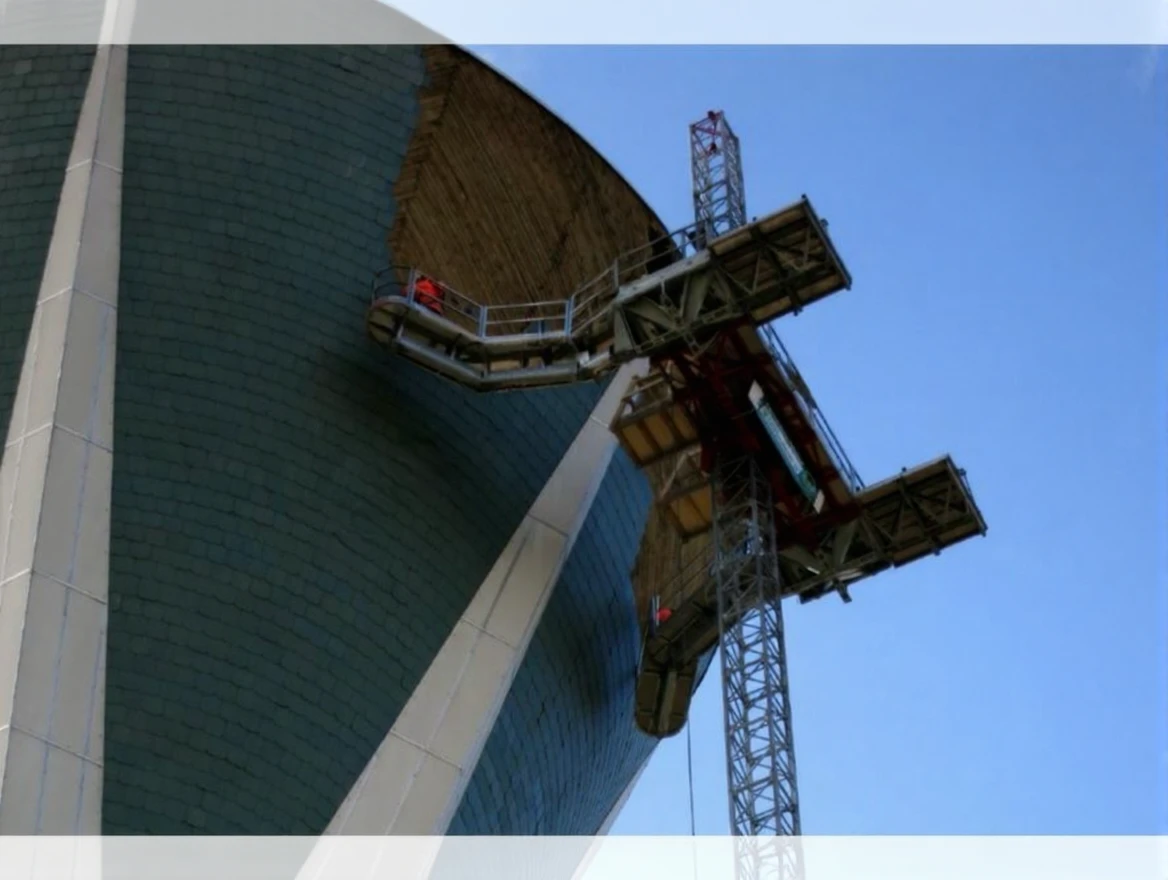

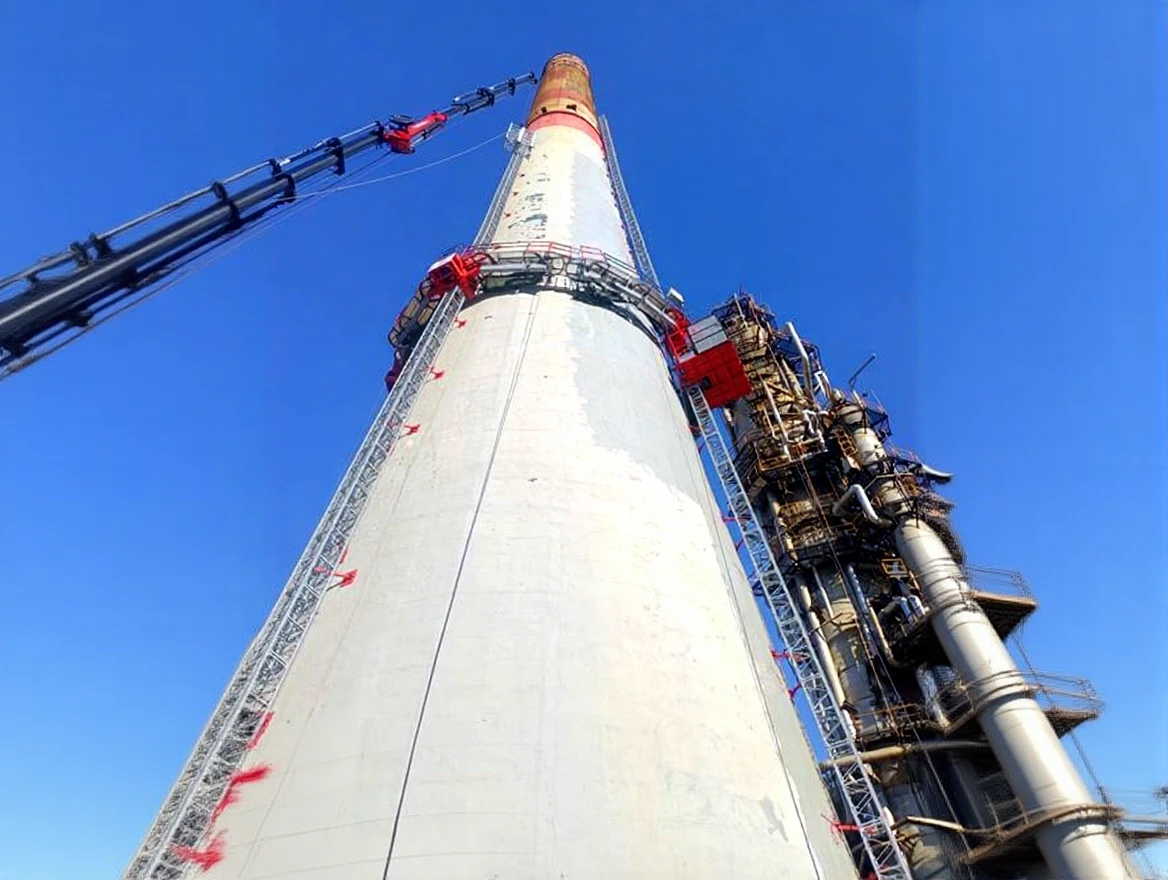

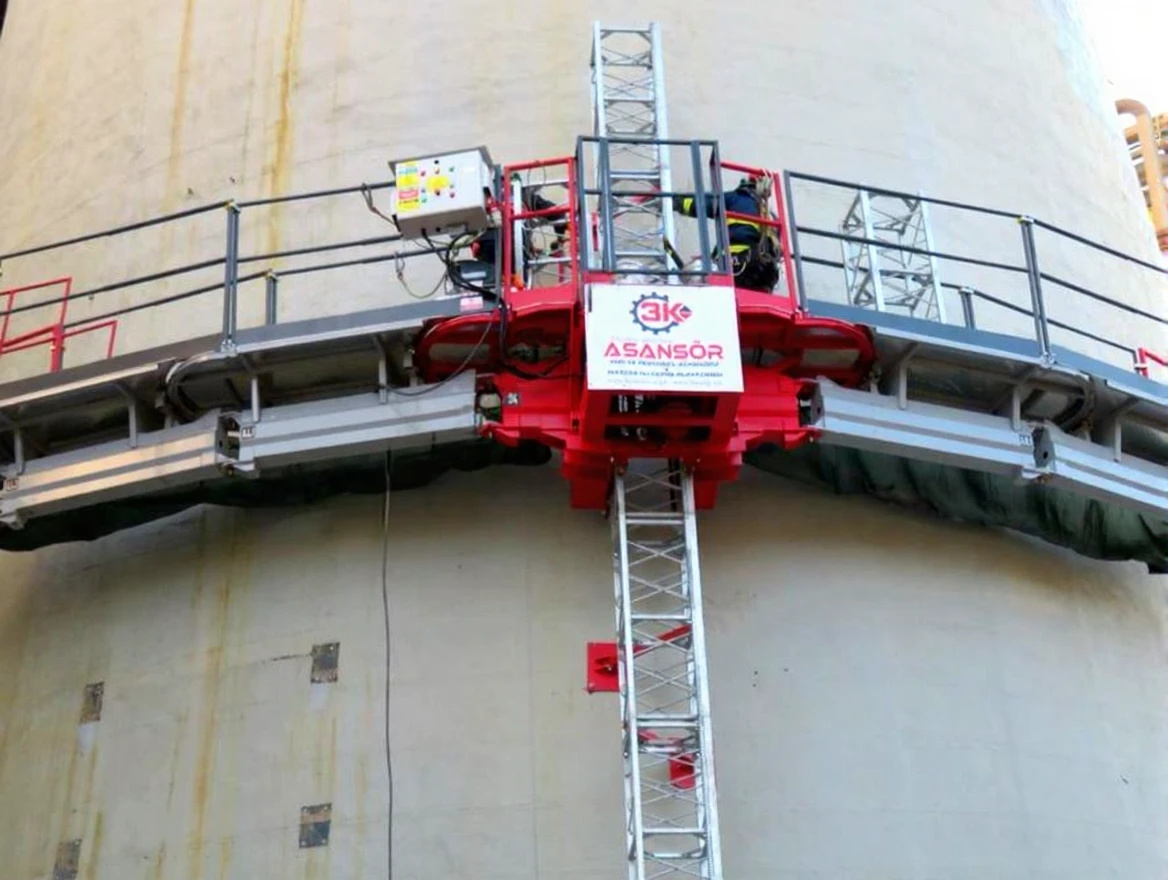

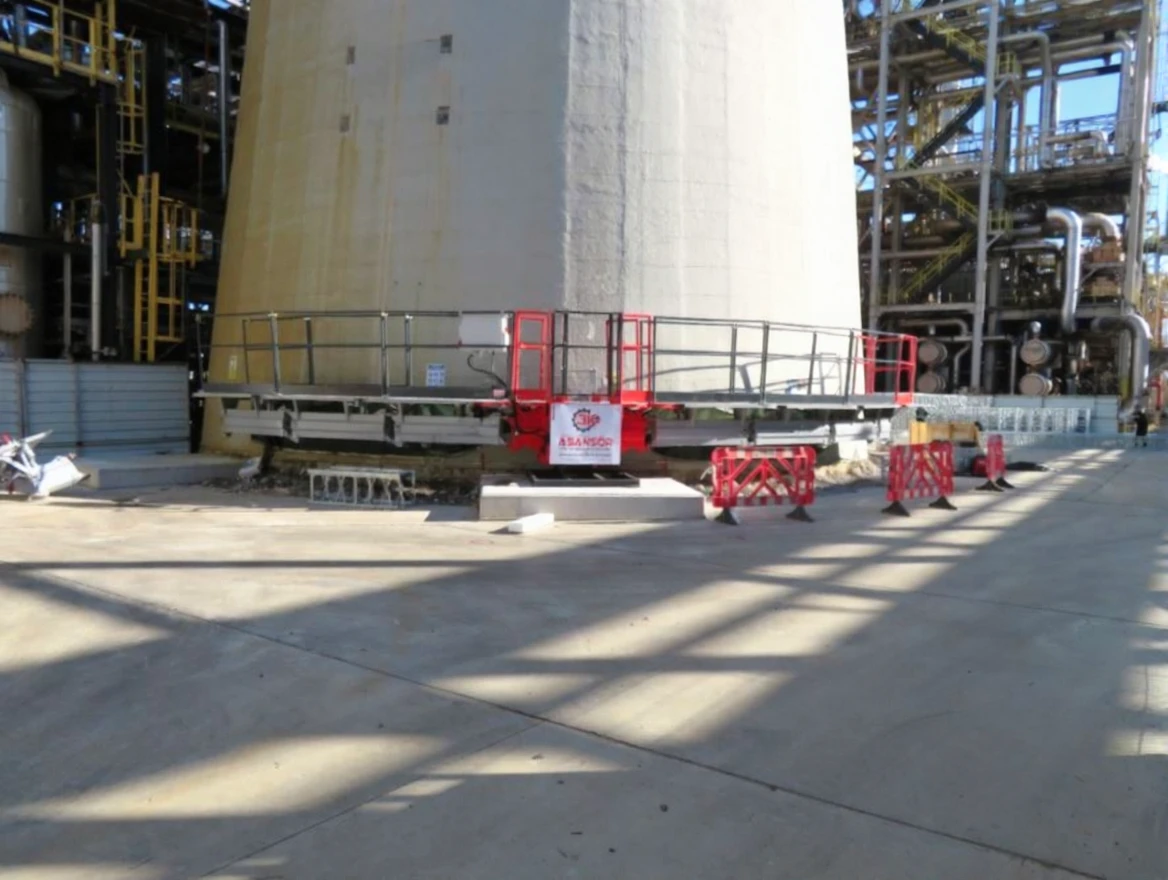

Specially designed for chimneys, ship bodies and other oval or hard-to-reach facades, this unique product provides an ideal solution for facade works such as chimney maintenance, construction, cleaning, painting, and repairs. All platform wings are movable, wrapping around oval and curved facades to create a safe working environment. It is an excellent product for non-flat facades.

Technical Specifications

• Motor Power (kW): 4.4 kW & 6 kW

• Primary Supply (Vac): 3×400 +/- 10%

• Primary Supply (Hz): 50 +/- 5%

• Control Circuit Voltage (V): 48

• Control Circuit Frequency: 50

• Maximum Starting Intensity (A): 54

• Maximum Consumption (KVA): 6

• Thermic Motors: 3x25A

• Thermal Motors: 2×5.5/8A

• Thermic Circuit (Primary): 2x3A

• Thermic Circuit (Secondary): 1x6A

• Current for Portable Tools (V, lac): 220,16

• Minimum Supply (KVA): 10

Electrical Safety Features

1. Up and Down Stop Switches: Prevents the platform from hitting the ground or detaching from the column.

2. Safety Switch: Prevents the system from operating in case of a malfunction in the up-down switches.

3. Column Tracking Switch: Ensures the safety of the machine during assembly, disassembly, and regular operations.

4. Door Switch: Prevents the operation of the platform before the door is completely closed.

5. Parachute Brake Switch: Stops the motors when the parachute brake is activated.

6. Leveling Switch: Ensures the platform runs parallel to the surface in double column installations.

7. Electromagnetic Brakes: Halts motion in nominal conditions.

Mechanical Safety Features

• Parachute Brake: Stops the platform in case of a fall.

• Rubber Shock Absorber: Prevents possible collisions between the platform and the body.

• Manual Descent Handle: Safely lowers the platform to the nearest floor in case of electrical supply failure.

• Column Guard: Prevents access to moving parts for personnel working on the platform.

• Railings: Ensures the safe operation of personnel working on the platform.

Specially designed for those who need to work in hard-to-reach areas such as chimneys and ship bodies, this platform offers safe and efficient working conditions for chimney maintenance, construction, cleaning, painting, and repair works, providing excellent results. This product with high safety standards can be easily used on oval and curved facades with its mobile platform wings. It offers long-lasting use with its powerful motor structure and durable design. For more information and orders, please contact us.
