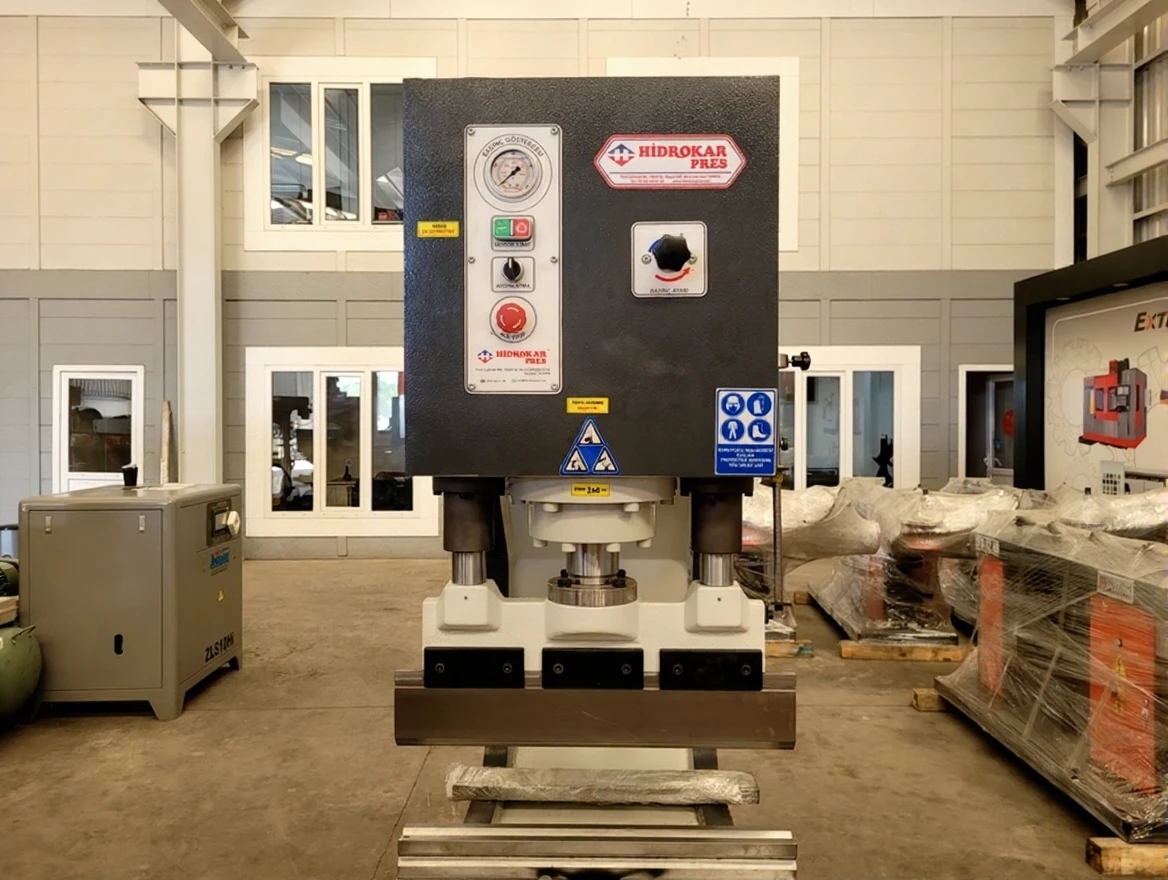

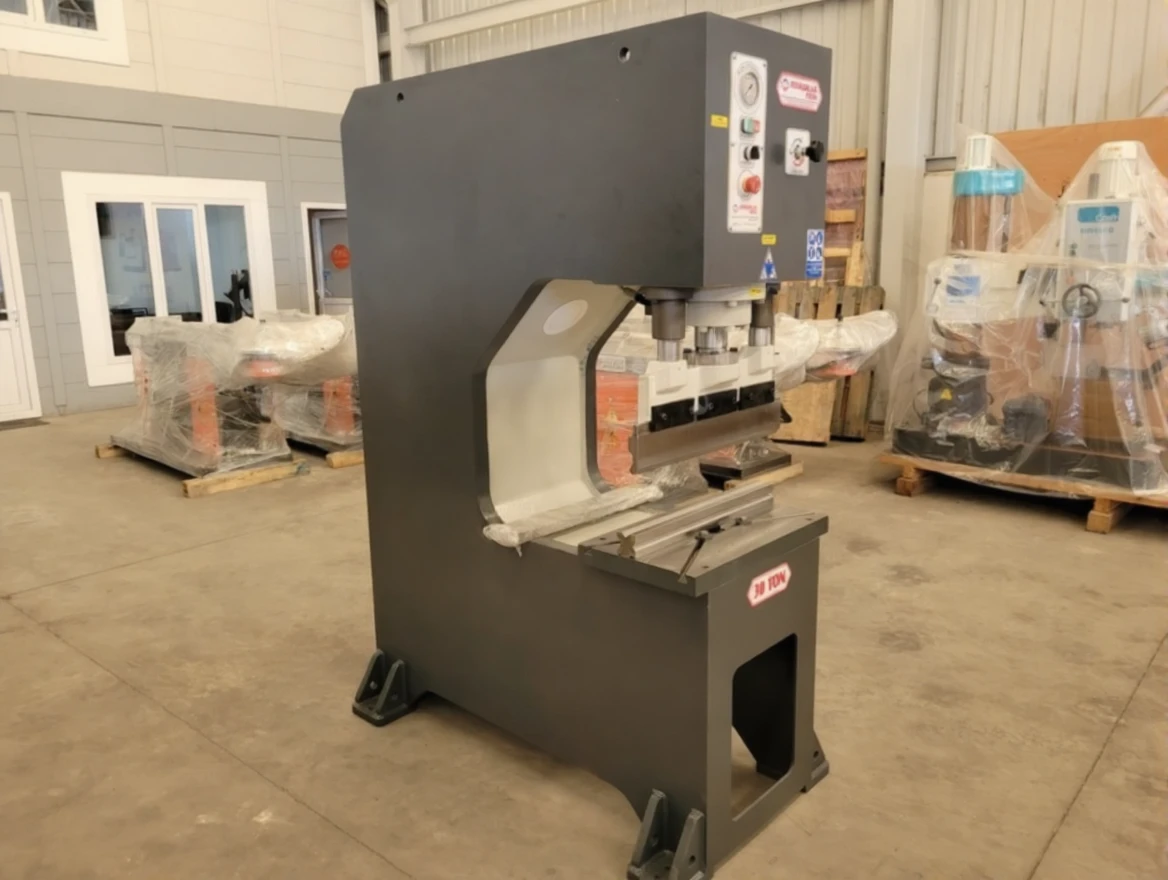

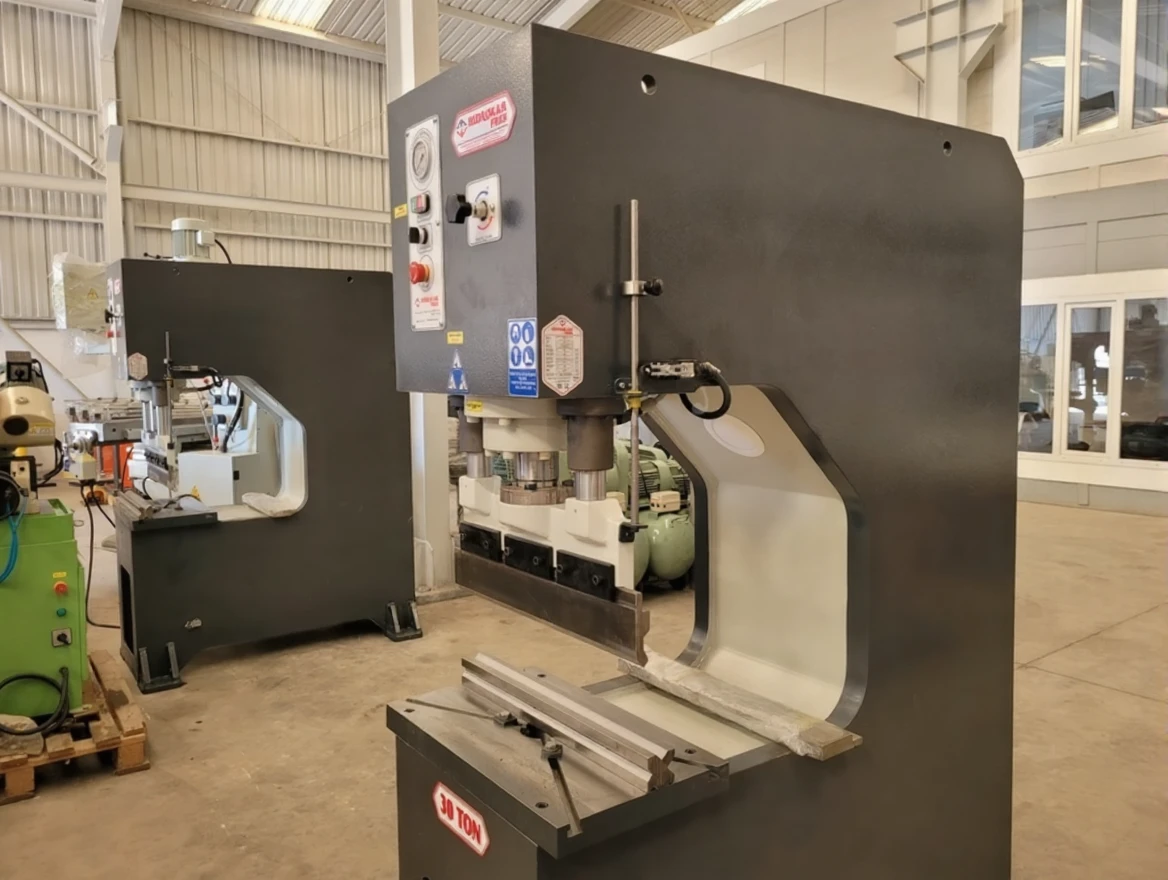

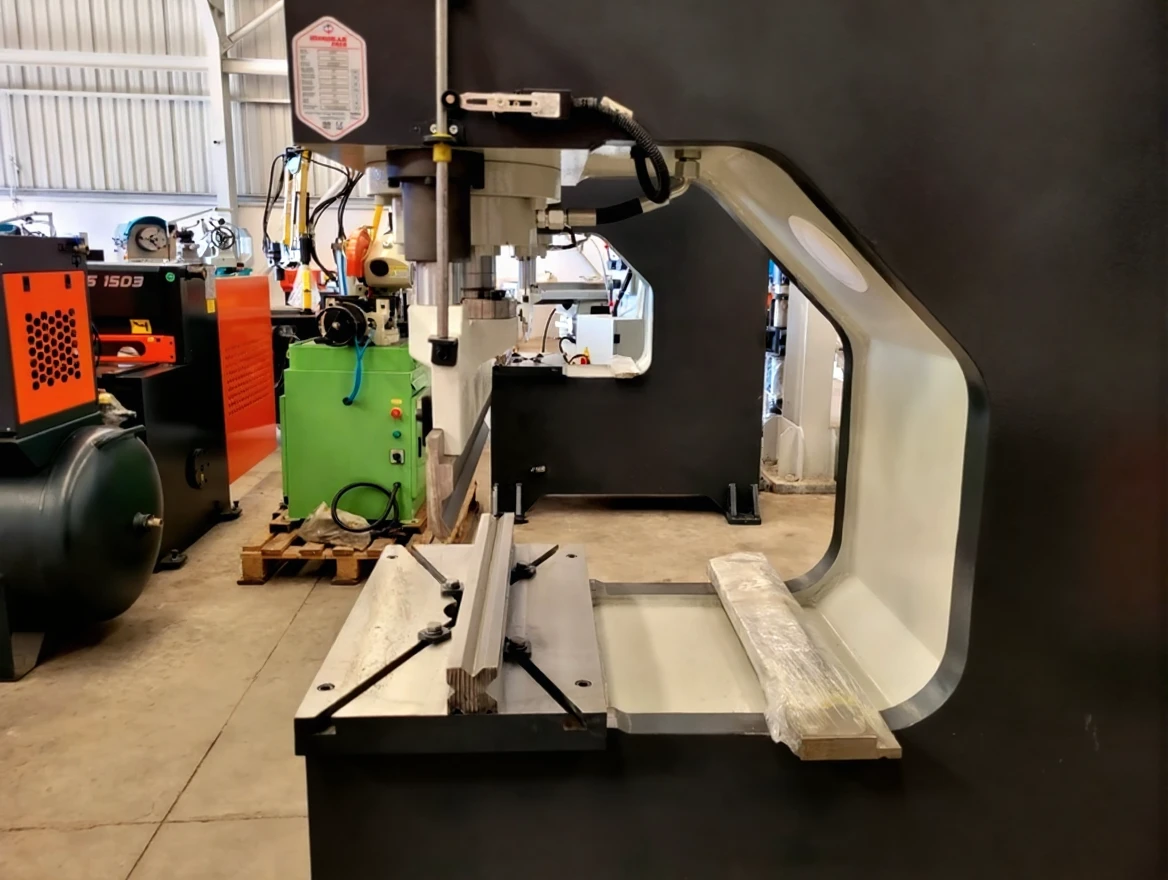

30 Ton C Type Bending Press

Bending force   ton         60

Bending capacity            mm        4

Bending length      mm        2100

Distance between legs      mm        1700

Stroke     mm        160

Bending speed         mm/s    10

Idle descent speed  mm/s    90

Throat depth   mm        320

Daylight               mm        380

Table Width (f)            mm        100

Table Height ©          mm        845

Motor power pump         kw          7.5

Motor power X axis        kw          0.75

Motor power Angle Adjustment       kw          0.37

Motor power R axis       kw          0.2

X axis distance              mm        600

Length (A)  mm        2450

Width (B)         mm        1600

Height (H)      mm        2235

Weight    kg           4340
