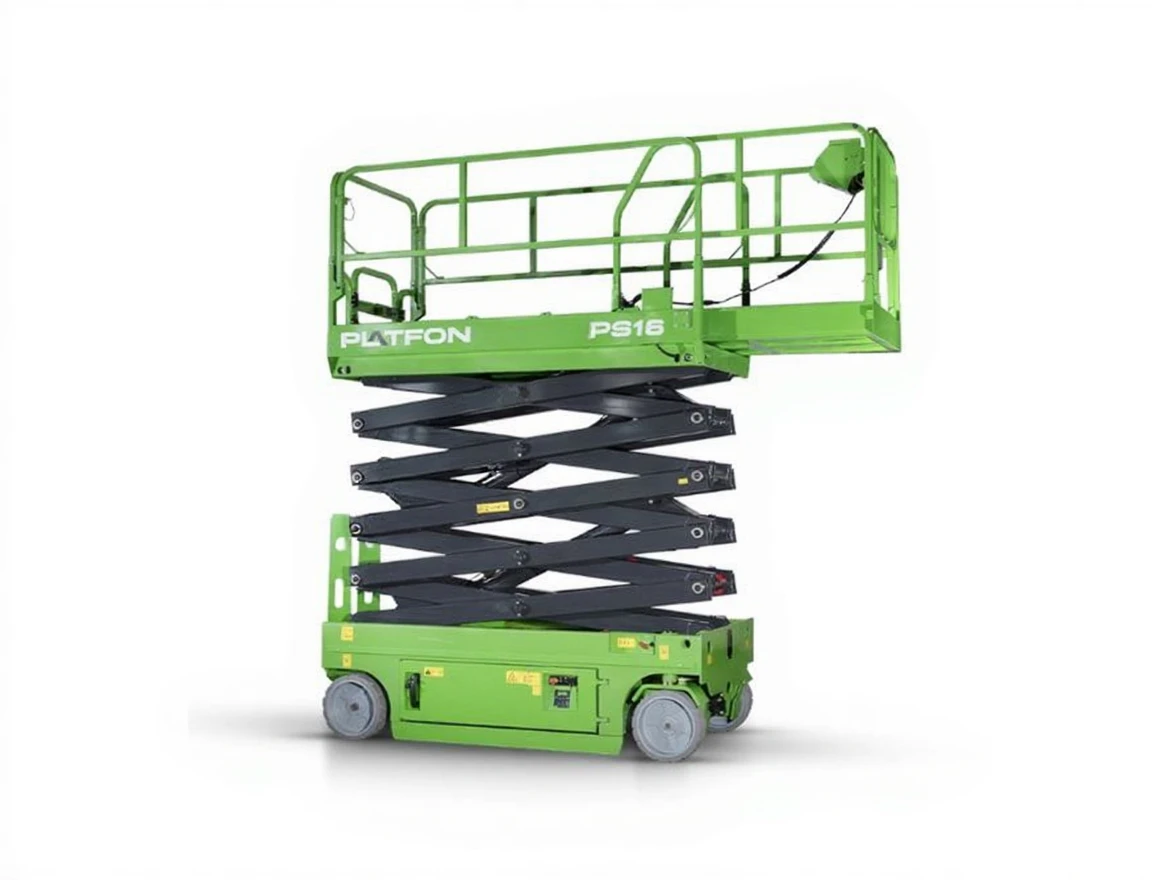

320 Kg 16 Meter Personnel Lift Scissor Platform
| Brand | Platfon |
|---|---|
| Model Type |
PS16 |
Description
Platfon PS16 320 Kg 16 Meter Personal Vertical Scissor Lift Platform
| Feature | Feature |
|---|---|
| Maximum Number of Persons | 2 |
| Lifting Capacity | 320 kg |
| Lifting Capacity (Platform Extension) | 113 kg |
| Travel Speed (Closed) | 3.5 km/h |
| Travel Speed (Open) | 0.8 km/h |
| Climbing Ability | %25 |
| Turning Radius (Inside) | 0 m |
| Turning Radius (Outside) | 2.70 m |
| Working Slope (X/Y) | 1.5° / 3° |
| Lift and Lower Time | 72/67 sec |
| Wheel Dimensions | 381×127 mm |
| Battery | 24 V / 200 Ah |
| Battery Charger | 24 V / 30 A |
| Weight | 3900 kg |
| STANDARD | OPTIONS |
|---|---|
| Emergency Stop | Platform Collision Prevention System |
| Automatic Pit Protection | Air Line to Platform |
| Emergency Descent | Pipe Carrier |
| Overload Protection | AC Power on Platform |
| Descent Protection Alarm | Platform LED Work Lamp |
| Slope Level Protection | Special Color Option |
| Safety Handle | |
| Movement Alarm | |
| Dual-sided LED | |
| Horn | |
| Full Height Travel | |
| Non-marking Tires | |
| Transport with Forklift | |
| Working Hour Indicator | |
| Collision Prevention Plate | |
| Automatic Braking System | |
| Fault Diagnosis System | |
| Battery Charger Protection | |
| Proportional Control | |
| Foldable Guardrail | |
| Manual Brake Release | |
| Self-lubricating Bearing |
