680 Kg 17.95 Meter Personnel Hydraulic Platform
| Brand | Platfon |
|---|---|
| Model Type |
PRT18E |

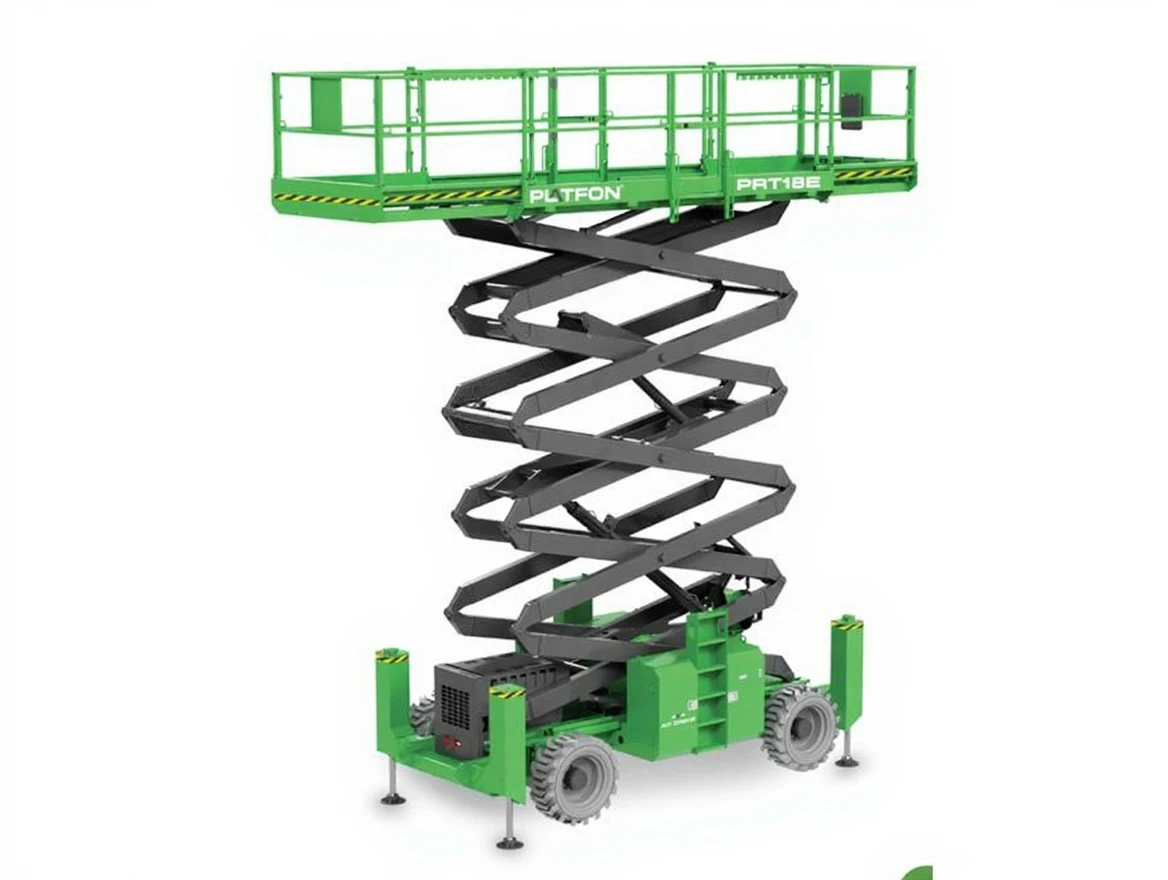

Platfon PRT18E 680 Kg 17.95 Meter Personnel Elevator Scissor Platform
The PRT18E Scissor Platform, with Platfon's safety-focused design and user-friendly control systems, provides operators with a safe working environment. Its wide working height and quick access features allow effective use in various industrial applications such as construction, maintenance, assembly, and cleaning.
|
Feature |
Feature |
|---|---|
|
Maximum Number of Persons |
4 |
|
Lifting Capacity |
680kg |
|
Lifting Capacity (Platform Extended) |
227kg |
|
Driving Speed (Closed) |
5.5km/h |
|
Driving Speed (Open) |
1.1km/h |
|
Gradeability |
40% |
|
Turning Radius (Inside) |
2.16m |
|
Turning Radius (Outside) |
5.33m |
|
Ascend and Descend Time |
55/49sec |
|
Maximum Foot Leveling (Front to Rear) |
7° |
|
Maximum Foot Leveling (Side) |
12° |
|
Driving – Steering |
4WD (AC Drive) – 2WS |
|
Battery |
48V – 480Ah |
|
System Voltage |
24V |
|
Hydraulic Oil Tank Capacity |
110L |
|
Weight |
8000kg |
|
STANDARD |
OPTIONS |
|---|---|
|
4-Wheel AC motor off-road mode |
|
|
Proportional control |
|
|
Automatic foot leveling |
|
|
Double-sided platform extension |
|
|
Full-size entry doors |
|
|
Oscillating axle |
|
|
Foldable guardrail |
|
|
Emergency descent |
|
|
Overload protection |
|
|
Descent protection alarm |
|
|
Grade level protection |
|
|
Safety arm |
|
