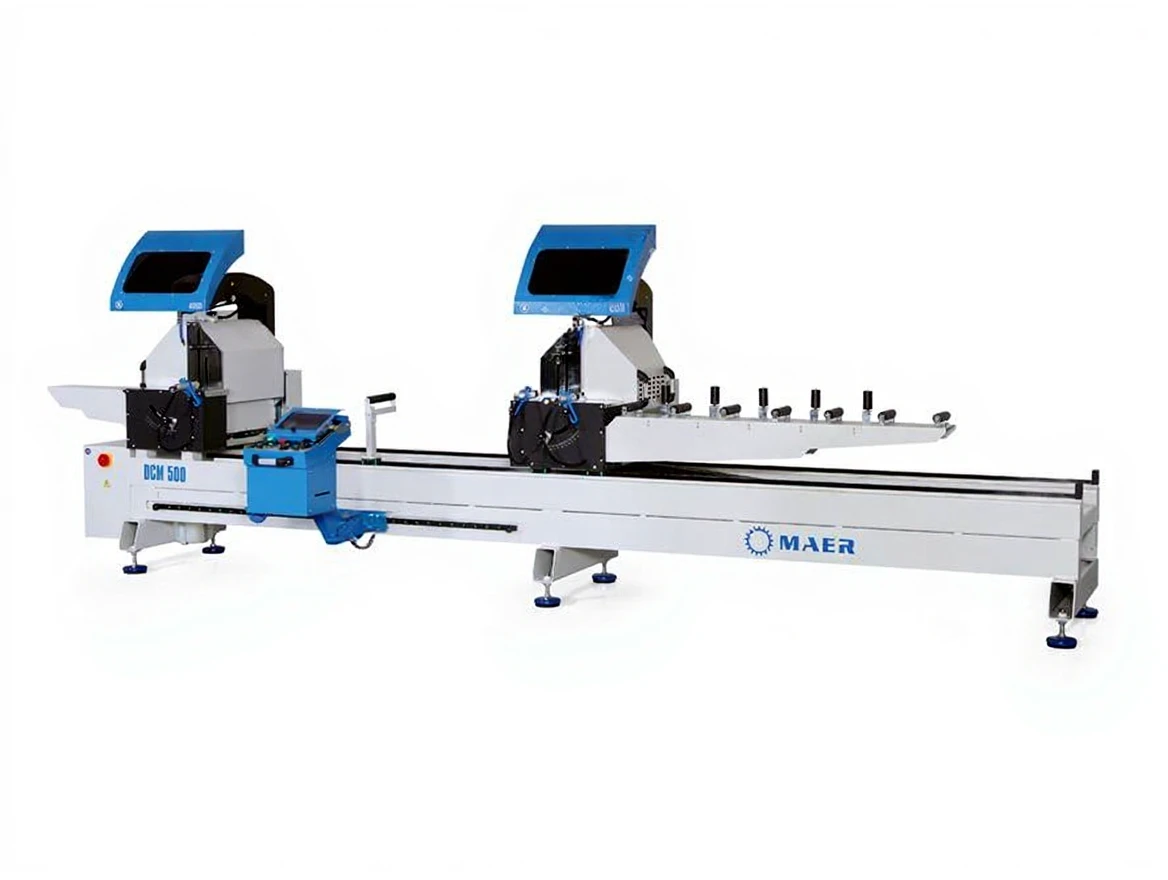

5 Mt Servo Controlled Automatic Double Head Cutting Machine

• Double head cutting machine

• Used for cutting operations of PVC and aluminum profiles, either straight or angled

• Complies with CE standards

• Hydro-pneumatic, hydrocheck controlled saw movement

• Cutting precision +/- 0.1 mm

• Automatic adjustment to two angles of 90° and 45°.

• Automatic slicing capability at 90°

• Easy and accurate positioning with servo motor

• 2 x 500mm diameter saw

• 500 mm saw blade diameter allows cutting of 2 profiles simultaneously

• Hydrocheck saw speed adjustment

• Has two 2.2 kW motors for cutting both PVC and Aluminum

• Touchscreen PLC control system

• All moving parts operate on linear rail + carriage

• Automatic shutdown safety system

• Has a cooling system for cutting aluminum profiles

• Multi-language support

• Automatic operation with data retrieval from various programs via USB

• Remote connection and technical support provision

• Easy, safe, and user-friendly operating system
