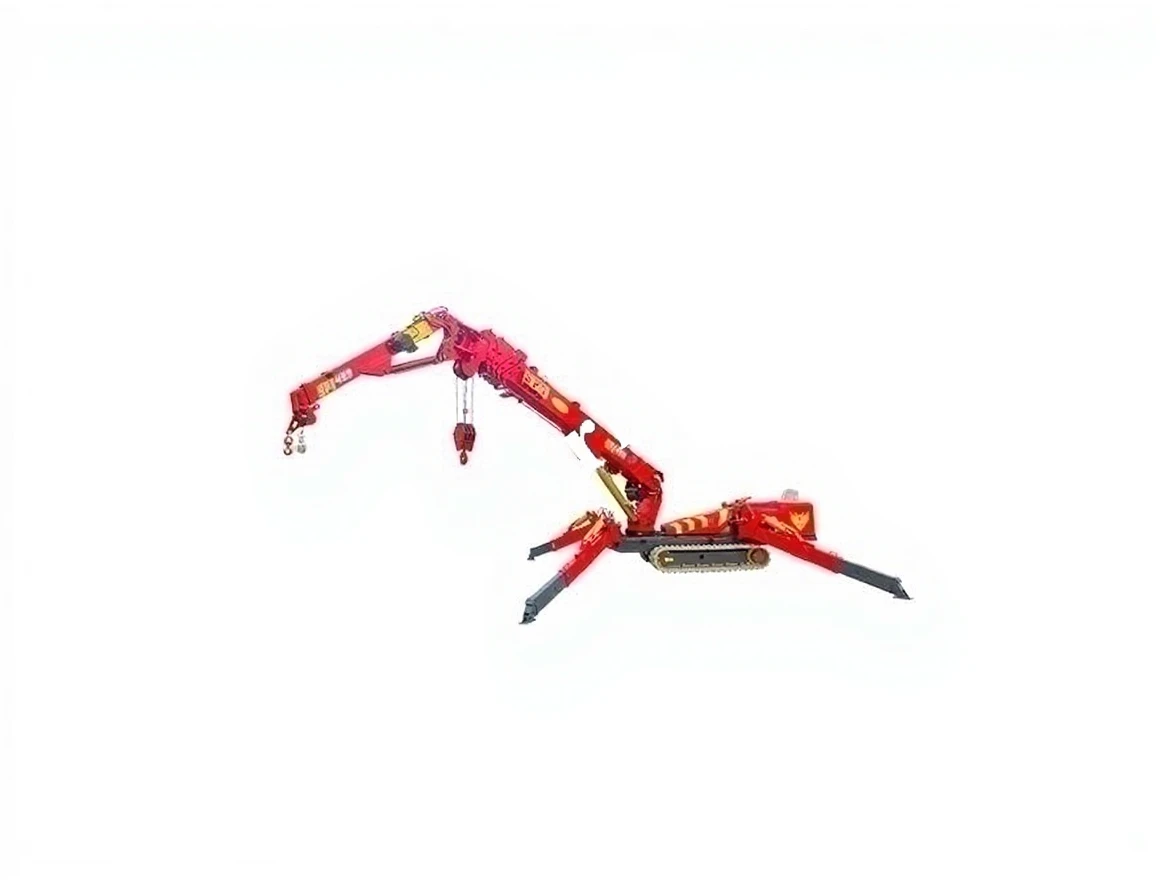

5 Ton Mini Crawler Crane

SPT499

Capacity

5.0t×3.0m

Working Radius

16.50m×0.40t

Lifting Height from Ground

17.5M×1.3t

Underground Lifting Height

17.5m-4 drops 35m-2 drops 70m-1 drop

Winch Device

Hook Speed

0-14m/min (4 drops)

Cable Type

Φ10mm×90m

Telescopic System

Boom Form

5-section boom, hexagonal box construction

Boom Length/Time

5.05m-17.00m/120s

Ascents and Descents

Boom Angle/Time

0-80°/80s

Rotation System

Rotation Angle/Speed

0-360°（continuous）/120s

Support Leg

Outrigger Active Form

Manual + Hydraulic

Maximum Extended Dimensions (mm)

5560（Length）X5850（Front）X5760（Rear）

Traction System

Travel Path

Hydraulic Motor Drive, 2 speeds

Travel Speed

0-2.0km/h

Grade Ability

20°(36%)

Ground Length×Width

1810mm×350mm

Ground Pressure

51kpa（0.52 kgf / cm²）

Electric Motor

Voltage

AC380V (Optional)

Power/Speed

7.5kw/1440 rpm

Noise Level

Rated Speed ≤78dB(A) （1m）

Diesel Engine

Model

V1505 (KUBOTA)

Type/Displacement

4 Cylinder Water-Cooled/1.498L

Nominal Output

18.5kw/2300 rpm

Starting Method

Electric

Operating Temperature

-5°C~40°C

Fuel/Volume

Diesel/40L

Battery Capacity

12v 60Ah

Specific Fuel Consumption

264g/kW-h

Noise Level

Rated Speed ≤84dB(A) (1m)

Applicable Regulation/Altitude

EPA-Tier4,EC Stage V/1200m

Operating System

Operation Type

Wireless Remote Control and Dual Axis Joystick Controller

Operating Characteristic

Fully Proportional Control

Dimensions

Length×Width×Height

5480mm×1400mm×2000mm

Weight

(Without Optional Equipment)

6200kg
