90 Kva C Axis CNC Point

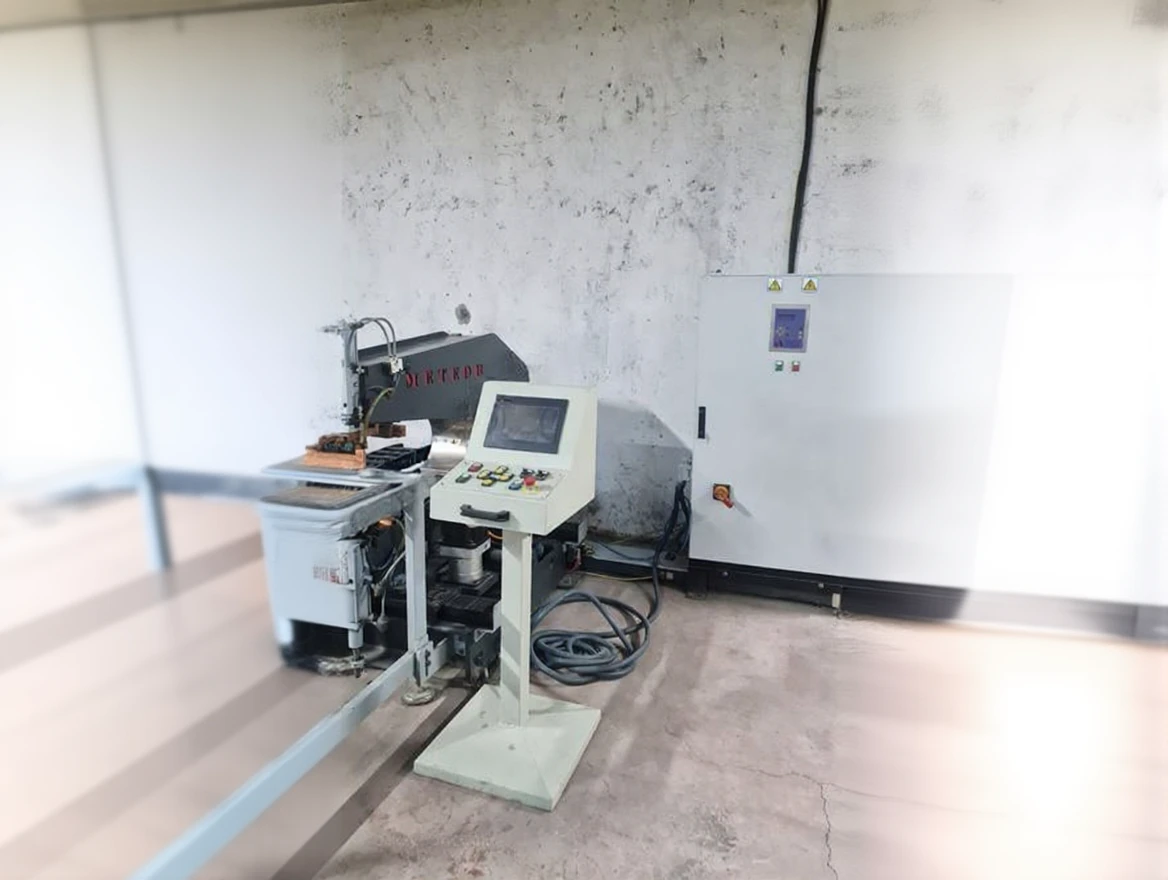

ELECTRONIC CONTROL SYSTEM FEATURES
 Digital Microprocessor-Thyristor Controlled
 Press time adjustment
 Welding time adjustment
 Current adjustment
 Interval time adjustment
 Welding end waiting time

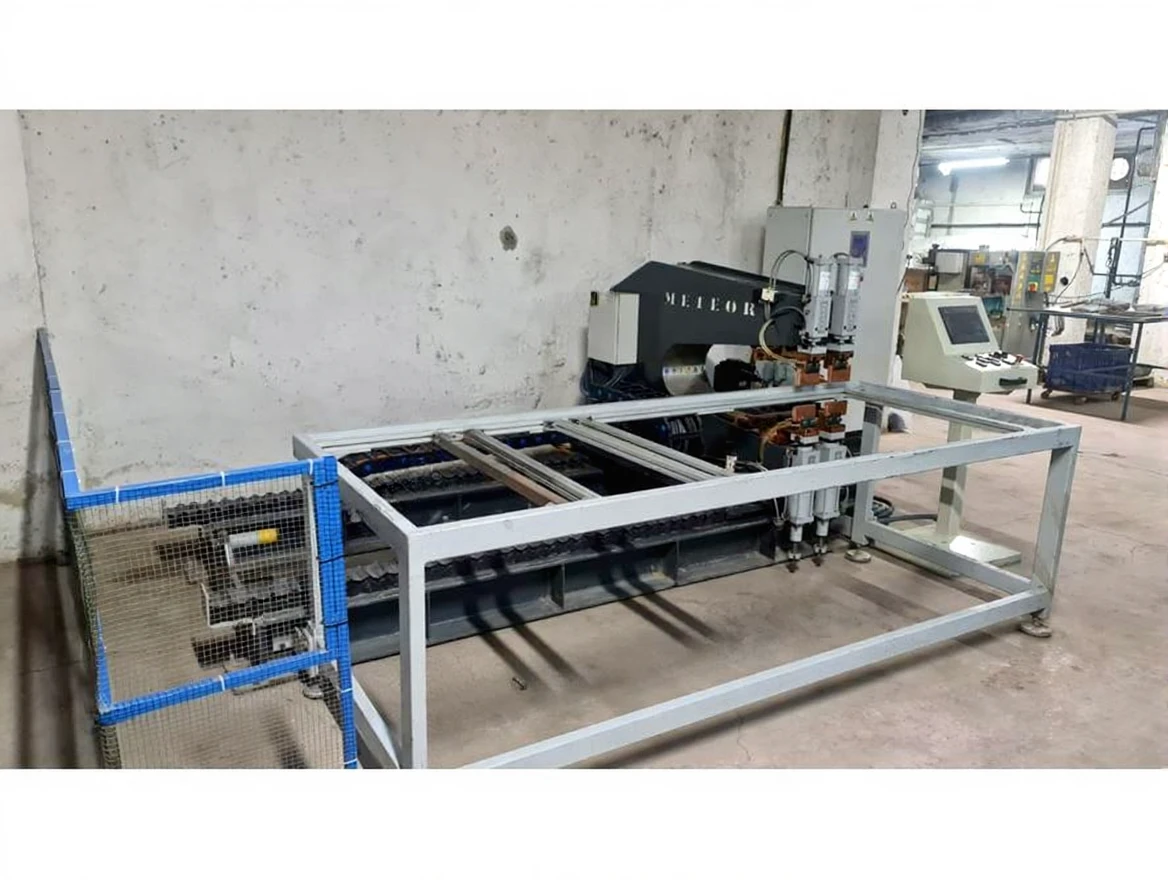

MACHINE NAME : NC POINT WELDING MACHINE
TECHNICAL SPECIFICATIONS OF THE MACHINE
 Nominal Power : 90 kVA
 Operating Voltage : 380 VAC – 50 Hz.
 Secondary Voltage : 8 V
 Max. Welding Current : 26 kA
 Fuse Current : 100 A
 Welding Pressure System : Pneumatic
 Cylinder Diameter : Ø80 mm.
 Air Supply Pressure : 2-6 Bar
 Welding Pressure Force : 300 daN (at 6 Bar)
 Cylinder Stroke : 100 mm.
 Cooling : Water (External)
 Cooling Water Pressure : 2-3 Bar
 Cooling Water Flow Rate : 6 lt/min
 Cooling Water Inlet Temperature : 20 °C
 Axis Movement Dimensions : “X” 600 mm. – “Y” 2000 mm
 Body Type : C Type
 Automation System : PLC Control (NC)

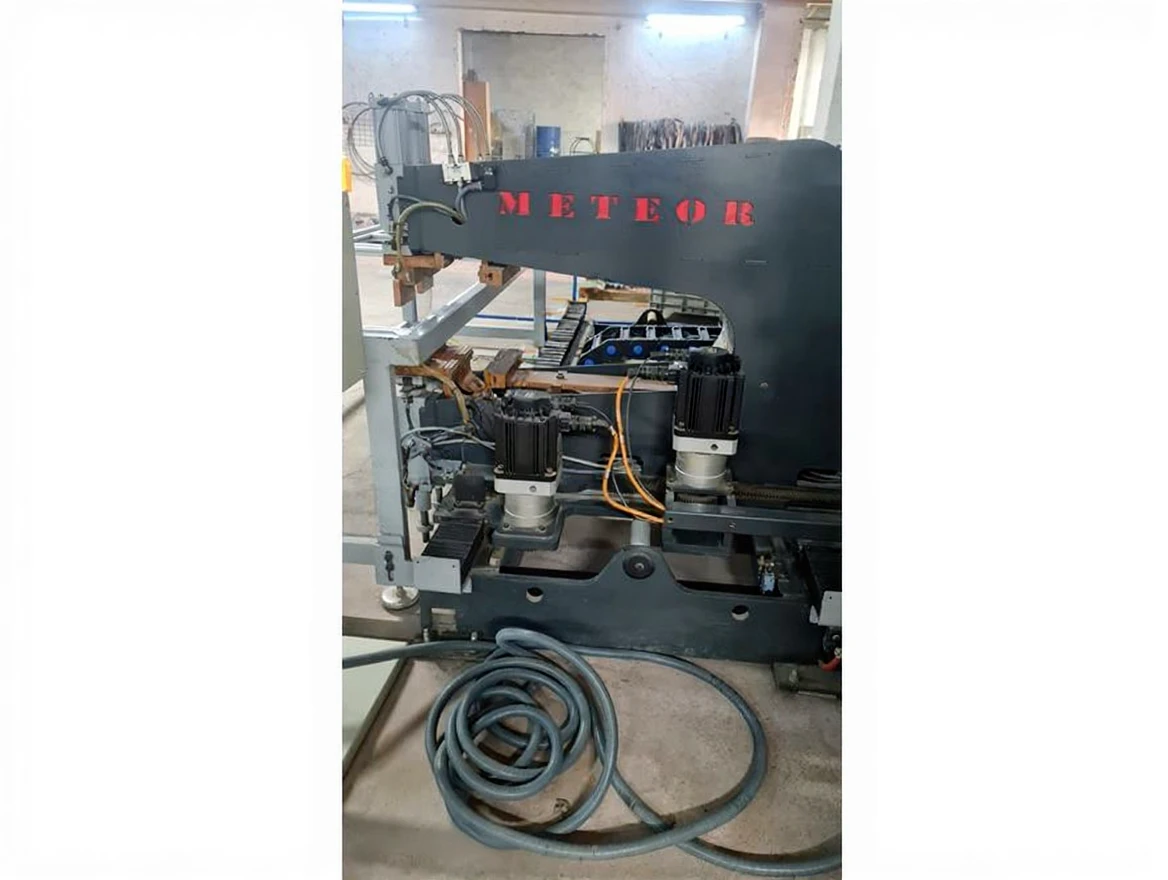

 Movement System : Linear slide, Krameyer Gear

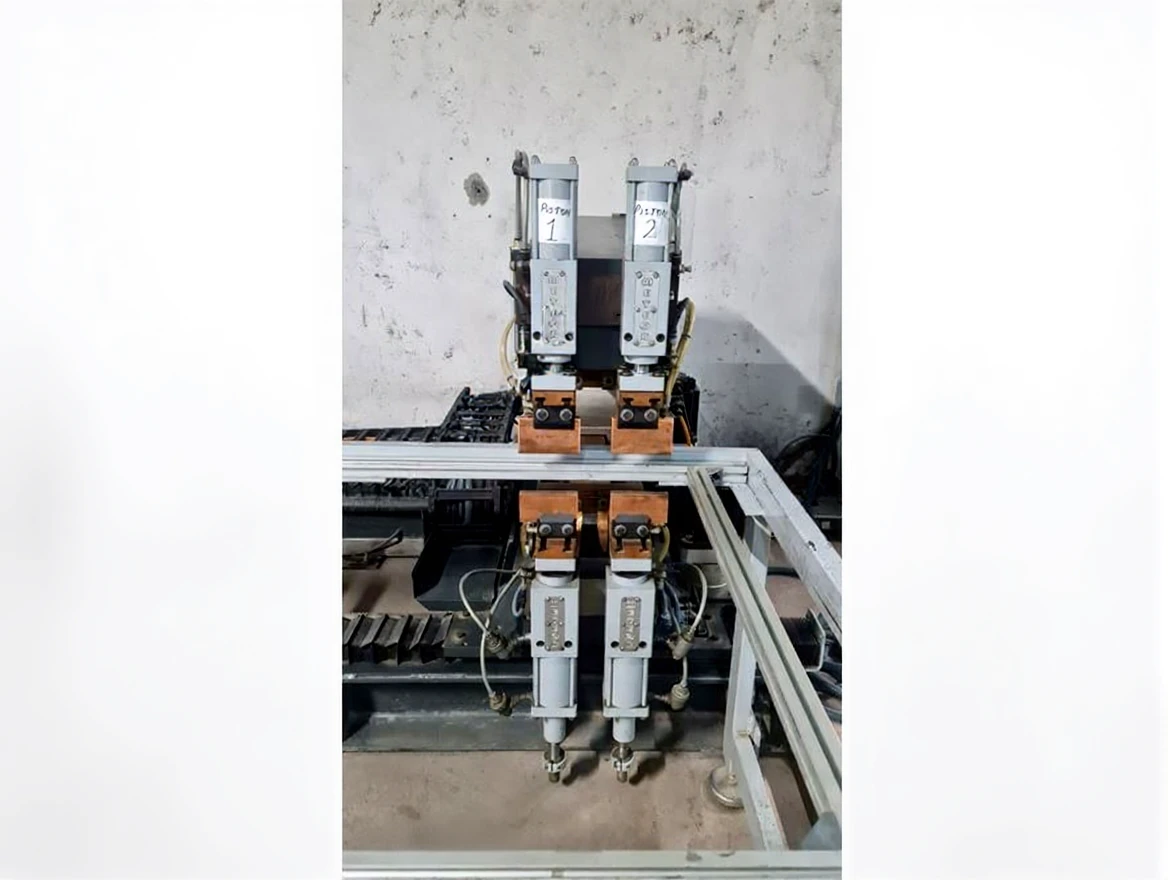

 Upper Welding Piston : Ø80 mm. Standard – 2 pcs.
 Lower Welding Piston : Ø80 mm. Stroke Limited 2 pcs.
