Double Wheel Rolling Machine (1500 mm)
| Brand | YD |
|---|---|
| Model Type |
DE 1518 |
Description
|

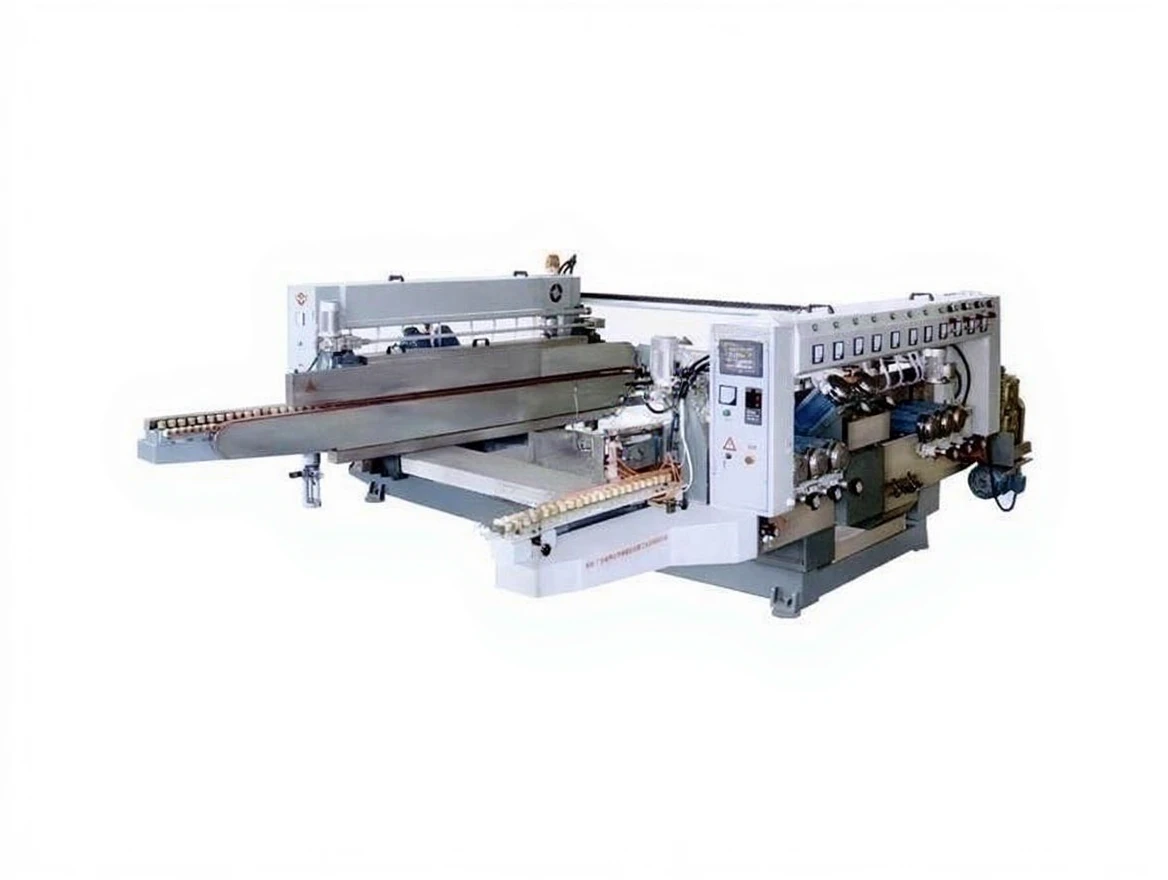

The YD-DE 1518 horizontal double edging machine is used to simultaneously high-quality chamfer both edges of glass in parallel. Its special design prevents scratching and breaking of the glass.
Our machine has a total of 18 heads, 9 on each side. Chamfering and polishing can be done in one go. A corner cutting head is available upon request. The machine is fully PLC controlled. It can be used automatically or manually by rotating the control when needed. |
|
Model No
|
YD-DE 1518
|
YD-DE 2018
|
YD-DE 2518
|
YD-DE 3018
|
YD-DE 4018
|
|
Maximum Glass Width (mm)
|
1500
|
2000
|
2500
|
3000
|
4000
|
|
Minimum Glass Size (mm) |
300 x 300
|
300 x 300
|
300 x 300
|
300 x 300
|
300 x 300
|
|
Total Number of Heads
|
18
|
18
|
18
|
18
|
18
|
|
Glass Thickness (mm)
|
3 – 20
|
3 – 25
|
3 – 25
|
3 – 25
|
3 – 25
|
|
Glass Speed (m/min)
|
0.5 – 5
|
0.5 – 5
|
0.5 – 5
|
0.5 – 5
|
0.5 – 5
|
|
Air Consumption (lt/min)
|
1
|
1
|
1
|
1
|
1
|
|
Pressure (kg/cm2)
|
6
|
6
|
6
|
6
|
6
|
|
Power (kw)
|
46
|
46
|
46
|
46
|
46
|
|
External Size (mt)
|
4 x 3 x 1.8
|
4 x 3.5 x 1.8
|
4 x 3.8 x 1.8
|
4 x 4.3 x 1.8
|
4 x 5.3 x 1.8
|
|
Weight (kg)
|
2500
|
3000
|
3500
|
4500
|
5000
|
