Fiber Switch 24 Ports Gigabit Layer3 Managed Network Switch 1G Ethernet Access Layer Switch

Longline Fiber Switch 24 Ports Gigabit Layer3 Managed Network Switch 1G Ethernet Access Layer Switch LNG5710-28SX

Longline LNG5710-28SX is a Layer 3 managed gigabit fiber ethernet access switch that offers high performance and reliability. It provides strong performance in fiber connectivity and data transmission, making it an excellent solution for industrial and commercial network projects. With its robust structure and network management features, it is an ideal choice for large-scale network solutions.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3z: 1000Base-FX

• IEEE 802.3x: Flow Control

Switching Features:

• Back Plane Bandwidth: 128 Gbps

• MAC Address Table: 16K

• Management Level: Layer 3 Managed (Static routing and RIP support)

Port Features:

• RJ45 Ports: 24 × 1000Base-T

• SFP Slots: 4 × 1000Base-X SFP

• Automatic speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

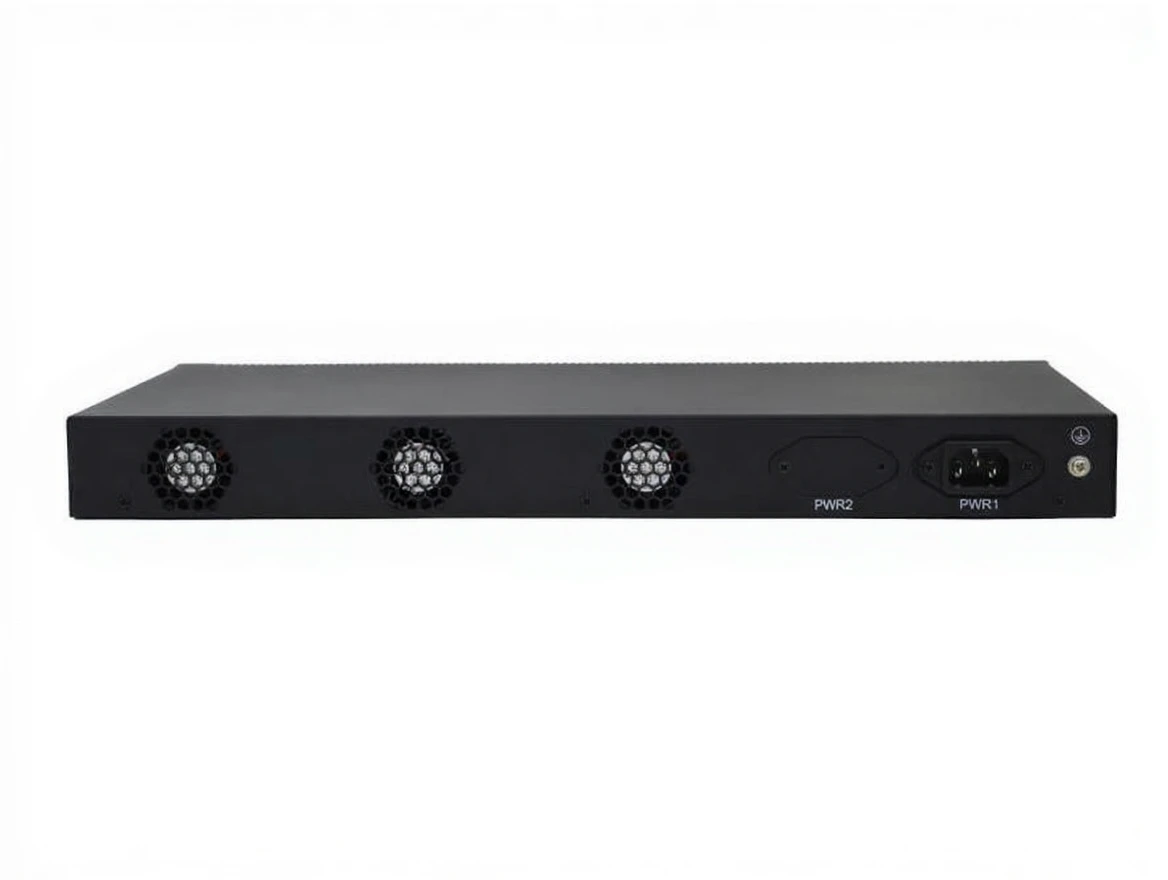

Power Supply Requirements:

• Input Voltage: AC 100-240V (Single power input)

• Power Consumption: Not specified

Physical Attributes:

• Chassis: Metal case

• Dimensions: 440 × 300 × 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: %5 ~ %95 (non-condensing)

Standards and Certifications:

• Electromagnetic Compatibility (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Durability:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Free Fall: IEC 60068-2-32
