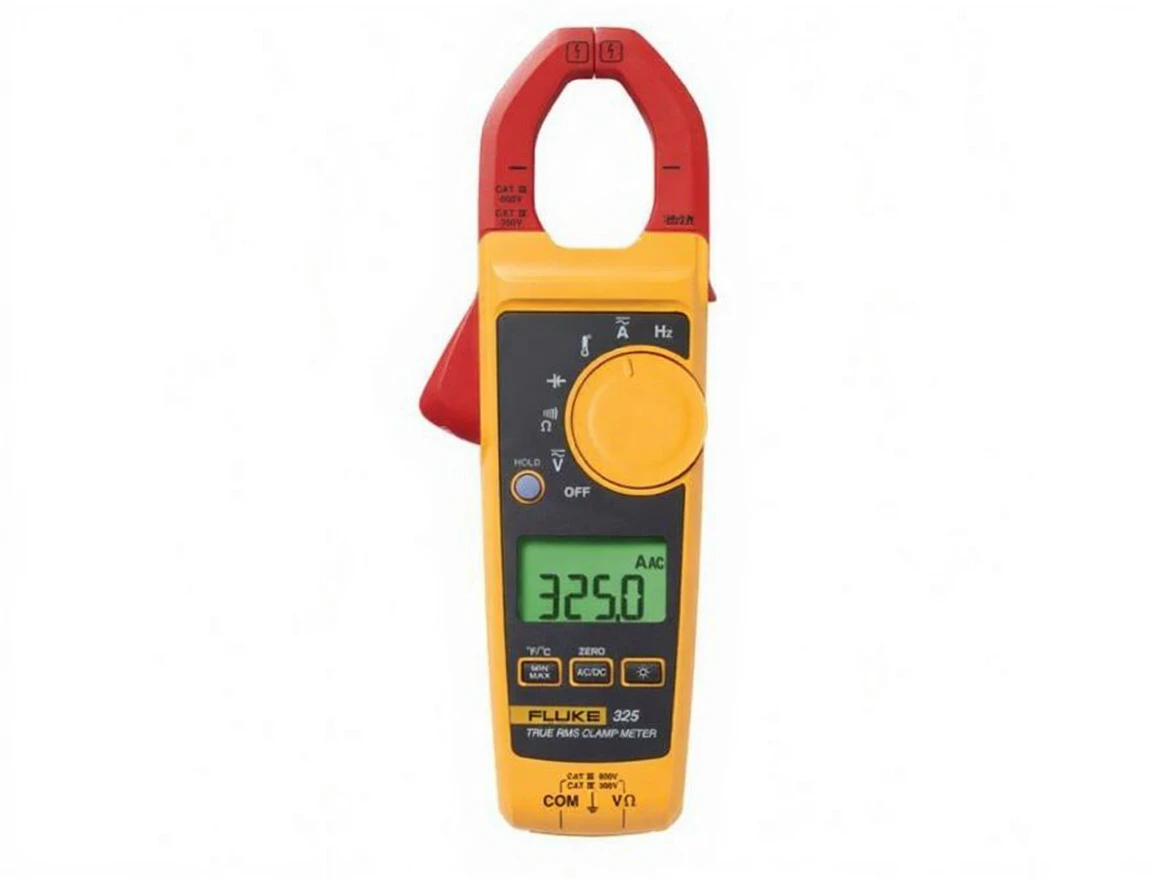

Fluke 325 – True-RMS Clamp Meter
| Brand | Fluke |
|---|---|
| Model Type |
Fluke 325 |
Fluke 325 – True-RMS Clamp Meter
It is a device designed for professional electrical measurements with a compact and durable design. Thanks to its True-RMS technology, it provides high precision in AC measurements that require accuracy and is a reliable solution for electricians.
-
True-RMS measurementIt provides accurate and precise results in AC current and voltage measurements.
-
Large measuring capacity:
-
AC/DC Current Measurement:up to 400 A
-
AC/DC Voltage Measurement:up to 600 V
-
Resistance Measurement:up to 40 kΩ
-
Temperature Measurement:10°C to 400°C
-
Capacitance Measurement:up to 1000 µF
-
-
Frequency Measurement:From 5 Hz to 500 Hz
-
Continuity Test:It provides the opportunity to quickly check circuit continuity.
-
Compact and ergonomic design:Provides easy use in narrow spaces.
-
Big screen:It makes it possible to easily read the measurement results.
-
Compliant with CAT III 600 V and CAT IV 300 V safety standardsIt was produced as.
Set Content:
-
Fluke 325 True-RMS Clamp Meter
-
Hardened Test Leads
-
Carrying Bag
-
User Guide
Fluke 325 offers a professional solution for electrical measurements with its durability and wide measurement features. With its compact structure and reliable performance, it is an indispensable tool for technicians working in the field.
|
Feature |
325 |
|---|---|
|
AC Current (Range) |
40A, 400A |
|
AC Current (Sensitivity) |
2% ± 5 steps (45 Hz – 65 Hz) |
|
DC Current (Range) |
40A, 400A |
|
DC Current (Sensitivity) |
2% ± 5 digits |
|
AC Voltage (Range) |
600V |
|
AC Voltage (Sensitivity) |
1.5% ± 5 digits |
|
DC Voltage (Range) |
600V |
|
DC Voltage (Sensitivity) |
1% ± 5 digits |
|
Resistance (Range) |
400Ω / 4000Ω / 40kΩ |
|
Resistance (Sensitivity) |
1% ± 5 digits |
|
Continuity |
≤ 300 Ω |
|
Capacitance |
0 to 100.0 µF |
|
Frequency |
5 Hz to 500 Hz |
|
AC Response |
True RMS |
|
Data Retention |
Yes |
|
Contact Temperature |
10°C – 400°C (14ºF – 752ºF) |
|
Dimension (H x W x D) |
207 x 75 x 34mm |
|
Maximum Cable Diameter |
30mm (600MCM) |
|
Weight |
283g |
|
Category Rating |
CAT III 600V |
