Fluke 368 – Leakage Current Clamp Ammeter
| Brand | Fluke |
|---|---|
| Model Type |
Fluke 368 FC |

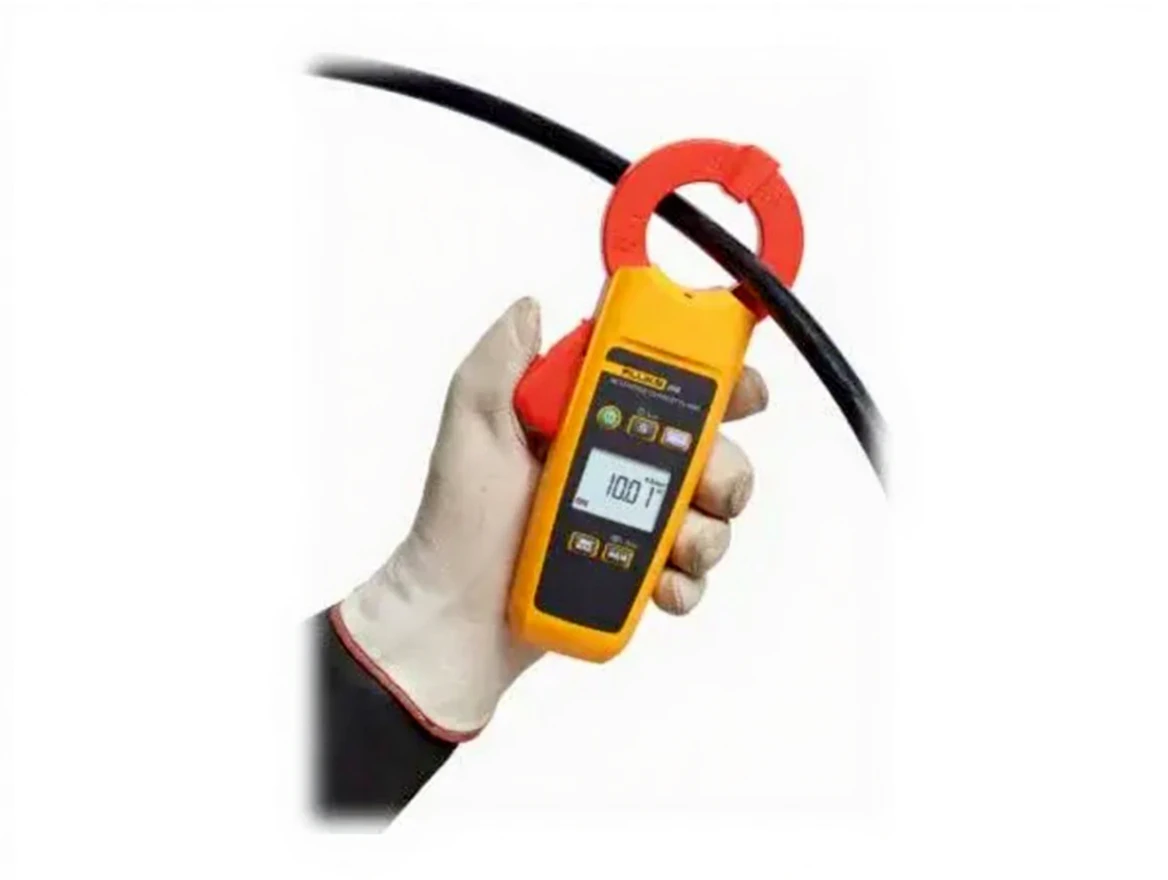

Fluke 368 – Leakage Current Clamp Ammeter
It is a reliable and sensitive device specially designed for leakage current measurements in electrical systems. It helps increase energy efficiency and ensure safety by quickly detecting leakage current problems.
-
Leakage current measurement:It can make precise measurements between 0.01 mA and 60 A.
-
TrueRMS technology:It provides accurate and reliable results in AC current measurements.
-
Wide jaw opening:Thanks to its 40 mm jaw opening, it offers easy use in large cables and conductors.
-
Low permeability effect:The special design in the jaw structure reduces interference from external areas and provides more precise measurement.
-
Display backlight:It makes it possible to easily read measurement results even in dark environments.
-
Datalogging feature:It offers the possibility of recording and analyzing measurement data.
-
Compliant with CAT III 600 V safety standardsIt was produced as.

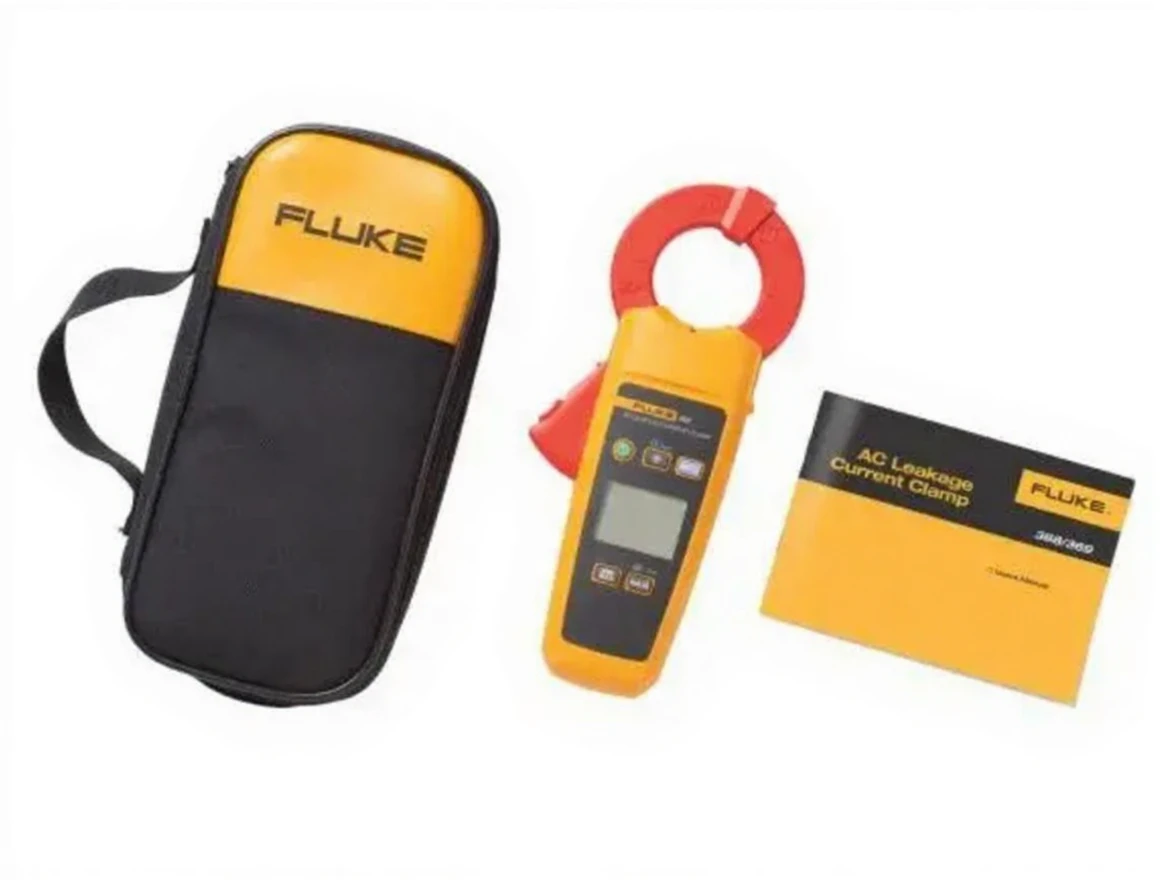

Set Content:
-
Fluke 368 Leakage Current Clamp Ammeter
-
Hardened Test Leads
-
Carrying Bag
-
User Guide
Fluke 368 offers a professional solution for leakage current measurements. It helps increase safety in electrical systems thanks to its precise measurement features and interference reduction technology. It is an ideal tool for technicians working in industrial and commercial applications.
|
Feature |
Value |
|---|---|
|
Measurement Function |
Alternating current |
|
AC Current Range |
3 mA, 30 mA, 300 mA, 3 A, 30 A, 80 A |
|
Range/Resolution |
3mA / 0.001mA |
|
Sensibility(40 – 70 Hz) |
1% ±5 digits |
|
Sensibility(40 – 1 kHz) |
2% ±5 digits |
|
Frequency |
40 Hz – 1 kHz |
|
Screen |
Digital LCD, 3300 counts |
|
Maximum Conductor Jaw Diameter |
40mm |
|
Dimensions |
234 x 101 x 48mm |
|
Weight |
500g |
|
Batteries |
2 AA, IEC LR6, NEDA 15A, alkaline |
|
Battery Life |
More than 150 hours (without using backlight and spotlight) |
|
Automatic Power Off |
The device automatically turns off after 15 minutes of inactivity. |
|
General Security |
IEC 61010-1: Pollution Degree 2 |
|
Security Category |
IEC 61010-2-032: CAT III 600 V / CAT IV 300 V |
|
Operating Temperature |
-10 °C – 50 °C |
|
Storage Temperature |
-40 °C – 80 °C |
|
Operating Humidity |
Without condensation: |
|
Protection Class |
IEC 60529: IP30 (jaw closed) |
|
Operating Altitude |
2000 meters |
|
Storage Altitude |
12,000 meters |
|
Electromagnetic Compatibility (EMC) |
IEC 61326-1 |
|
Industrial Electromagnetic Environment |
CISPR 11: Group 1, Class A |
