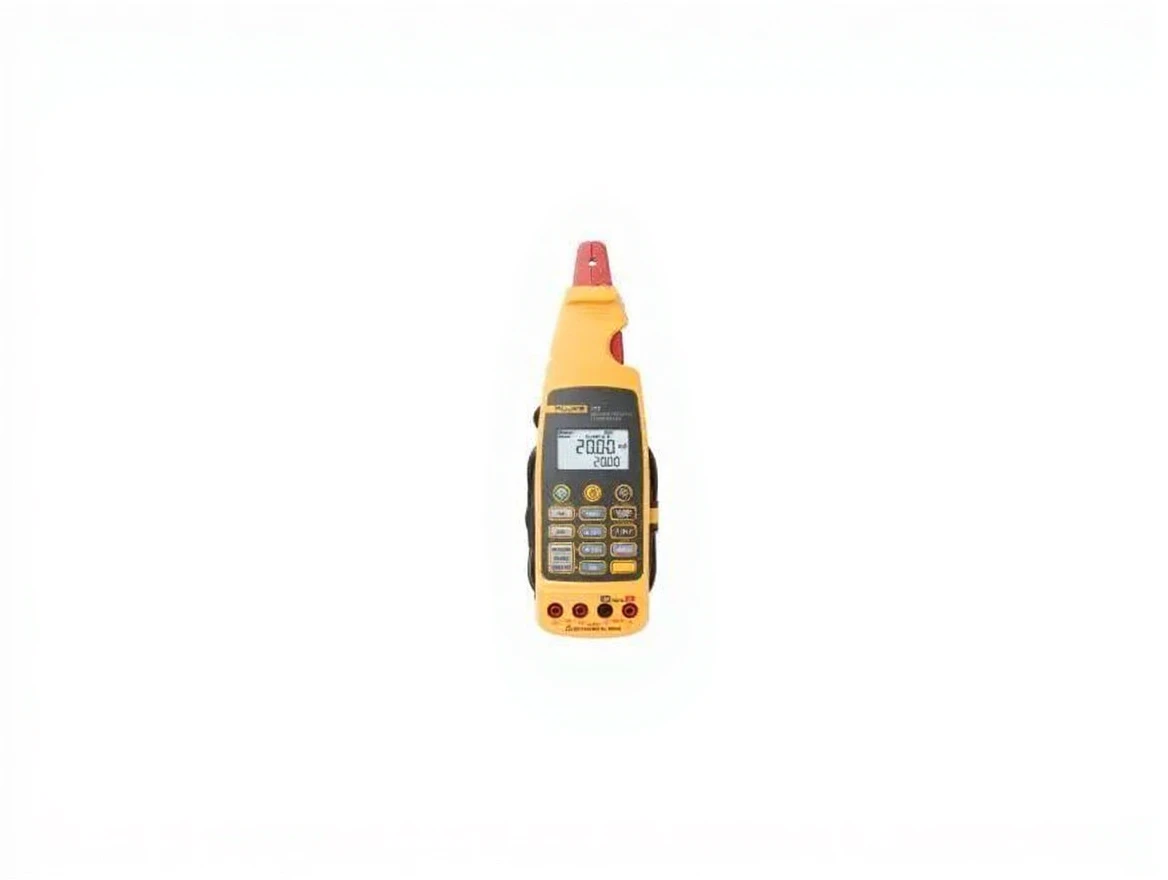

Fluke 773 Milliamp Process Clamp Meter (1)

Fluke 773 Milliamp Process Calibrator is an advanced device with features like measuring, simulating, and providing loop power for 4-20 mA signals in process control systems. Fluke 773 offers professional solutions in the field and laboratory environments with capabilities such as measuring current without breaking the circuit, signal generation, and independent testing of transmitters. With its advanced features, it provides time savings and high accuracy for maintenance technicians and engineers.

• Current Measurement Range: 0-20.99 mA DC precise measurement.
• Accuracy: High precision with ±0.2% accuracy rate.
• Resolution: Detailed measurement with 0.01 mA resolution.
• Measure Current Without Breaking the Circuit: Saves time by measuring current without opening the circuit.
• Provide Loop Power: Enables testing of transmitters by providing 24V loop power.
• Current Simulation: Simulation of 4-20 mA loop signals.
• Signal Generation: Generating precise mA signals for analog inputs.
• Current Measurement and Source: Simultaneously providing measurement and signal source.
• LED Light: Integrated LED light for easy identification of connection points in dark environments.
• Auto-Shut Off: Auto-shut off feature for energy savings.
• Low Power Consumption: Long battery life for extended field use.
• Compact and Lightweight Design: Ergonomic structure for easy portability.
• Handheld Portability: Compact design for one-handed usage.

Applications:

• Process Control Systems: Measuring, simulating, and controlling 4-20 mA signals.
• Transmitter Testing: Verification, calibration, and independent testing of transmitters.
• PLC and Analog Input Testing: Testing of PLC analog inputs and outputs.
• Field Maintenance: Quick and easy current measurement for field maintenance operations.
• Energy Management: Monitoring current signals and achieving energy savings.

Unlike other mA process calibrators, Fluke 773 features signal generation and loop power capabilities. This enables independent testing of transmitters and analog inputs. The ability to provide both measurement and signal source simultaneously makes the device an indispensable tool for maintenance technicians and engineers.

Fluke 773 Milliamp Process Calibrator comes with a user manual, carrying case, and long-lasting battery. With its advanced features, it optimizes work processes in field and laboratory environments and delivers reliable results.
