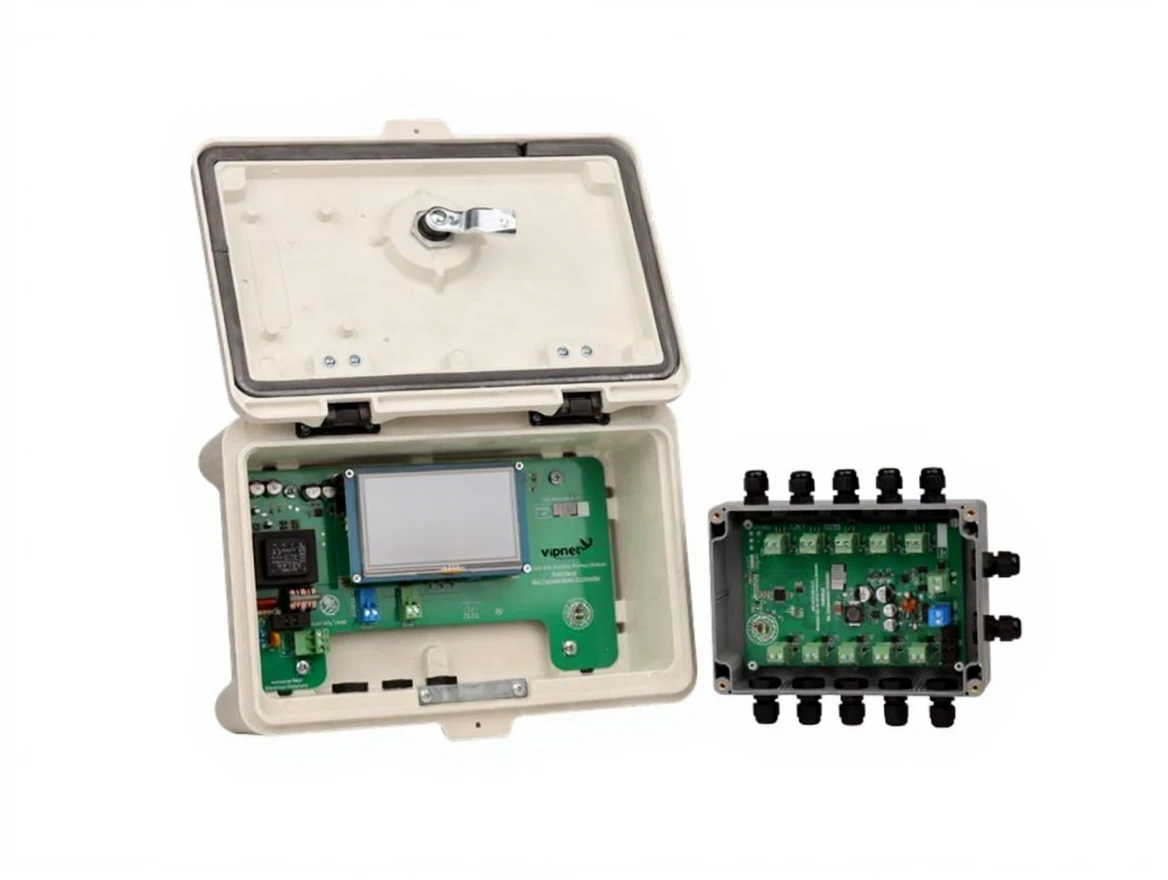

Independent Silo Temperature Control System
| Brand | Endüstriyel |
|---|---|
| Model Type |
EE-IBTC-02-A-V1 / EE-IBTC-02-U-V1 |
• 1 piece of 220V AC Power Connector (POWER)
• 1 piece of 24V DC Power Connector (POWER)
• 1 piece of Connector for RS-485 (IN/OUT) input and output unit (RS-485 COMPORT)
• 10 pieces of Thermal Probe Connection Connector (L1-L2-L3-L4-L5-L6-L7-L8-L9-L10) are available.
• The device addressing process is carried out by intervening in the device box.
• A maximum of 31 devices can be numbered.
Technical Specifications
Operating Voltage 220V AC / 50-60Hz
Communication Type RS-485 (1 IN/OUT)
Communication Protection Element Optocoupler
Communication Protocol Modbus-RTU (Inter-Card)
Operating Ambient Temperature –10 °C / +60 °C
Sensor Measurement Range –55 °C … +125 °C
Sensor Accuracy +/-0.2 °C (+125 °C for 1000 hours test value)
Number of Thermal Probe Connections 10 Pieces (Maximum)
Number of Sensors that can be used 20 Pieces (Maximum for 1 Probe)
Device Size 240mm x 160mm x 90mm
Device Box Type ABS
Device Protection Class IP-65 Seal
Mounting Type Wall Mount
Feeding Input Fuse Value 100 mA Glass Fuse
