Live Tooling Lathe Power Supply Control Unit

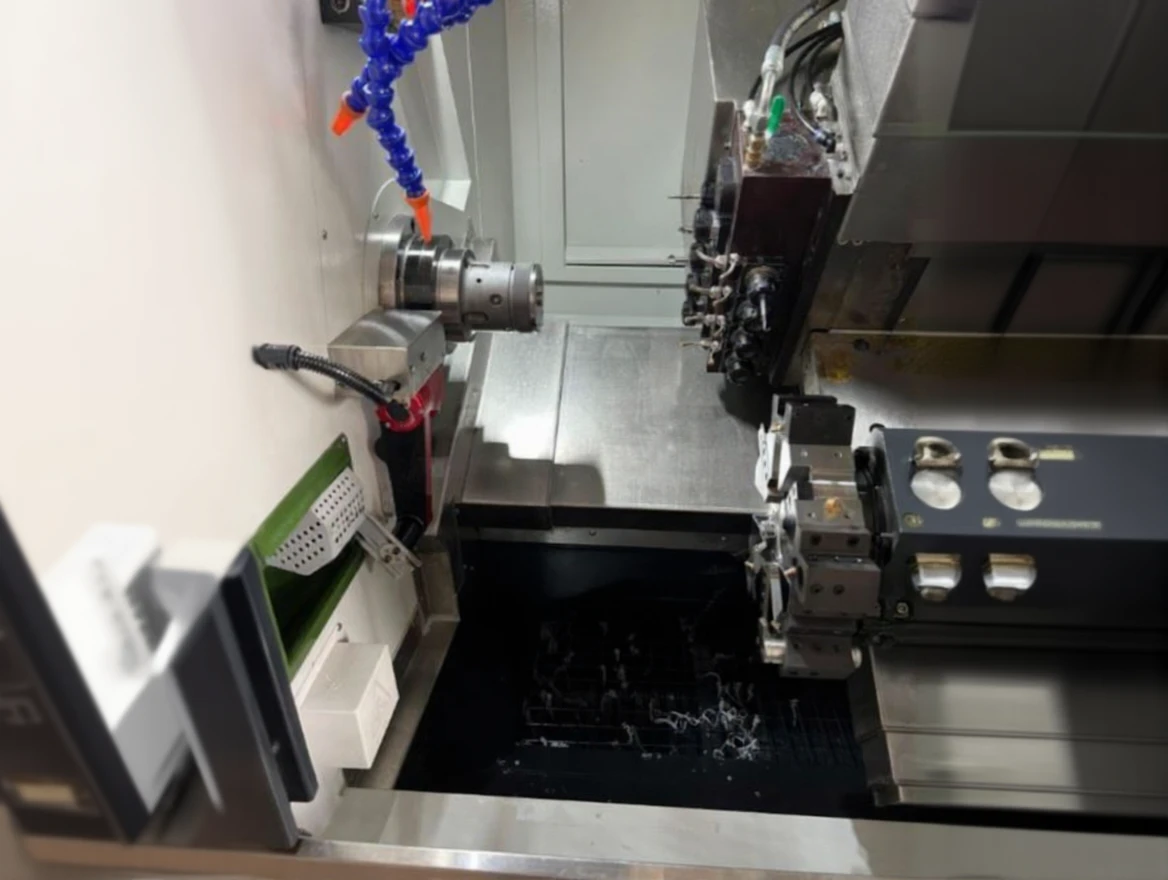

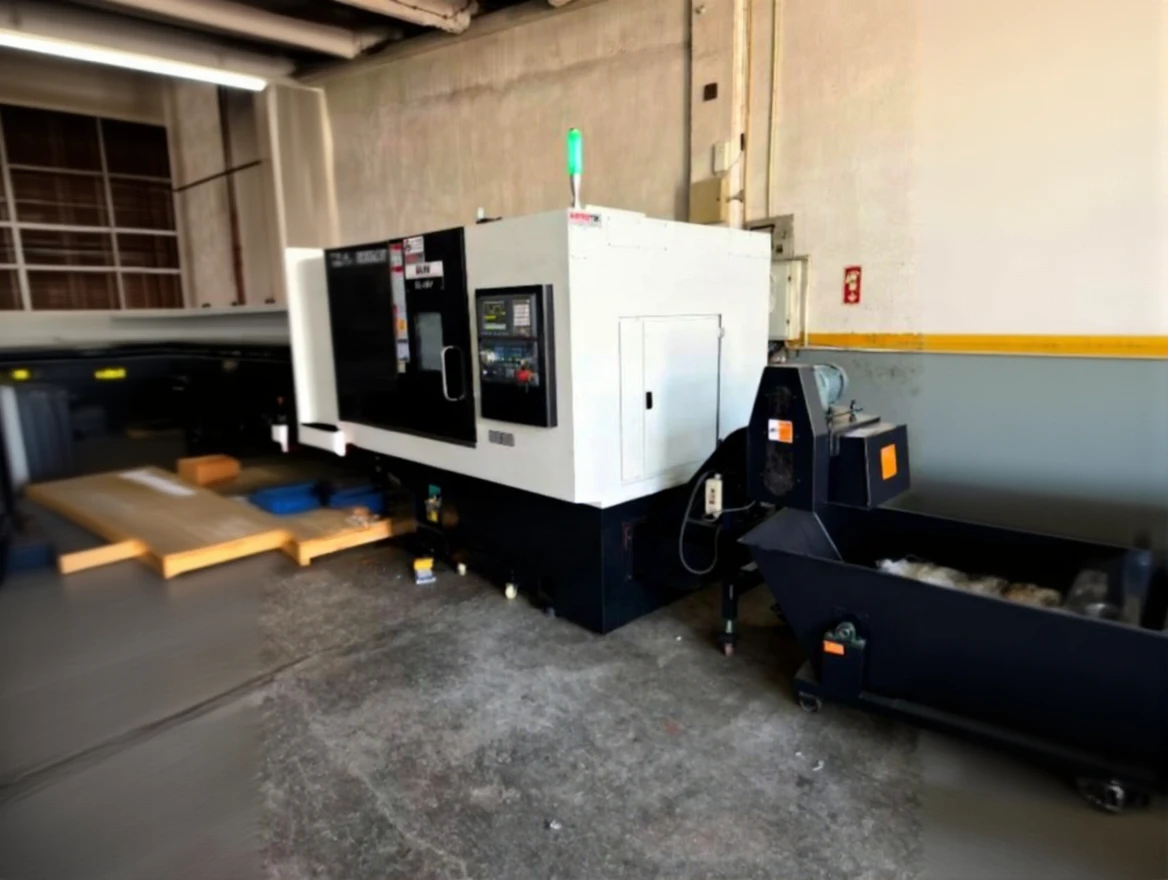

The CNC live tooling lathe equipped with a control unit is an advanced metal processing solution that offers precision and production efficiency together. Thanks to its 8-station servo turret structure and live tooling feature, turning, drilling, and milling operations can be performed in a single setup. This significantly shortens cycle times, providing important advantages in mass production.

The 30-degree inclined bench cast body structure minimizes vibration while increasing cutting stability. The machine, equipped with a chip conveyor and part catching system, is suitable for automation-supported production processes. It can be easily integrated with bar feeding systems thanks to the magazine bar driver preparation.

The live tooling structure with Y-axis offers high flexibility in the production of parts with complex geometries. Linear guides and balanced axis movements ensure precise and repeatable results. It is an ideal CNC lathe for businesses engaged in automotive, machine manufacturing, defense industry, and mass part production.

Natrotek BL-H6Y Technical Specifications

General Equipment

• Control Unit: Syntec 22 TB

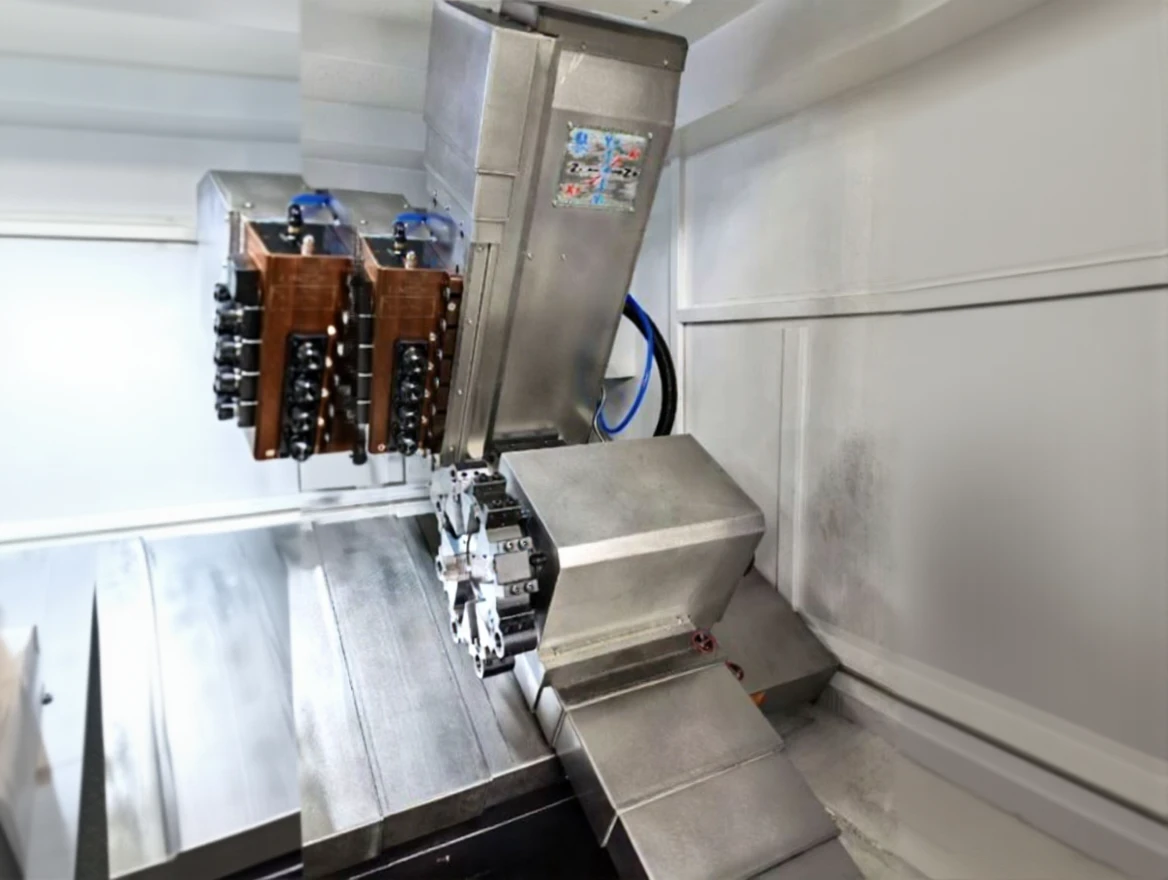

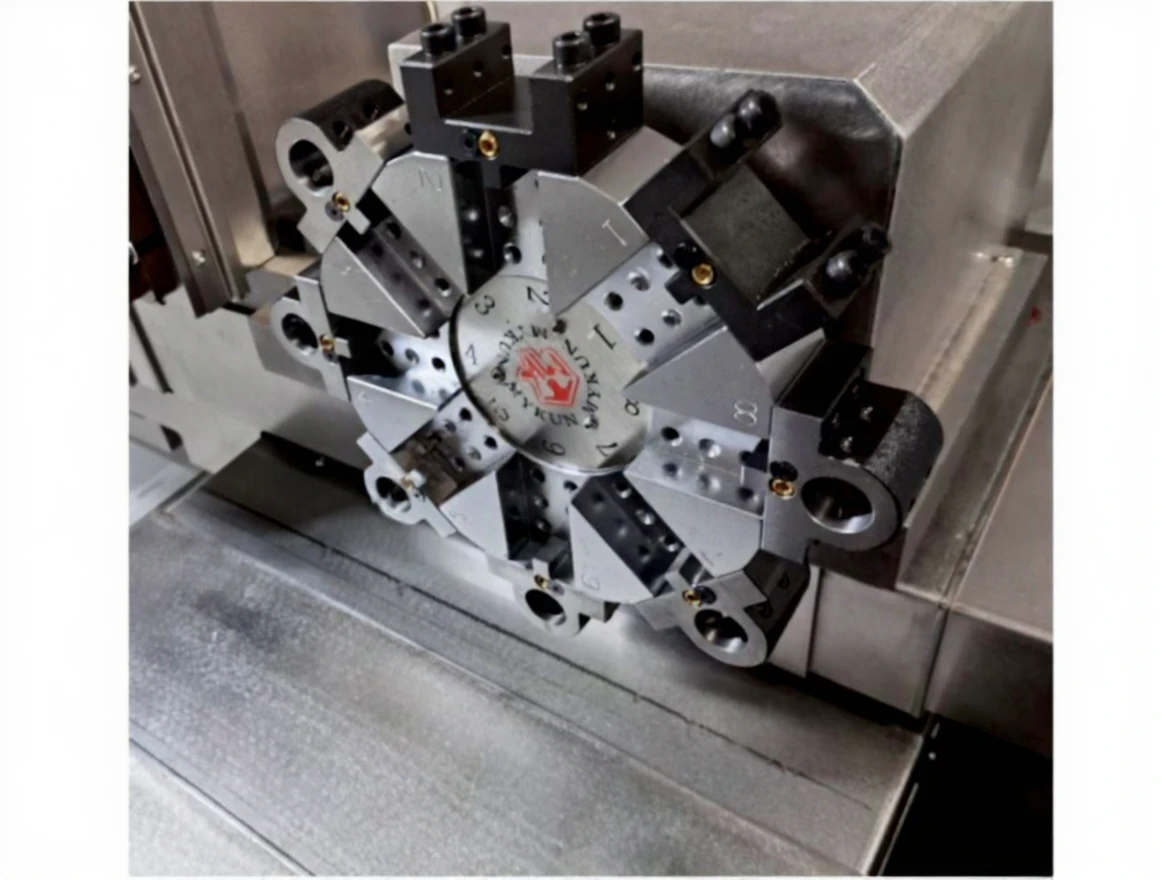

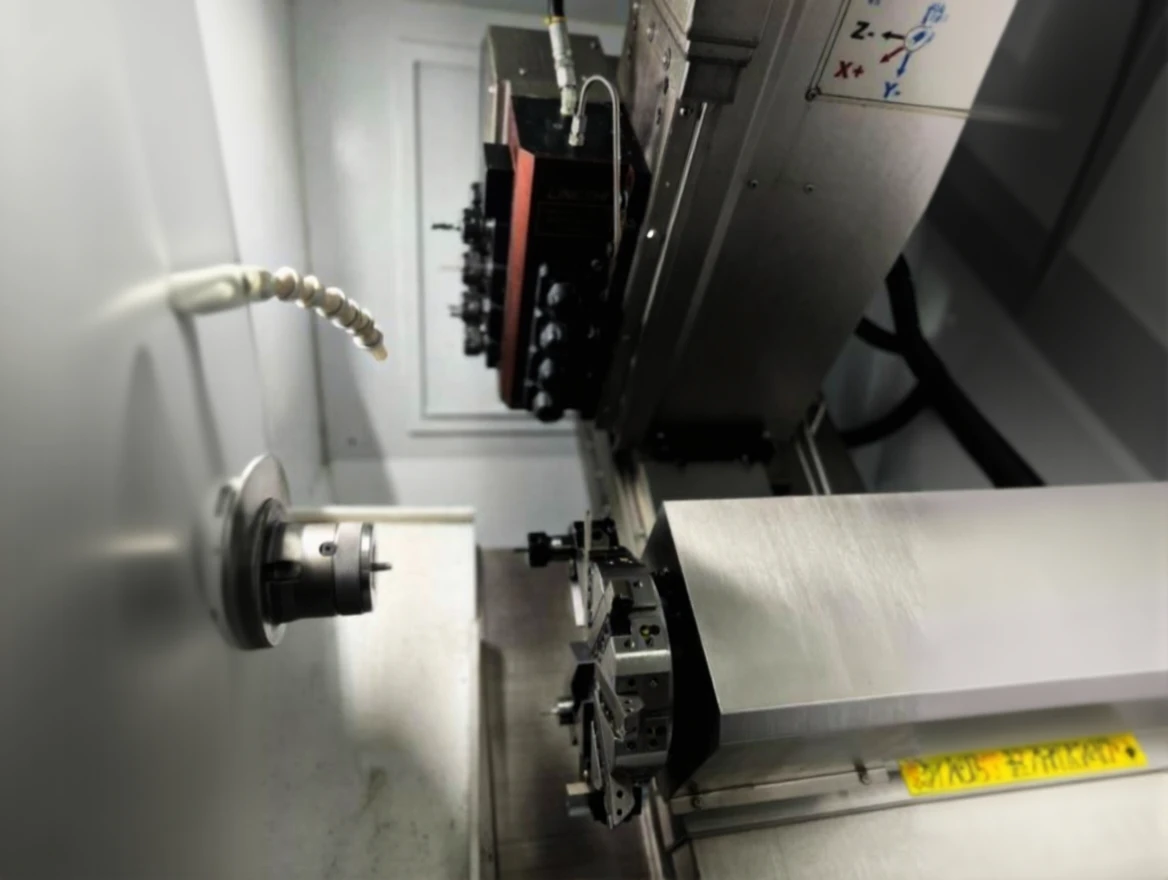

• Servo Turret: 8 stations

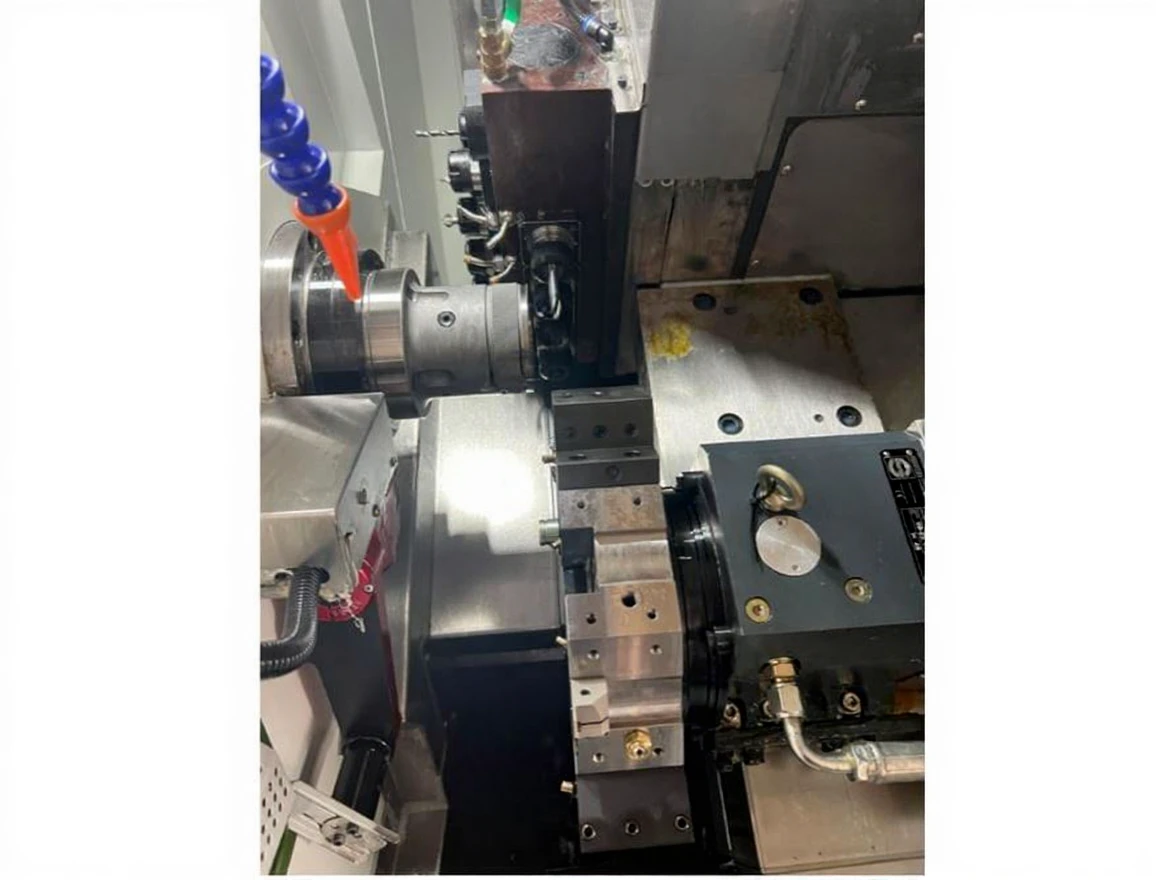

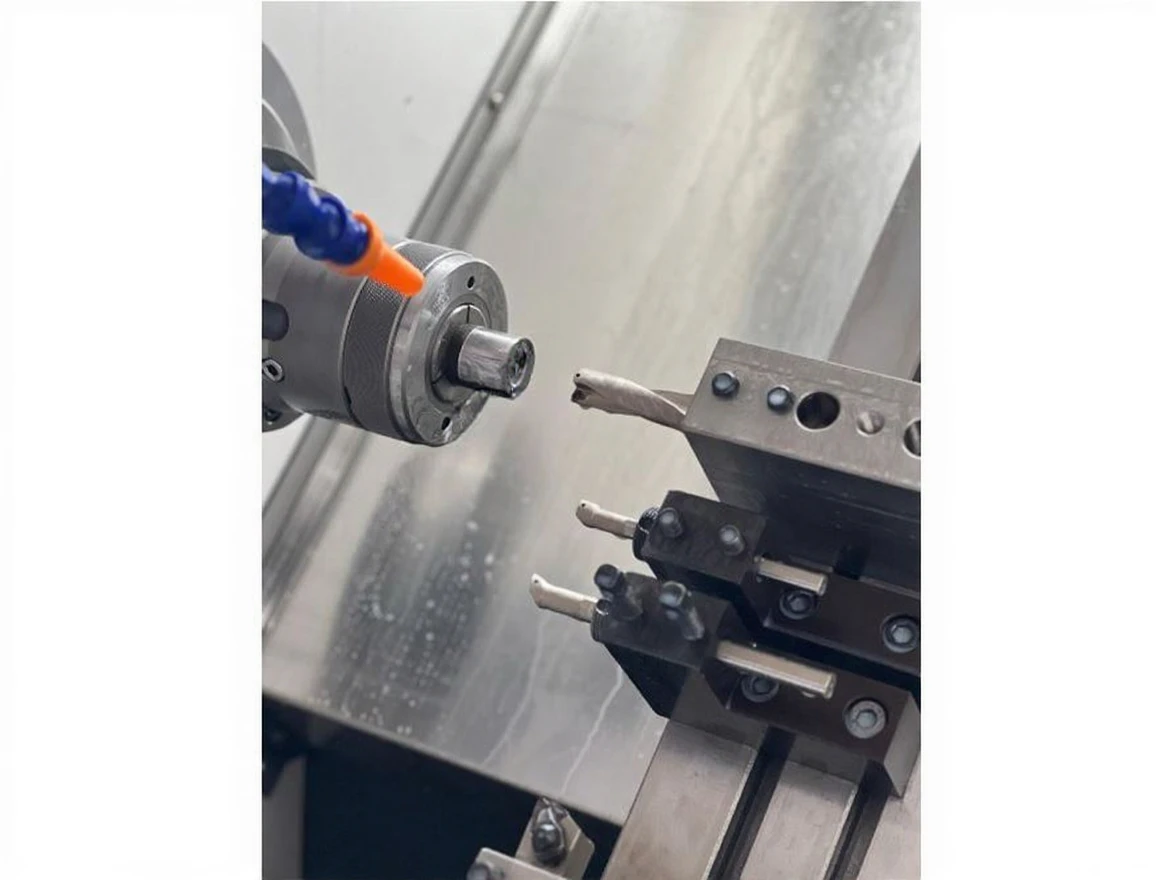

• Live Tooling: Yes (8 live, 4 fixed tools)

• Chip Conveyor: Yes

• CE Equipment: Yes

• Part Catching: Yes

• Magazine Bar Driver: Prepared

• Body Structure: 30° inclined bench cast body

• Y Axis Movement: Friction slide

Capacity

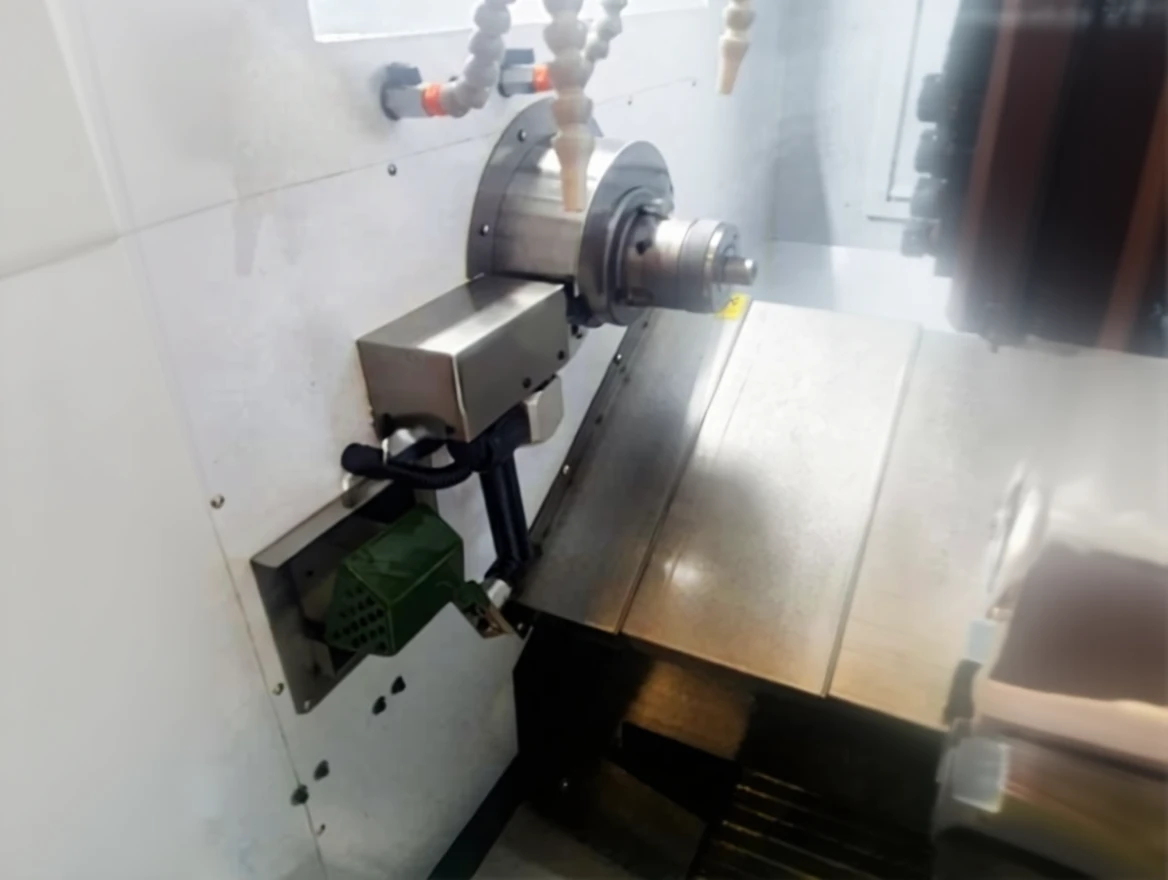

• Chuck Size: 6 inches

• Max. Swing Diameter (Over Bed): Ø350 mm

• Max. Turning Length: 250 mm

• Max. Turning Diameter: Ø200 mm

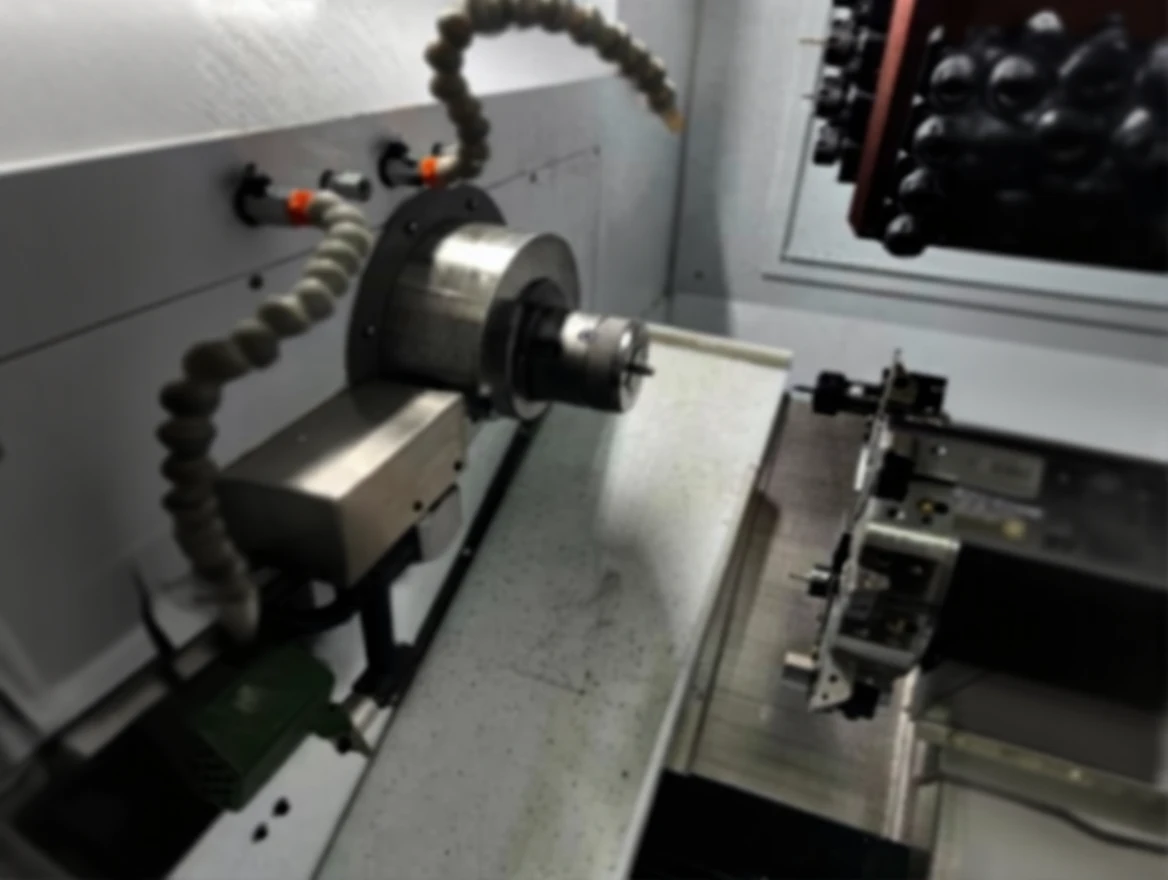

Spindle

• Spindle Hole: Ø56 mm

• Spindle Speed: 4500 rpm

• Max. Bar Diameter: Ø44 mm

• Motor Power: 11 kW

X / Y / Z Axes

• Linear Guide Width (X/Y/Z): [ PHONE HIDDEN ]

• X Axis Movement: 300 mm

• Y Axis Movement: 200 mm

• Z Axis Movement: 250 mm

• X / Y / Z Axis Speed: [ PHONE HIDDEN ] m/min

Turret and Live Tooling

• Turret Type: 8 live

• Live Tooling Chuck Size: ER25

• Live Tooling Speed: 3000 rpm
