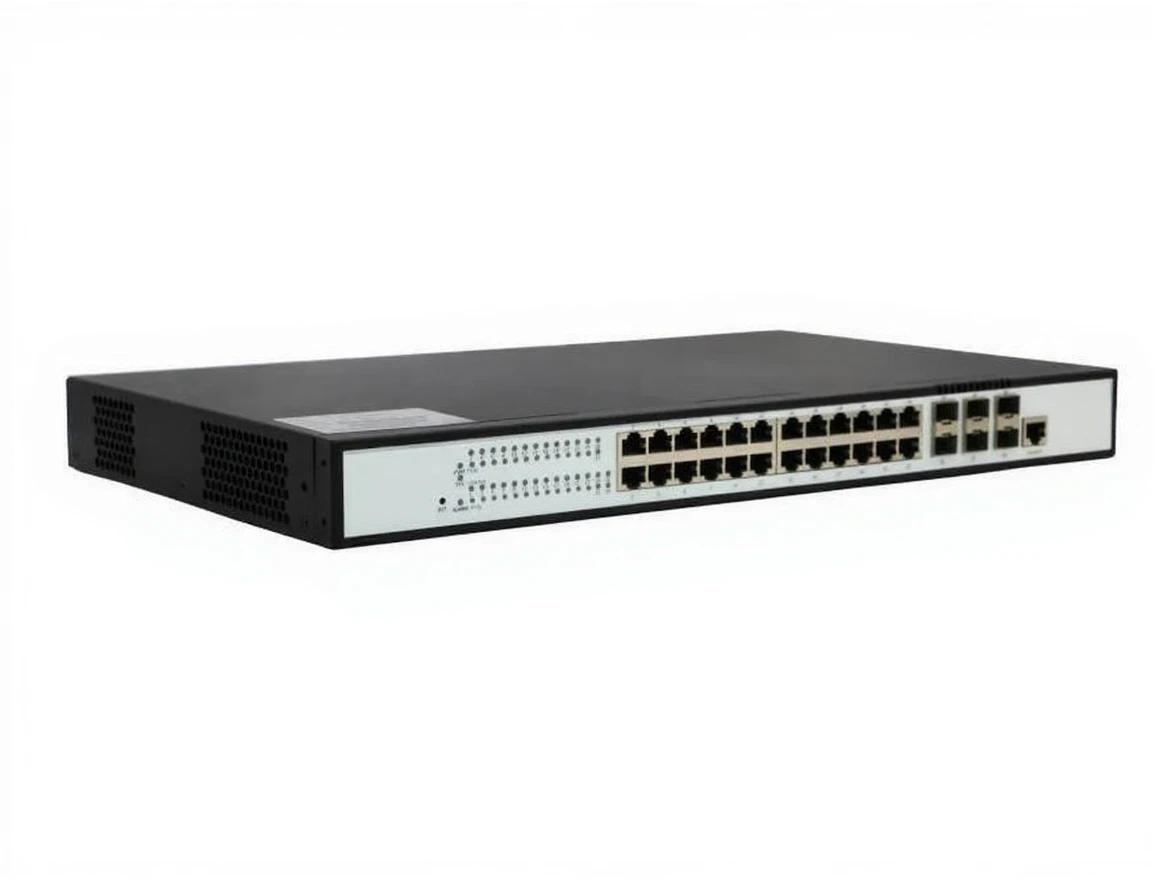

Longline PoE Switch 2.5G Layer 3 Managed Ethernet Switch LNG5720-24MP6X

Longline LNG5720-24MP6X is a Layer 3 managed gigabit ethernet access switch with 2.5G connection support and Power over Ethernet (PoE). This device provides high performance, energy efficiency, and reliability in medium and large-scale network infrastructures. It is an ideal choice for extensive network solutions with fiber and copper connection options.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3bz: 2.5GBase-T

• IEEE 802.3x: Flow Control

• IEEE 802.3af: PoE (Power over Ethernet)

• IEEE 802.3at: PoE+ (Advanced Power over Ethernet)

Switching Features:

• Back Plane Bandwidth: 128 Gbps

• MAC Address Table: 16K

• Management Level: Layer 3 Managed (Static routing and RIP support)

Port Features:

• RJ45 Ports: 24 x 2.5GBase-T (PoE+ supported)

• SFP Slots: 6 x 1000Base-X SFP

• Auto speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Supply Requirements:

• Input Voltage: AC 100-240V (Single power input)

• PoE Power Output: 15.4W (PoE) / 25.5W (PoE+)

• Power Consumption: Not specified

Physical Specifications:

• Enclosure: Metal case

• Dimensions: 440 x 300 x 44 mm

• Mounting Method: Rack mount

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certifications:

• Electromagnetic Compatibility (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Durability:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Free Fall: IEC 60068-2-32
