Longline Poe Network Switch Layer3 Managed Poe Switch Gigbit Ethernet Access Layer Switch

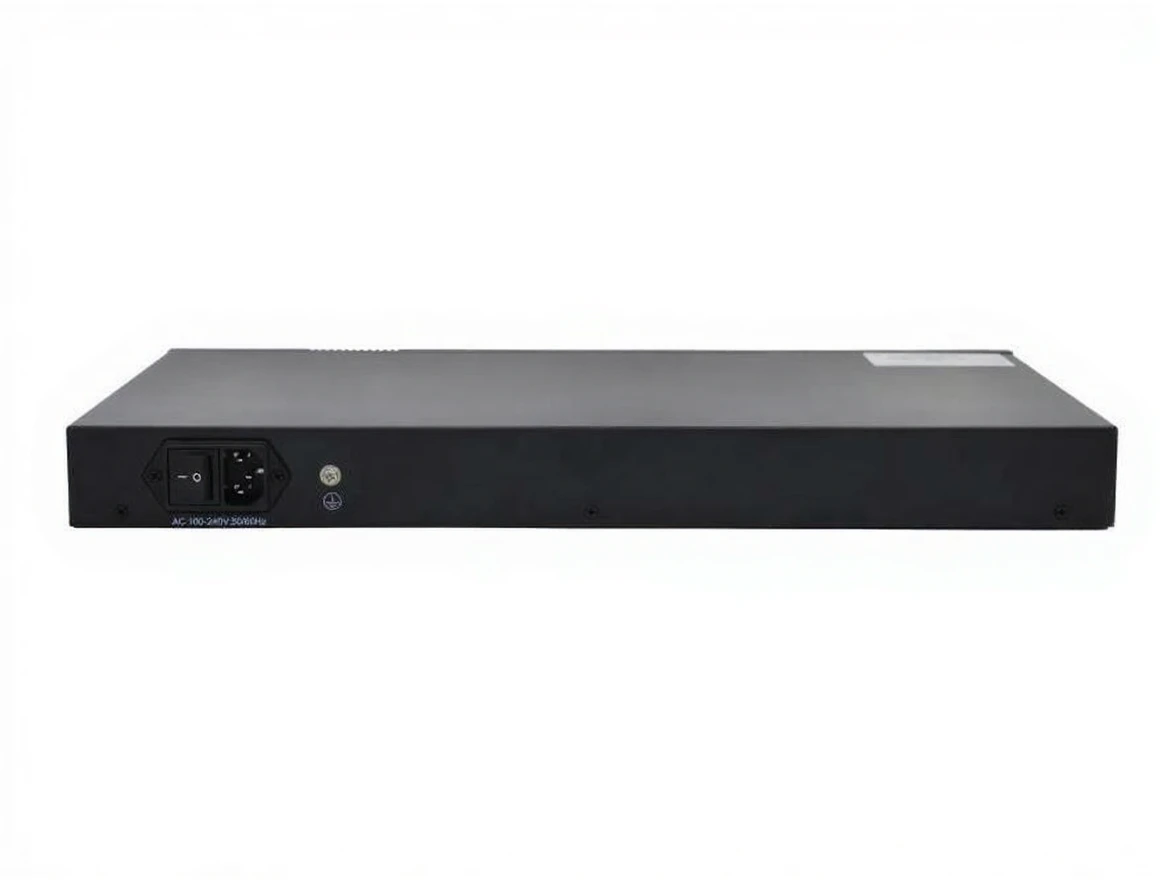

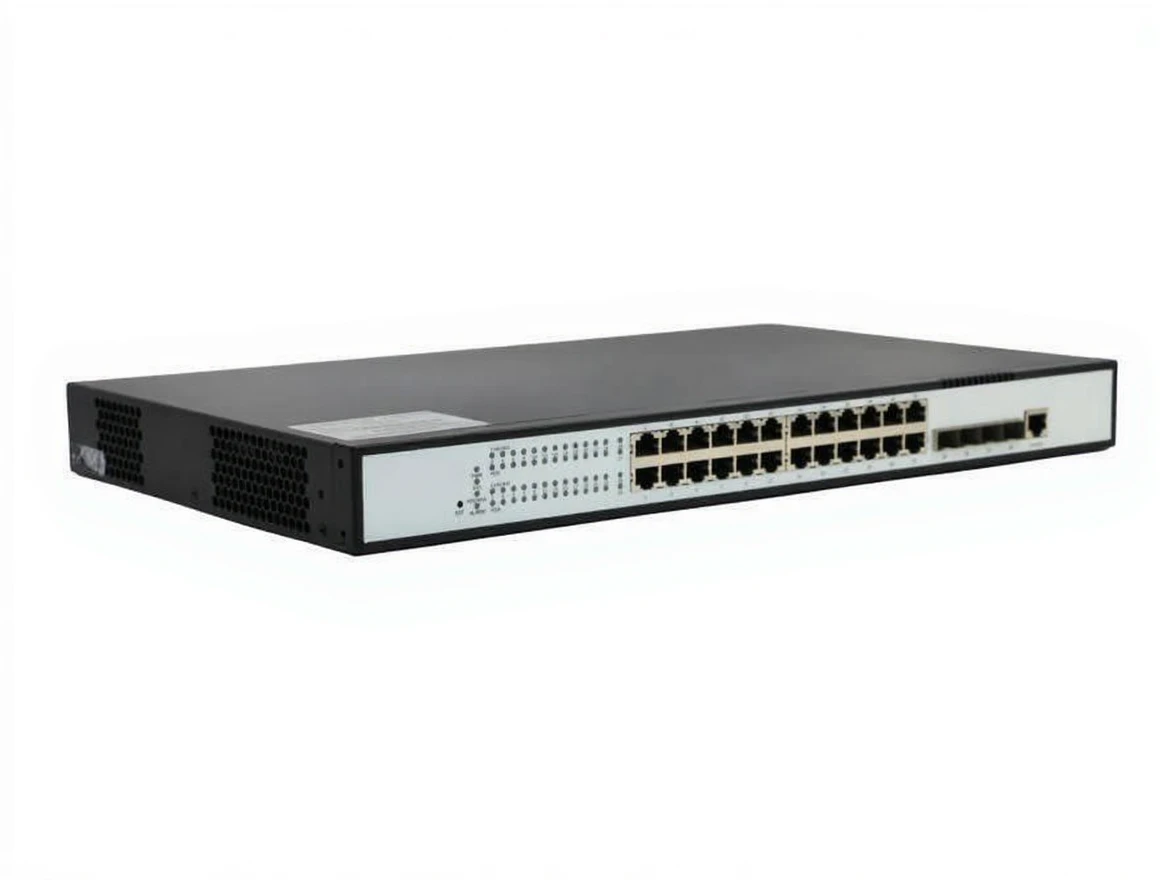

Longline PoE Network Switch Layer3 Managed POE Switch Gigabit Ethernet Access Layer Switch LNG5710-28TP

Longline LNG5710-28TP is a high-performance and reliable Layer 3 managed gigabit ethernet access switch that supports PoE (Power over Ethernet). This switch provides an excellent solution for energy efficiency, network management, and connectivity needs while ensuring seamless data transmission and power distribution in industrial and commercial network infrastructures.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3x: Flow Control

• IEEE 802.3af: PoE (Power over Ethernet)

• IEEE 802.3at: PoE+ (Advanced Power over Ethernet)

Switching Features:

• Back Plane Bandwidth: 128 Gbps

• MAC Address Table: 16K

• Management Level: Layer 3 Managed (Static routing and RIP support)

Port Features:

• RJ45 Ports: 24 x 1000Base-T (PoE+ supported)

• SFP Slots: 4 x 1000Base-X SFP

• Auto-speed Adaptation, Full/Half Duplex Mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Requirements:

• Input Voltage: AC 100-240V (Single power input)

• PoE Power Output: 15.4W (PoE) / 25.5W (PoE+)

• Power Consumption: Not specified

Physical Specifications:

• Enclosure: Metal housing

• Dimensions: 440 x 300 x 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

• Electromagnetic Compatibility (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Durability:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Free Fall: IEC 60068-2-32
