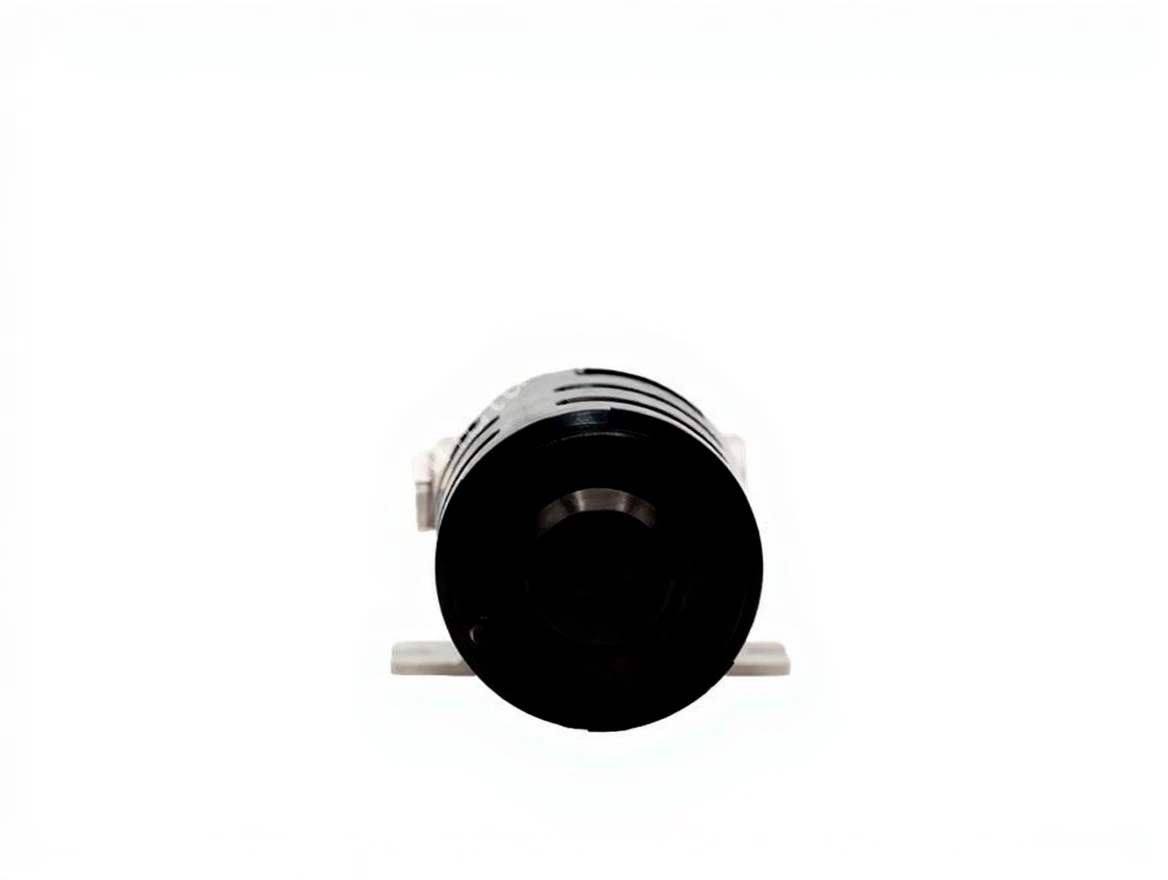

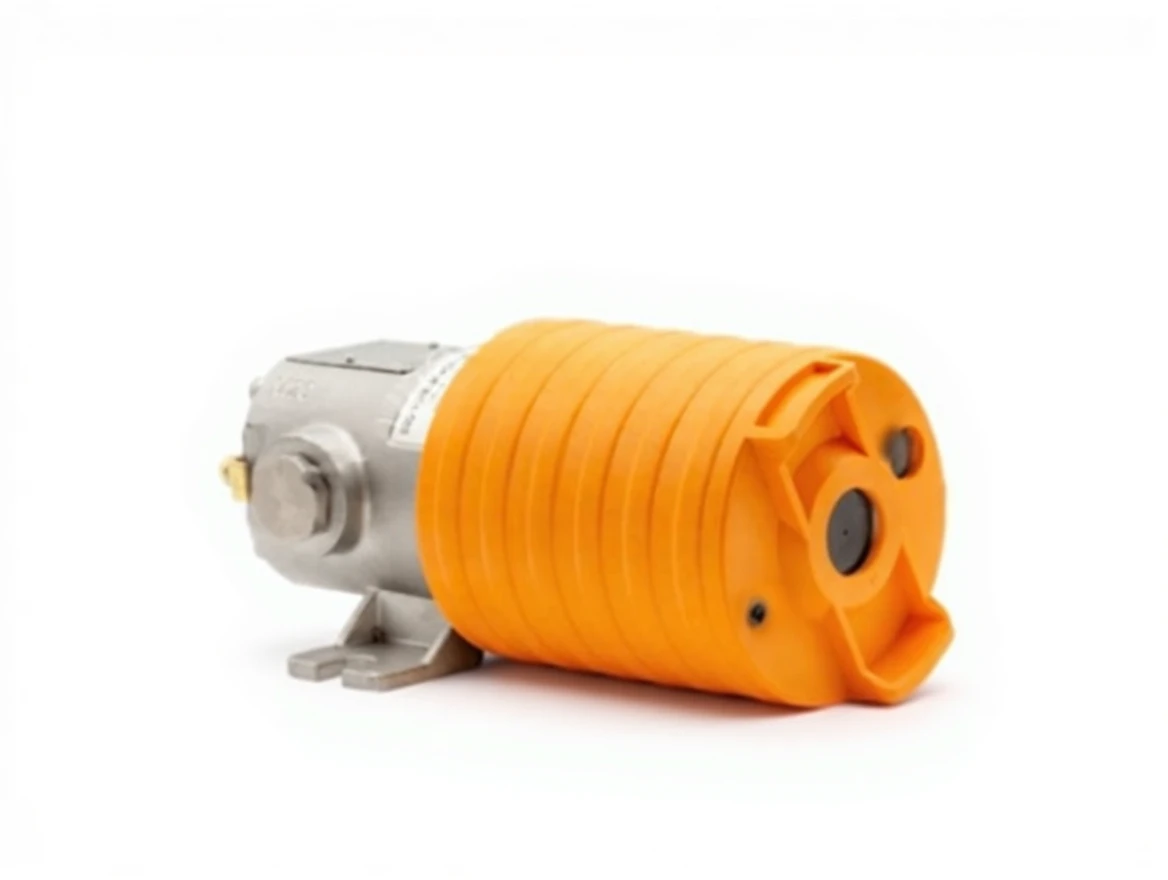

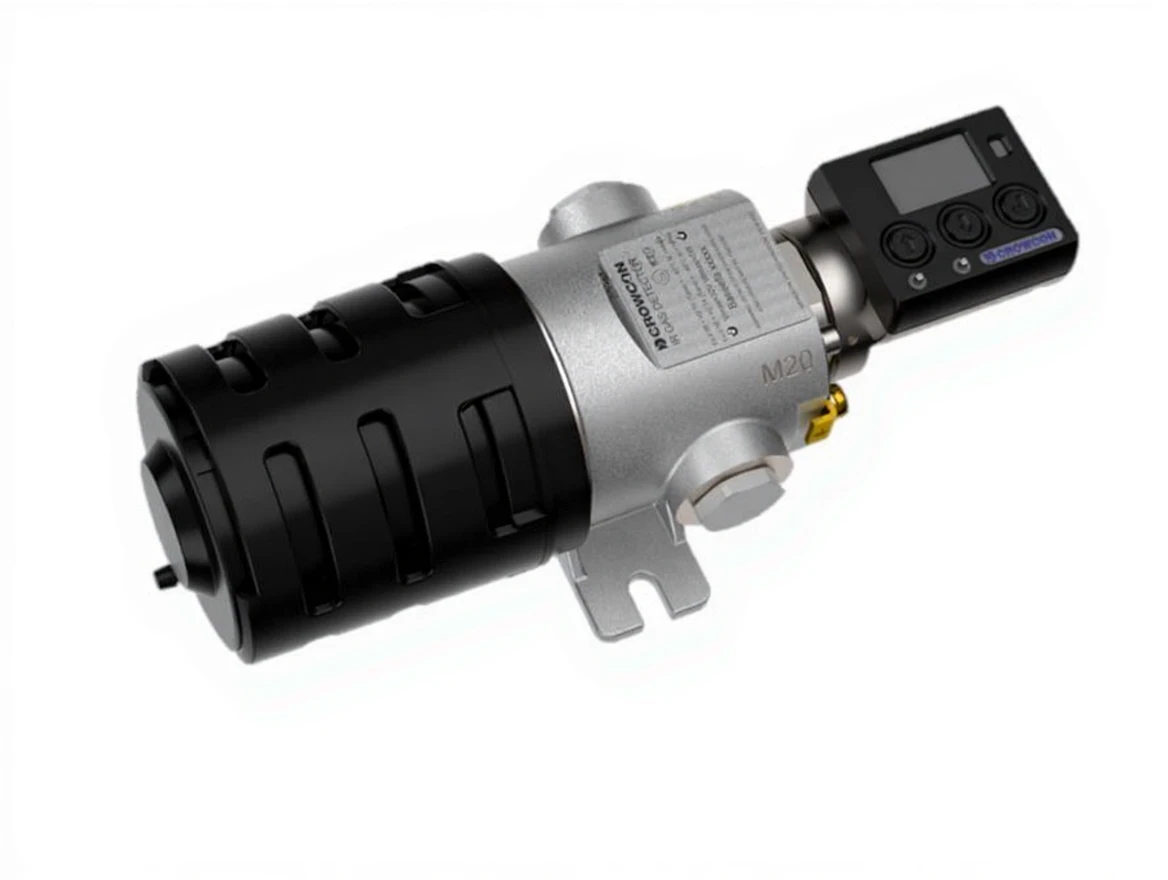

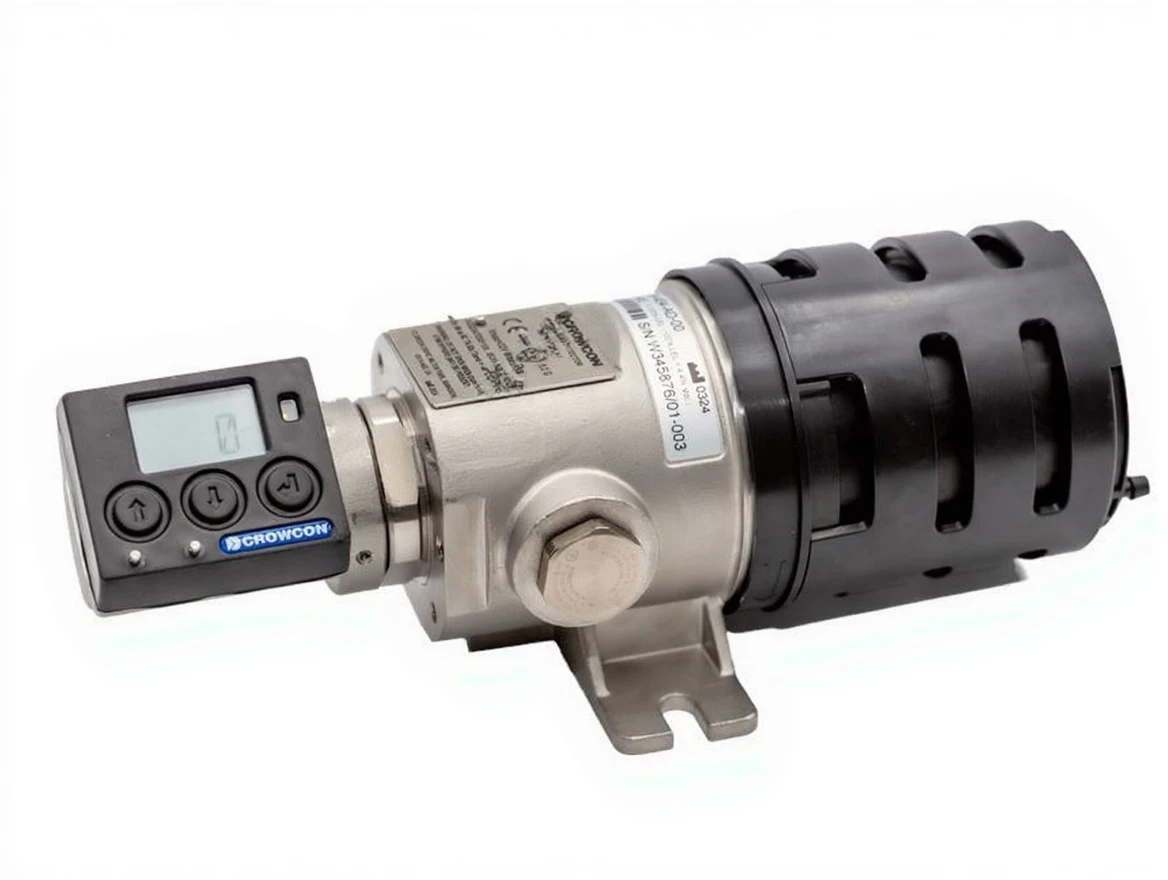

Methane Propane and Various Hydrocarbon Gas Detector
| Brand | Crowcon |
|---|---|
| Model Type |
IR Plus |
Crowcon IR Plus Gas Detector General Features
IR Plus is a reliable, durable, and extremely robust infrared hydrocarbon gas detector that uses dual IR wavelength band technology. With optional visualization features, this device ensures the rapid and accurate detection of methane, propane, and other various hydrocarbons, further enhancing its reliability, making it an ideal choice for harsh environments.
Crowcon IR Plus Technical Specifications
|
GASES |
Methane, Propane Contact Crowcon for more target gases |
|
DIMENSIONS |
194 mm x 119 mm x 94.2 mm (7.6 x 4.7 x 3.7 inches) |
|
WEIGHT |
4.1 kg (9.0 lbs) IR Plus Fixed IR Screen 4.5 kg (9.92 lbs) IR Plus With IS Barrier Module 4.9 kg (10.8 lbs) IR Plus 0.2 kg (0.4 lbs) IR Plus Remote Screen |
|
HOUSING MATERIAL |
316L Stainless Steel |
|
RESPONSE TIME (T90) |
4 seconds |
|
PERFORMANCE |
Zero Drift: ±%2 FSD per year Repeatability: ±%2 FSD Linearity: ±%2 FSD |
|
IR SOURCE |
Stay-clIR hydrophobic mirrored smart heated optics |
|
OPERATING VOLTAGE |
From 12v DC to 30v DC |
|
POWER |
< 5.5 W |
|
OUTPUT |
3 wired 4-20 mA (Stack or Source) 2mA dirty optical warning (at 75% dimming, configurable) 0mA detector fault signal (at 90% dimming, configurable) RS-485 Modbus HART 7 (optional) |
|
FAULT SIGNAL |
21mA |
|
CONNECTION/PORT ENTRIES |
2 x M20 or 2 x ¾” NPT cable gland entry |
|
OPERATING TEMPERATURE |
-40°C to +70°C (-40°F to 158°F) |
|
OPERATING HUMIDITY |
0% to 100% RH condensation |
|
PROTECTION DEGREE |
IP66 (EN60529) IP ratings do not mean that the equipment will detect gas during and after exposure to these conditions |
|
FUNCTIONAL SAFETY |
IEC 61508, EN 50402, SIL2 |
|
PERFORMANCE STANDARDS |
IEC EN 60079-29-1* |
|
HAZLOC STANDARDS |
EN IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31 EN IEC 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 |
|
APPROVALS |
ATEX, IECEx, INMETRO, CNEx, PESO, ECAS*, FM* |
|
EMC COMPLIANCE |
EN50270, FCC CFR47 Part 15B, ICES-003 |
